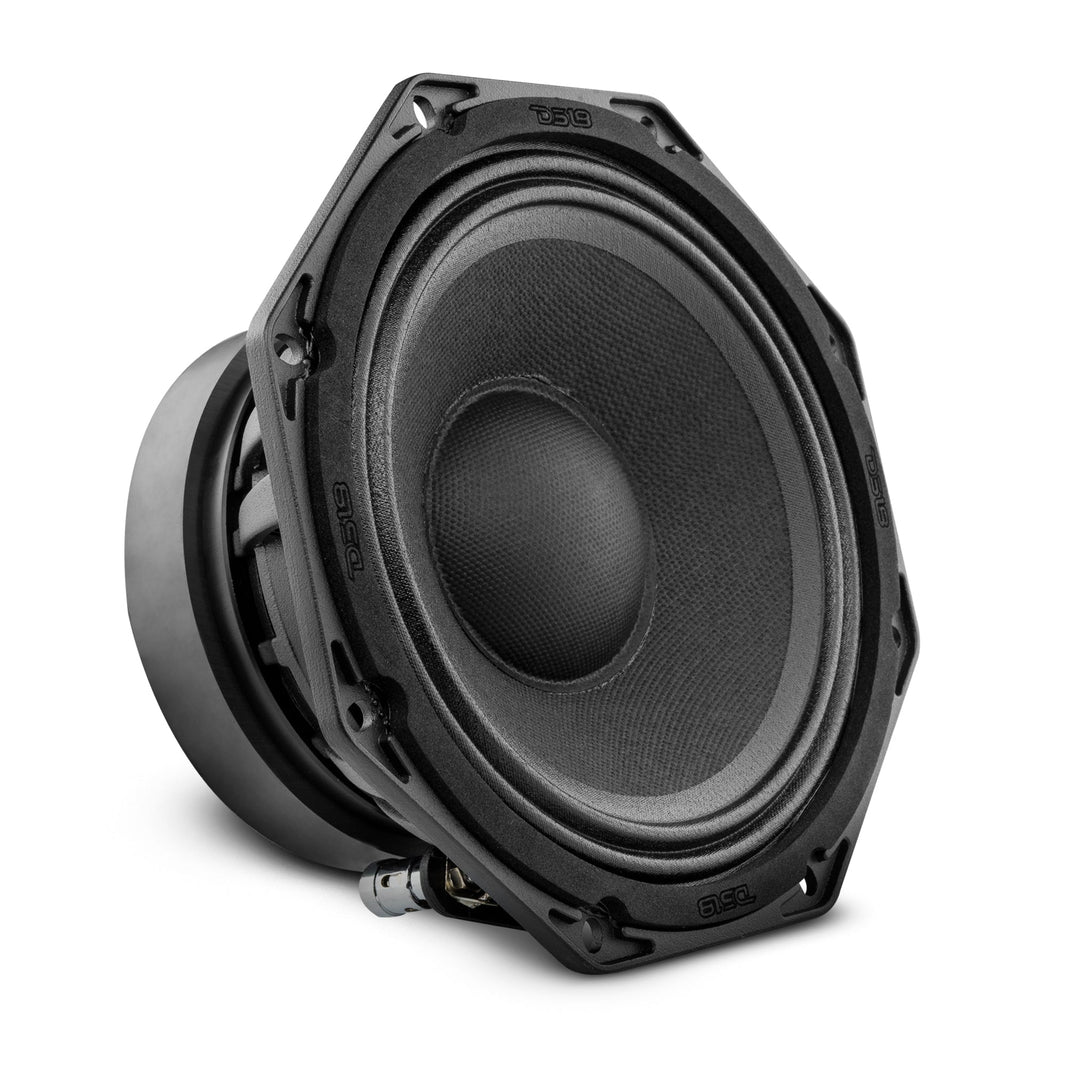

Octagonal 6.5" Mid-Range Loudspeaker 300 Watts Rms 8-Ohm
Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY

- Description
- Additional info
- Reviews
- Octagonal shape offers wider range of frequency response available to speakers of rounder shape
- Easier organization of the equipment in your system
- 300 RMS Power Handling
- 600 MAX Power Handling
DS18 6OCT300-8 PRO Octagon 6.5" Mid-Range Loudspeaker
600 Watts Max 8 Ohm
Get your system in shape with DS18βs new 6OCT300-8!
This 6.5β octagonal midrange loudspeaker offers better frequency response than your usual round speakers and can reproduce frequencies as low as 80Hz and as high as 10KHz!
Create an incredibly tangible soundstage that increases the quality and feel of the speakers in your system and sound created by them!
For our competitors, the octagonal speakers will give your show stopping system a cleaner look that can be easily organized for precise reproduction when you need it most.
Itβs high sensitivity, rated at 95 dB, allows it to handle powers of 300 W RMS and 600 W MAX. These speakers get LOUD easily, just the way we like it!
Β Install these 8 ohm speakers into your sound system correctly and enjoy intense volume that never fades!
Β Highlights





Β Technical DetailsΒ Β
| SPECIFICATIONS | Β |
| Nominal DiameterΒ | 6.5β / 165mm |
| Nominal ImpedanceΒ | 8 ohms |
| RMS Power HandlingΒ | 300W |
| MAX Power HandlingΒ | 600W |
| Sensitivity (1w/1m)Β | 95dB |
| Frequency Response | 80Hz-10KHz |
| Recommended HI Pass Crossover | 120Hz |
| Sold As Pair or Single | Single |
| Grill Included | No |
| MOTOR | Β |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former MaterialΒ | TIL |
| Winding MaterialΒ | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket MaterialΒ | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 30 oz |
| Displacement Volume | 0.05L / 0.0017ft3 |
| MEASUREMENT | Β |

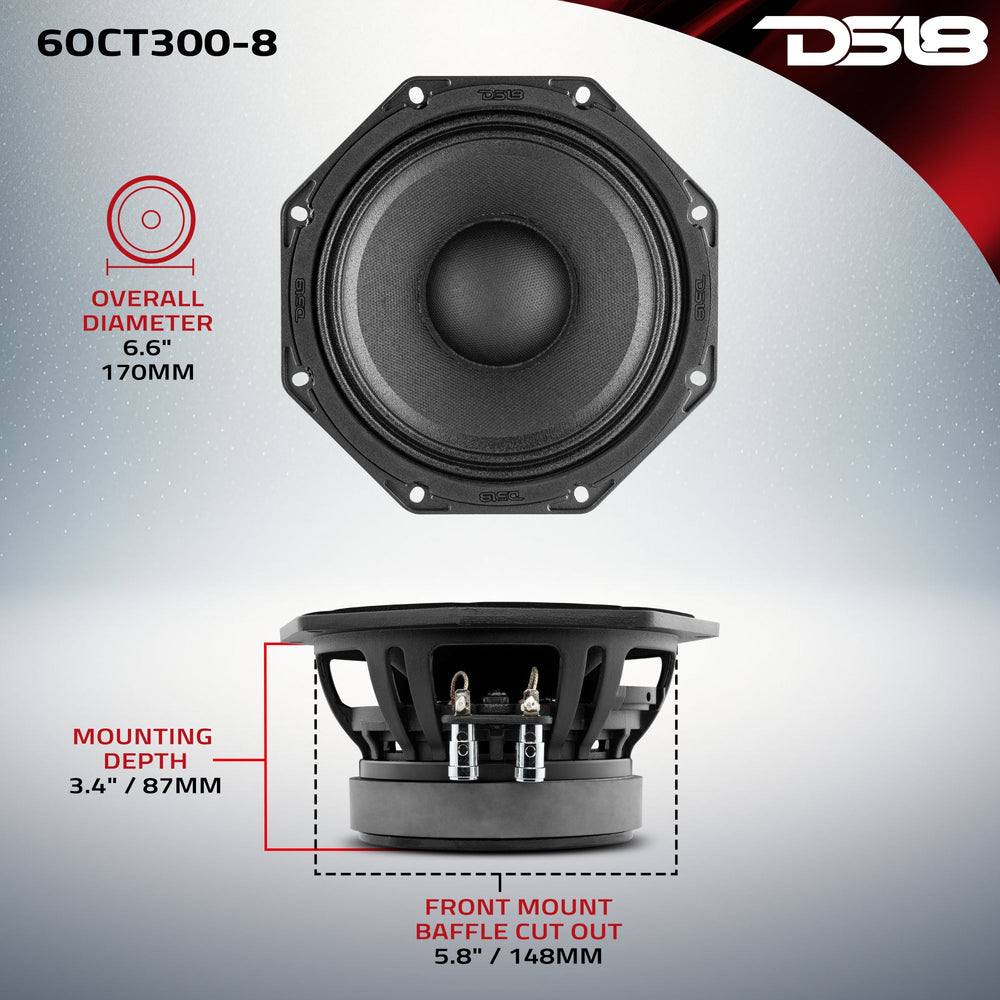

| Overall Diameter | 6.7" / 170mm |
| Overall Depth | 3.7" / 95mm |
| Front Mount Baffle Cutout | 5.8" / 148mm |
| Mounting Depth | 3.4" / 87mm |
| Motor Diameter | 4.7" / 120mm |
