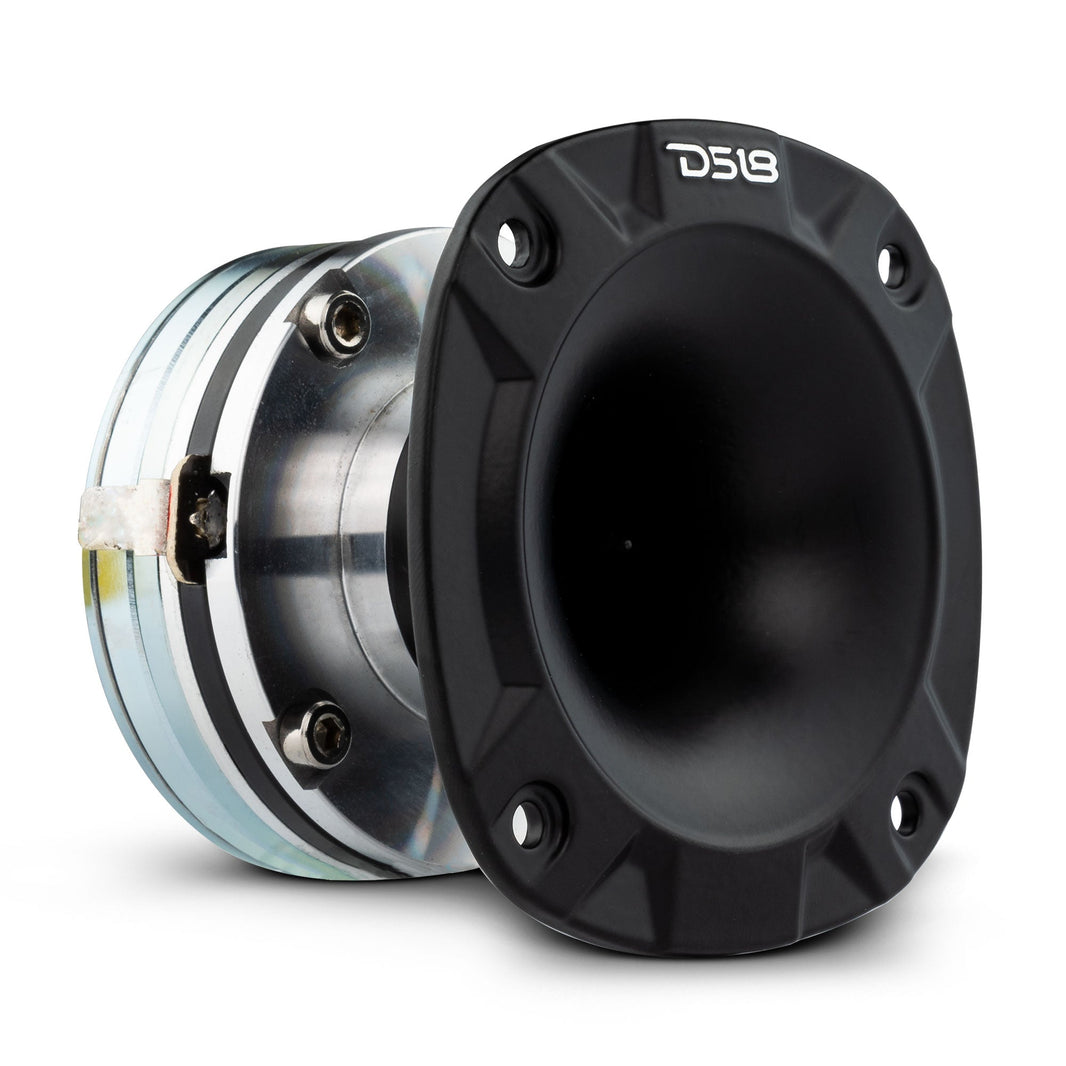

1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc

1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc

Regular price $104.95
Vendor:DS18
Type:Car Audio : Drivers
SKU:PRO-DRNSC1.5DK
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

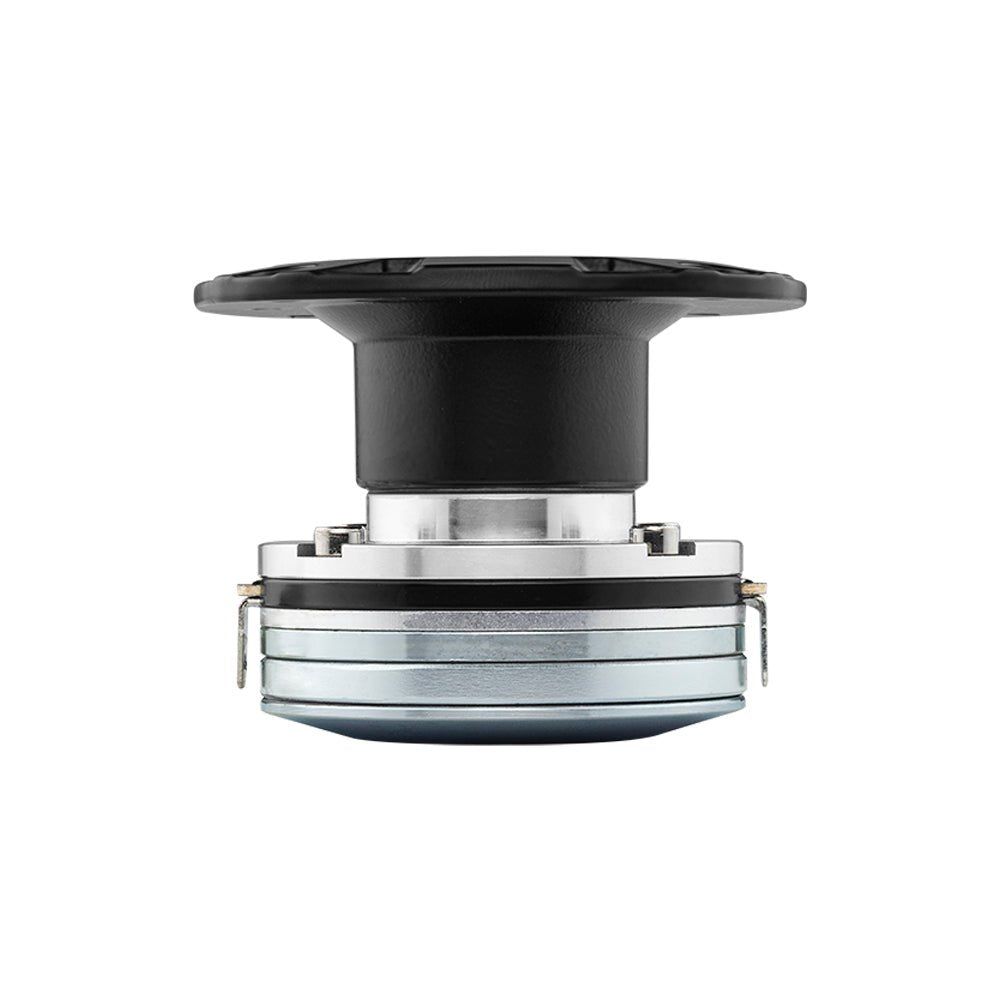

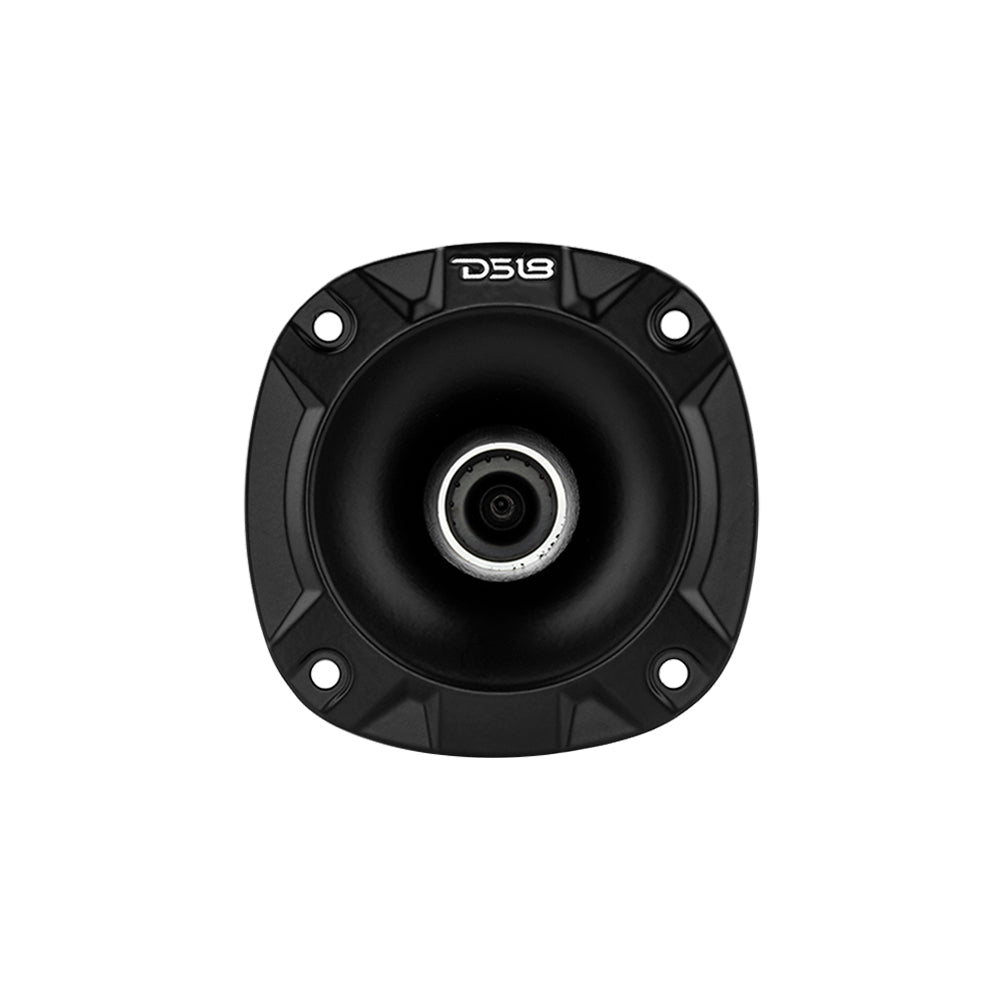

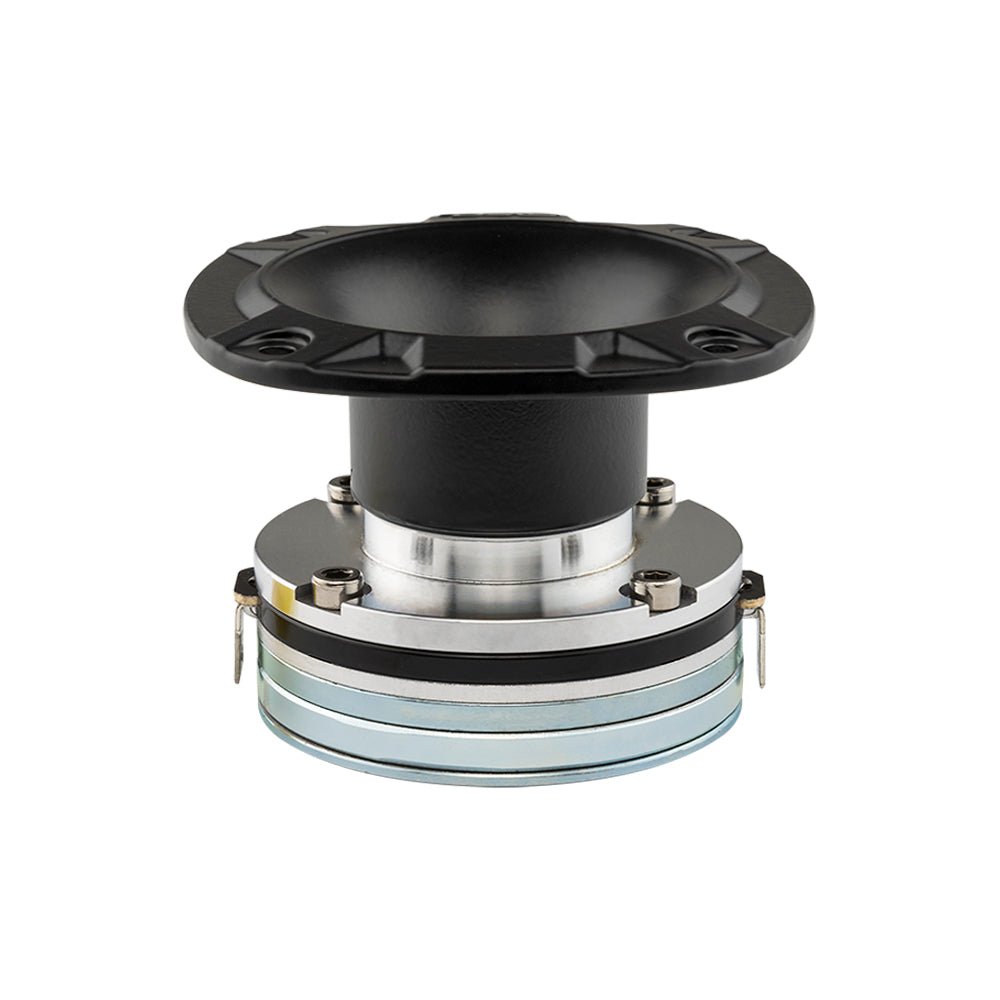

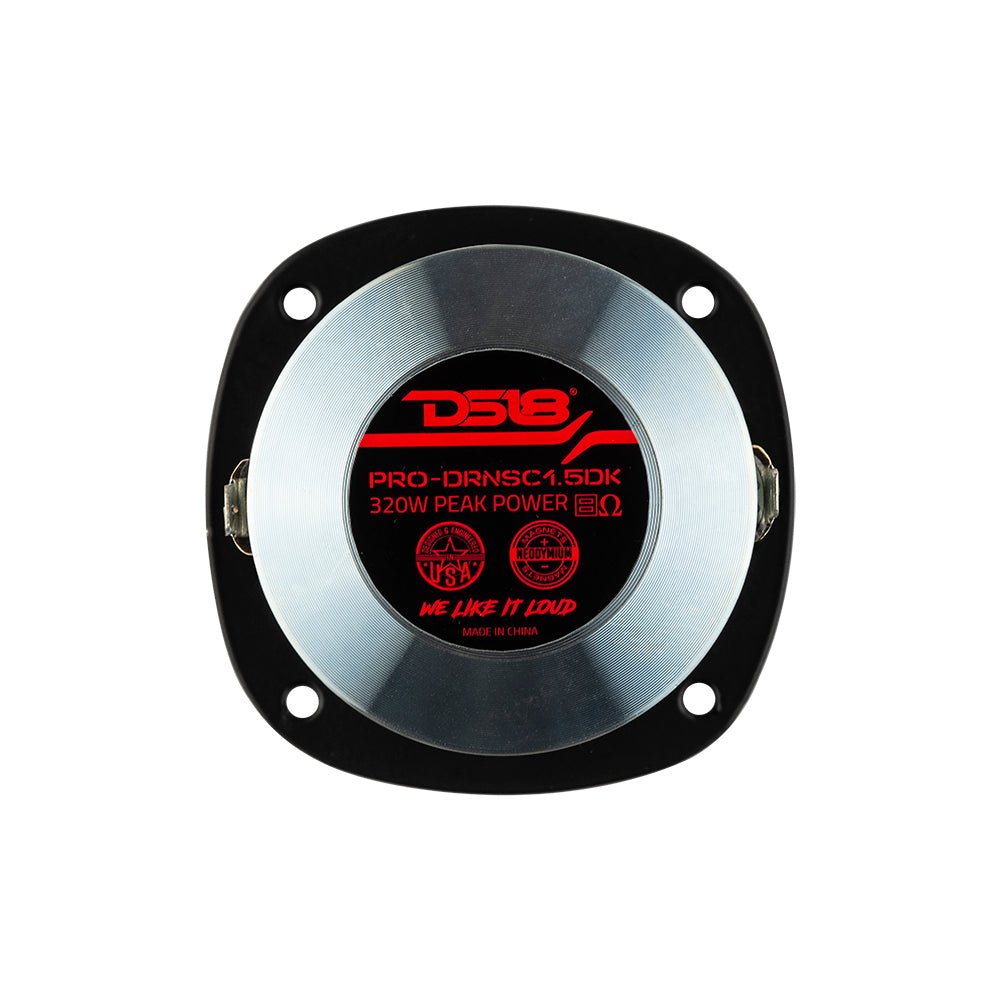

    DS18 PRO-DRNSC1.5DK 1" Neodymium Driver with 1.5" Composite Polyamide VC 8 Ohm With Horn

    The PRO-DRNSC1.5DK boasts unmatched power handling for the Pro Audio sound you love. This neodymium compression driver ensures unparalleled performance that delivers impressive sound with striking clarity and limitless depth. Equipped with a highly durable 1.5” voice coil, these drivers are guaranteed to perform at their maximum potential for the entirety of any jam session. This compression driver doesn’t draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment. This variation of the PRO-DRNSC includes a non-removable horn throat so that it is ready to be quickly installed.

    Highlights

    • 80W AES Power Handling; 160W Program Power Handling; 320W Peak Power Handling
    • Drop-in voice coils for fast and easy repairs in the rare occasion they are overpowered
    • Neodymium Magnets to ensure the highest efficiency, and power handling, without the bulk of traditional ferrite magnets
    • Compact driver with functionality in spaces most drivers can’t fit
    • Made to fit most standard thread on horn throats
    • 109dB sensitivity for easy climbs to MAX volume

    Great For

    • Car Audio
    • Pro Audio
    • DIY Projects
    • Motorcycles
    • Stunt Walls

      Technical Details
                    PRO-DRNSC1.5DK Product Manual

      SPECIFICATIONS
      Nominal Impedance  8 ohm
      AES Power handling 80 W
      Program Power Handling  160 W
      Peak Power handling 320 W
      Sensitivity (1w/1m) With Horn 111 dB
      Frequency Response 1K-20KHz
      Recommended Hi Pass Crossover 2KHz
      Pair or Single Single
      MOTOR
      Voice Coil Diameter 1.5" / 38mm
      Voice Coil Former Material  Kapton
      Winding Material  Aluminum
      Diaphragm Material Polyimide
      Magnet Material Neodymium (N38H)
      Magnet Weight 2.4 oz
      Body Color / Finish Silver / Raw
      Body Material Aluminum
      HORN SPECIFICATIONS
      Nominal Diameter 3.15" / 80mm
      Throat Diameter 1" / 25.4mm
      Sound Coverage 60° (round)
      Body Material Aluminum
      Color/Finish Silver / Raw
      MEASUREMENT
      Overall Diameter 3.15" / 80mm
      Overall Depth 2.42" / 61.5mm
      Mounting Depth 2.22" / 56.5mm
      Mounting Hole Diameter 2.75" / 70mm
      Bolt Pattern (Horn) 2.13" / 54mm
