1" Throat Twist On Compression Driver with 1" Phenolic VC 240 Watts 8 ohm

1" Throat Twist On Compression Driver with 1" Phenolic VC 240 Watts 8 ohm

Regular price $26.95
Vendor:DS18
Type:Car Audio : Drivers
SKU:PRO-DR1P
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

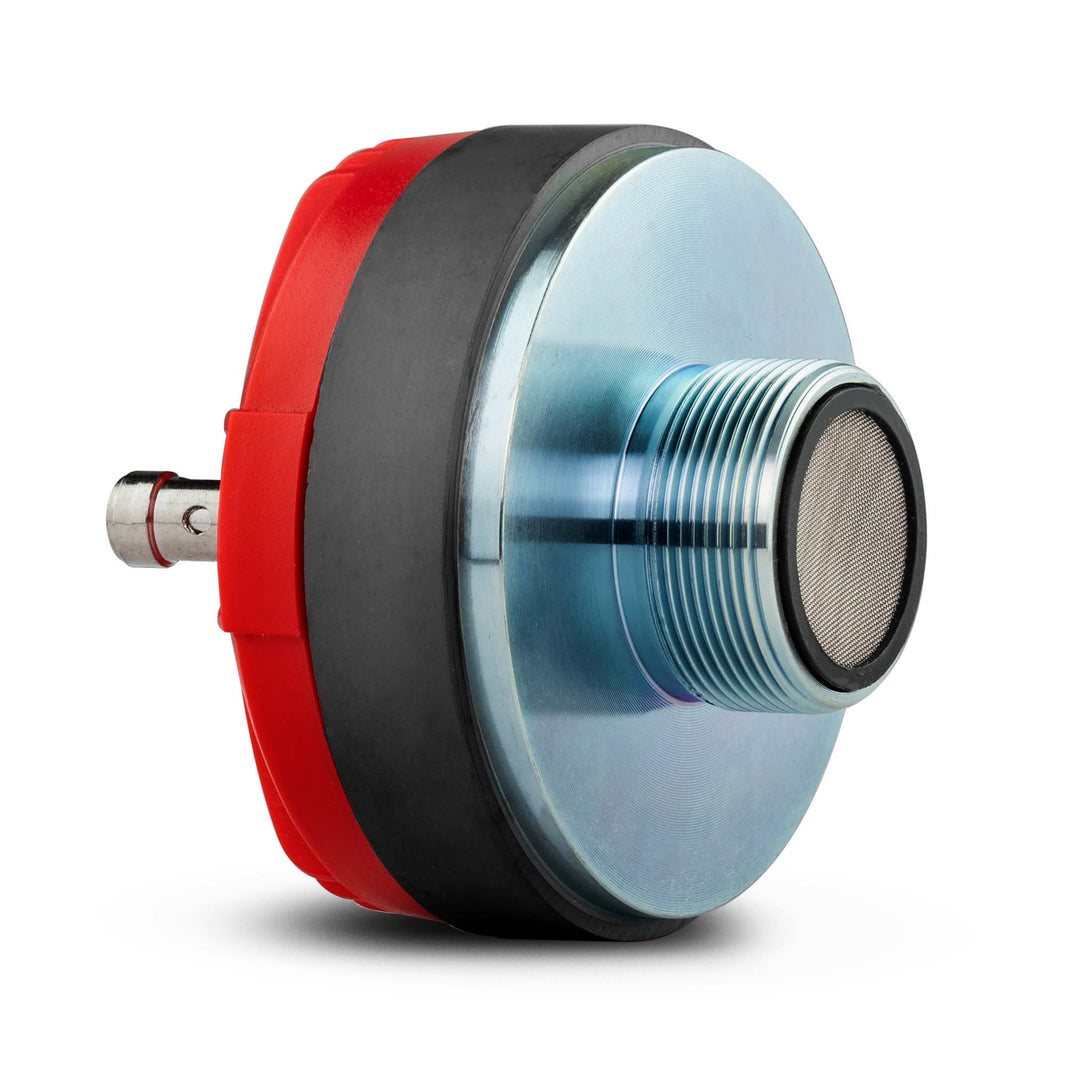

    DS18 PRO-DR1P 1" Throat Twist On Compression Driver with 1" Phenolic VC 240 Watts 8 ohm

    Screaming onto the scene is DS18's PRO-DR1P that has an all new design and has been tweaked for maximum performance and loudness. This horn driver sports a 1" 8-ohms CCA voice coil to absorb the 240W Peak power and is designed to really make it loud with efficiency. This driver has a 103 dB sensitivity so the potential of screaming loudness is easily obtainable with the right combination of power. This driver's frequency range is very wide starting at 800Hz all the way up to ear drum shattering 20KHz! The PRO-DR1P is sure to complete your pro audio system and complement all your other speakers with crisp and clear high range sound.

    Highlights

    • Utilizes a CCA 1" voice coil to maximize loudness per watt.
    • 240w Peak power and 120w program power will make these compliment your entire system
    • Removable voice coil so if you happen to need to repair on the go, it can be done in minutes.
    • Wide frequency response of 800Hz to 20KHz so you won't miss one high-hat or cymbal crash.
    • Will easily accommodate most screws on throats.



    Technical Details
    Throat Diameter 1"
    Installation Type Screw Down
    Nominal Impedance 8 ohms
    Peak Power Handling 240W
    Program Power Handling 120W
    AES Power 60 W
    Sensitivity (1w/1m) 103dB
    Frequency Response 800Hz-20KHz
    Recommended HI Pas Crossover 900Hz
    MOTOR
    Voice Coil Diameter 1"
    Voice Coil Former Material Kapton
    Winding Material CCA
    Diaphragm Material Phenolic
    Magnet Material Ferrite
    Magnet Weight 0.38oz
    MEASUREMENTS
    Overall Diameter 3.13"
    Overall Depth 2.4"
    Bolt Type M34
    Mounting Depth 1.79"
