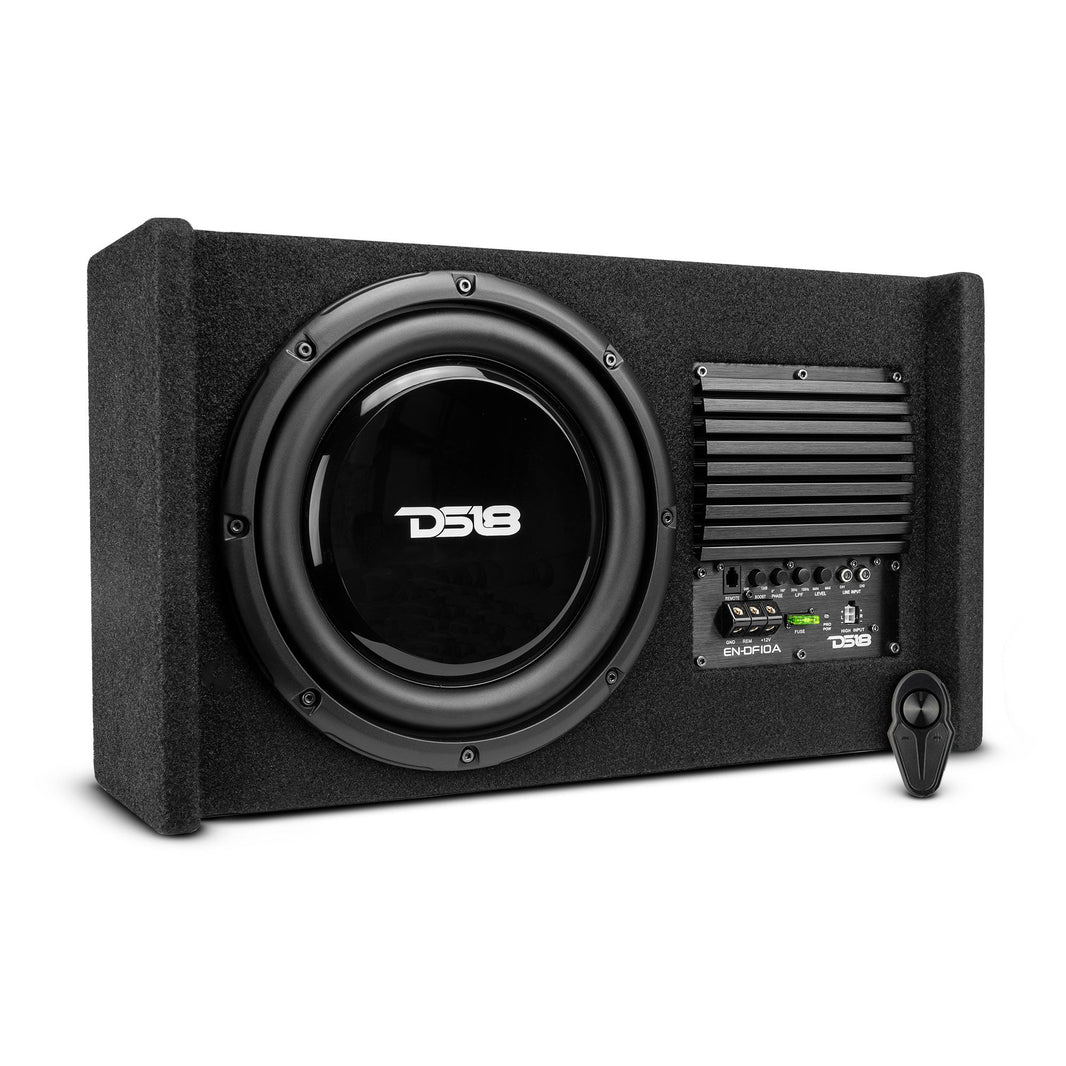

DS18 EN-DF10A 10" Amplified Shallow Down Firing
Subwoofer Enclosure 500 Watts

Designed to add magnificent bass to vehicles with minimal amounts of room for larger sized subs and boxes.

The EN-DF10A utilizes a 10 inch subwoofer in a compact enclosure (sized at 20” x 11” x 6”) to help extend and elaborate the bass for your music!

This subwoofer requires an external amplifier to feed it the 300 watts RMS it needs at 4 ohms.  Equipped with rubber surround and plastic cone these speakers were built to last. The ferrite magnet and copper voice coil on these speakers gives added stability while enclosed for when these speakers are pushed to their limit.

The built in amp provides power at a power rating of 250W RMS and 500W MAX: perfect power settings for long-lasting jam sessions. The included dB boosting, phase adjusting, low pass filtration, and remote bass knob promotes genuine sound clarity by giving complete control over your audio when you need it. This amp also has hi-level inputs so it can be integrated into your factory audio system easily.

This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.

Highlights

• Compact design allowing endless options for placement in areas with minimal space
• Built in high power amplifier with remote control functionality.
• 250W RMS 500W MAX output engineered to power this compact subwoofer and enclosure to optimal production.
• Specially designed 10 inch subwoofer that maximizes bass response in spaces that are not typically designed for subwoofers.
• Small sealed box made of 5/9 MDF and covered in stylish black carpet
• .42 CF net internal volume

Great For

• Pro Audio
• Car Audio

Technical Details

             EN-DF10A Product Manual

GENERAL
Speaker Type / Size	10" Active Subwoofer
Total Impedance	2 ohms
Total RMS Power Handling	250W (14.4V)
Total MAX Power Handling	500W
Sensitivity (1w/1m)	86dB
Frequency Response	25-250Hz
Recommended Lo Pass Crossover	80Hz
SPEAKER SPECIFICATIONS
Voice Coil Diameter	1.52" / 38.6mm
Voice Coil Former Material	Aluminum
Winding Material	Cooper
Cone Material	Injection  PP  Cone
Dust Cap Material	/
Surround Material	Rubber
Basket Material	Steel
Magnet Material	Ferrite
Magnet Weight	40 Oz

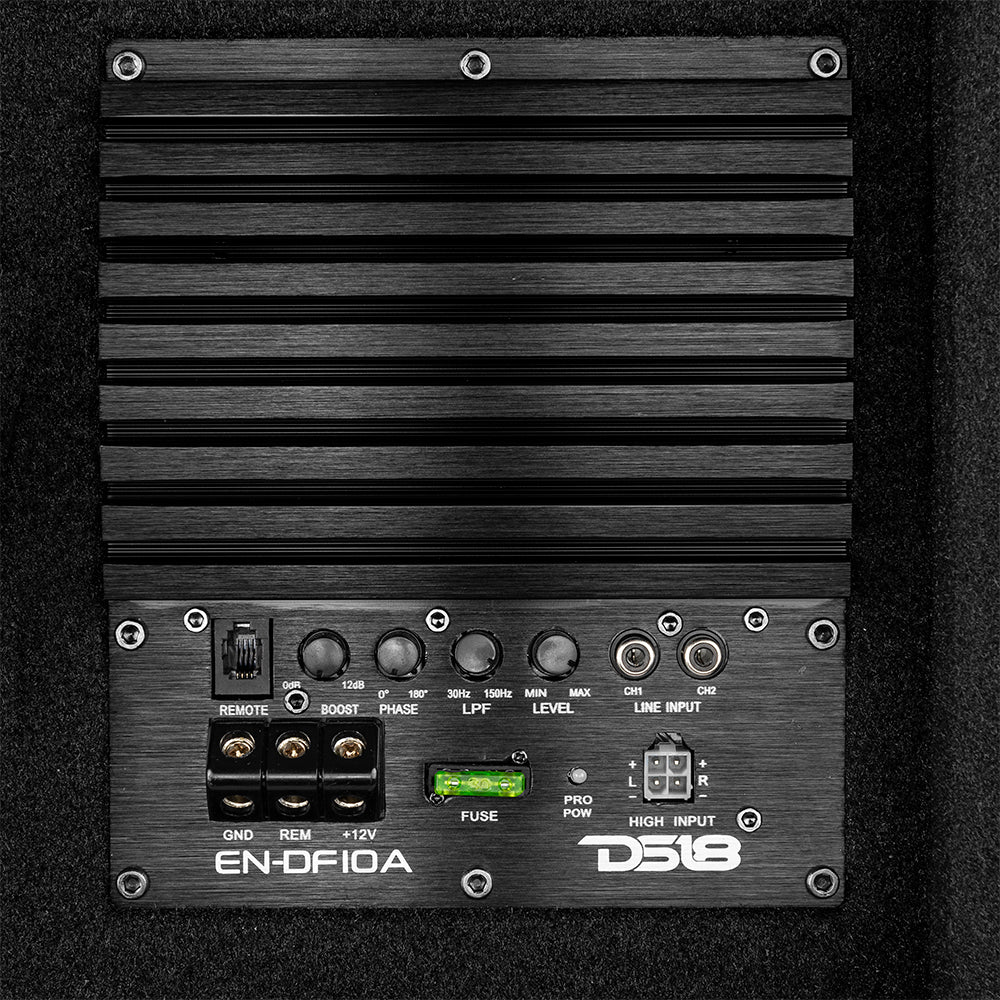

AMPLIFIER SPECIFICATIONS
Amplifier Class	Digital
Amplifier Type	Subwoofer Monoblock
Number of Channels	1
Minimum Impedance	2 ohms
Signal to Noise Ratio	80dB
Efficiency @ 4ohm	0.75
Damping Factor	/
Total Harmonic Distortion (THD)	0.005
Low Level Input Range	200mV-6V
High Level Input	Yes
Auto Turn-On	Yes
Selectable X-Over	LPF Fixed
X-Over Filter Range	30-150Hz
Bass Boost Range	0-12dB
Bass Boost Frequency	80Hz
Infrasonic Filter	No
Phase Selector	0°～180°
Led Indicator	Power / Protection
Power Input Terminal Size	8 GA
Fuse Size	30A
Remote Level Control	Yes, Dash Mount
Cooling Fan	No
Voltmeter	No
Thermal Protection	Yes (>75℃)
Over-Load Protection	Yes
DC Output Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes (>17Vdc)
Clipping Protection	No

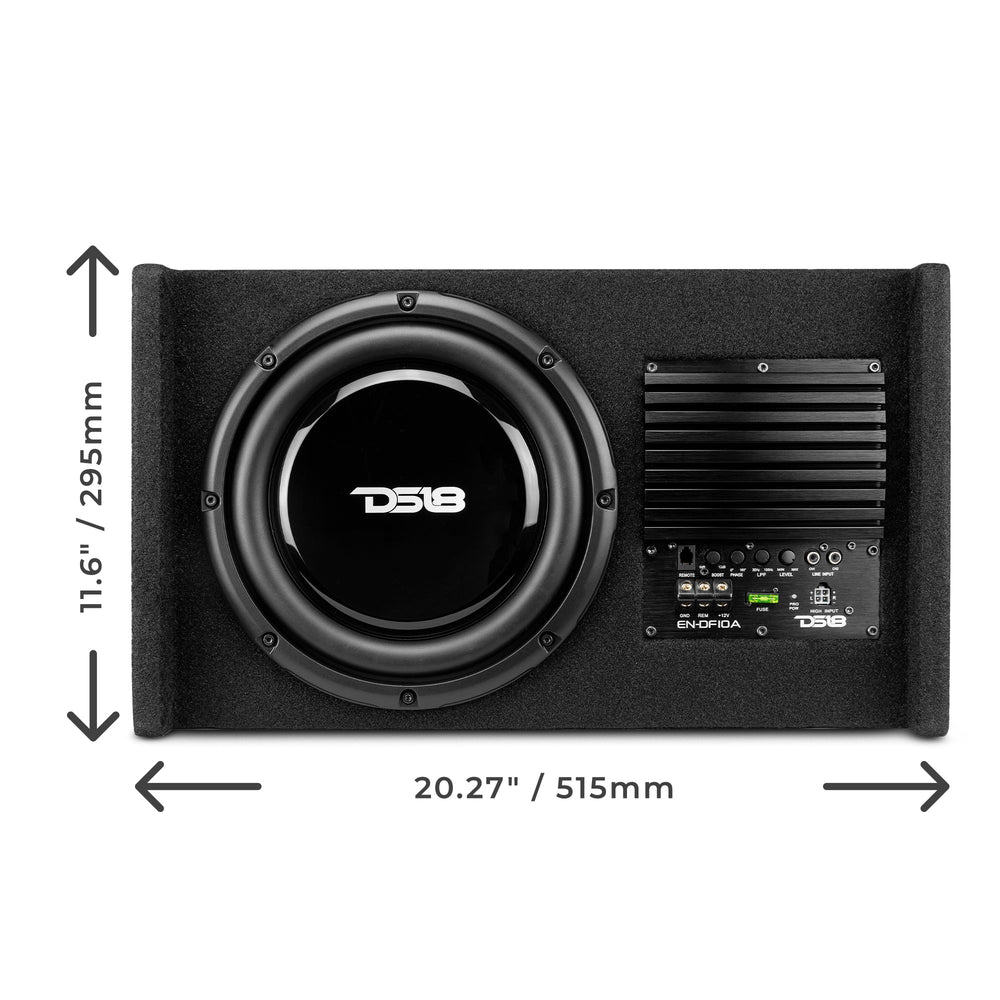

MEASUREMENT
Overall Height	11.6" / 295mm
Overall Width	20.27" / 515mm
Overall Depth	6.3" / 160mm
EXTRA FEATURES
Very Strong Wood (MDF) Box for better sound	Yes
High Efficiency Digital Amplifier Built-In	Yes
Auto Turn-On Function when using Hi-Level Input for easier installation	Yes
Remote Level Knob to get easy amount of Bass control	Yes
