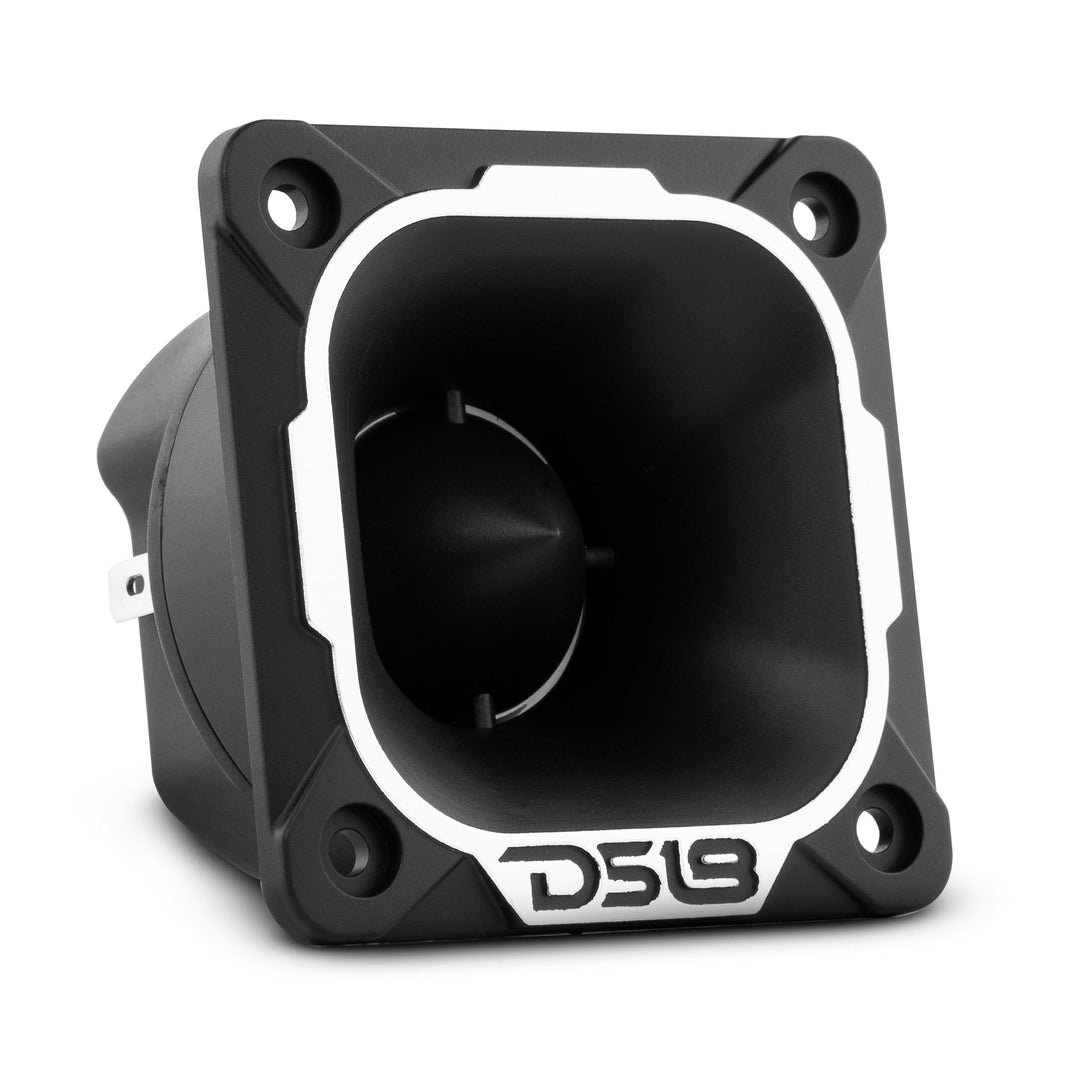

DS18 PRO-TWN3 2.5"High Compression Neodymium Tweeter 200 Watts 1" Vc

Amazing option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's super tweeters are known around the world for.

This PRO-TWN3 super tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The square design gives it a unique look that demands attention and you can also tightly mount them side by side for a complete wall of outstanding highs for your system. This 2.5 inch tweeter can handle 50w AES and 200w peak power so it will be sure to deliver all the high range frequencies you are looking for.

Highlights

• 2.5 inch tweeter design is made to bring crisp and bright high frequencies to maximum loudness for your system.
• Small design makes it easy to mount and even easier to pair together for great looks and easy installations.
• Power rating of 50w AES and 200 peak which will allow the high frequencies to play with authority.

Technical Details

PRO-TWN3 Product Manual

Nominal Diameter	2.5” / 63 mm
Nominal Impedance	4 Ohms
AES Power Handling	50W
Program Power Handling	100W
Peak Program Handling	200W
Sensitivity (1w/1m)	107dB
Frequency Response	1.6KHz-20KHz
Recommended Hi Pass Crossover	2 KHz
Pair or Single	Single
Filter Included	Yes, 2.2 uf
MOTOR
Voice Coil Diameter	1” / 25.4 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Diaphragm Material	PEN
Magnet Material	Neodymium
Magnet Weight	0.57
Body Material	PC

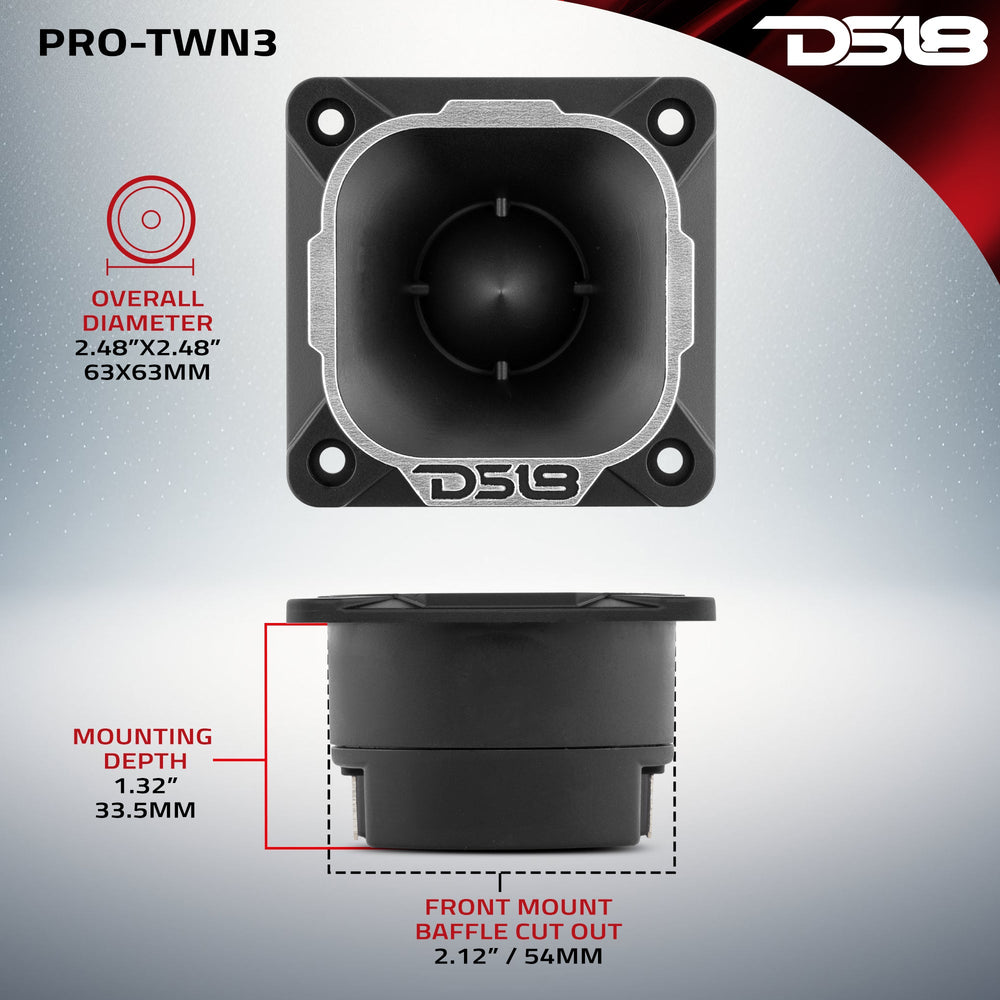

MEASUREMENTS
Overall Diameter	2.48x2.48" / 63x63 mm
Overall Depth	1.49" / 37.8 mm
Front Mount Baffle Cutout	2.12" / 54 mm
Mounting Depth	1.32" / 33.5 mm
