2-Channel Line Output Converter with Digital Bass Enhancer
Regular price
$107.95
Out of stock
Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Description
Reviews
Description
- Description
- Additional info
- Reviews
- Two channel level input converts your signal from your factory amps to enhance your bass output with an external sub and amp.
- Easy to tune with main level, bass, and bass enhancer knobs to reach your perfect bass frequencies that you are targeting.
- Bass enhancer that brings out even more bass where there once was very little, you will get more output.

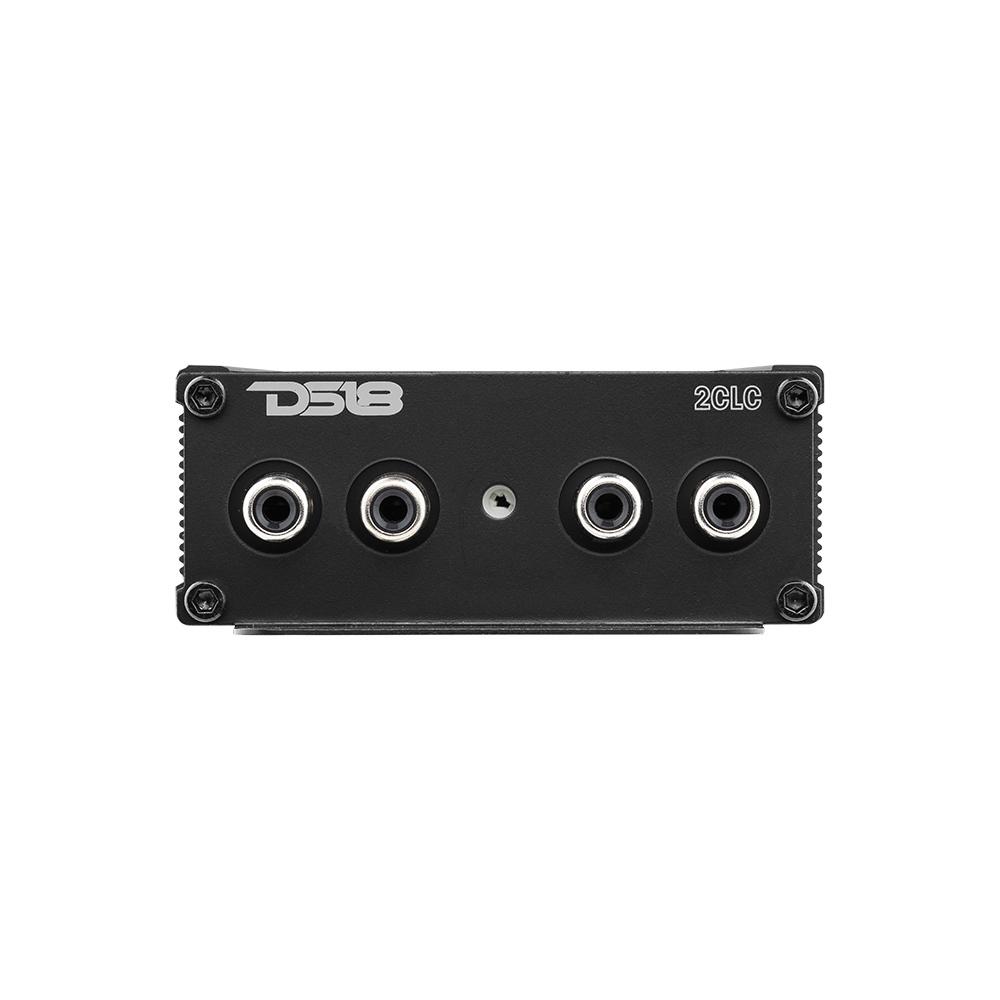

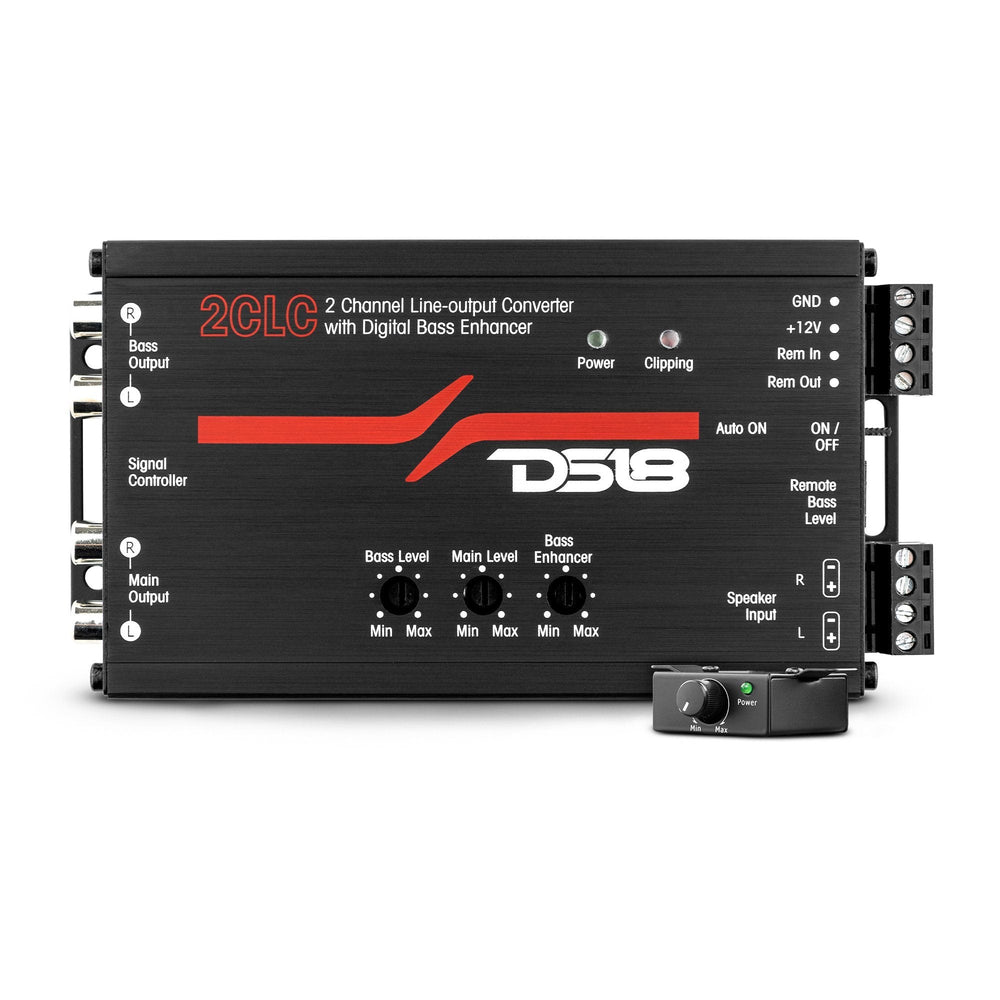

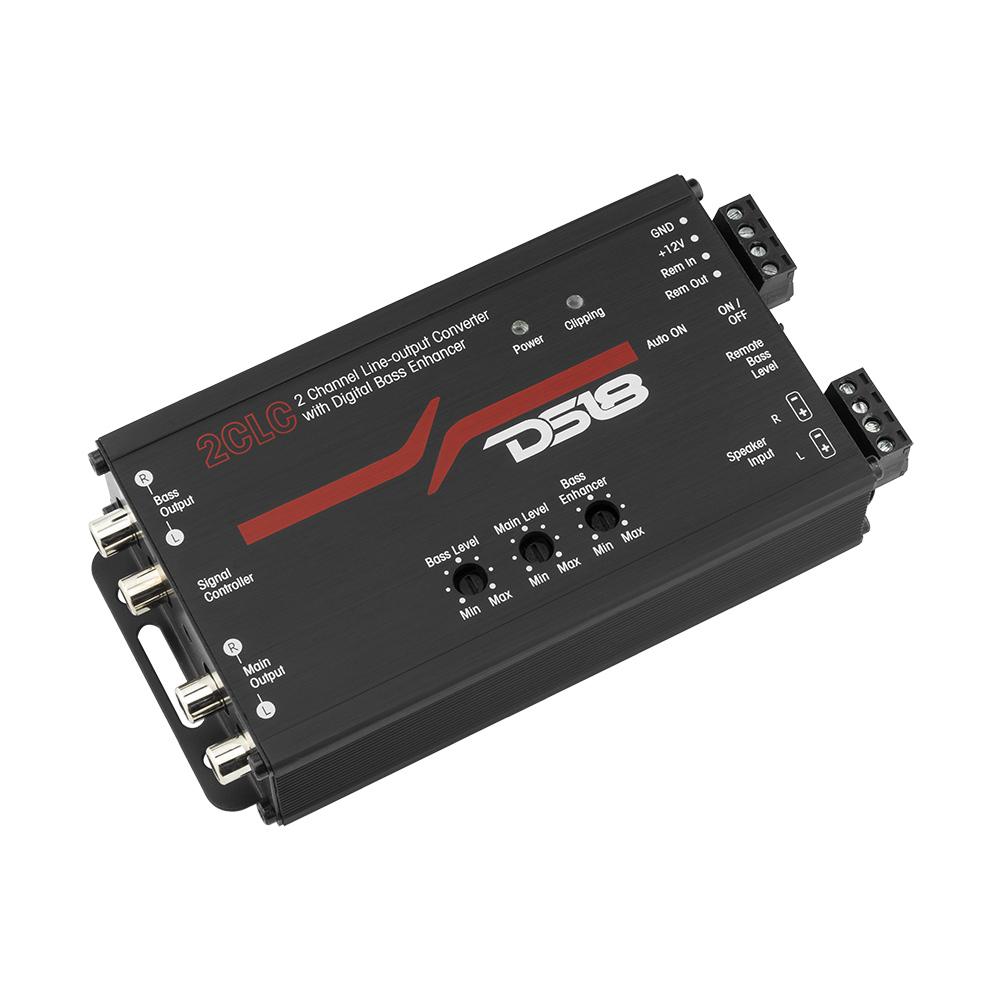

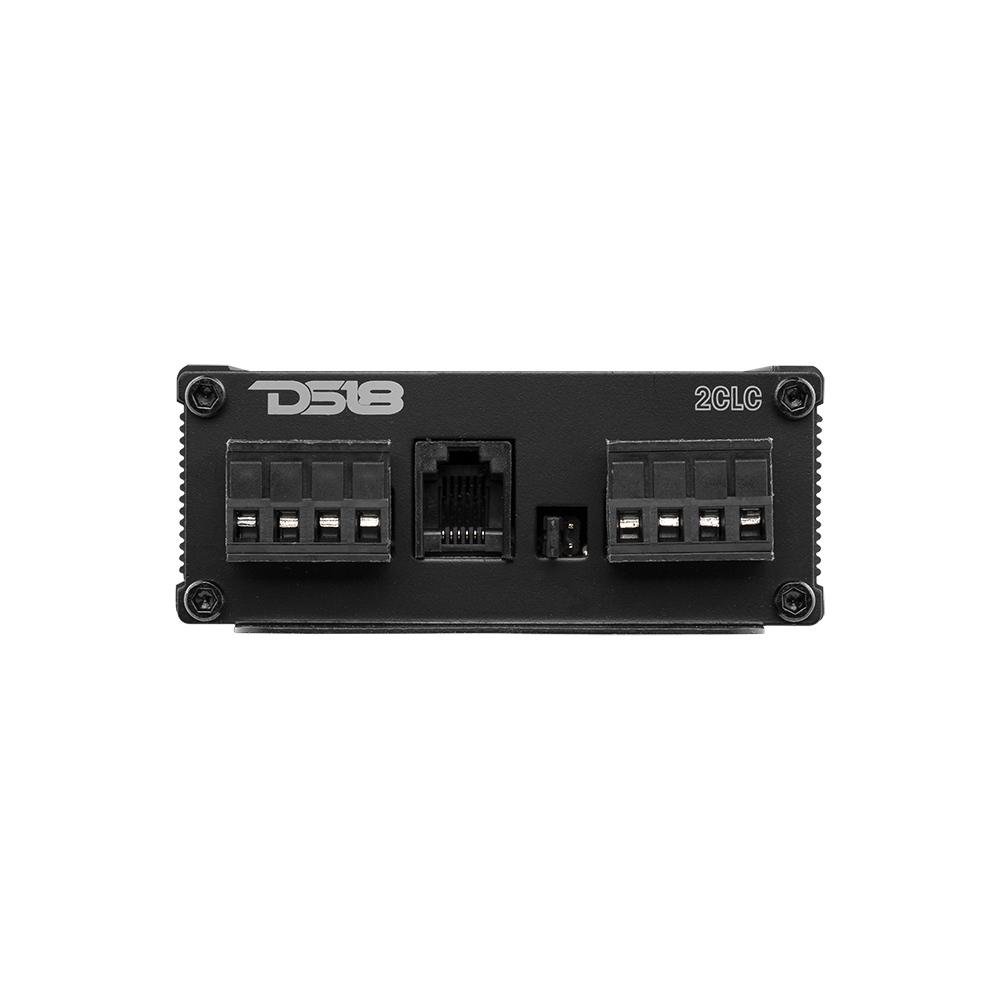

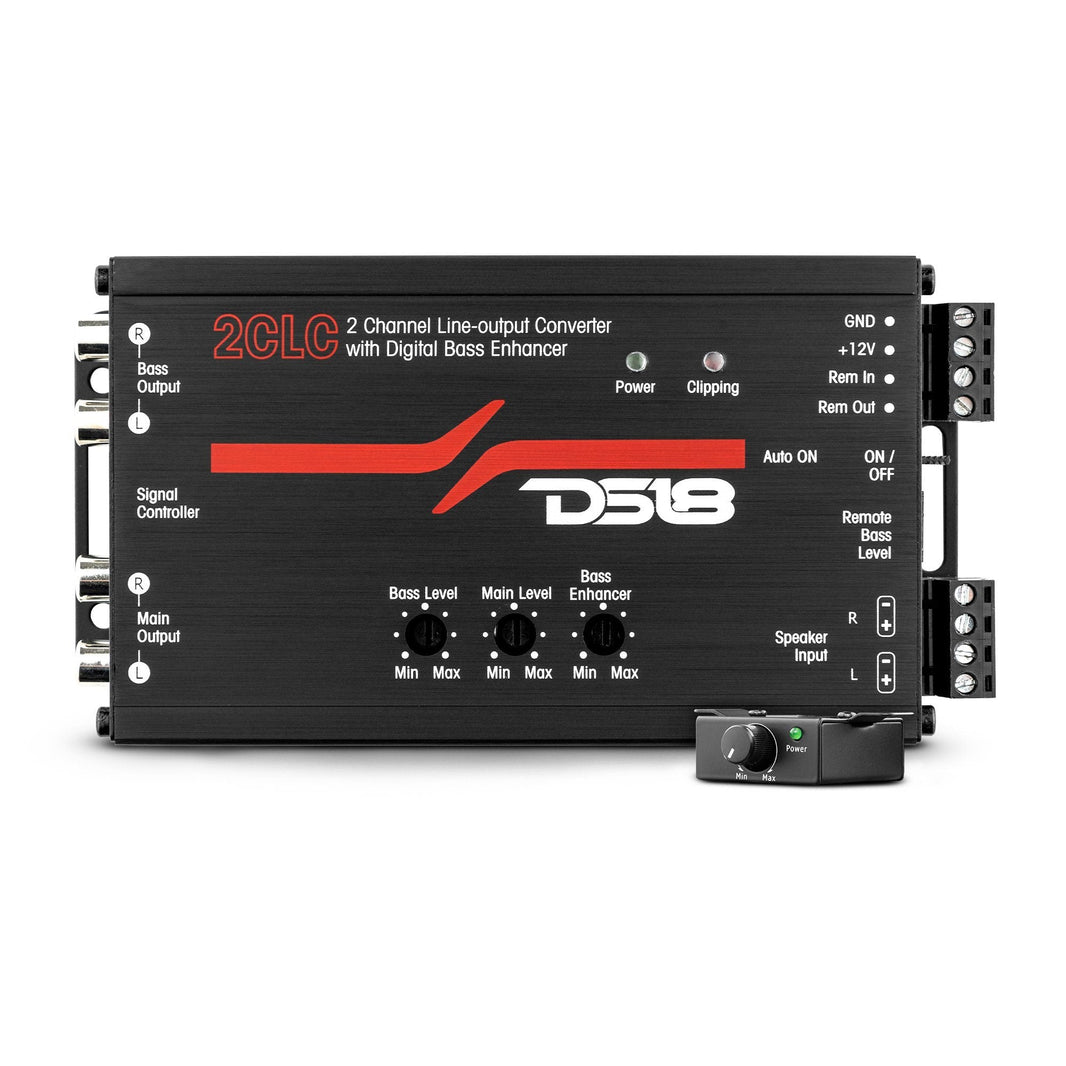

DS18 2CLC 2 Channel Line Output Converter with Digital Bass Enhancer
DS18's two channel line output converter now comes with a convenient and easy to use digital bass enhancer. This device is great if you are wanting to add an external amplifier and subwoofer to your existing factory system for booming bass without having to replace your radio.
Highlights
Technical Details
| Maximum Speaker Level Input | 400 watts per channel |
| Maximum Preamp Output | 9V rms |
| Dash Level Remote Control | +0db / - 19 dB |
| Frequency response | 10Hz-100kHz; + 1dB |
| Total Harmonic Distortion | 0.01% |
| Signal To Noise Ratio | >110dB |
| Input Impedance | 20K Ohms |
| Output Impedance | 150 Ohms |
| Power Draw | 150mA |
| Recommended Fuse Rating | 1 amp |
| Features | |
| Speaker Level Input | 2 channels |
| Bass Enhancer | With adjustable control of bass roll-off |
| Selectable Auto ON | Signal Sensing or remote in |
| Remote Output | Up to 150mA |
| Dual Amplifier Outputs | Main/ Bass output |
| Level Matching Controls | Main/ Bass output Level knob |

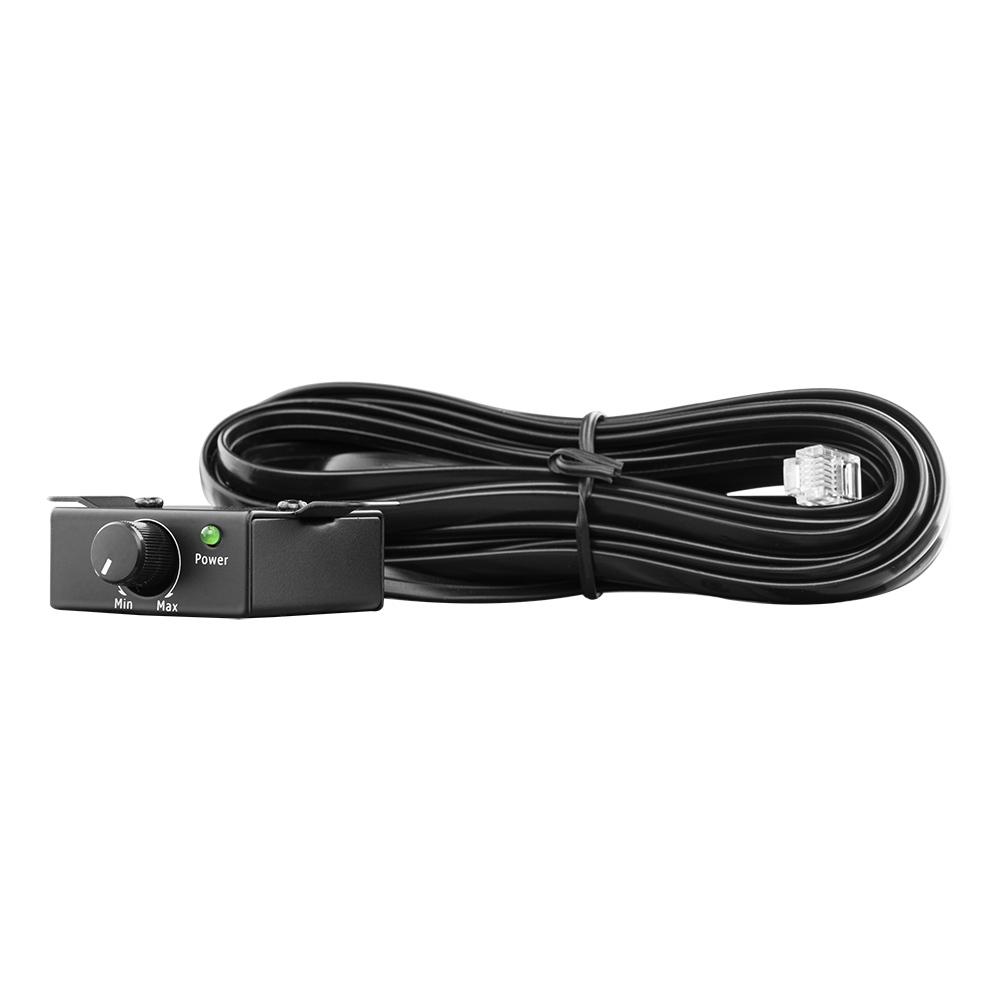

| Dash Remote Level Control | Included |
| LED Indicators | Power Clipping |
| Measurements | |
| Overall Lengh | 6.18" |
| Overall Wide | 3.22" |
| Overall Height | 1.25" |
| Heatsink Length | 539" |
| Gross Sible Unit Weight | 11 oz |
