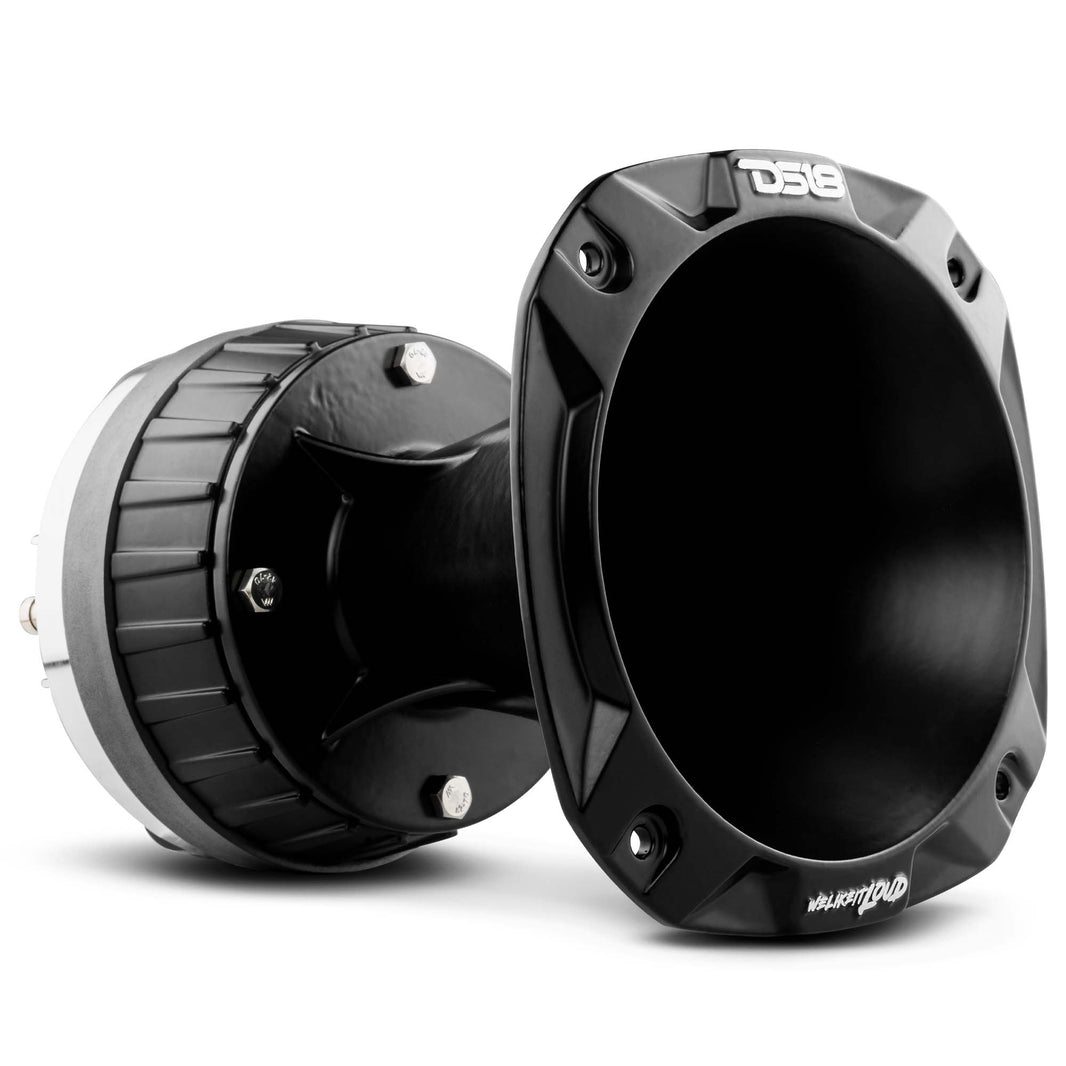

2" Driver with Spacer And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)

2" Driver with Spacer And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)

Regular price $131.95
Vendor:DS18
Type:Car Audio : Drivers
SKU:PRO-DKH1X
Out of stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 PRO-DKH1X 2"Bolt On Throat Compression Driver with Spacer, 2" Throat Titanium VC and PRO-HA102/BK Horn 640 Watts 115dB 8 ohm Mounting Depth 7.9"

    Everyone is looking for louder horns and what they can do to tweak them. We make that easy for you with no guesswork with the DKH1X. This full size driver includes the DS18 DKH1 redesigned to be louder with the included dB spacer to increase the drivers overall sensitivity. Plus our newly redesigned shorty throat so you only need 7.9 inches depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and Peak at 640w you will be sure to draw everyone's attention to your audio!

    Highlights

    • DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
    • Aluminum full size throat with 111dB sensitivity spacer
    • DKH1 Driver with an AES rating of 160 watts and peak of 640w for super loud and vibrant highs with a Titanium 8 ohms voice coil.
    • 5.7 inch mounting depth and 6 inches overall depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.
    Technical Details
                                                     PRO-DKH1X Product Manual

    Throat Diameter 2"/50.8mm
    Installation Type Bolt-on
    Nominal Impedance 8 Ohms
    Program Power Handling 320W
    Peak Power Handling 640W
    AES Power Handling 160W
    Sensitivity 111dB
    Frequency Response 630Hz-20KHz
    Recommended HI Pass Crossover 900 Hz
    Motor:
    Voice Coil Diameter 2.03"/51mm
    Voice Coil Former Material Kapton
    Winding Material CCA
    Diaphragm Material Titanium
    Magnet Material Ferrite
    Magnet Weight 35oz
    Measurements:
    Overall Diameter 7"/180mm
    Overall Depth 8.3"/211mm
    Bolt Pattern/Type 5.5mm hole-6.3"/161 mm Diameter
    Mounting Depth 7.9"/201.5mm
    Mounting Hole Diameter 5.7"/145mmm
