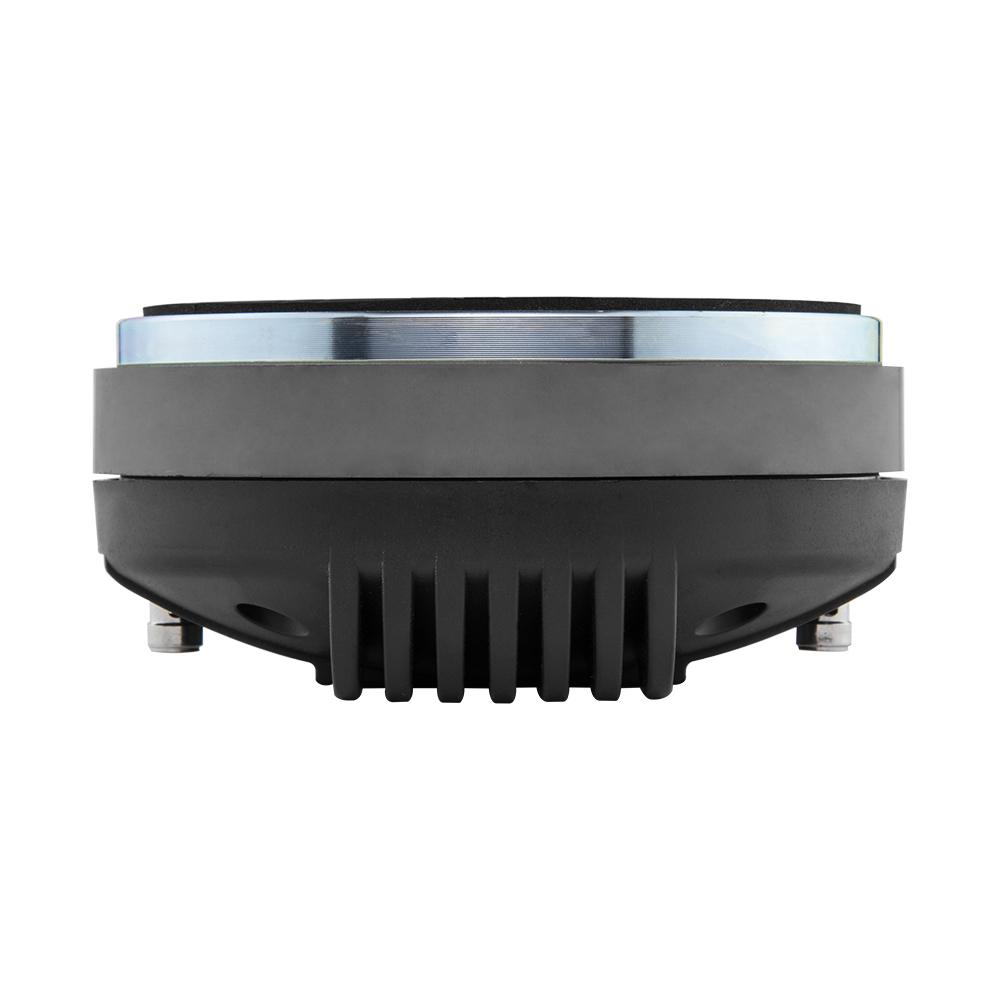

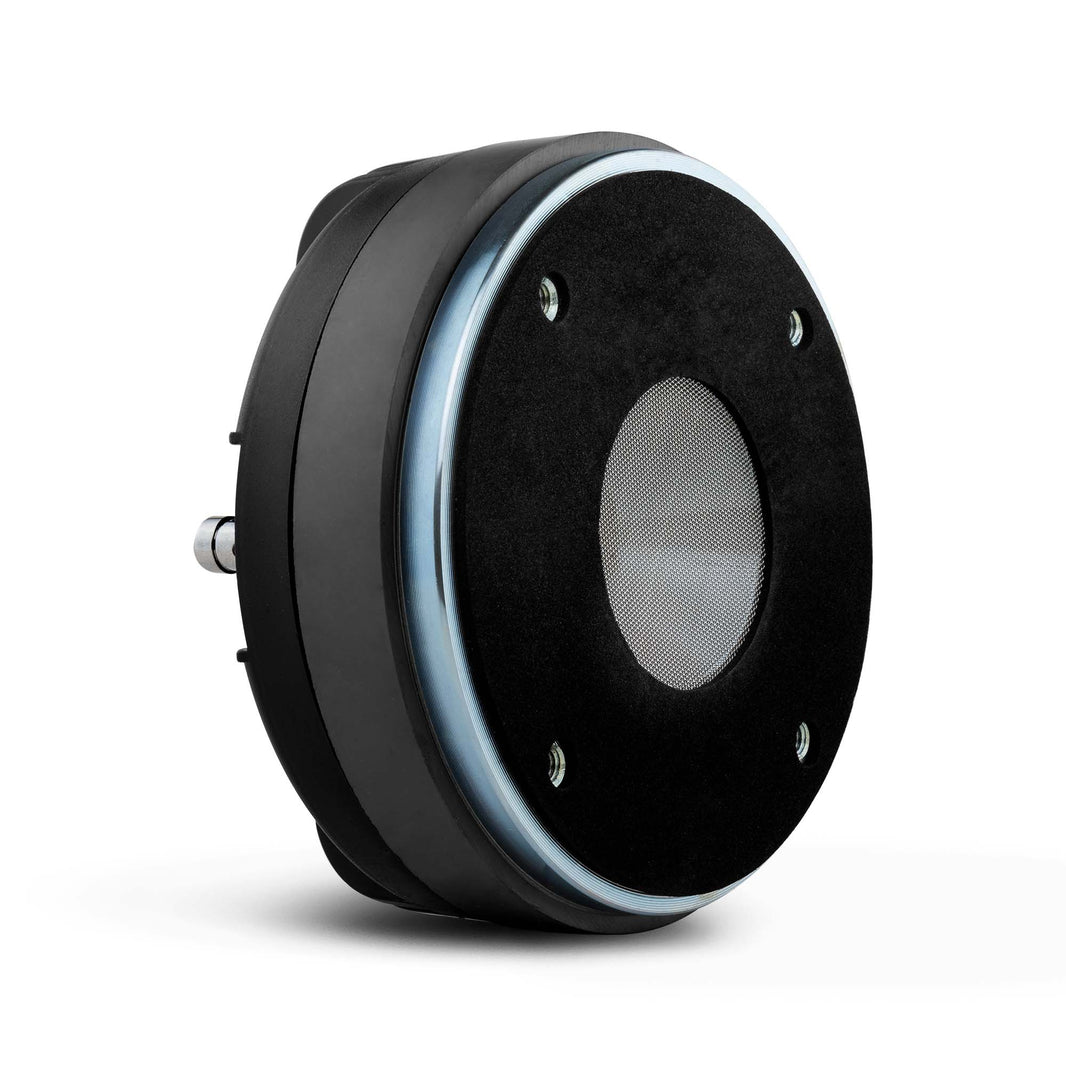

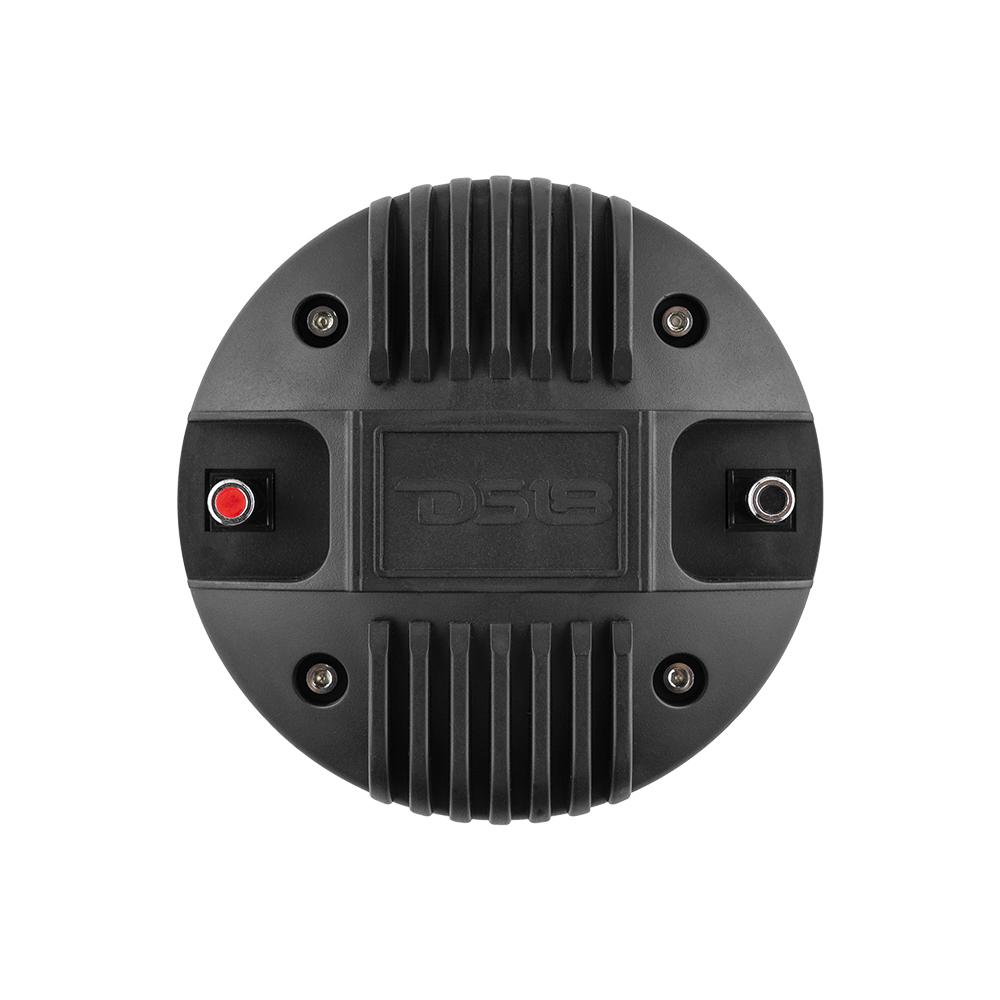

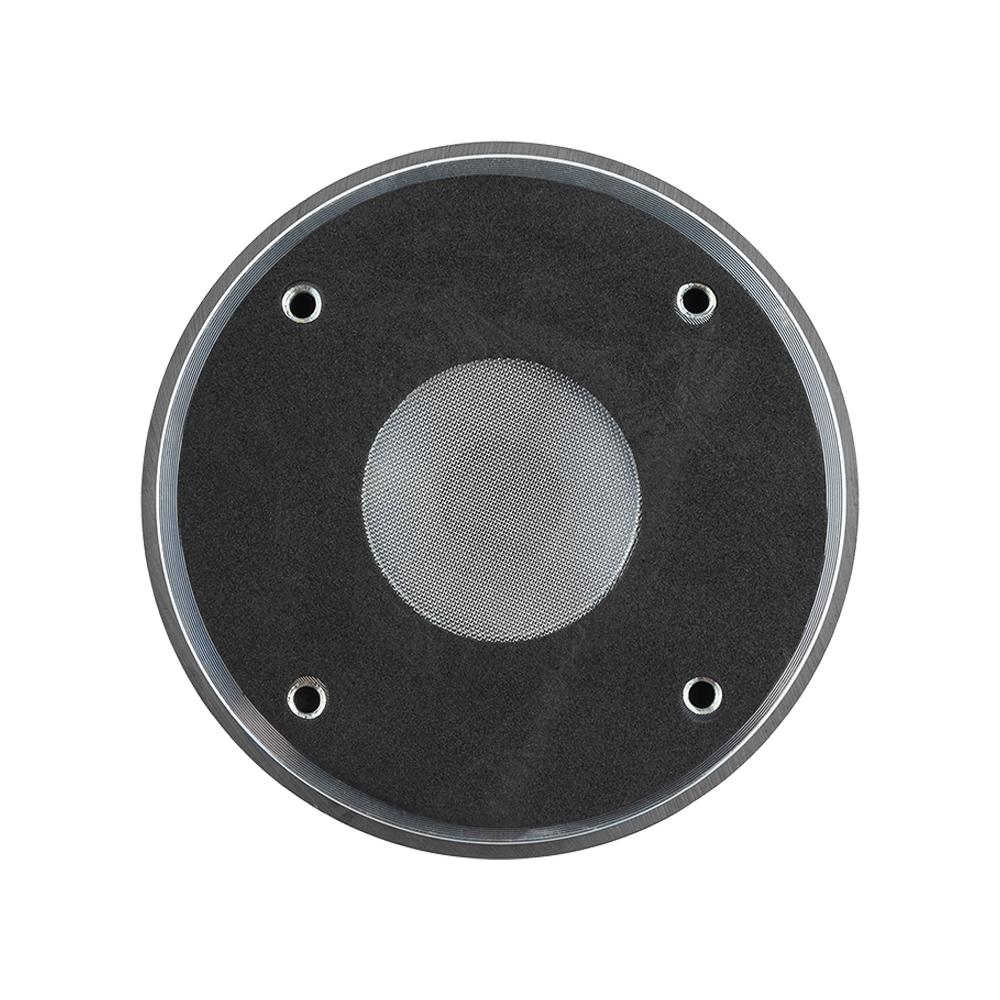

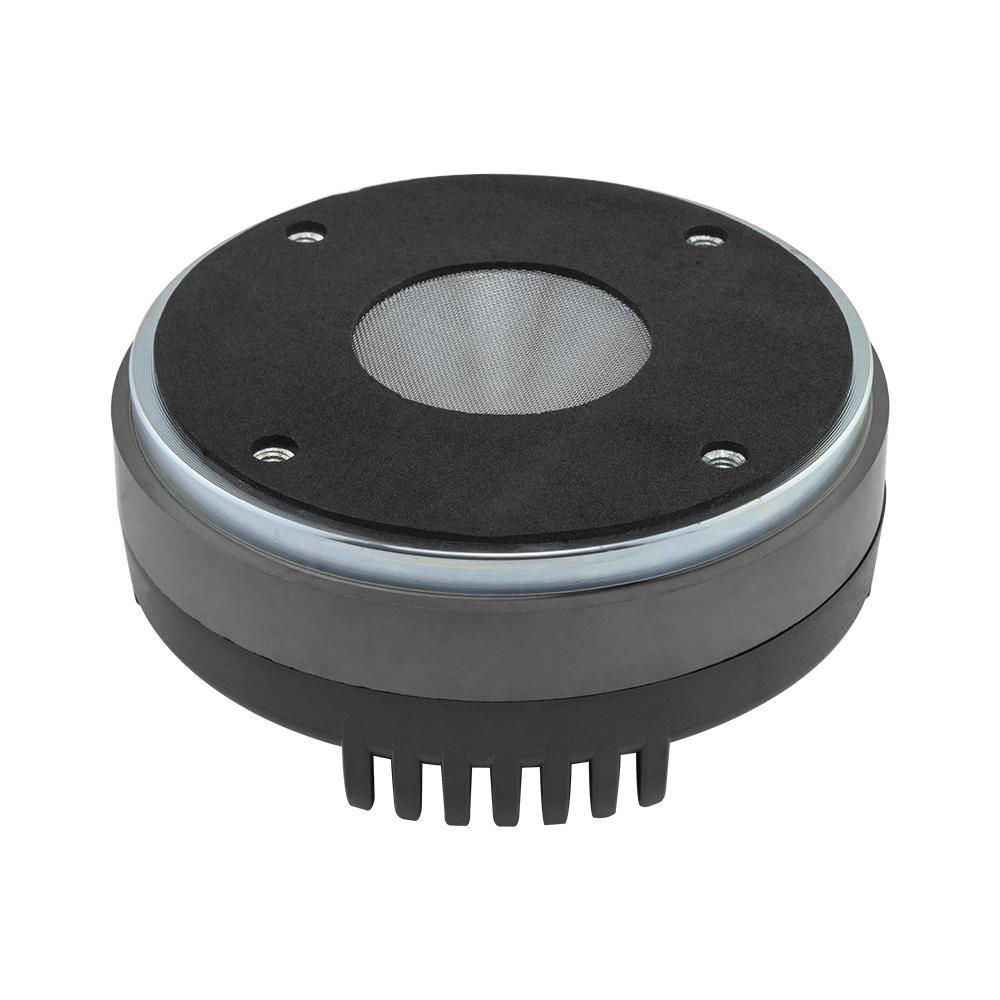

DS18 PRO-DPL1PH 2" Throat Bolt On Compression Driver 2" Phenolic VC 640 Watts 8 ohm

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.

This driver comes with a massive 2 inch titanium voice coil that takes 160 AES and 640 Peak power for extreme decibel production backed with a high efficiency motor.

Highlights

• Ferrite motor structure that provides great motor force and loudness.
• High strength phenolic voice coil taking 160 AES watts and 640 Peak watts.
• Intense high frequency volume without sacrificing sound quality.
• Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths

Technical Details

                                                PRO-DPL1PH Product Manual

SPECIFICATIONS
Throat Diameter	2" / 50.8 mm
Installation Type	Bolt on
Nominal Impedance	8 Ohms
AES Power Handling	160W
Program Power Handling	320W
Peak Power Handling	640W
Sensitivity (1w/1m)	109dB
Frequency Response	500Hz-18KHz
Recommended Hi Pass Crossover	800 Hz
MOTOR
Voice Coil Diameter	2.03" / 51.5mm
VC Former Material	Kapton
Winding Material	CCA
Diaphragm Material	Phenolic
Magnet Material	Ferrite
Magnet Weith	35 Oz
Body Material	Plastic Cover
MEASUREMENTS
Overall Diameter	5.27" / 134mm
Overall Depth	2.4" / 61mm
Bolt Pattern - Type	4" / 102mm - M6
