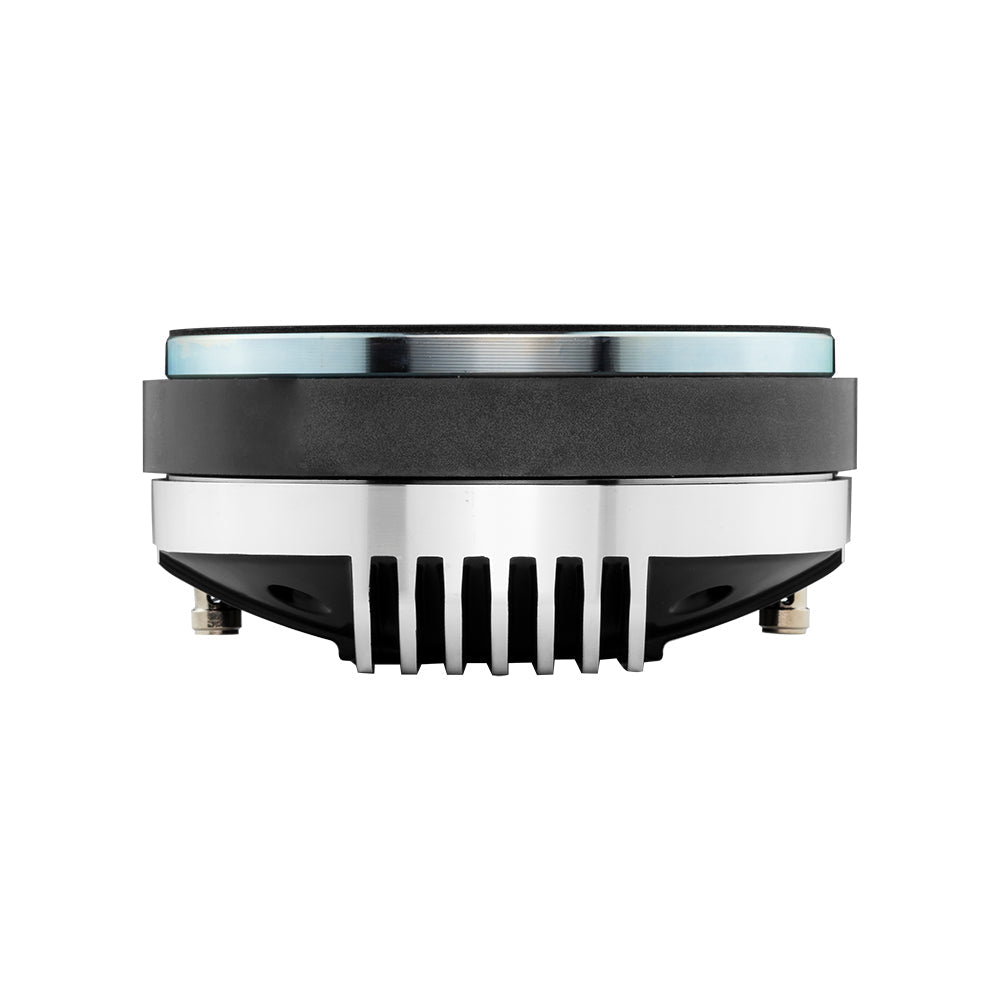

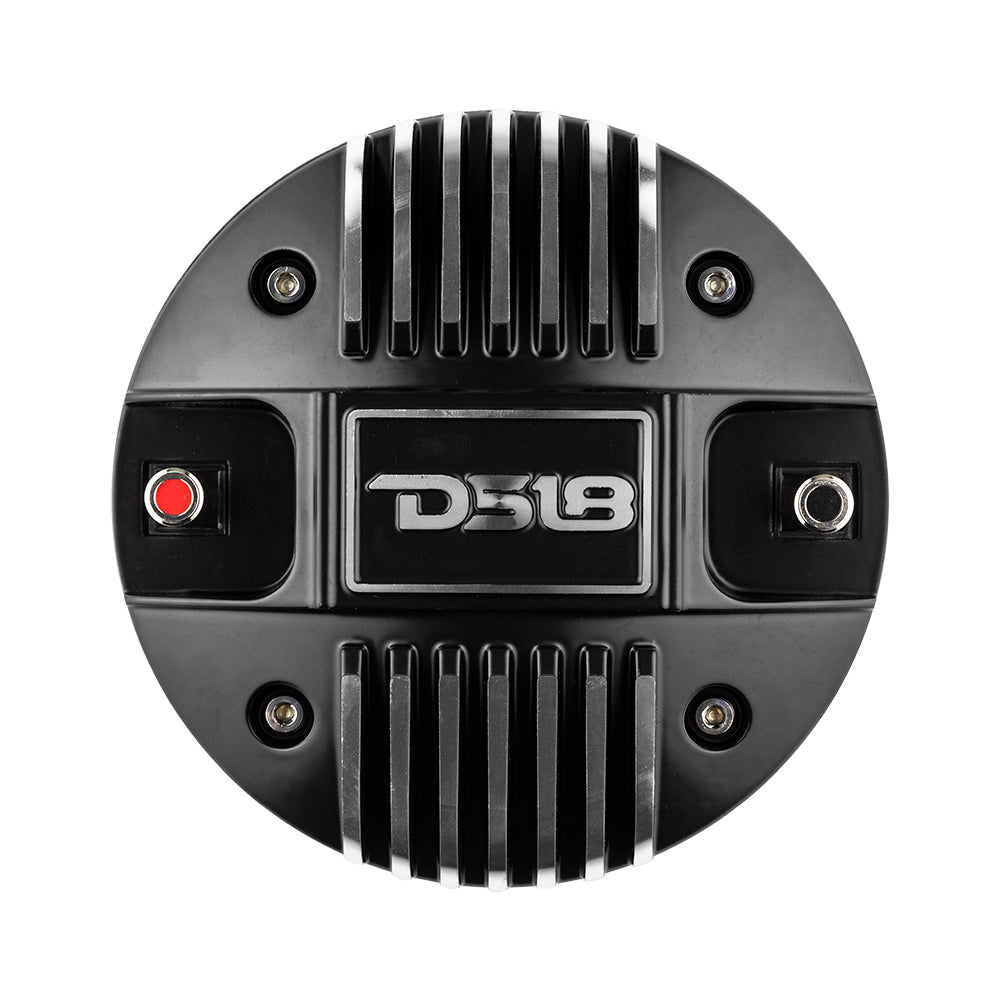

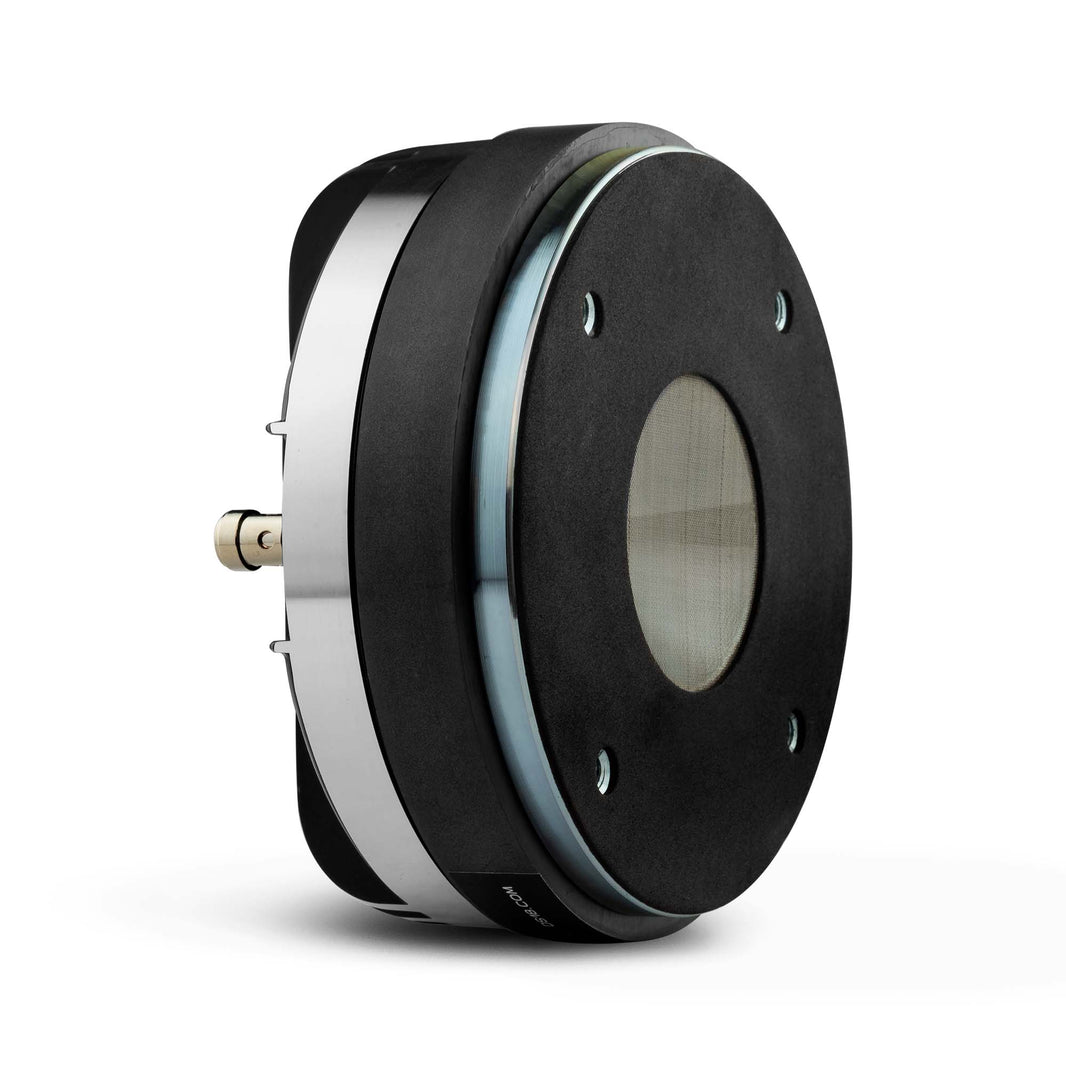

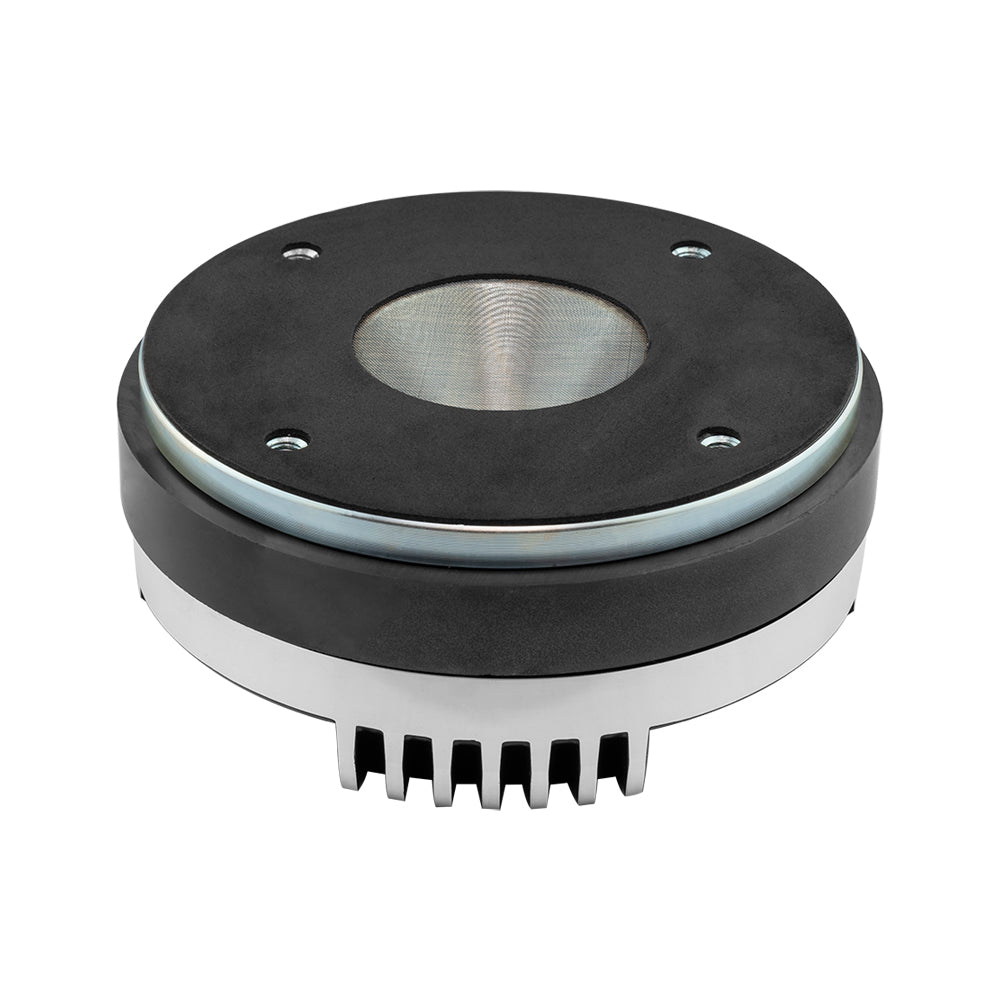

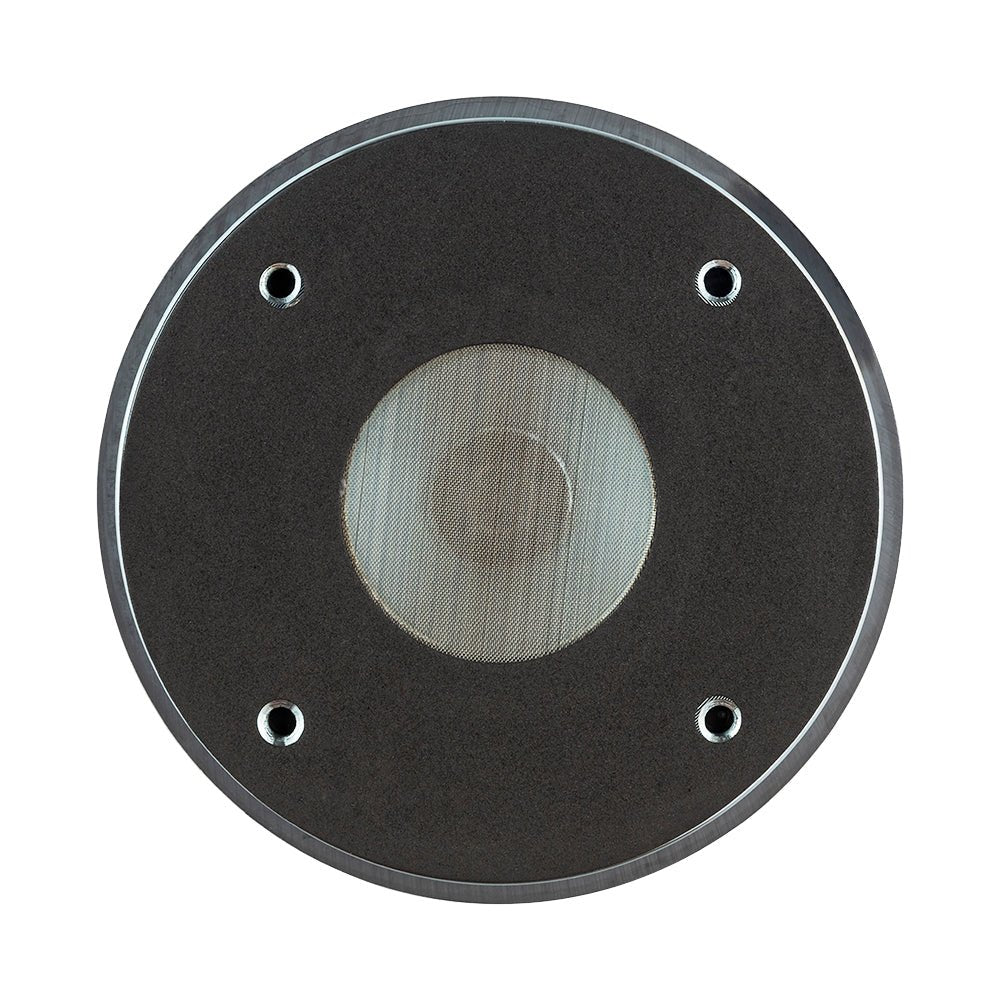

DS18 PRO-D1 2" Throat Bolt On Compression Driver 2" Throat Titanium VC 640 Watts 8 ohm

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.

This driver comes with a massive 2 inch titanium voice coil that takes 160 AES and 640 Peak power for extreme decibel production backed with a high efficiency motor.

Highlights

• Ferrite motor structure that provides great motor force and loudness.
• High strength Titanium voice coil taking 160 AES watts and 640 Peak watts.
• Intense high frequency volume without sacrificing sound quality.
• Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.

Technical Details

                         PRO-D1 Product Manual

Throat Diameter	2"
Installation Type	Bolt-on
Nominal Impedance	8 ohms
Peak Power Handling	640W
Program Power Handling	320W
AES Power	160W
Diaphragm Material	Titanium
Sensitivity (1w/1m)	108dB
Frequency Response	630Hz-20KHz
Recommended Hi Pass Crossover	800Hz
MOTOR
Voice Coil Diameter	2.03"
Voice Coil Former Material	Kapton
Winding Material	CCA
Diaphragm Material	Titanium
Magnet Material	Ferrite
Magnet Weight	35 oz
Measurements
Overall Diameter	5.27"
Overall Depth	2.4"
