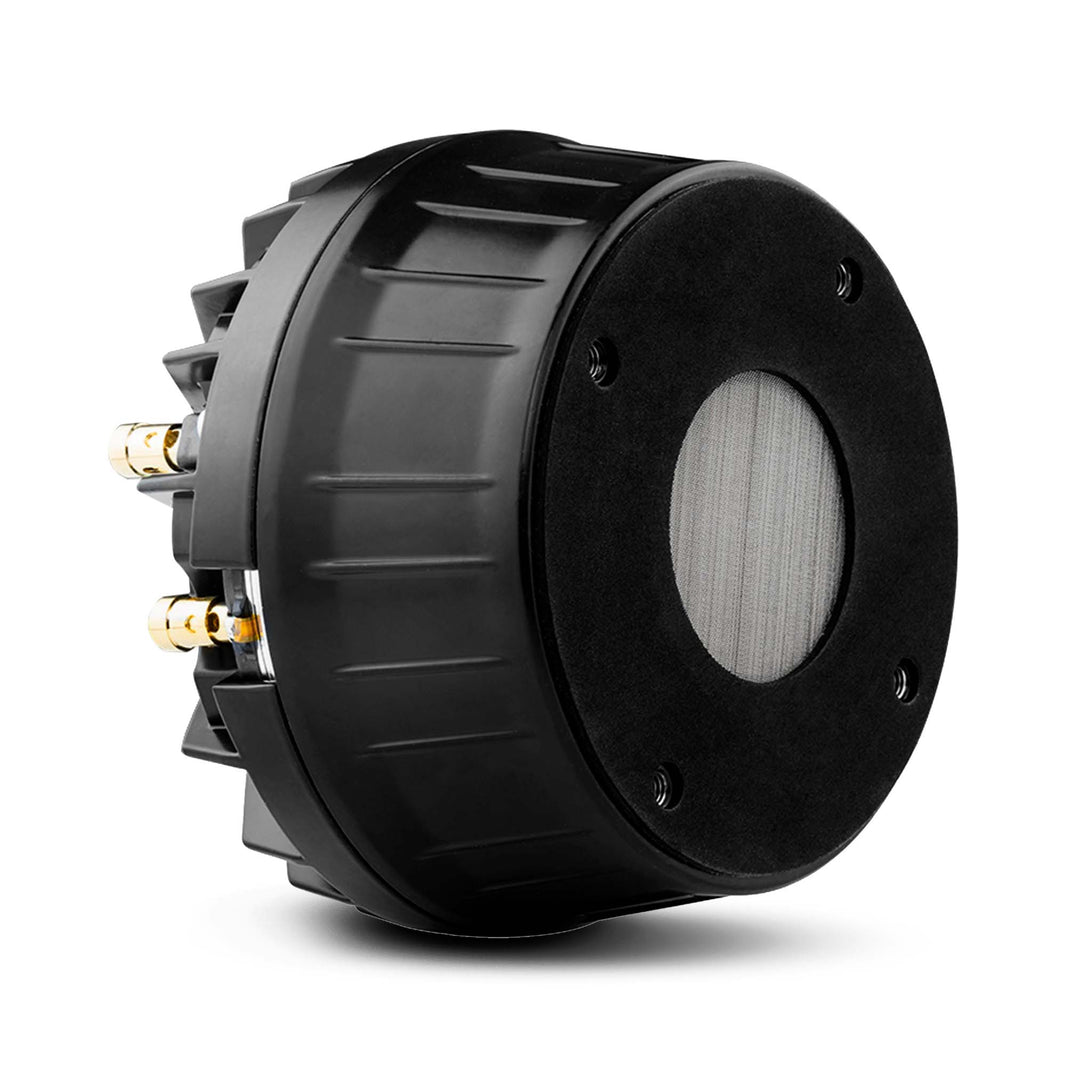

2" Throat Bolt on Nedodymium Driver 320 Watts with Dual Polyester 1 x 3.5" Mid-Range + 1.75" High Range 8-Ohm
Regular price
$599.95
In stock
Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Description
Reviews
Description
- Description
- Additional info
- Reviews
- 2 way driver featuring a 160w AES driver and 60w AES tweeter.
- Separate inputs for both speakers to give you more power and mounting options.
- Gold plated terminals for the highest conductivity.
- Slay the highs with this ultra loud 2 way coaxial driver.
DS18 PRO-DRNCOAX 2" Throat Bolt On Neodymium Compression Driver Dual Polyester 1 x 3.5" Mid Range VC 640 Watts + 1 x 1.75" High Range VC 240 Watts 118Db 8 Ohm
Bringing new and innovative products is what DS18 is all about!
Our new coax driver will be sure to fill in all your high end frequencies without slipping one beat!
This unique neodymium driver is 2 way. The midrange driver plays 315Hz - 20KHz, while the high range tweeters fills out frequencies from 4 KHz to 20KHz for added punch!
Highlights
Technical Details
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt-on |
| Sensitivity (1w/1m) | 118dB |
| Frequency Response | 315Hz - 20KHz |
| Mid-Driver Specifications | |
| Peak Power Handling | 640W |
| Program Power Handling | 320W |
| AES Power Handling | 160W |
| Frequency Response | 315Hz - 20KHz |
| Recommended Band-Pass Crossover | 630Hz - 5KHz |
| Tweeter Specifications | |
| Peak Power Handling | 240W |
| Program Power Handling | 120W |
| AES Power Handling | 60W |
| Frequency Response | 4KHz - 20KHz |
| Recommended Hi-Pass Crossover | 5KHz |
| Motor | |
| Tweeter Voice Coil Diameter | 1.75"/44.4mm |
| Mid-Drive Voice Coil Diameter | 3.5"/90mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |
| Measurements | |
| Overall Diameter | 5.5"/140 mm |
| Overall Depth | 3.9"/101 mm |
| Bolt Pattern | M6 - 4"/102mm |
