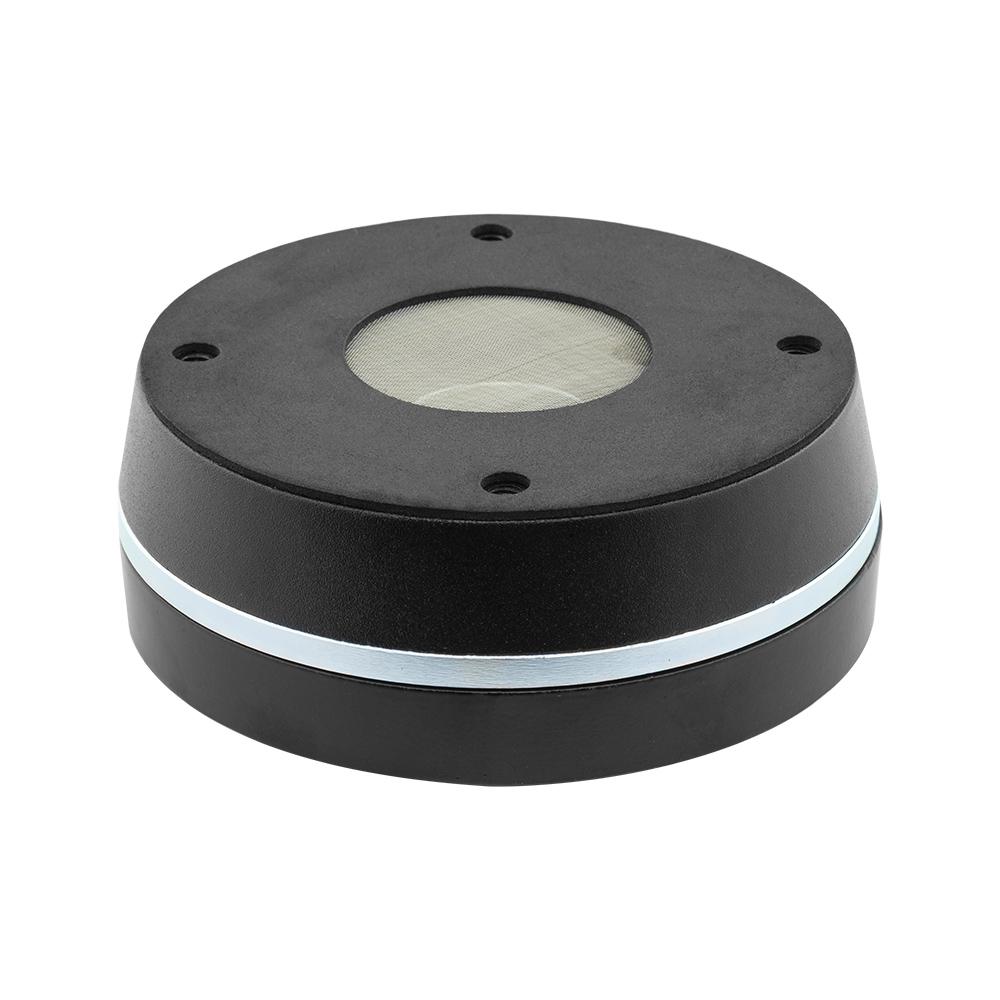

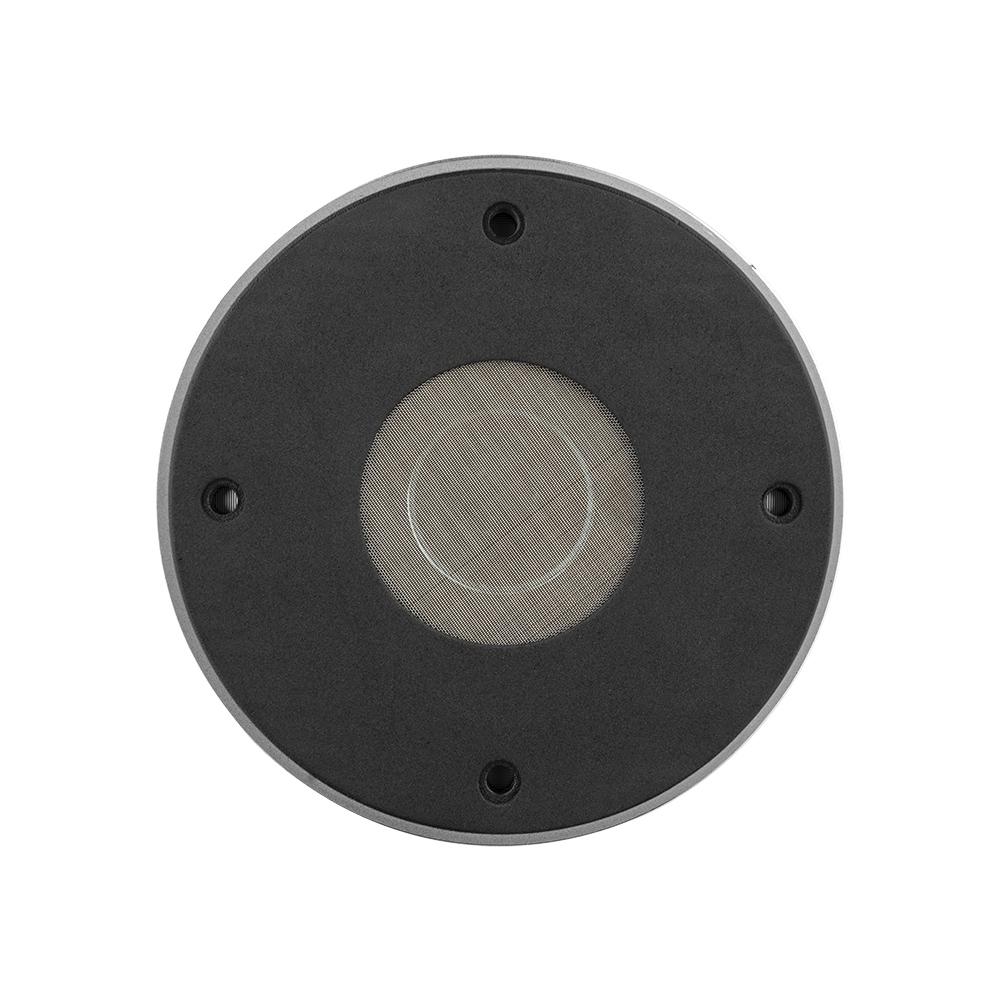

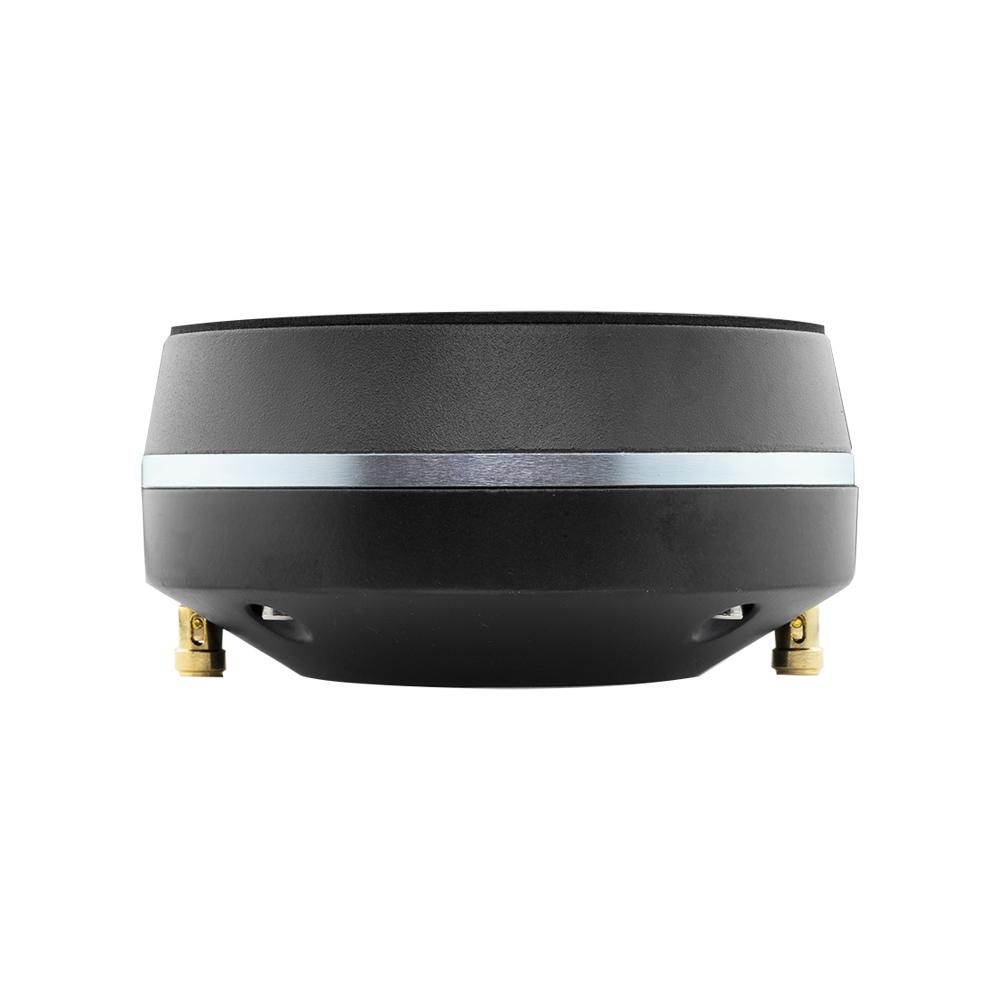

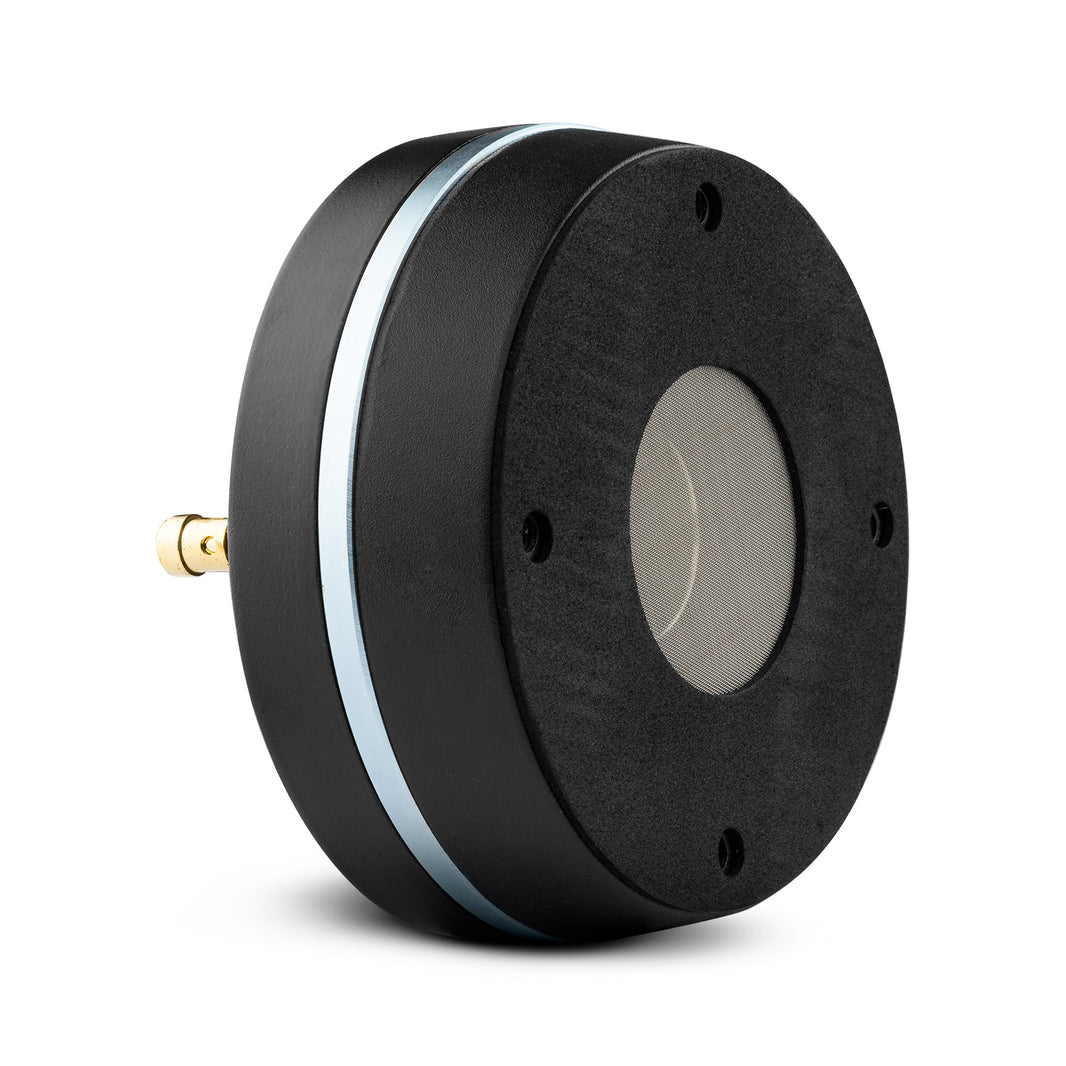

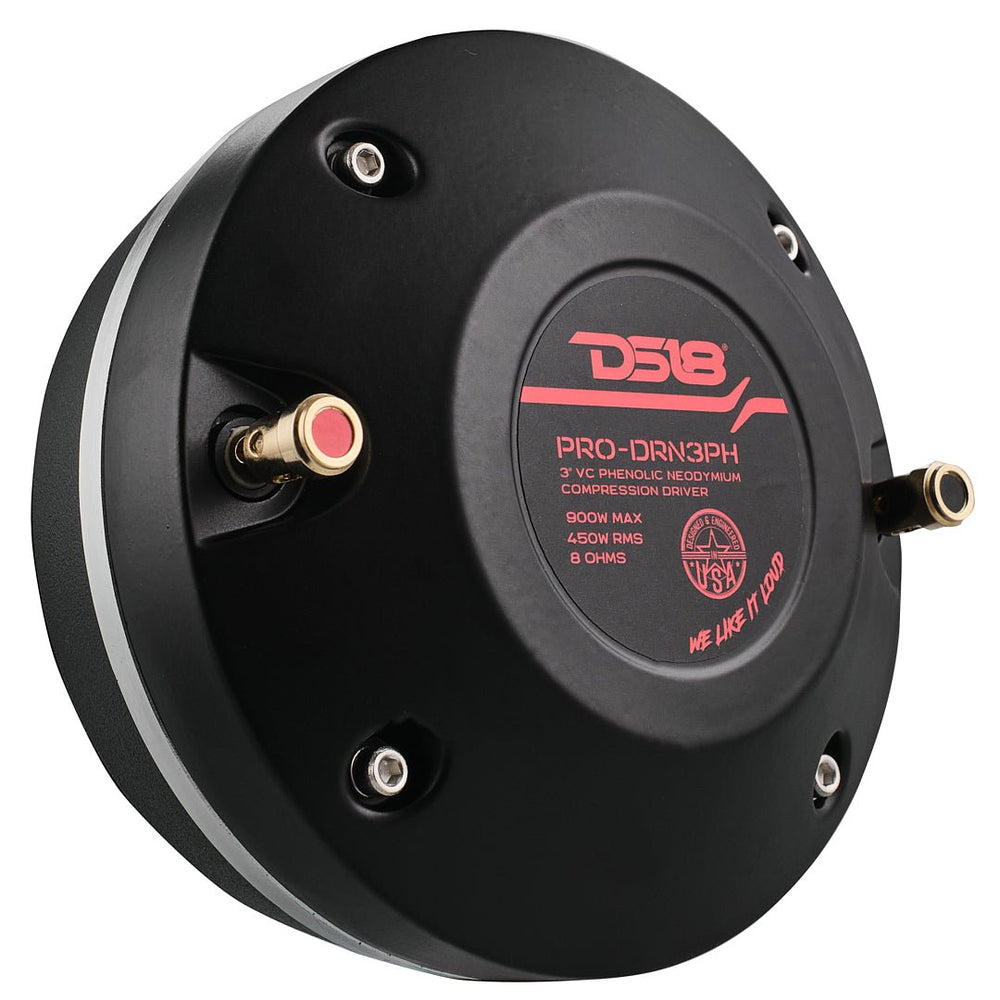

DS18 PRO-DRN3PH 2" Throat Bolt On Neodymium Driver 3" Phenolic VC 600 Watts 110dB 8 Ohm

Neodymium drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Neodymium is definitely the motor structure you want to go with for the absolute loudest ear piercing high range frequencies.

This NEO driver is compatible with 4 bolt horns (throat) of all sizes and being that Neodymium is used as the motor structure, it will be lighter than traditional ferrite motors leaving you less weight to adapt to.

This driver comes with a massive 3 inch voice coil that takes 225w AES and 900 peak power for extreme decibel production backed with a high efficiency Neodymium motor.

Highlights

• Neodymium motor structure that provides the most motor force of any other driver motor on the market.
• Intense high frequency loudness without sacrificing sound quality.
• Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.

Technical Details

Download PRO-DRN3PH Product Manual

Throat Diameter	2”/50.8 mm
Installation Type	Bolt-On
Nominal Impedance	8 Ohms
Peak Power Handling	900W
Program Power Handling	450W
AES Power Handling	225W
Sensitivity (1w/1m)	110 dB
Frequency Response	500Hz-10KHz
Recommended HI Pass Crossover	800 Hz
Motor
Voice Coil Diameter	3”/75 mm
Voice Coil Former Material	Kapton
Winding Materia	Aluminum Wire
Diaphragm Material	Phenolic
Magnet Material	Neodymium
Magnet Weight	0.38oz
Body Material	Aluminum
Measurements
Overall Width	5.12”/130 mm
Overall Depth	2.52”/64 mm
Bolt Pattern/Type	4"/102 mm - M6
