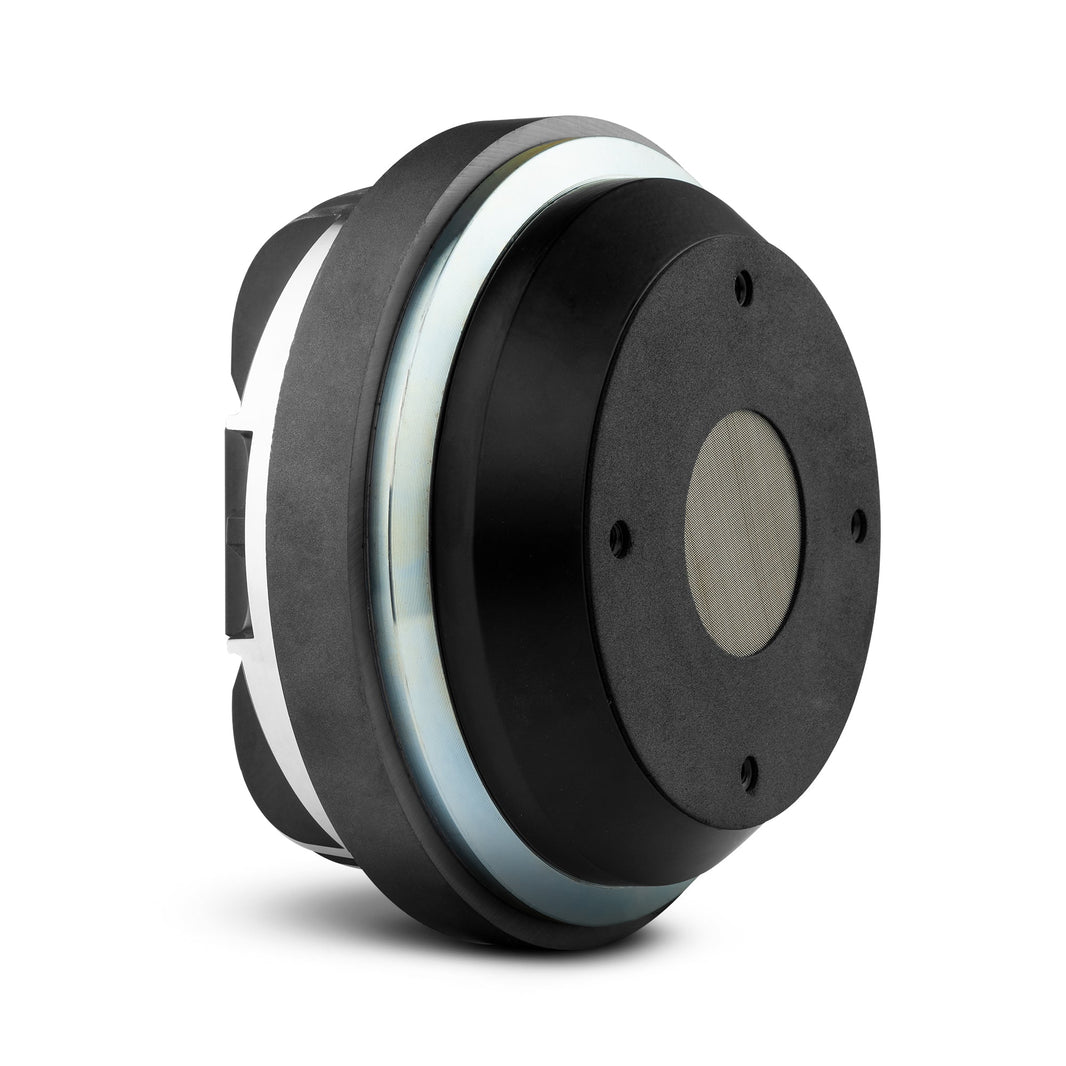

    DS18 PRO-D2X 2" Throat Bolt On Compression Driver 3" Titanium VC 1000 Watts 8 ohm with Spacer

    Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!

    This driver comes with a large 2 inch voice coil that takes 250 AES and 1000w Peak power for extreme decibel production backed with a high efficiency motor.

    Highlights

    • Ferrite motor structure that provides great motor force and loudness.
    • High strength phenolic voice coil taking 250 AES watts and 1000 peak watts.
    • Intense high frequency volume without sacrificing sound quality.
    • Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.

    Technical Details
                                                      PRO-D2X Product Manual
    SPECIFICATIONS
    Throat Diameter 2” / 50.8mm
    Installation Type Bolt-on
    Nominal Impedance 8 Ohms
    AES Power Handling 250W
    Program Power Handling 500W
    Peak Power Handling 1000W
    Sensitivity (1w/1m) 110 dB
    Frequency Response 600Hz-18KHz
    Recommended Hi Pass Crossover 900 Hz
    MOTOR
    Voice Coil Diameter 3” / 76.2mm
    Voice Coil Former Materia Kapton
    Winding Material Aluminum
    Diaphragm Material Titanium
    Magnet Materia Ferrite
    Magnet Weight 75 Oz
    Body Material Aluminum
    Color Black | Machined
    MEASUREMENTS
    Overall Diameter 7.08”/180 mm
    Overall Depth 4.25”/ 108 mm
    Bolt Pattern | Type 4*M6 | 4.01”/102 mm
