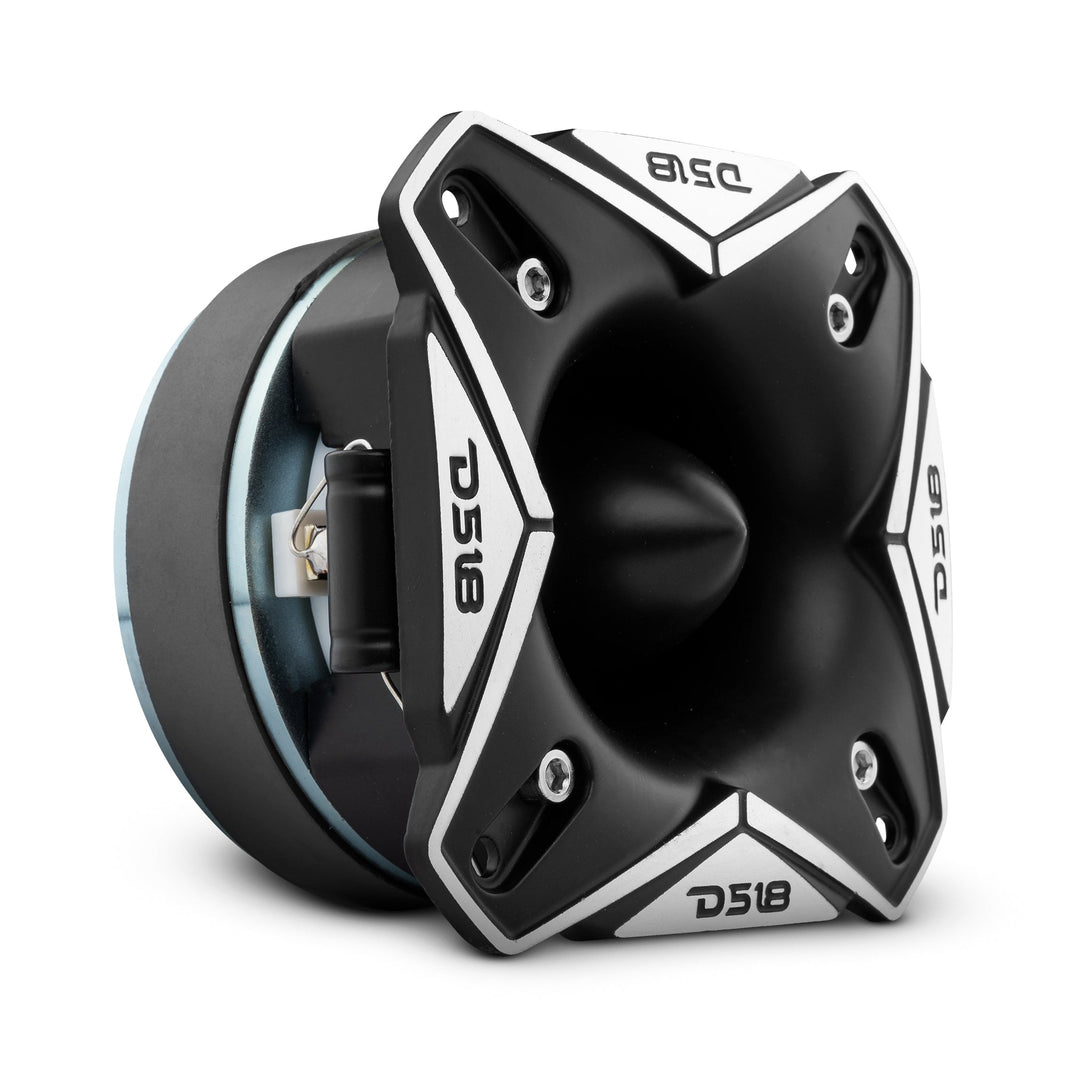

3.8" Super Bullet Tweeter | 250W RMS 1.5" Titanium 8-Ohm Vc

3.8" Super Bullet Tweeter | 250W RMS 1.5" Titanium 8-Ohm Vc

Regular price $53.95
Vendor:DS18
Type:Car Audio : Tweeters
SKU:PRO-TWX3.8TI
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 PRO-TWX3.8TI 3.8" Super Bullet Compression Tweeter With 1.5" Titanium Voice Coil 500 Watts 8 Ohm

    DS18’s PRO-TWX3.8TI builds on the elegance of the PRO-TWX3

    Designed to deliver intense volume with unmatched clarity, the PRO-TWX3.8TI handles power efficiently for extended listening sessions!

    This model comes equipped with a titanium voice coil to support this speaker in its production of clear rich highs.

    These professional grade super tweeters can handle power as high as 500W and deliver accurate sounds with a high frequency response of 1.6KHz to 20KHz.

    The PRO-TWX3.8TI  includes a Bass Blocking Capacitor for a cleaner signal that prevents lower frequencies from being produced; resulting in much brighter highs and added protection for both your speaker and voice coil!

    Get the most out of your sound system by upgrading to DS18’s PRO-TWX3.8TI the concert quality tweeter your system deserves!

    Highlights

    • Handles high frequencies easily with a high frequency response of 1.6KHz to 20KHz.
    • Powerful and reliable 1.5” Titanium voice coil rated at 125W AES, 250W Program, and 500W Peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
    • Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
    • Extremely high 108 dB rating for screaming loud high range frequencies delivered at high volumes with great sound quality.
    • The ferrite motor structure, with a mounting depth of only 2.2 inches is robust yet small enough to fit an a wide and almost limitless number of applications.

    Great For

    • Car Audio
    • Pro Audio
    • Motorcycles
    • Home Studio
    • Hi-Fi Installation
    • Surround Sound
    • Bookshelf Speakers
    • Stunt Walls
    • DIY Projects

    Technical Details



    SPECIFICATIONS
    Nominal Diameter 3.8" / 96.5mm
    Nominal Impedance  8 Ohms
    AES Power Handling 125W
    Program Power Handling 250W
    Peak Power Handling 500W
    Sensitivity (1w/1m)  108 dB
    Frequency Response 1.6KHz-20KHz
    Recommended Hi Pass Crossover 2.5KHz
    Sold In Pair or Single Single
    BODY / FEATURES
    Filter (Bass Blocker) 4.7uf / 50V
    Body Material Aluminum
    Body Color / Finish Black
    Faceplate Color / Finish Black  / Machined
    Bullet Material Aluminum
    MOTOR
    Voice Coil Diameter 1.5” / 38.1mm
    Voice Coil Former Material  Kapton
    Winding Material  CCAW
    Diaphragm Material Titanium
    Magnet Material Ferrite
    Magnet Weight  15 Oz

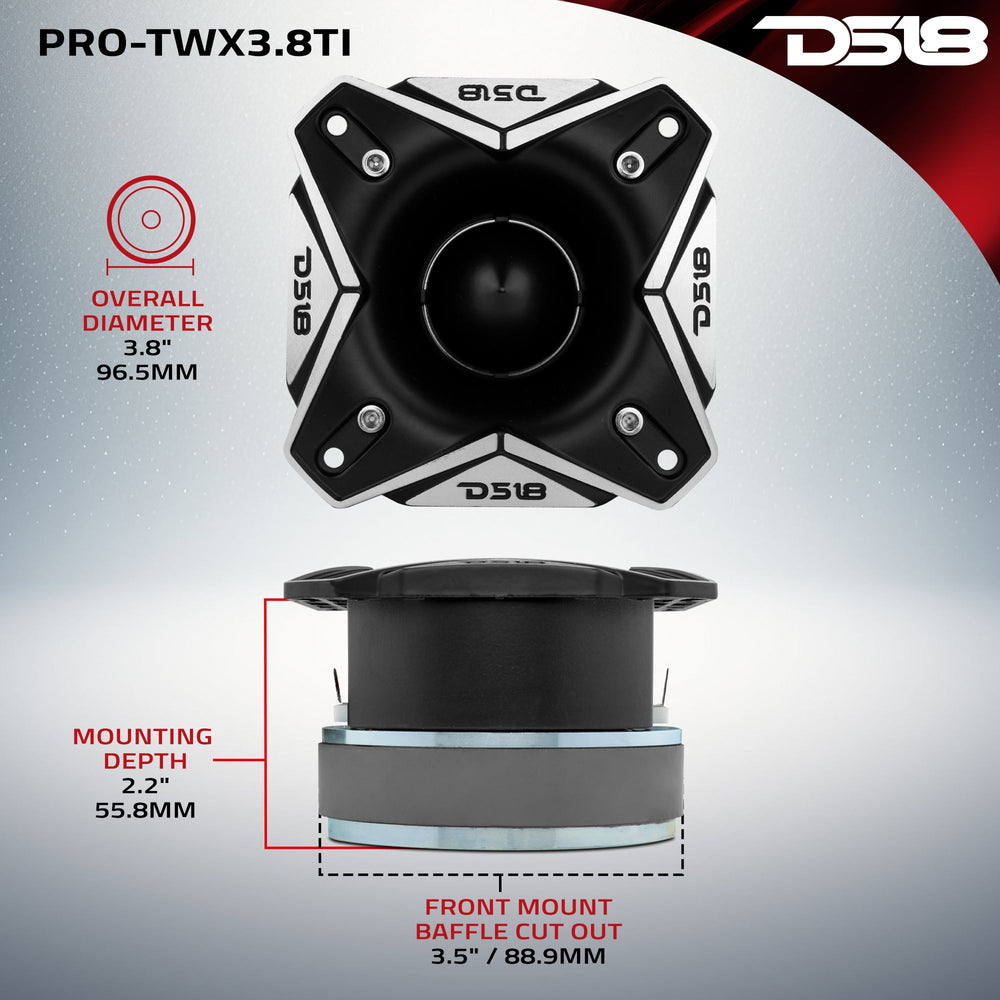

    MEASUREMENT
    Overall Diameter 3.8" / 96.5mm
    Overall Depth 2.65" / 67.5mm
    Front Mount Baffle Cutout 3.62" / 92mm
    Mounting Depth 2.2" / 55.8mm
    Motor Diameter 3.5" / 90mm
