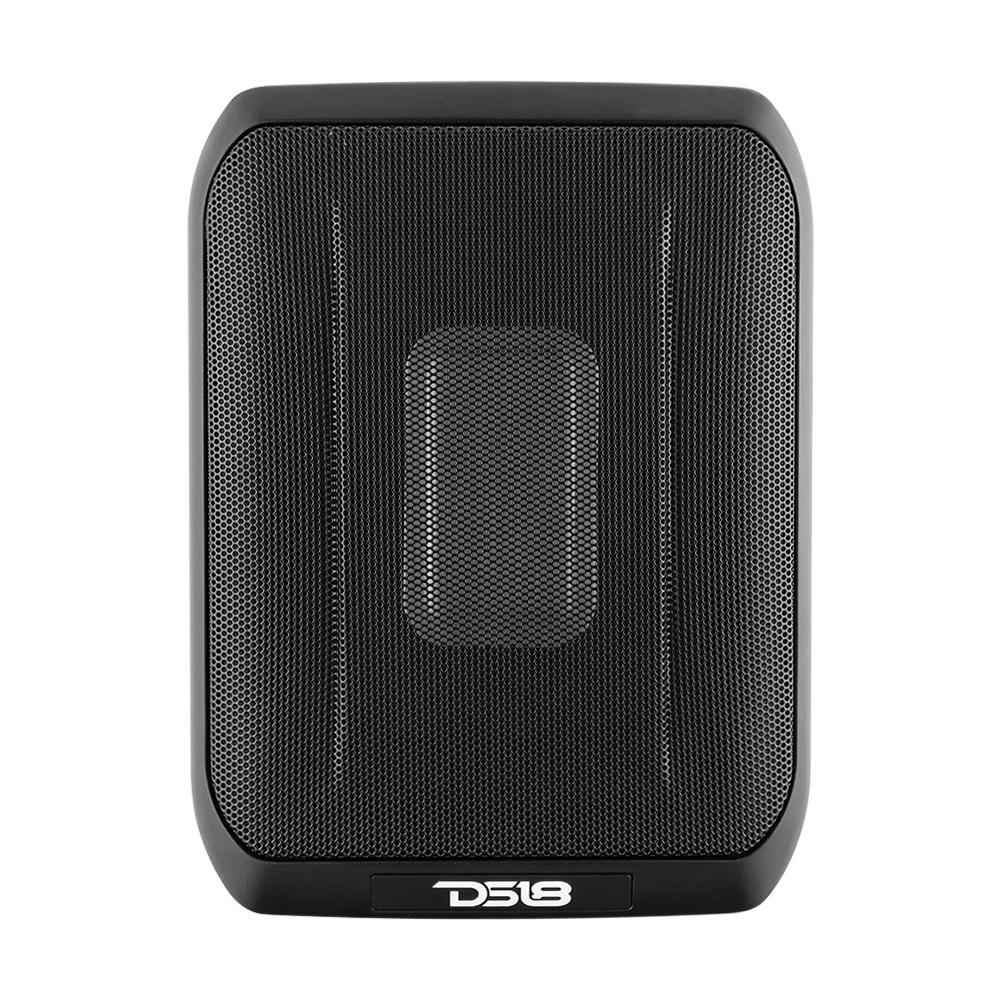

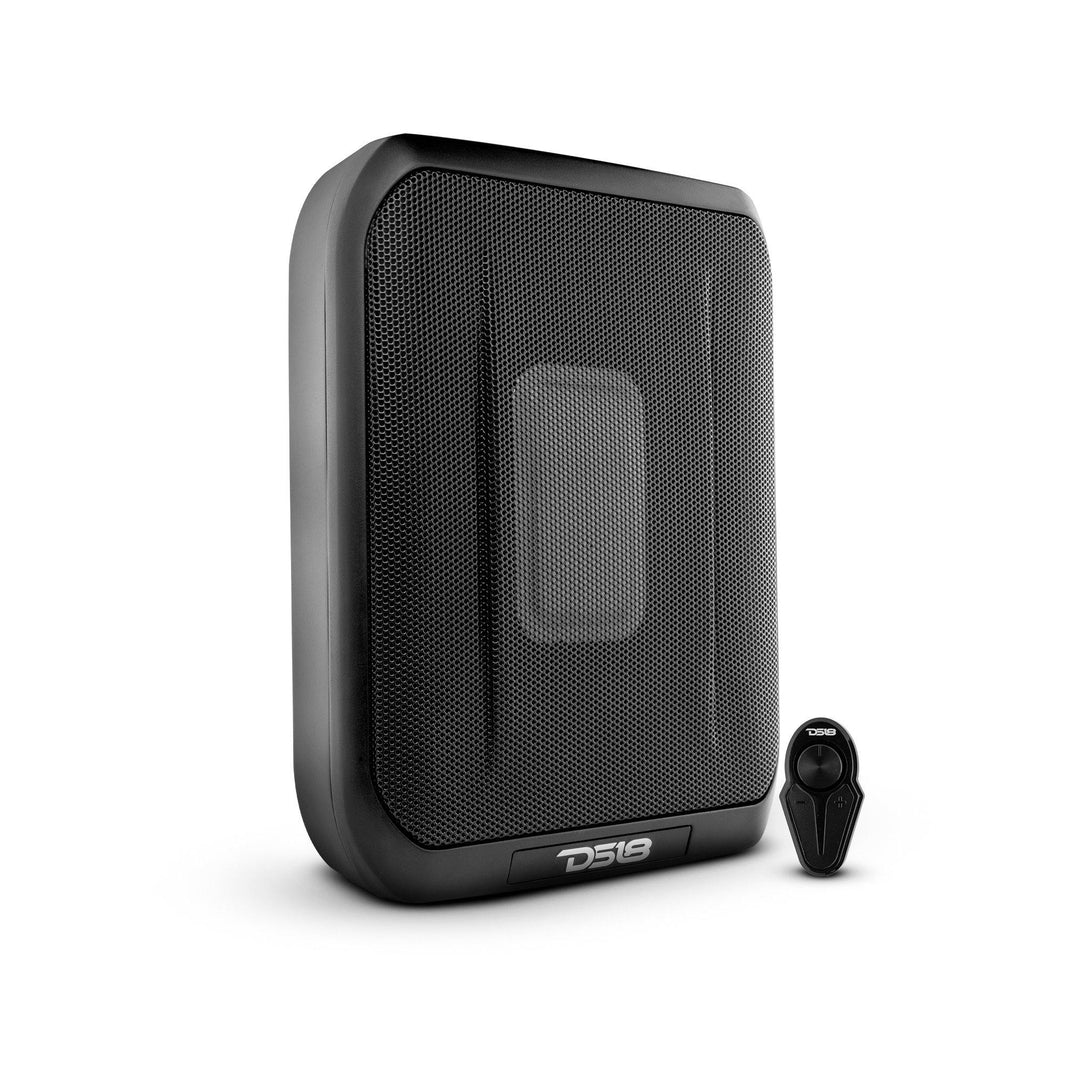

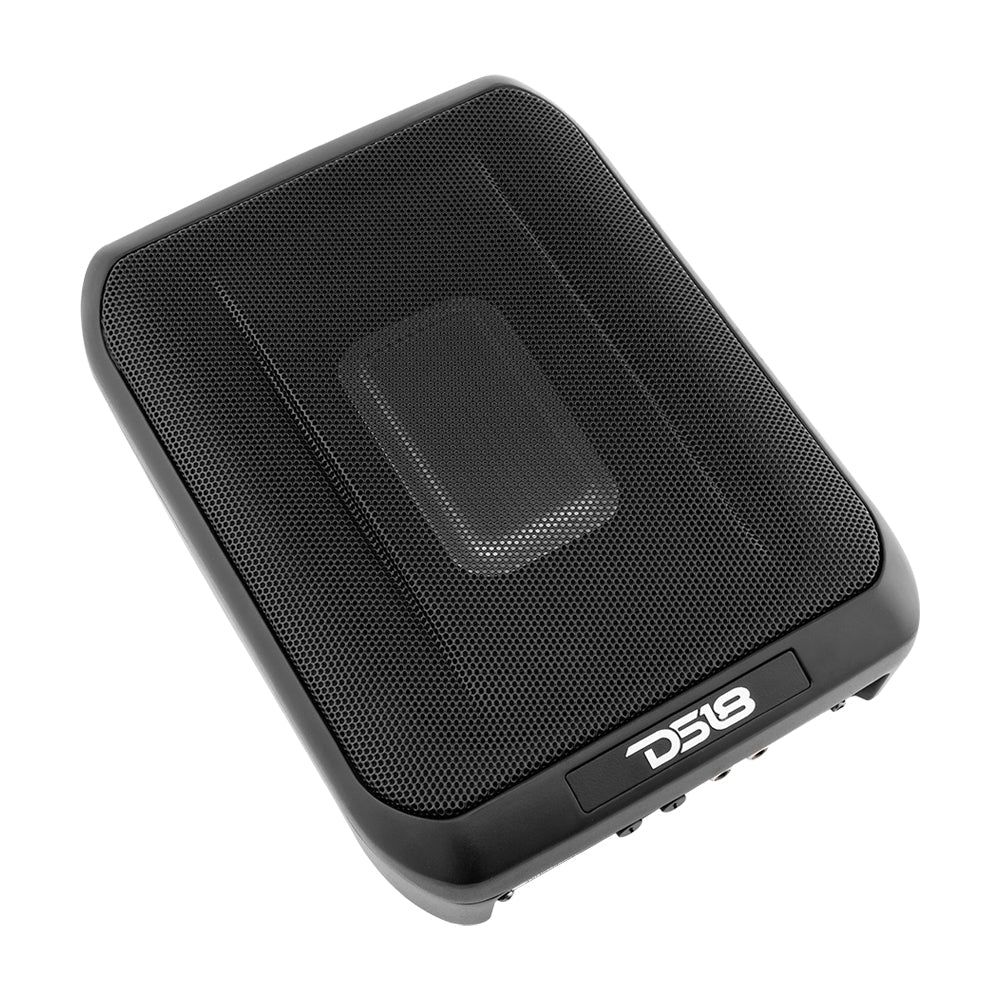

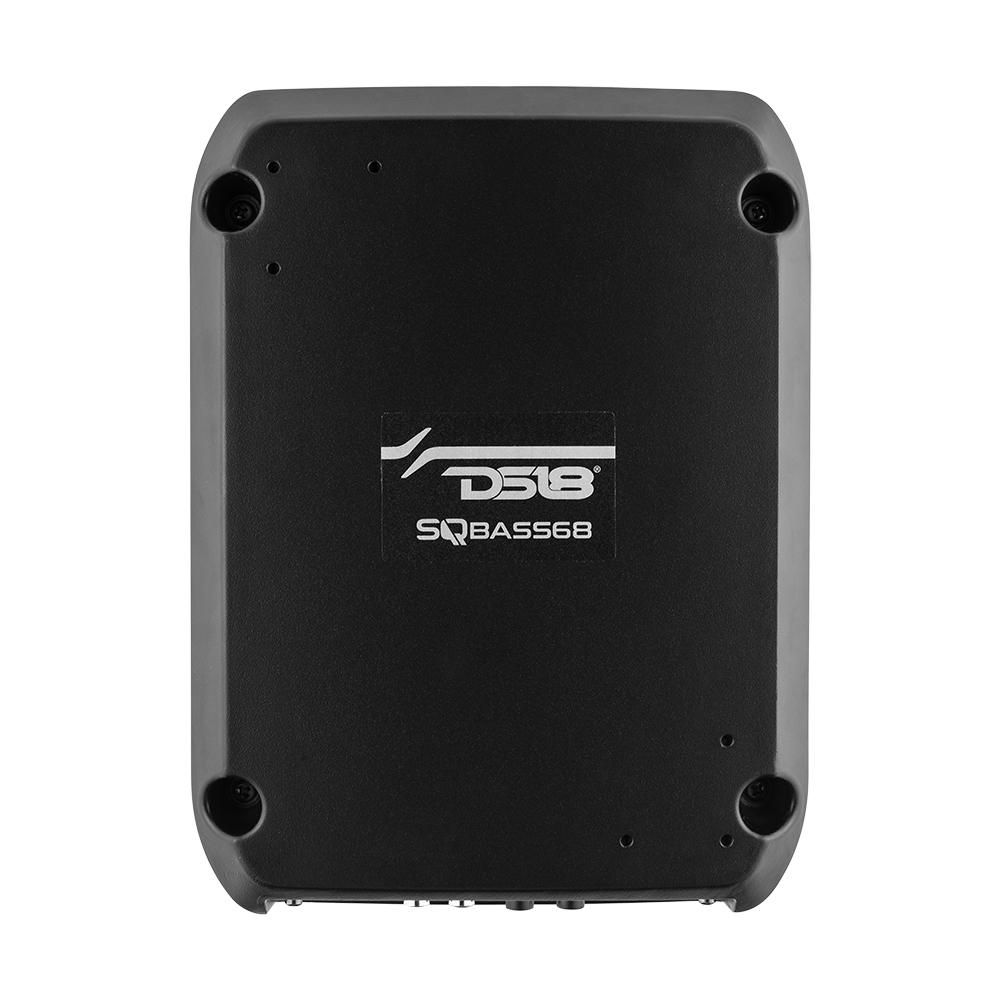

DS18 SQBASS68 6x8" Amplified Under Seat Car Subwoofer 600 Watts

Newly designed for vehicles that want to add some bass but have very little to no room for large subs and boxes.

The SQBASS68 incorporate a 6x8" Subwoofer in a compact enclosure that contains a special design to help extend and elaborate the bass for your music! This small unit can fit under most conventional car seating, rear cubby, or medium sized storage compartments so you can have clear and vibrant bass even if you have no room.

The unit also comes with it's own volume control input so you can find the perfect bass level for your musical preferences. With 150w RMS and 600w MAX power available on tap you will be sure to get goosebumps every time you hear the bass drop.

Highlights

• Add bass where there was none before easily! Compact and slim design that is made to fit under most front or rear seats or wherever there is room. The options are endless!
• Specially designed 6x8" subwoofer made to maximize bass response in spaces that are not typically designed for subwoofers.

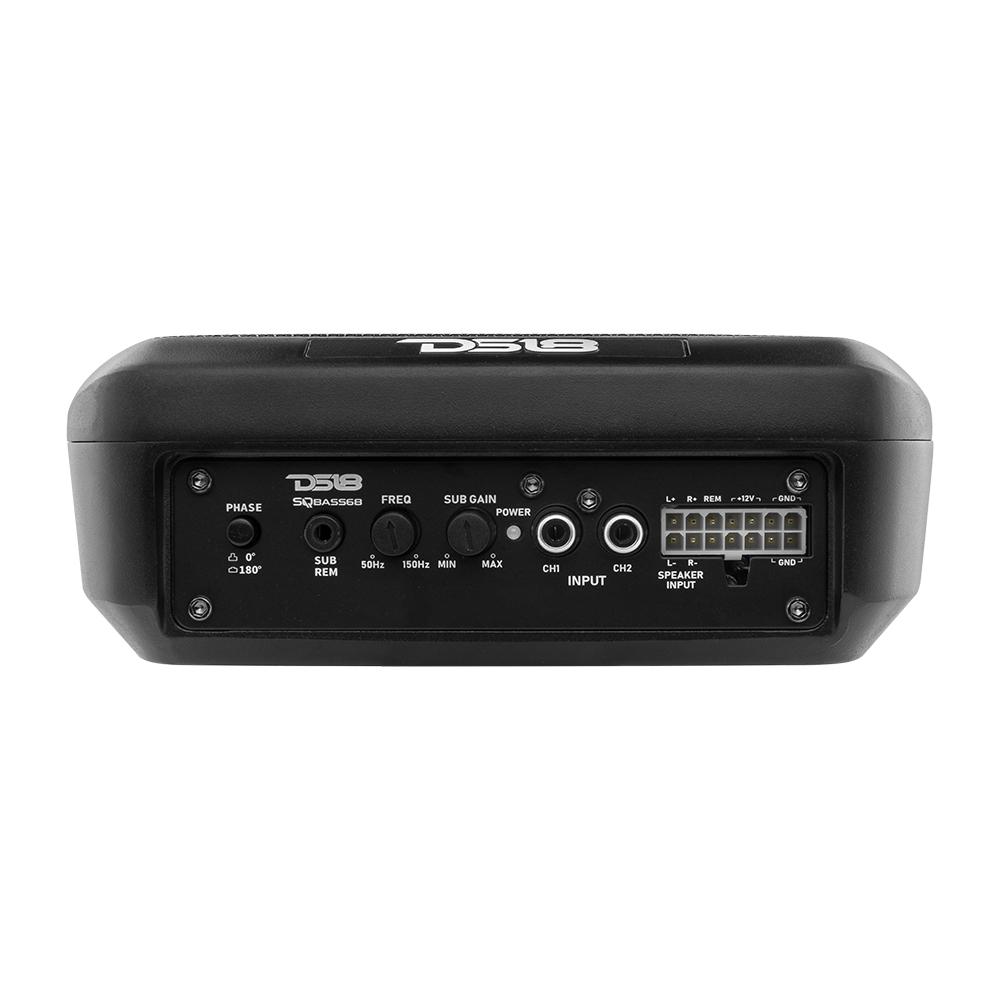

• Built in high power amplifier with bass remote input. High level inputs and RCA inputs will ensure this will work for any vehicle. 150w RMS 600w max output has been engineered to power this under the seat sub and enclosure to it's most optimal output.

Technical Details

                      SQBASS68 Product Manual

SPECIFICATIONS
Speaker Type / Size	6x8"
Total RMS Power Handling	150W
Total MAX Power Handling	600W
Sensitivity (1w/1m)	77 dB
Frequency Response	42Hz - 400Hz
SPEAKER SPECIFICATIONS
Voice Coil Diameter	1.2" / 30.6mm
Cone Material	Polypropylene
Surround Material	Rubber
Basket Material	Steel
Magnet Material	Ferrite
Body / Housing Material	Aluminum
AMPLIFIER SPECIFICATIONS
Amplifier Class	Digital
Amplifier Type	Subwoofer Monoblock
Number of Channels	1Ch
Minimum Impedance	2 ohms
Signal to Noise Ratio	>80dB
Total Harmonic Distortion (THD)	<0.5%
Low Level Input Range	0.1-5 Volts
High Level Input	0.5-10 Volts
Selectable X-Over	LPF Fixed
X-Over Filter Range	50-150Hz
Infrasonic Filter	30Hz Fixed
Phase Selector	0-180°
Led Indicator	Power/Protect
Power Input Terminal Size	12Ga Wired
Fuse Size	15A
Remote Level Control	Yes, Included
Thermal Protection	Yes
Over-Load Protection	Yes
DC Output Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes
EXTRA FEATURES

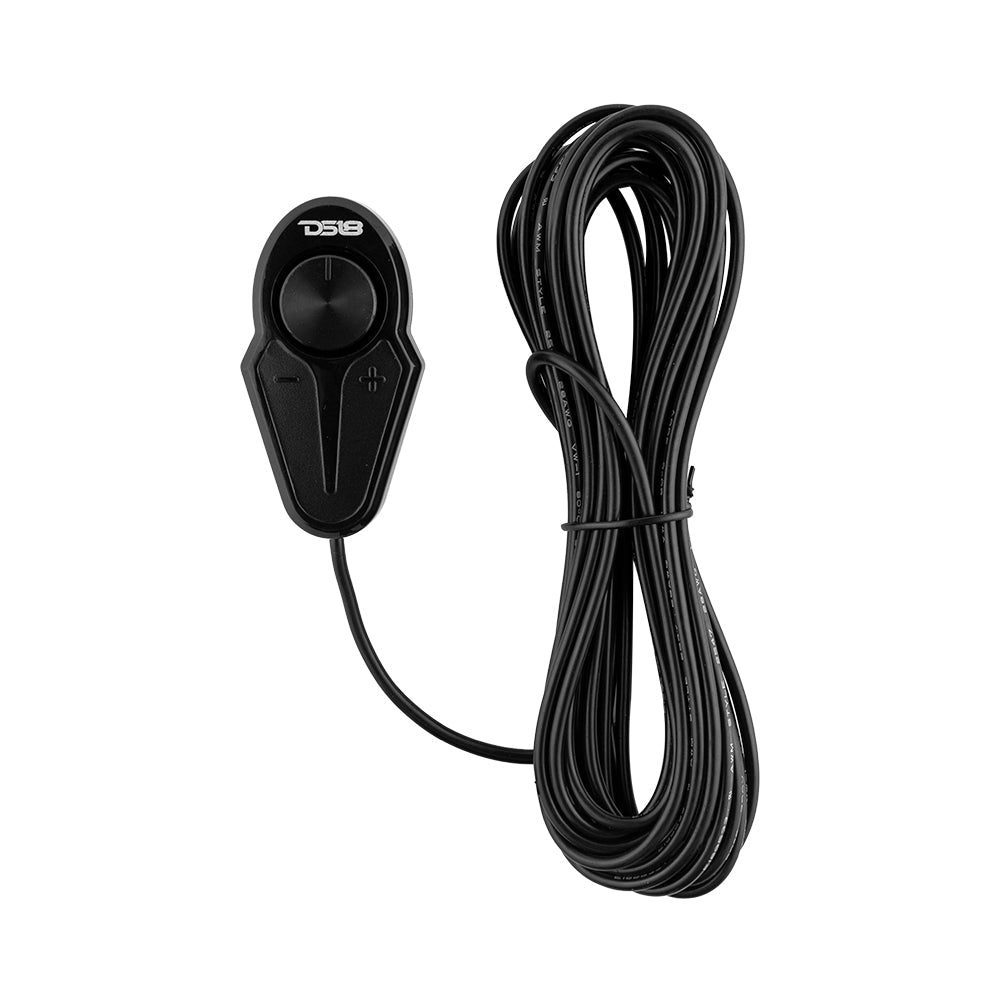

Remote Knob Cable Length	16ft / 5m
Remote Knob Adjust Range	0-30dB
Auto Turn-On	Yes, Signal sensing
MEASUREMENTS:
Overall Height	2.95" / 75mm
Overall Width	7.67" / 195mm
Overall Length	10.2" / 260mm
