8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver  400 Watts Rms 4-Ohm

8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 4-Ohm

Regular price $719.95
Vendor:DS18
Type:Motorcycle : Loudspeakers
SKU:8HD800NCFD-4
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

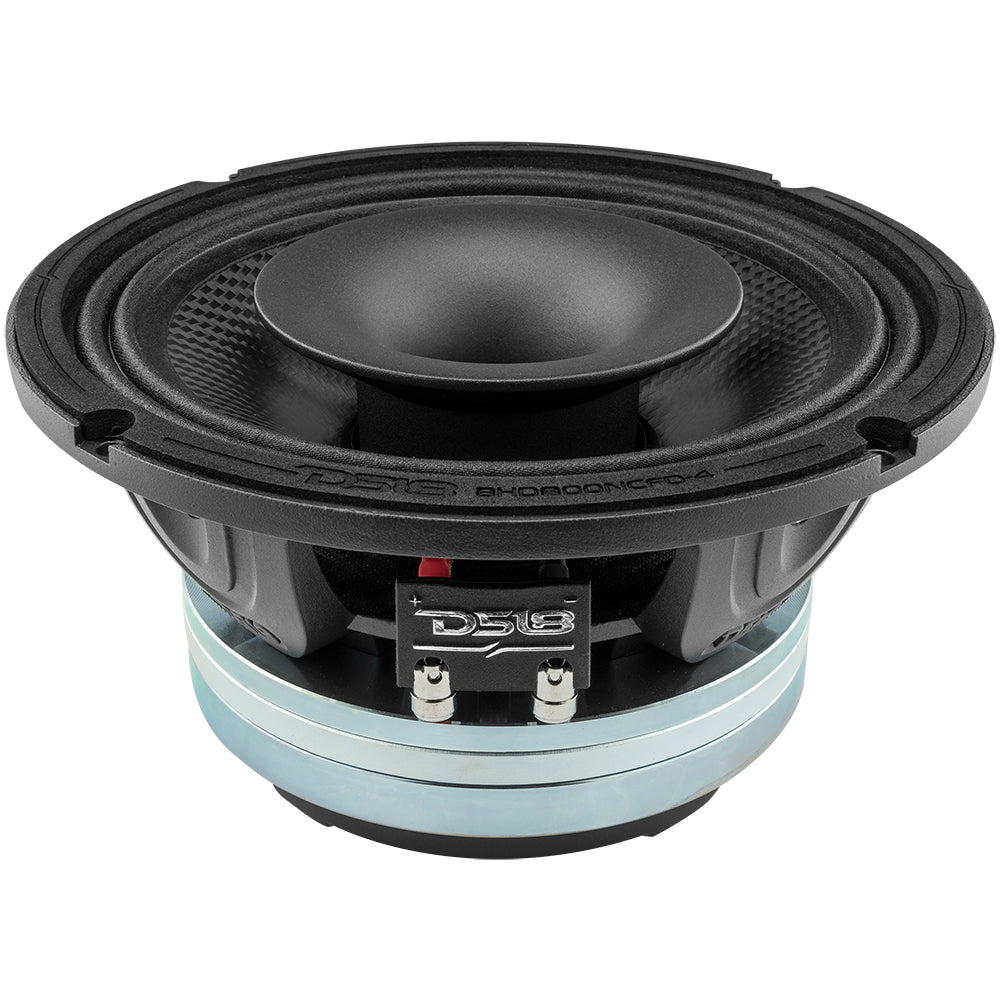

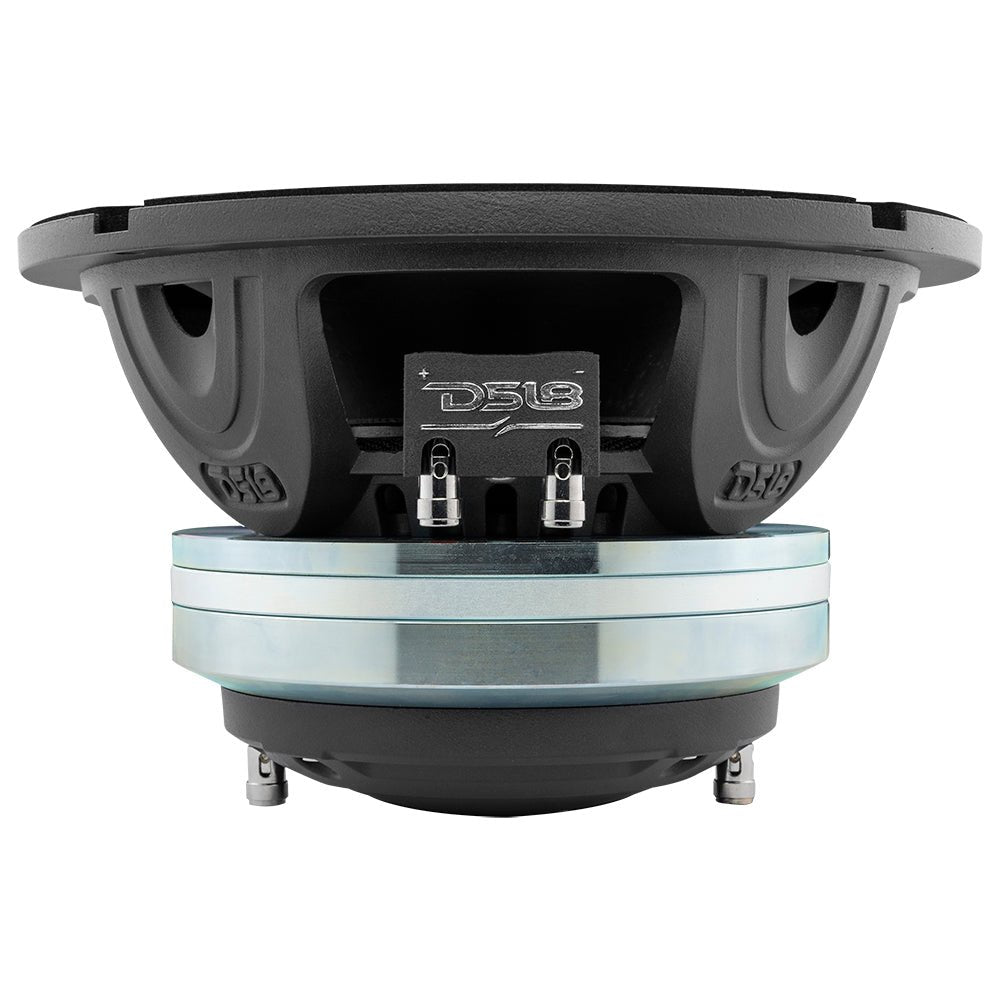

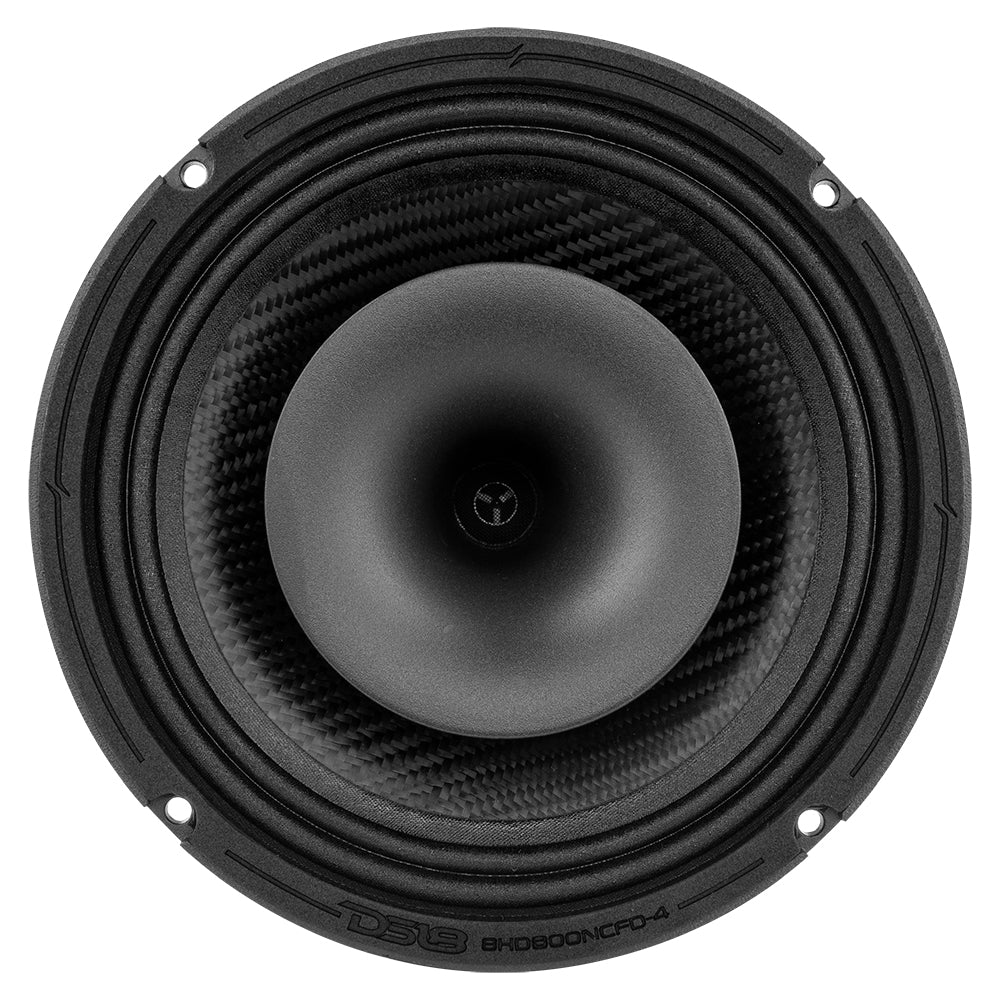

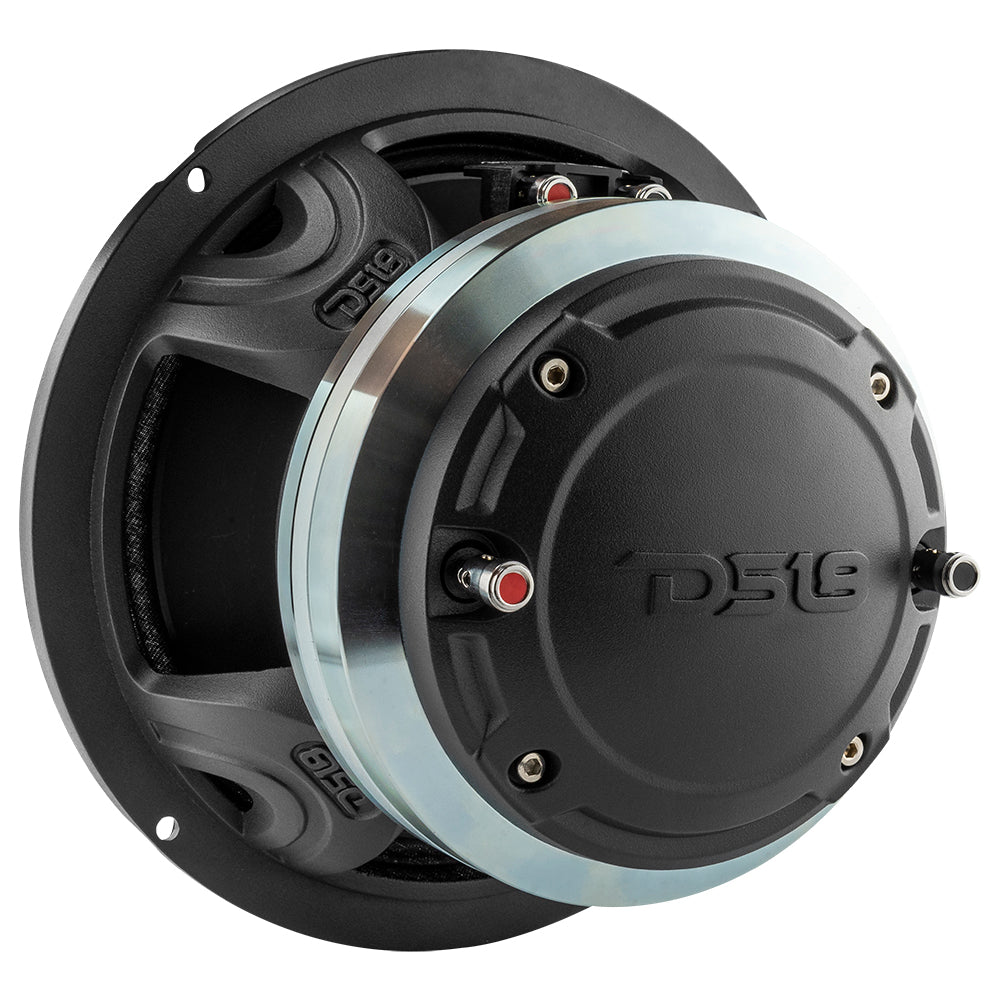

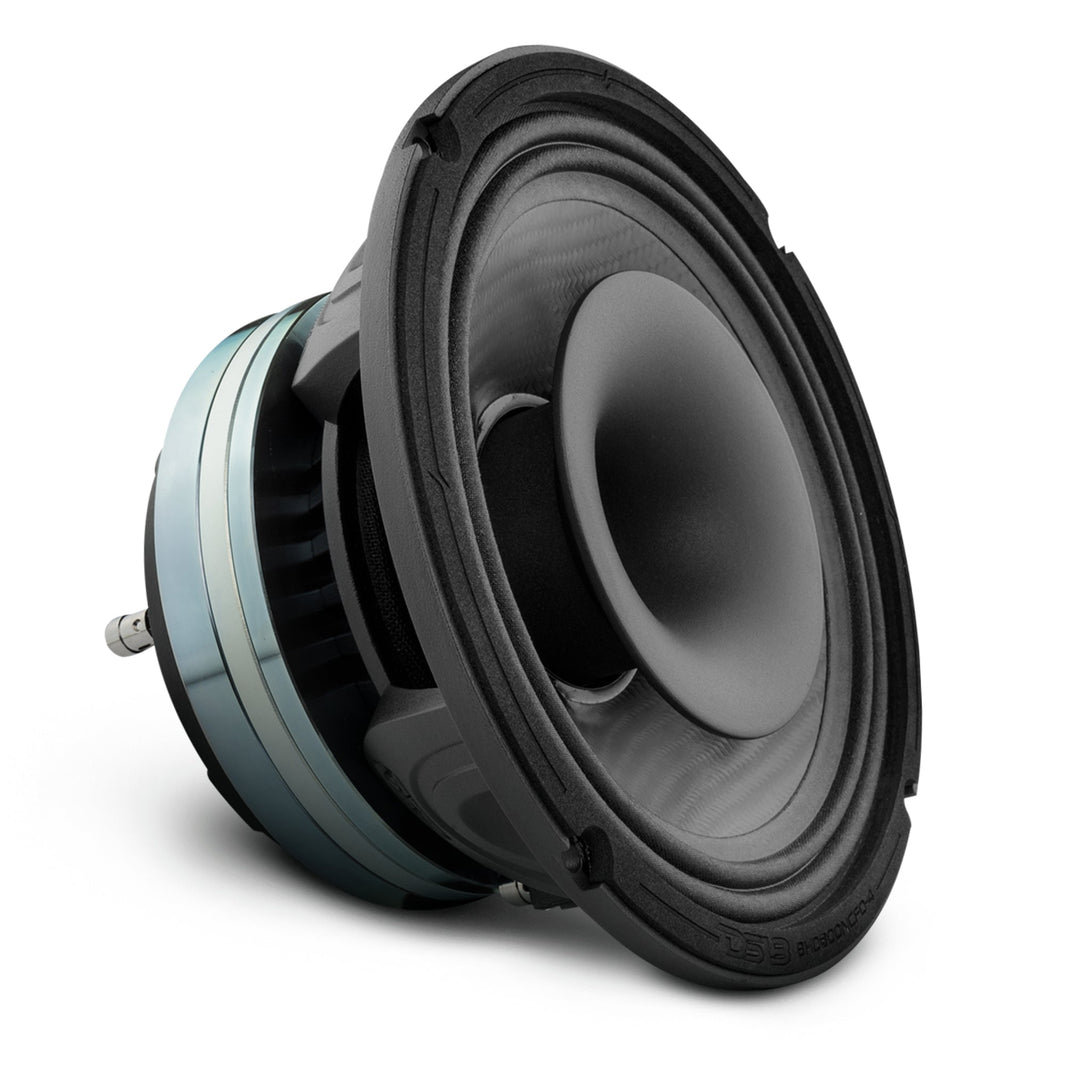

    DS18 8HD800NCFD-4 8" Hybrid Coaxial Loudspeaker with Water Resistant Carbon Fiber Cone, Driver Built in and Neodymium Magnet 4-Ohm

    Get intense volume and unmatched durability with DS18’s 8HD800NCFD-4; the newest addition to our line of hybrid loudspeakers with built in compression horn driver!

    DS18’s high powered hybrid pro audio speaker combines the extreme volume of our 8” mid-ranges with built-in high wattage compression drivers for the full range of frequencies on every session.

    The driver produces the high range frequencies with a much higher intensity that only a pro audio driver can provide! This makes these speakers louder than any coaxial, paired with an insane driver with the vocal power of two. The Driver is backed up by a powerful carbon fiber 8-inch midrange loudspeaker that will for sure fill out the complete frequency range giving you extremely loud Mids, Voice, and Highs with extreme loudness and crystal clarity.

    Add these speakers to any build! The water-resistant carbon fiber cone these speakers come equipped with protect them from elemental damage resulting from moisture and allow them to be installed in almost any build!

    Get the best of both worlds combined into one pro audio hybrid speaker with the 8HD800NCFD-4!

    Highlights

    • Hybrid design combines high wattage midrange and driver together in one beautiful frame.
    • High volume 8" midrange and 3" driver rated at 400w RMS and 800 Max for crazy loud volume in a full range of frequencies.
    • Midrange speaker is 4 ohms and driver is 8 ohms
    • 4 terminals, two for the mid and two for the driver for multiple high power wiring options
    • Water resistant carbon fiber cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too
    • High quality design including Diecast aluminum painted black basket with DS18 molded into the frame and high quality push terminals

    Great For

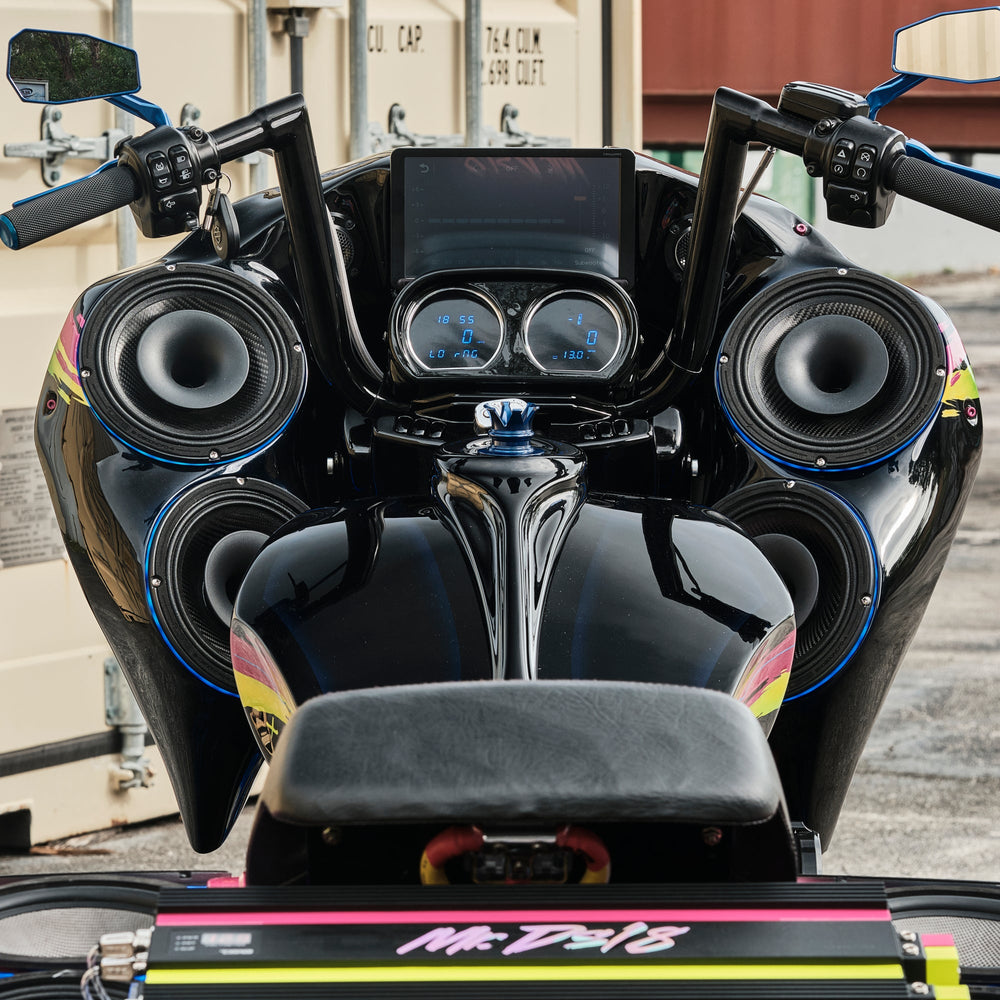

    • Motorcycle Audio
    • Boat Audio
    • Car Audio
    • Stunt Walls

    Technical Details
    GENERAL SPECIFICATIONS
    Nominal Diameter  8" / 203mm
    Nominal Impedance (Woofer / Driver) 4 Ohms / 8 Ohms
    RMS Power Handling (Combined) 400W
    MAX Power Handling (Combined) 800W
    Sensitivity (1w/1m) (Combined) 105dB
    Frequency Response (Combined) 40Hz-20KHz
    Number of Ways 2 ways
    Sold in Pair or Single Single
    Grill Included No
    WOOFER SPECIFICATIONS
    RMS Power Handling  250W
    MAX Power Handling  500W
    Sensitivity (1w/1m)  96.5dB
    Frequency Response 40Hz-10KHz
    Recommended Band-Pass Crossover 80Hz-900Hz
    Voice Coil Diameter 2.6" / 66mm
    Voice Coil Former Material  KAPTON
    Winding Material  CCAW
    Cone Material Water Resistant Carbon Fiber
    Surround Material Treated Cloth
    Basket Material  Die Cast Aluminum
    Basket Color/Finish Black Sandblasted
    Magnet Material Neodymium
    Magnet Size 145x8mm
    DRIVER SPECIFICATIONS
    AES Power handling 150W
    Program Power Handling  300W
    Sensitivity (1w/1m)  100.5dB
    Frequency Response 315Hz-20KHz
    Recommended Hi Pass Crossover 900Hz
    Voice Coil Diameter 3" / 76.2mm
    Voice Coil Former Material  KAPTON
    Winding Material  CCA
    Diaphragm Material Titanium with Polymer Edge
    Magnet Material Neodymium
    Horn Diameter 4.13" / 105mm

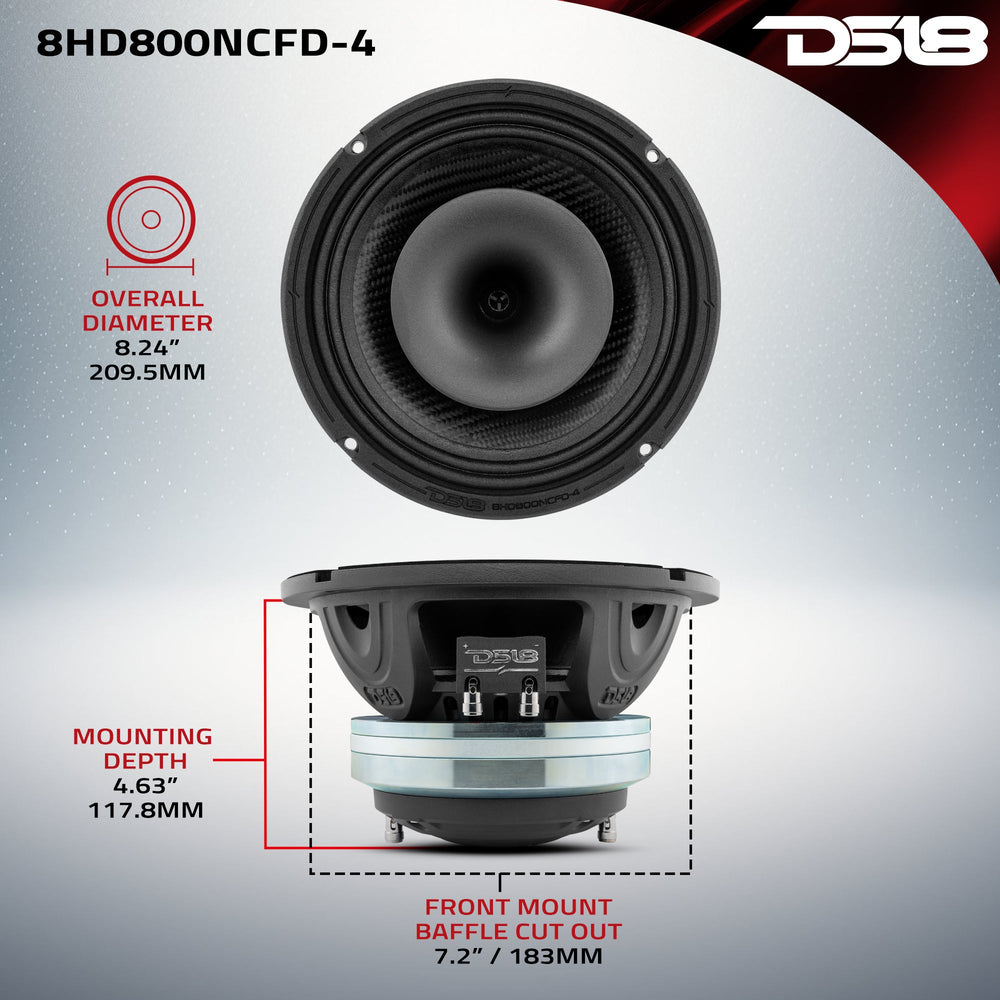

    SPEAKER MEASUREMENT
    Overall Diameter 8.24" / 209.5mm
    Overall Depth 5" / 127.8mm
    Front Mount Baffle Cutout 7.2" / 183mm
    Mounting Depth 4.63" / 117.8mm
    Motor Diameter 5.7" / 145mm
