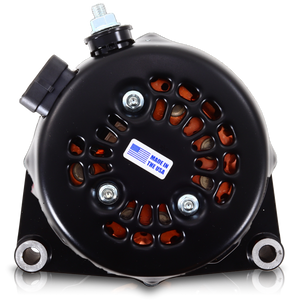

Billet Black 170 Amp Racing Alternator GM Truck LS Engine Swap

Billet Black 170 Amp Racing Alternator GM Truck LS Engine Swap

Vendor:Mechman
SKU:B8206170B
Regular price $449.00
Quantity
Payment Options
Description Additional info Reviews

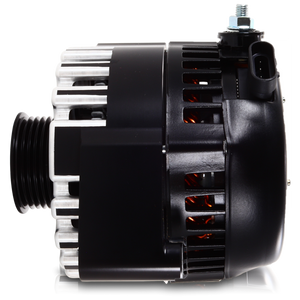

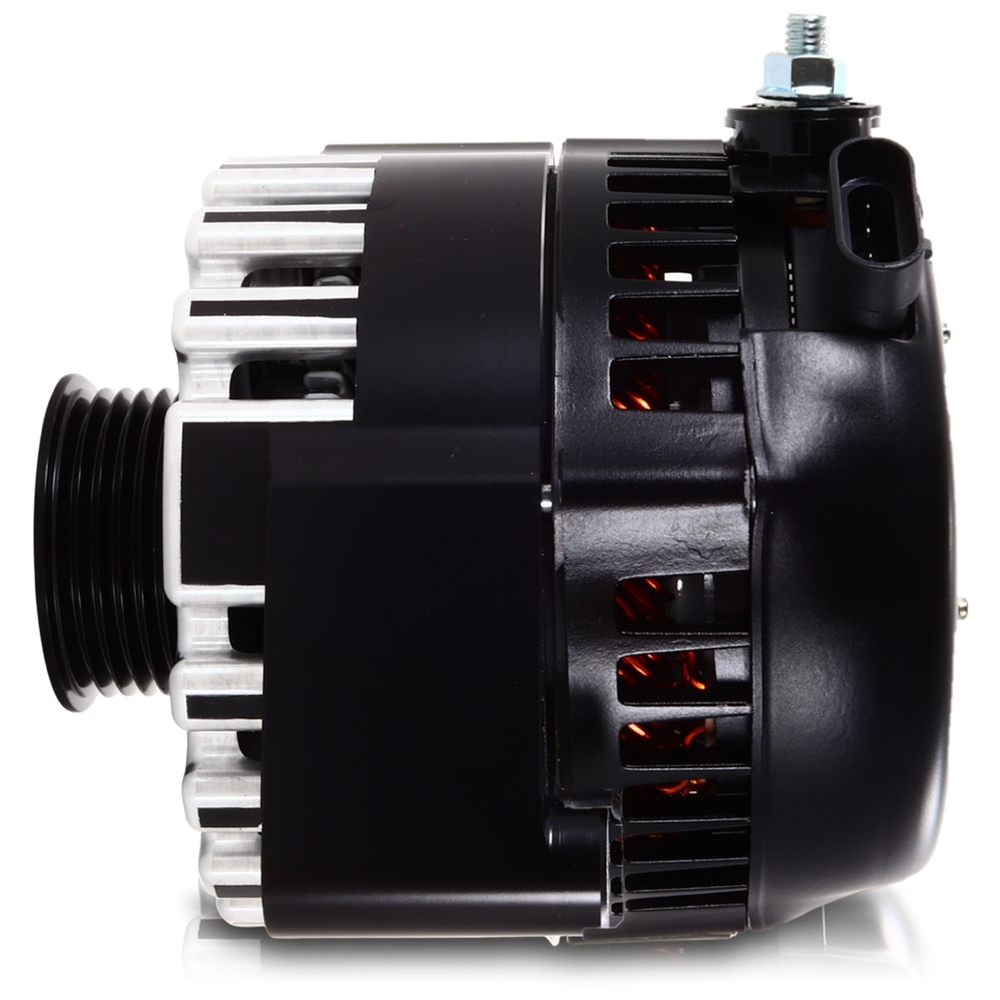

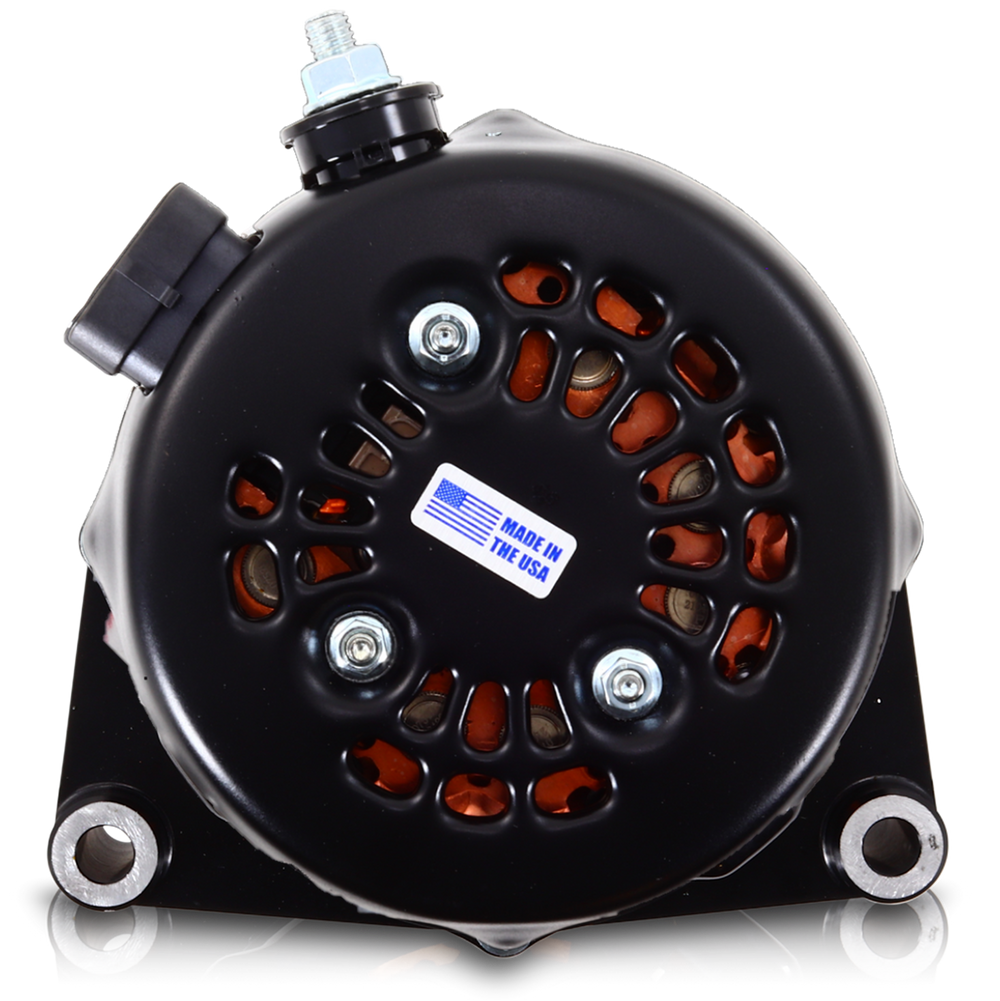

    The S series of 6 phase alternators offers incredible output in a compact and durable package. 12 diodes, (instead of the normal 6 diodes) and twin rectifier plates with outstanding airflow ensure long service life, even in severe conditions. A side output stud and seamless rear cover with a side output plug allow for better clearance from the back of the alternator to the front of the engine and a smooth appearance.

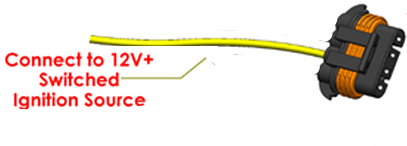

    A single wire on the provided pigtail gets connected to any ignition switched 12V+ source to turn the alternator on and off with the ignition switch. Simply run a properly sized positive and ground cable from the alternator to the terminals of the battery and the alternator will work perfectly, regardless of what kind of wiring harness you have.

    Fitment Guide:

    Make
    Model
    Engine Size
    Year
    Buick
    Rainier
    5.3L
    2004 - 2006
    Cadillac
    Escalade
    5.7 / 6.0 / 6.2
    1999 - 2004
    Chevrolet
    Astro Van
    4.3L
    1996 - 2005
    Chevrolet
    Avalanche
    All Engines
    2002 - 2004
    Chevrolet
    Camaro
    5.0 / 5.7
    1998 - 2002
    Chevrolet
    Express Van w/4 pin plug

    1996 - 2016
    Chevrolet
    Full Size Truck
    All Gas Engines
    1996 - 2004
    Chevrolet
    Full Size Truck
    6.6L Duramax
    2001 - 2007
    Chevrolet
    S-10 / Blazer
    4.3L
    1994 - 2004
    Chevrolet
    SSR
    5.3 / 6.0
    2003 - 2006
    Chevrolet
    Suburban
    w/4 pin plug
    1996 - 2004
    Chevrolet
    Tahoe/Full Size Blazer
    All Gas Engines
    1996 - 2004
    Chevrolet
    Trailblazer
    5.3L
    2003 - 2006
    GMC
    Envoy
    5.3L
    2003 - 2006
    GMC
    Full Size Truck / Sierra
    4.3L
    1996 - 2004
    GMC
    Full Size Truck / Sierra
    4.8L
    1999 - 2004
    GMC
    Full Size Truck / Sierra
    5.0L
    1996 - 1999
    GMC
    Full Size Truck / Sierra
    5.3L
    1999 - 2004
    GMC
    Full Size Truck / Sierra
    5.7L
    1996 - 2000
    GMC
    Full Size Truck / Sierra
    6.0L
    1999 - 2005
    GMC
    Full Size Truck / Sierra
    6.6 Diesel
    2001 - 2006
    GMC
    Full Size Truck / Sierra
    7.4L
    1996 - 2000
    GMC
    Full Size Truck / Sierra
    8.1L
    2001 - 2005
    GMC
    Safari
    4.3L
    1994 - 2004
    GMC
    Savana Van
    w/ 4 pin oval plug
    1996 - 2016
    GMC
    Suburban
    w/ Oval plug
    1996 - 2004
    GMC
    Yukon
    w/ Oval plug
    1996 - 2004
    Hummer
    H2
    6.0L
    2003 - 2007
    Oldsmobile
    Bravada
    4.3L
    1994 - 2001
    Pontiac
    Firebird
    5.0 / 5.7
    1998 - 2002
