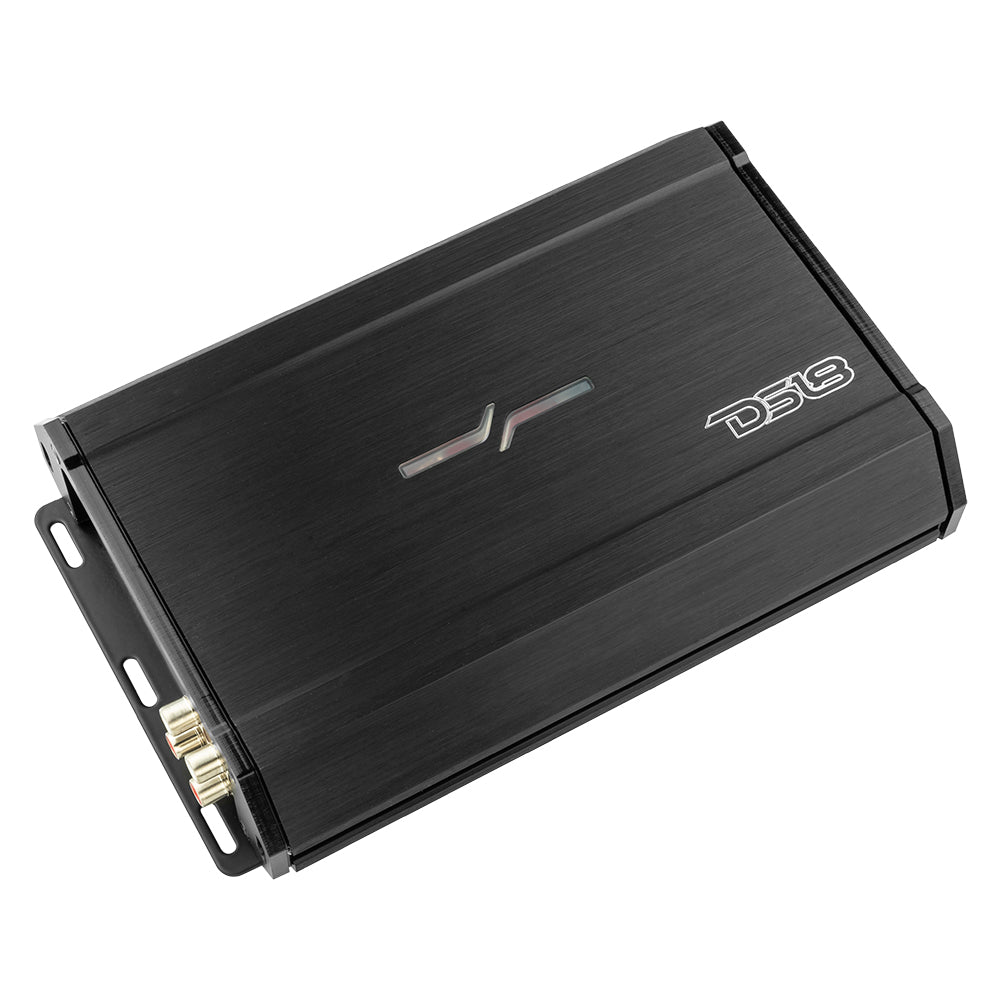

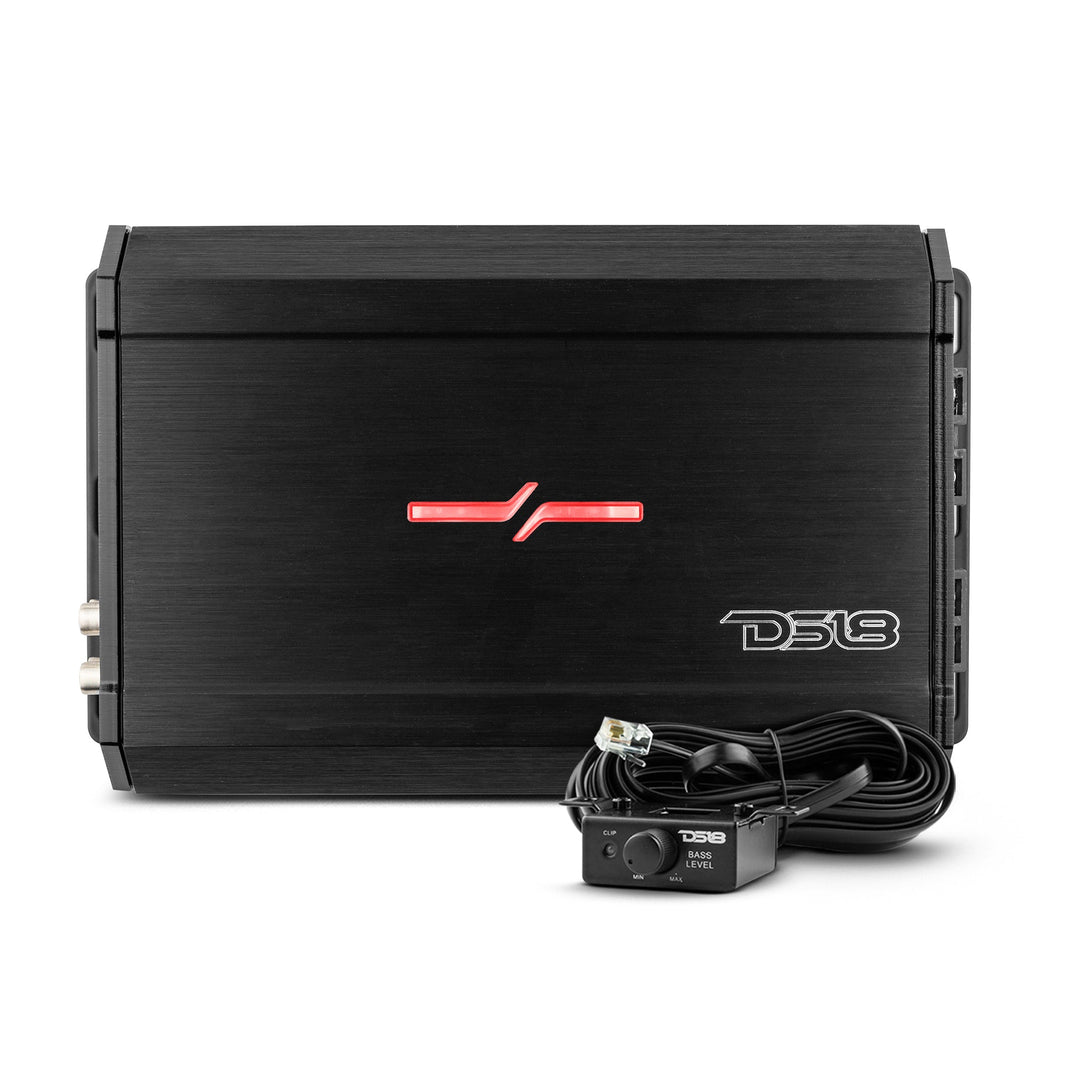

DS18 ELITE ZXI.1 1-Channel Class D Amplifier 1000 Watts RMS @ 1-Ohm

Over time evolution is inevitable. The same can be said for DS18's new Z series model of amplifiers! We took one of our best selling lines and upgraded every aspect of it. They now put out even more power, have more top of the line components, and are guaranteed to deliver amazing quantities of RMS power on demand.

The previous Z series was very powerful to begin with and we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. You have your pick of multiple 2 channel, 4 channel, and mono block amps in this line to power every aspect of your DS18 audio system

Highlights

• Elegant design that retains very high durability with incorporated high efficiency heat sync.

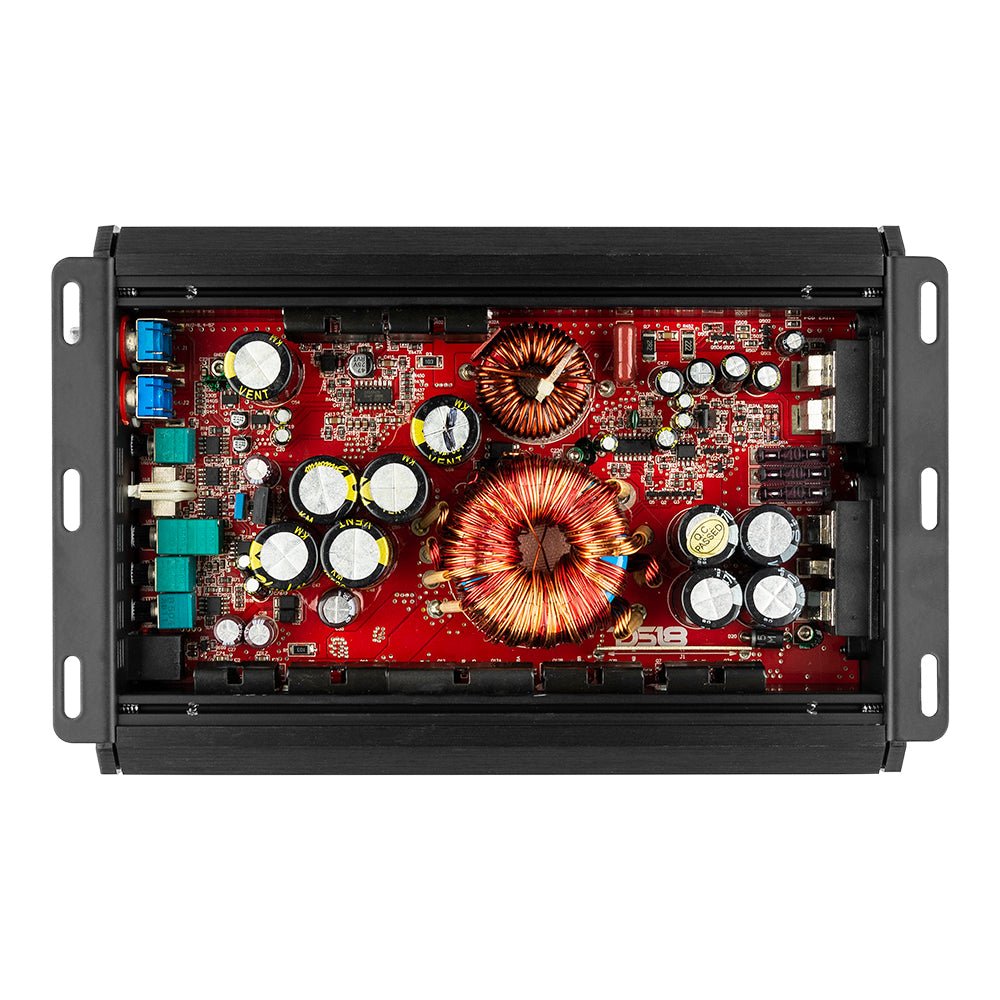

• High quality circuit board to give the most power with the highest efficiency rate providing high power on demand.

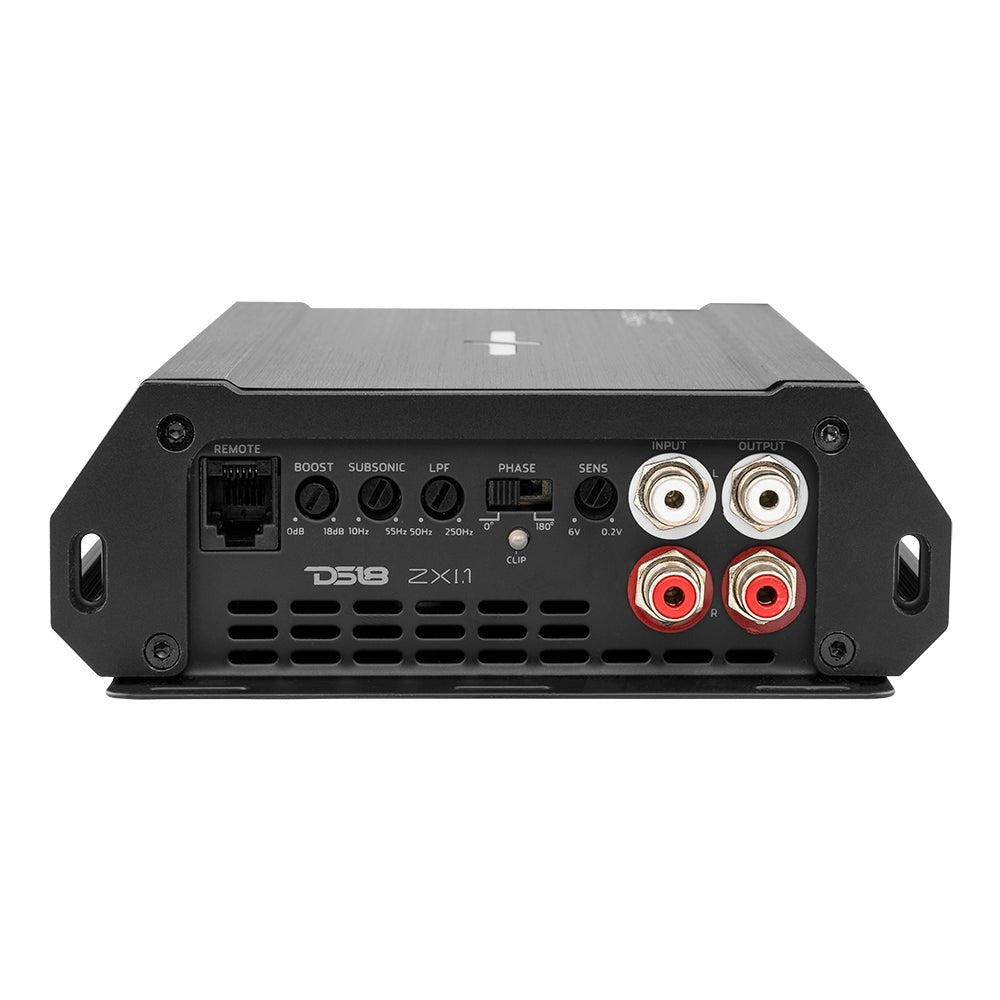

• Easily tuned crossover and gain controls for the perfect sound settings in your vehicle.

Technical Details

Download ZXI.1 Product Manual

Model	ZXI.1
Class	D
Channels	1
RMS PORWER @ 4 OHMS	450W x 1CH
RMS PORWER @ 2 OHMS	750W x 1CH
RMS POWER @ 1 OHM	1000W x 1CH
PEAK POWER @ 4 OHMS	680W x 1CH
PEAK POWER @ 2 OHMS	1000W X1CH
PEAK POWER @ 1 OHM	1500W x1CH
MINIMUM IMPEDANCE	1 OHM
FREQUENCY RESPONSE	20-500KHz
THD %	0.10%
INPUT SENSITIVITY	0.2-6V
SIGNAL/NOISE RATIO	>90dB
CROSSOVER LOW PASS	50-250Hz

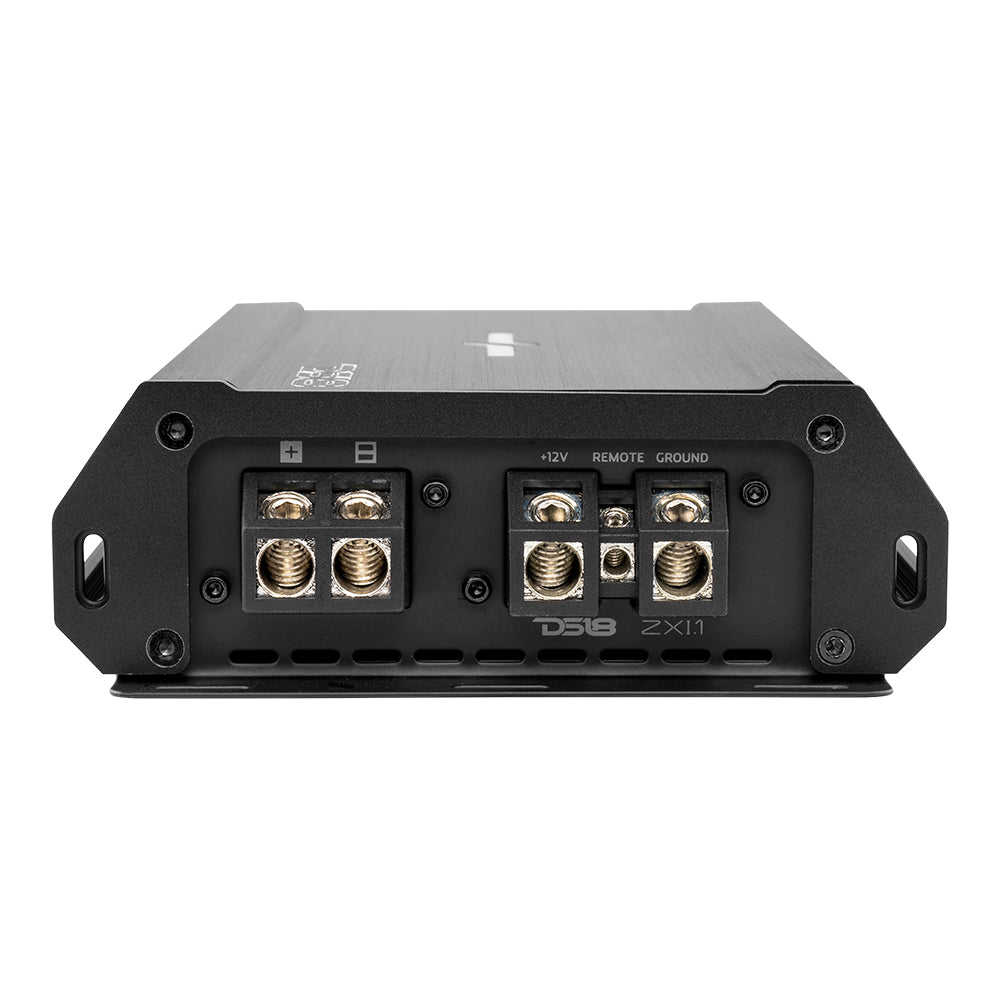

POWER INPUT SIZE	4GA
DIMENSIONS LxDxH (INCHES)	9.1 x 5.7 x 1.9
