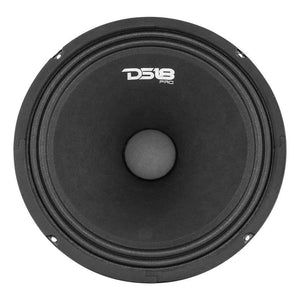

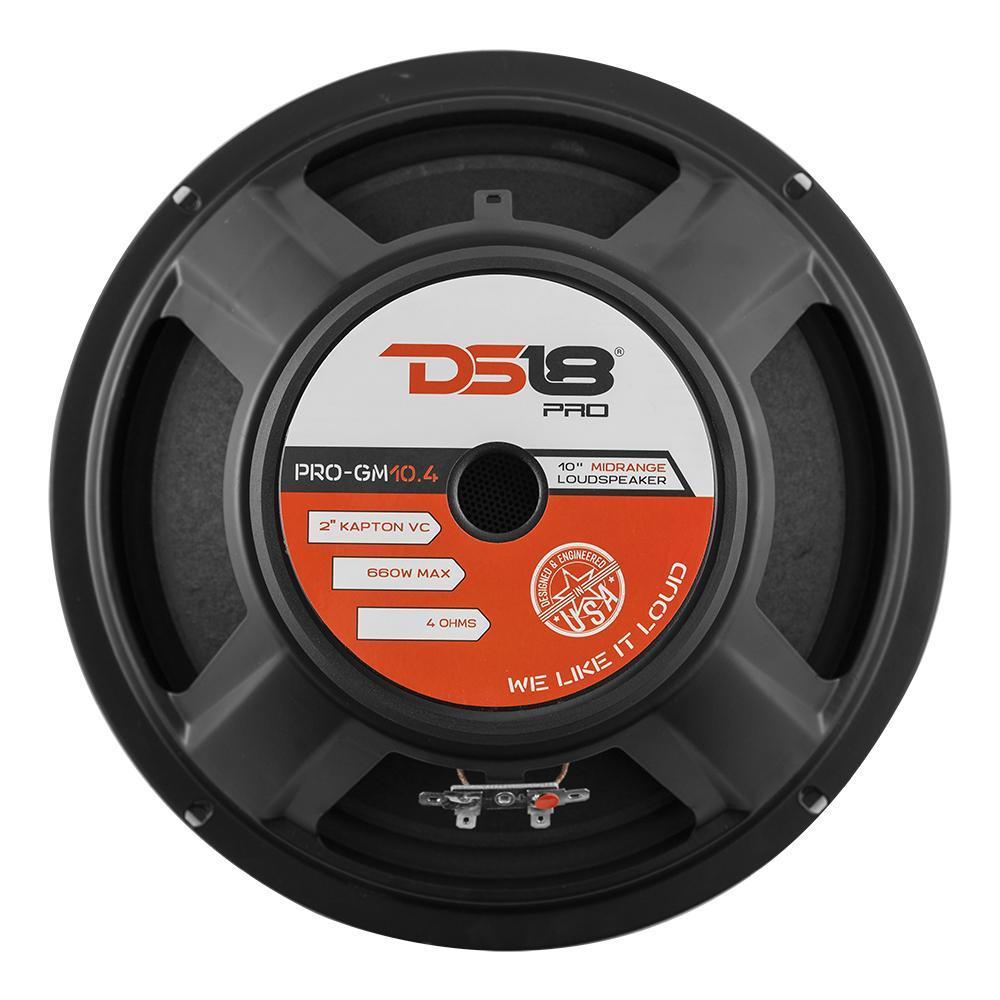

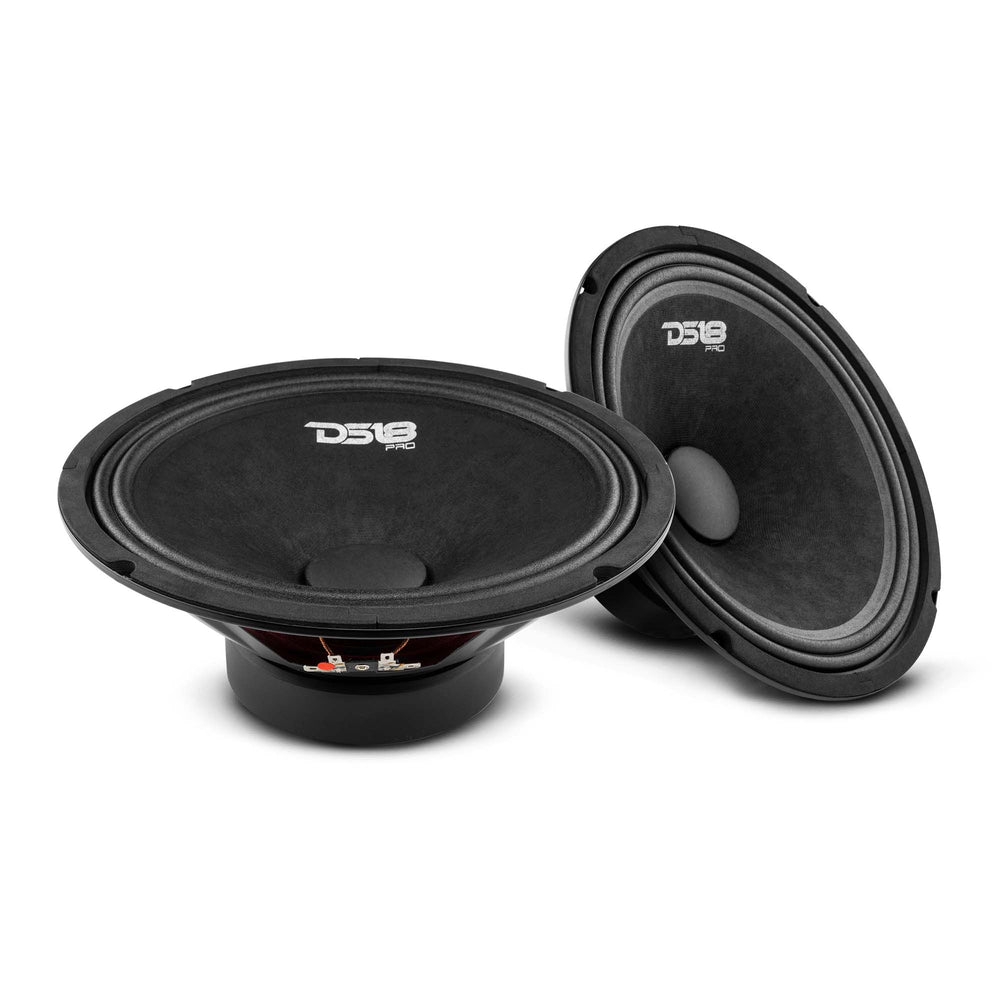

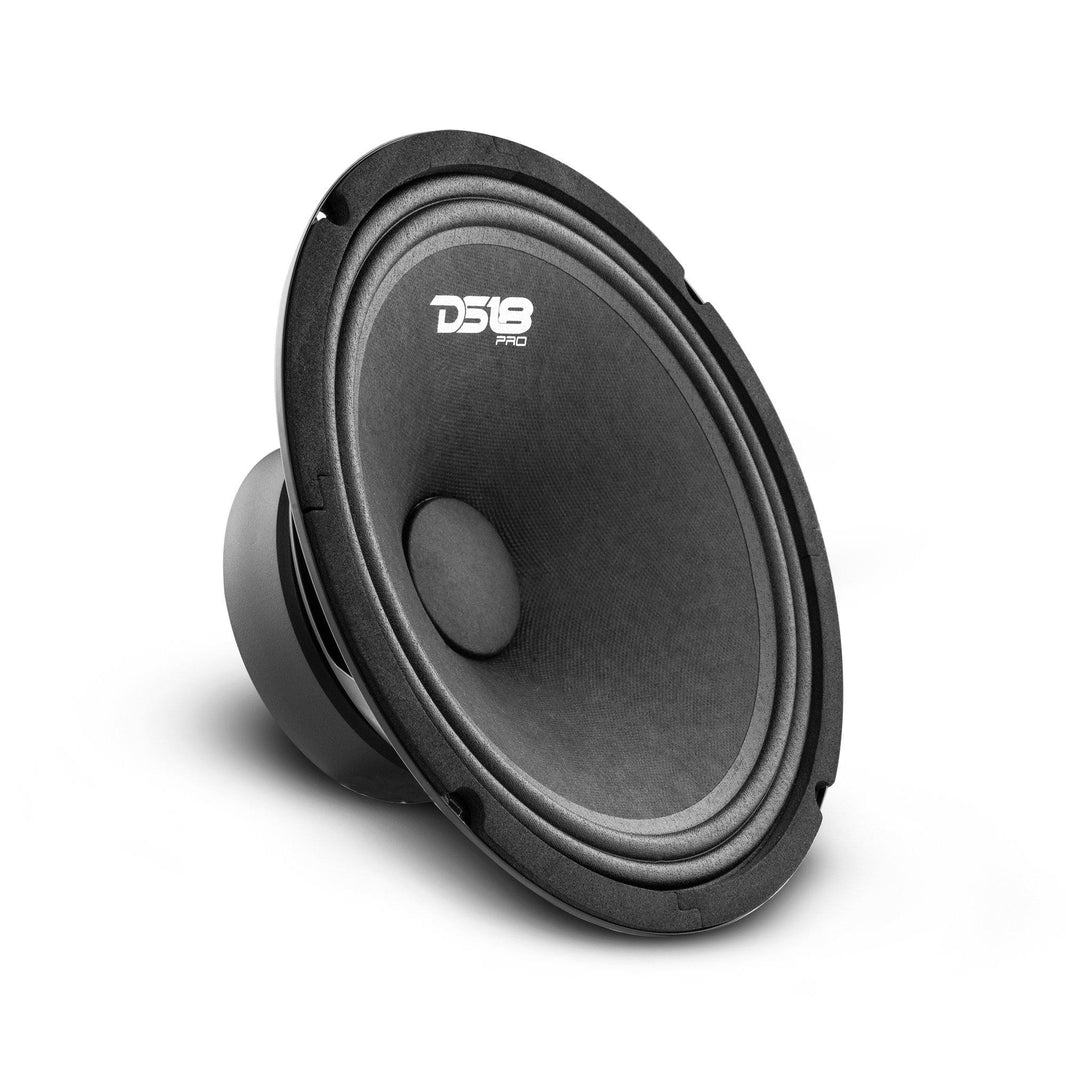

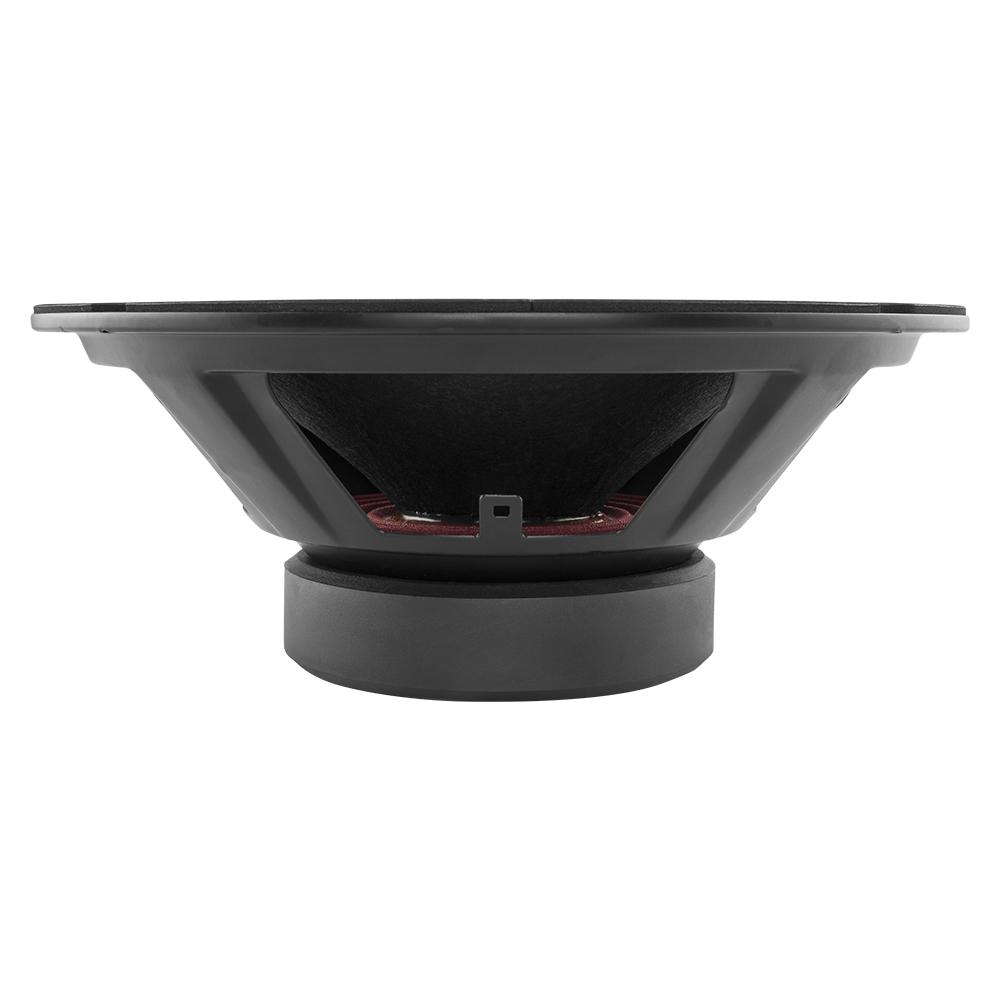

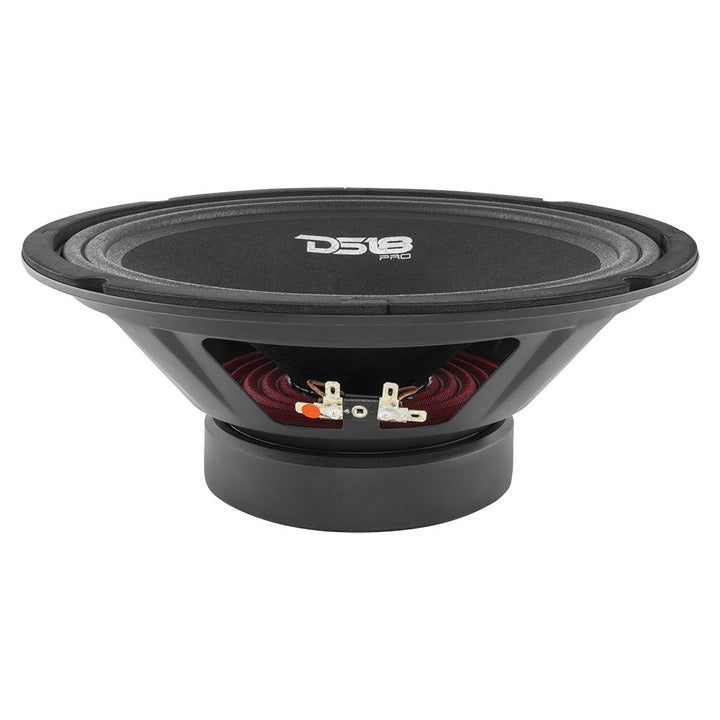

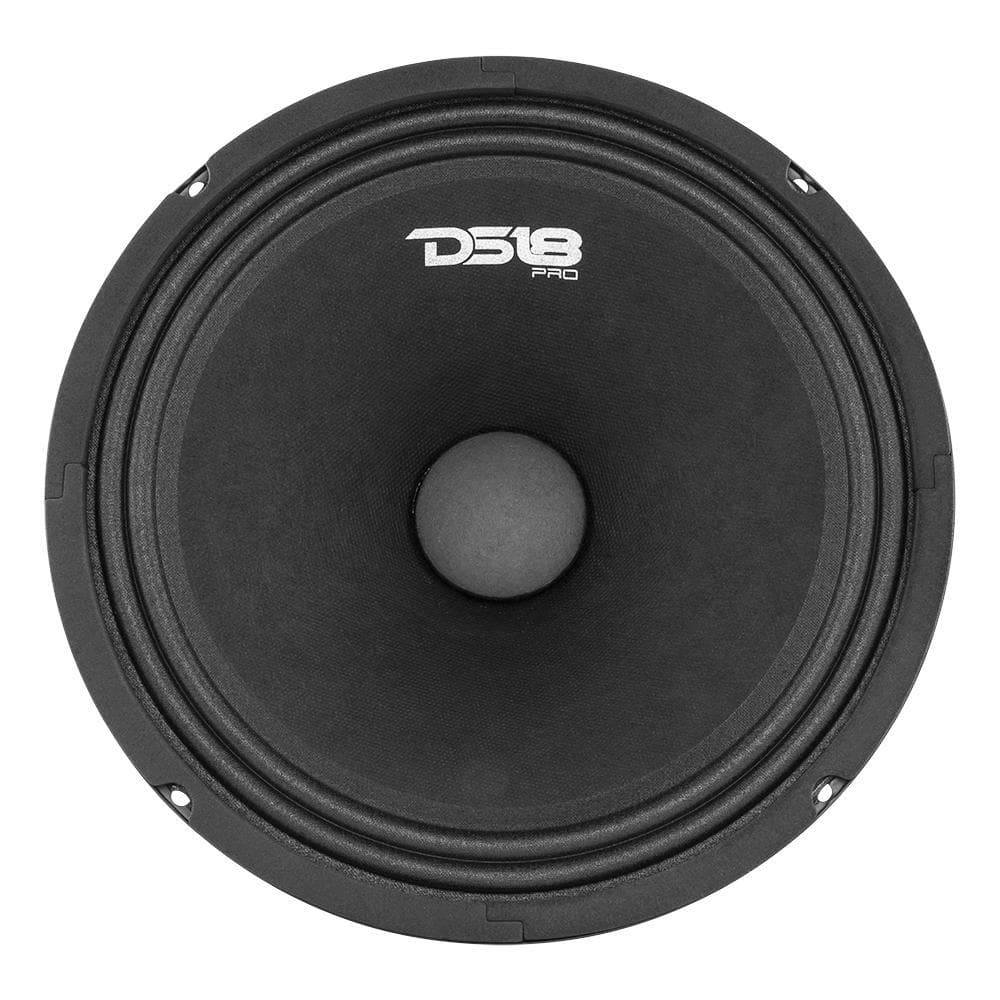

DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm

Everyone's favorite is now available in 4-Ohms During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO-GM audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you.

A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a mid-range driver of good quality be capable of low-distortion reproduction.

Highlights

• DS18's highly popular series of High Powered pro audio.
• Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality.
• These mids come with a solid cone design and are pure midrange speakers and will be greatly complemented with a not included tweeter.

Technical Details

Download PRO-GM10.4 Product Manual

Model:	PRO-GM10.4
Type:	Midrange Loudspeaker
Size:	10"
RMS Power:	220W
MAX Power:	660W
Frequency Response:	40Hz-6.3KHz
Impedance:	4 Ohms
Sensitivity:	95dB
Materials
Surround:	Cloth Surround
Frame:	Black Stamp Steel Basket
Cone:	Black Paper Woofer Cone
Magnet:	Ferrite
Voice Coil Wire:	Kapton
Diameters
Voice coil size:	2"
Magnet Weight:	30 oz.
Mounting Depth:	3.7" (96mm)
Cut-Out Dimension:	9.05" (182mm)
Fs	59 Hz
Re	3.4 Ohm
Qes	0.808
QMS	14.565
Qts	0.765
Vas	79.3L / 2.8ft3
