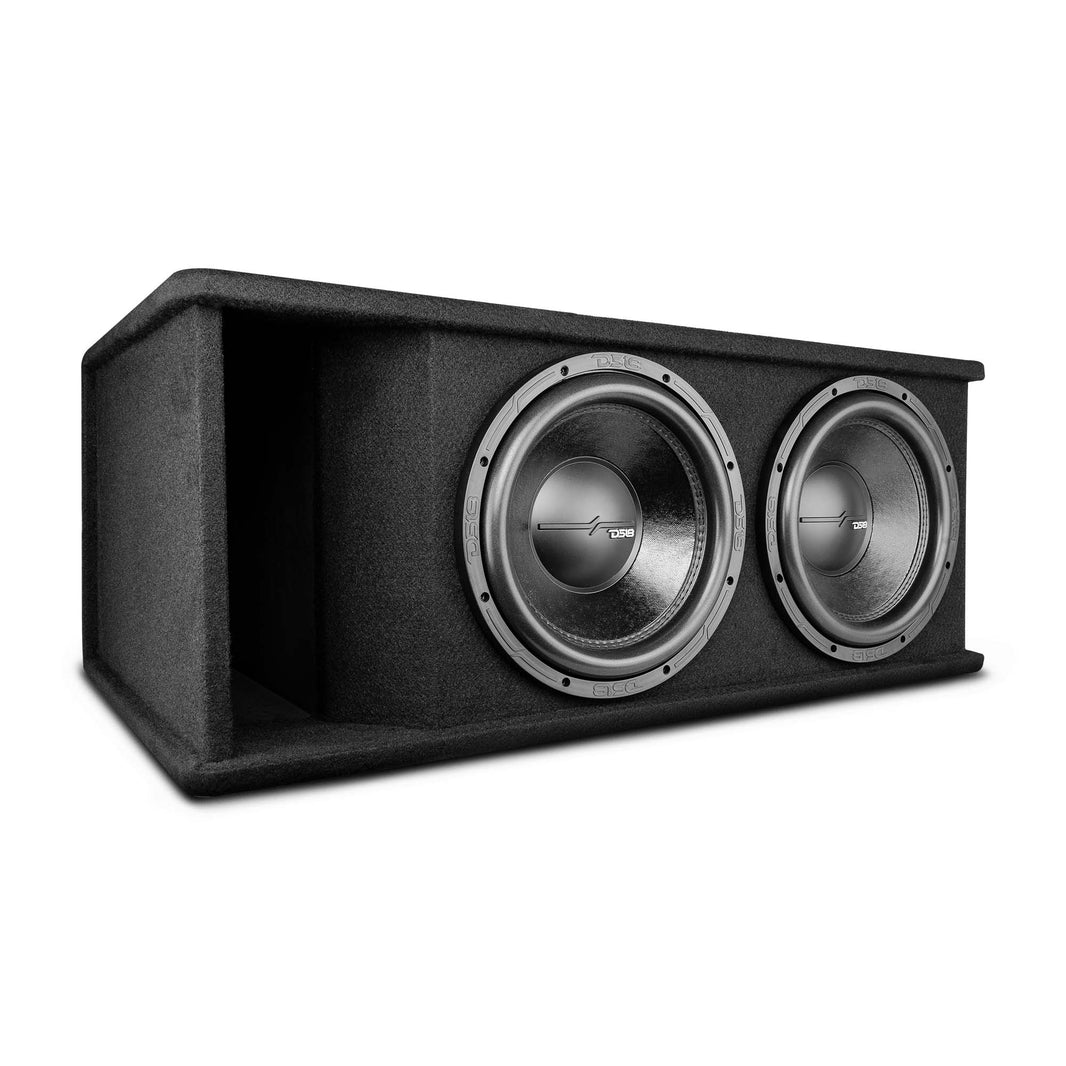

DS18 ZR212LD Bass Package 2 x ZR12.2 12" Subwoofers In a Ported Box 3200 Watts

The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!

The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.

This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1600W RMS and 3200W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.

Highlights

• The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
• Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers

Key Features

ZR12.4D

•  Two 12 inch DVC subwoofer
•  Max Power Handling: 1600 watts each
•  RMS Power Handling: 800 watts each
•  Frequency Response: 25hz-200hz
•  Voice Coil Diameter: 2.5"
•  Voice Coil Material: Copper
•  Impedance: Dual Voice Coil 4-Ohm
•  Sensitivity: 82 DB
•  Magnet Weight: 100 Oz
•  Magnet Material: Ferrite
•  Mounting Depth: 6.6"
•  Xmax: 25mm one way

Box:

• Box Material: 3/4 inch MDF
•  Box Covering: Carpet with DS18 logo
•  Box Tuning: 29hz
•  Box Type: Side Ported
•  Internal Volume: 5.3 ft3Demensions:
•  Height: 14.48"
•  Width: 36.22"
•  Depth 1: 19.68"
•  Depth 2: 21.65"

Great For:

• Car Audio
• Pro Audio
• Home Solutions
• Hi-Fi Installation
• DIY Projects

Technical Details

                ZR212LD Product Manual

SPECIFICATIONS / ESPECIFICACIONES:
Speaker Type/Size / Tipo/Tamaño de Altavoz	Dual 12" / 316mm
Total Impedance / Impedancia Total	1 Ohm
Total RMS Power Handling / Manejo de Potencia RMS total..	1600W
Total MAX Power Handling / Manejo de Potencia MAX total	3200W
Sensitivity (1w/1m) / Sensibilidad (1w/1m)	86db
Frequency Response / Respuesta de Frecuencia	20Hz-200Hz
Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado	70Hz
MOTOR / MOTOR:
Voice Coil Diameter / Diámetro de la Bobina de Voz....	2.5"/61.6mm
Voice Coil Former Material / Material Interior de Bobina Móvil	Aluminum/Aluminio
Winding Material / Material de Bobinado .	Copper / Cobre
Cone Material / Material del Cono	Non-Pressed Paper / Papel no Prensado
Dustcap Material / Material de la Tapa Anti-polvo.	PPI
Surround Material / Material de la Suspension	Foam / Espuma
Basket Material / Material de la Canasta	Steel / Acero
Magnet Material / Material del Imán	Ferrite / Ferrita
Magnet Weight / Peso del Imán	100 oz

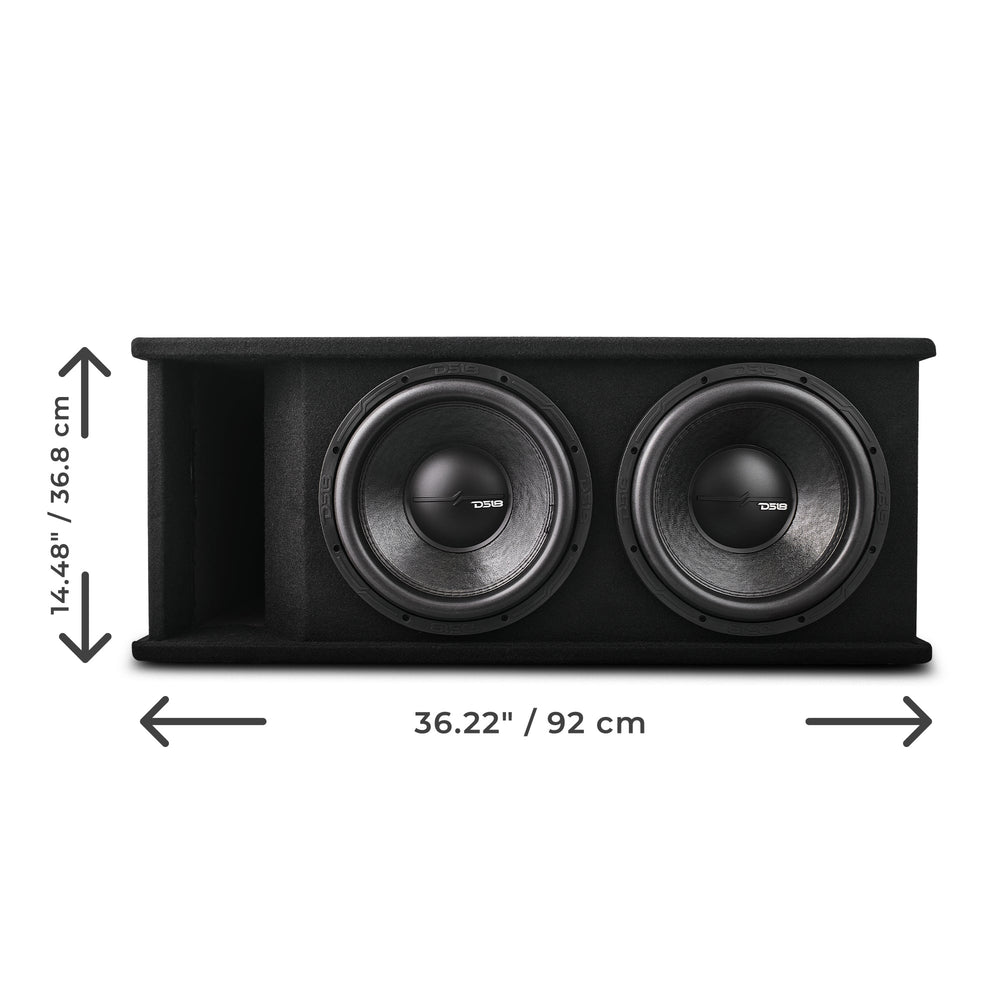

MEASUREMENTS / MEDIDAS:
Height / Altura	14.48" / 368 cm
Width / Ancho	36.22" / 920 cm
Depth 1 / Profundidad 1	19.68" / 500 mm
Depth 2 / Profundidad 2	21.65" / 550 mm
