DX 6.5" 2- Way Component Speaker System With Kevlar Cone 230 Watts Rms 4-Ohm

DX 6.5" 2- Way Component Speaker System With Kevlar Cone 230 Watts Rms 4-Ohm

Regular price $359.95
Vendor:DS18
Type:Car Audio : Components
SKU:DX2
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 DX2 Kevlar 6.5” 2 Way Premium Quality Car Component Speaker System 460 Watts 4-Ohm

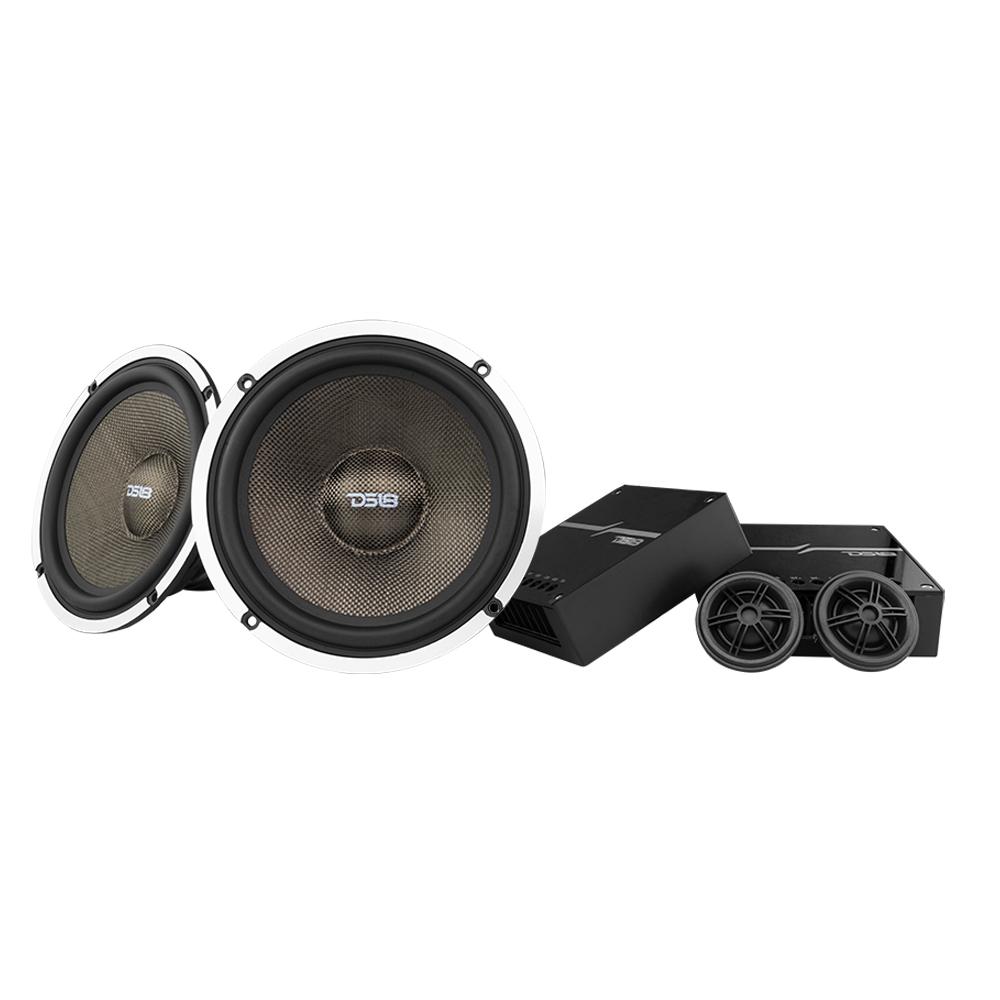

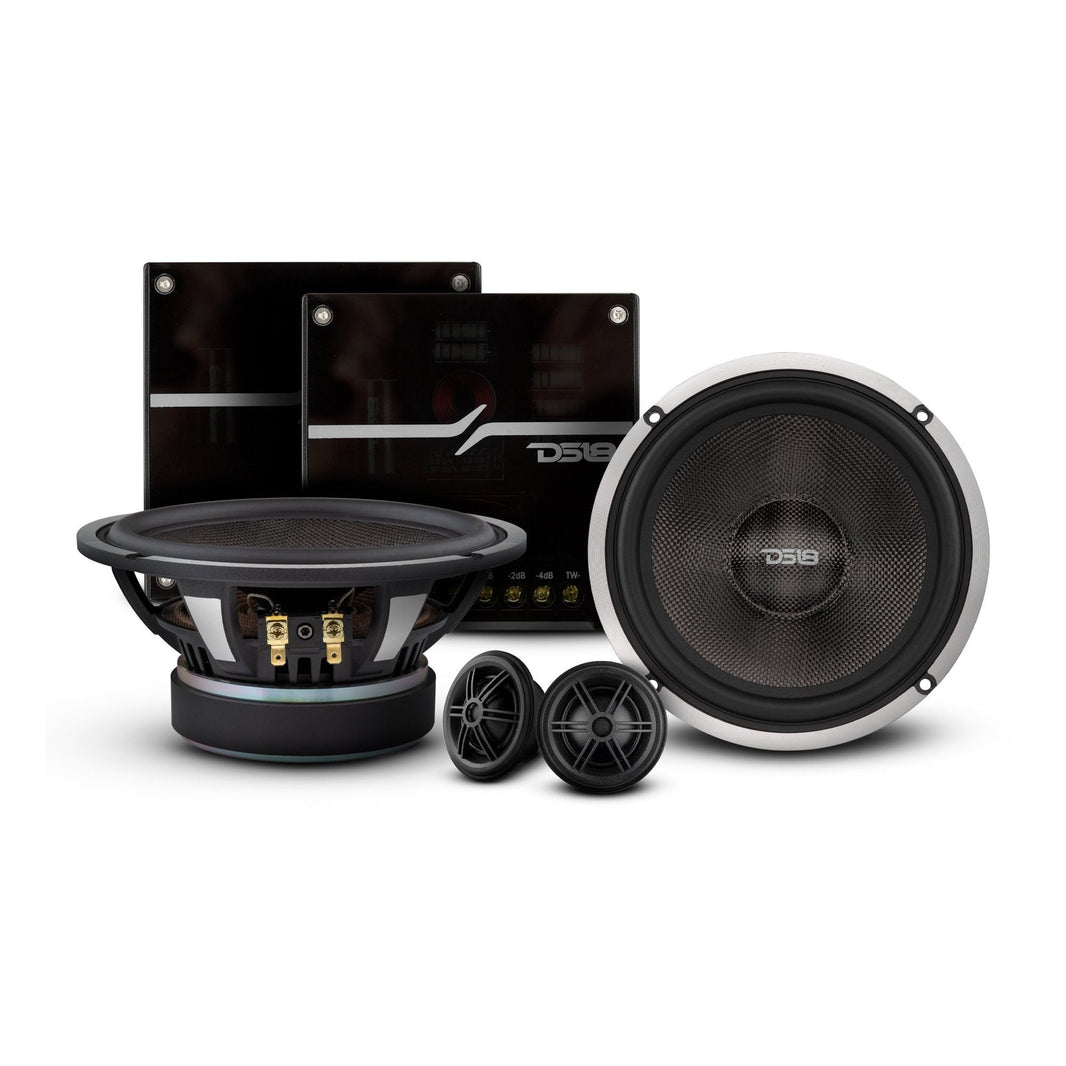

    The DX2 set comes with two DX2W 6.5" woofers, as well as two DX2T 1.18" tweeters, and two  DX2C passive 2-way crossovers.

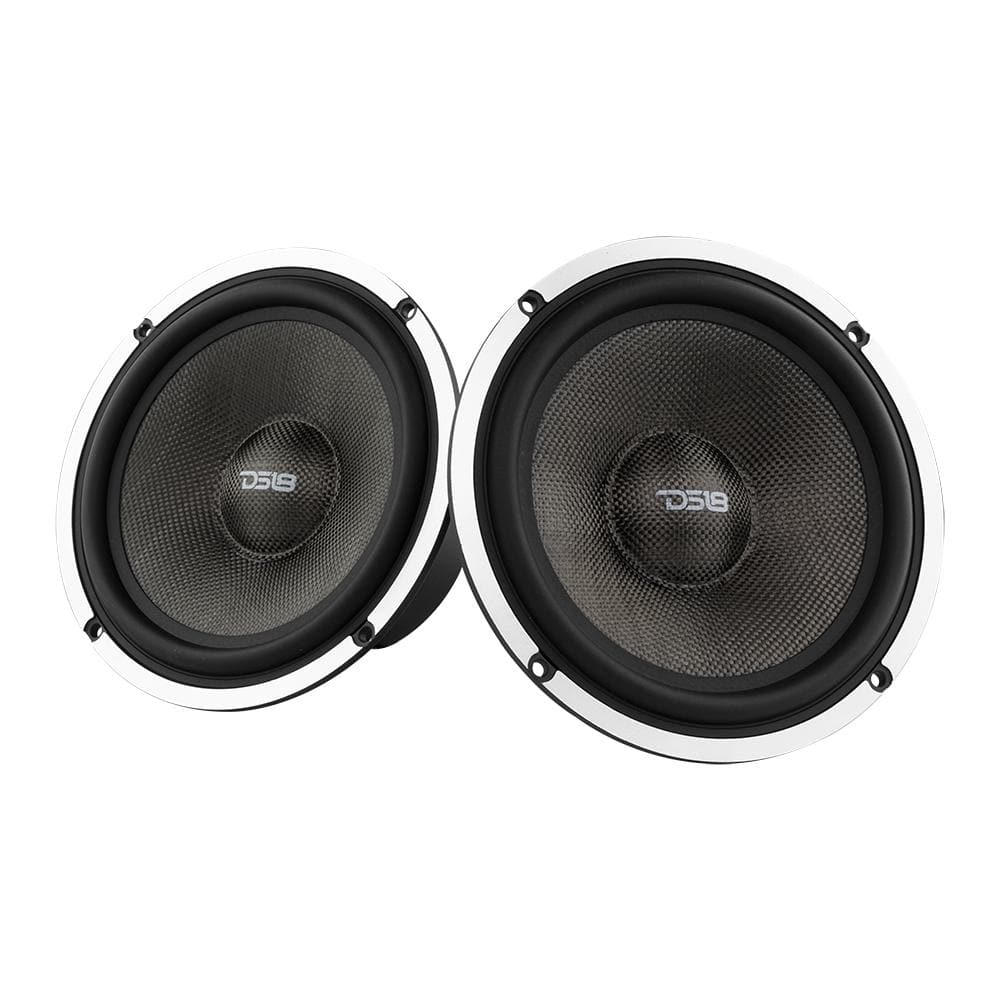

    The  DX2W woofer is a rigid carbon fiber cone with a machined aluminum basket that emits a clear, low end signal at 50Hz and up to 12KHz with a 4 ohms impedance. The DX2T neodymium tweeter, also at 4 ohms, fills the mid-high to high end frequencies adding the right amount of brightness and sizzle to your favorite music.

    Also included are the DX2C 2-way passive crossovers which accurately separates wattage and frequencies for your component set, ensuring long lasting and great sounding experiences. The TW ATT options gives you a selection of 0dB, 2dB, and 4dB loudness options at 12dB/oct.

    The DS18 DX2 is a quality speaker system that offers exceptional value.


    Highlights

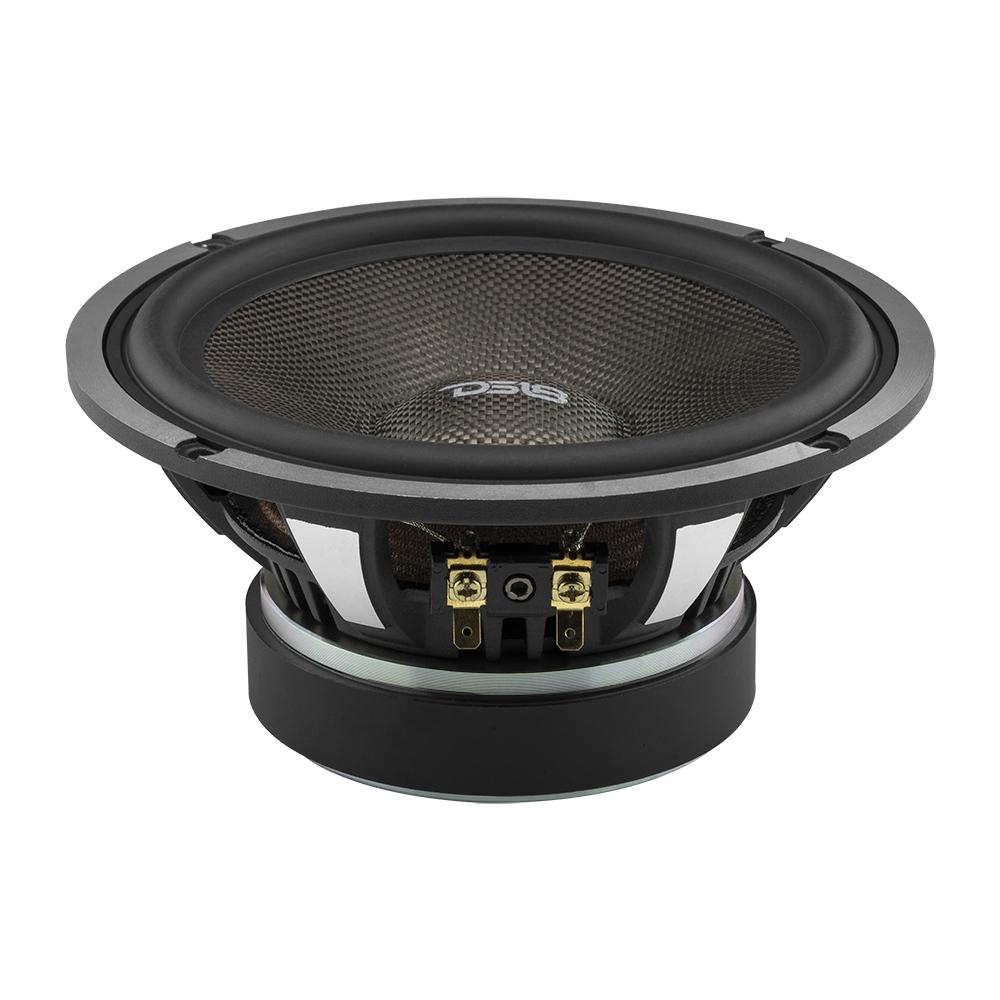

    • DX2W 6.5" woofer which handles 100w AES. Featuring a carbon fiber cone, ferrite magnet,  machined aluminum basket, and high quality terminals.

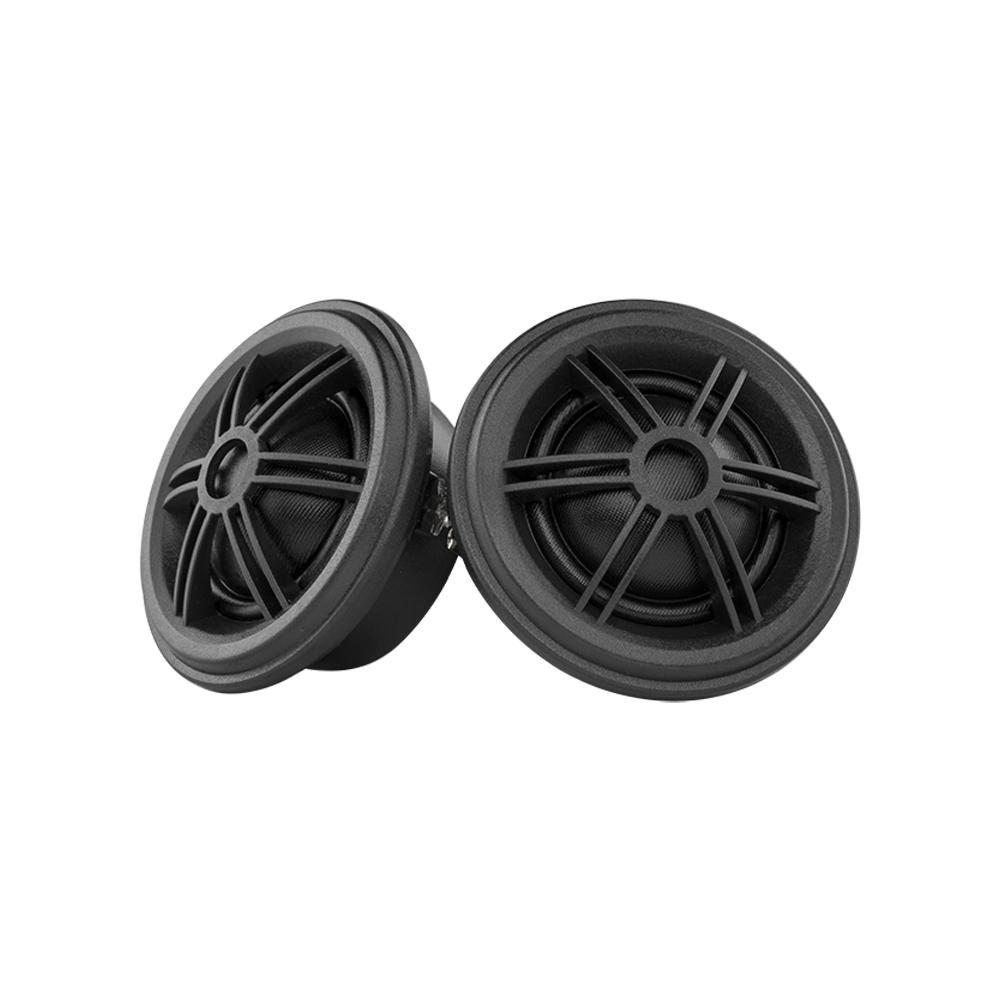

    • DX2T 1.18" high fidelity  neodymium tweeter that is easy to mount and will complete your HQ full range experience.

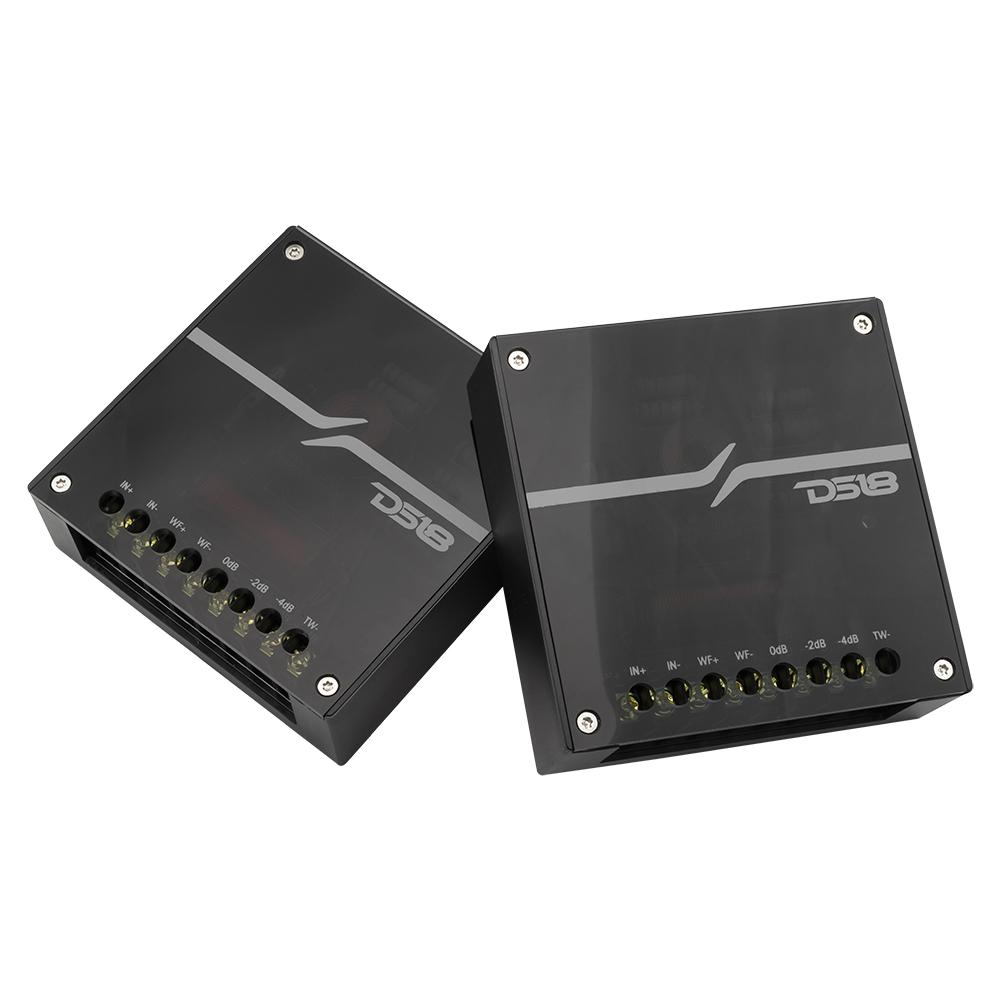

    • DX2C 2-way passive crossover with multiple DB selections so you can be sure to get distortion free HQ sound accurately routed to the proper speaker with ease.

    2 way premium car audio sound quality component speaker system 460 watts

    2 way premium car audio woofer sound quality component speaker system 460 watts

    2 way premium car audio tweeter sound quality component speaker system 460 watts

    2 way premium car audio sound crossover quality component speaker system 460 watts

    2 way premium car audio sound quality component speaker system 460 watts



    Technical Details



    WOOFER

    Nominal Diameter 6.5"
    Nominal Impedance 4 Ohms
    Peak Power Handling 400W
    Program Power Handling 200W
    AES Power Handling 100W
    Sensitivity (1w/1m) 89 dB
    Frequency Response 50Hz - 12KHz
    Recommended HI Pass Crossover 45 Hz
    MOTOR
    Voice Coil Diameter 1.2"/30.5 mm
    Voice Coil Former Material TIL
    Winding Material SV
    Cone Material Carbon Fiber
    Surround Materia Rubber Edge
    Basket Materia Aluminum
    Magnet Materia Ferrite
    Magnet Weight 20.2 oz

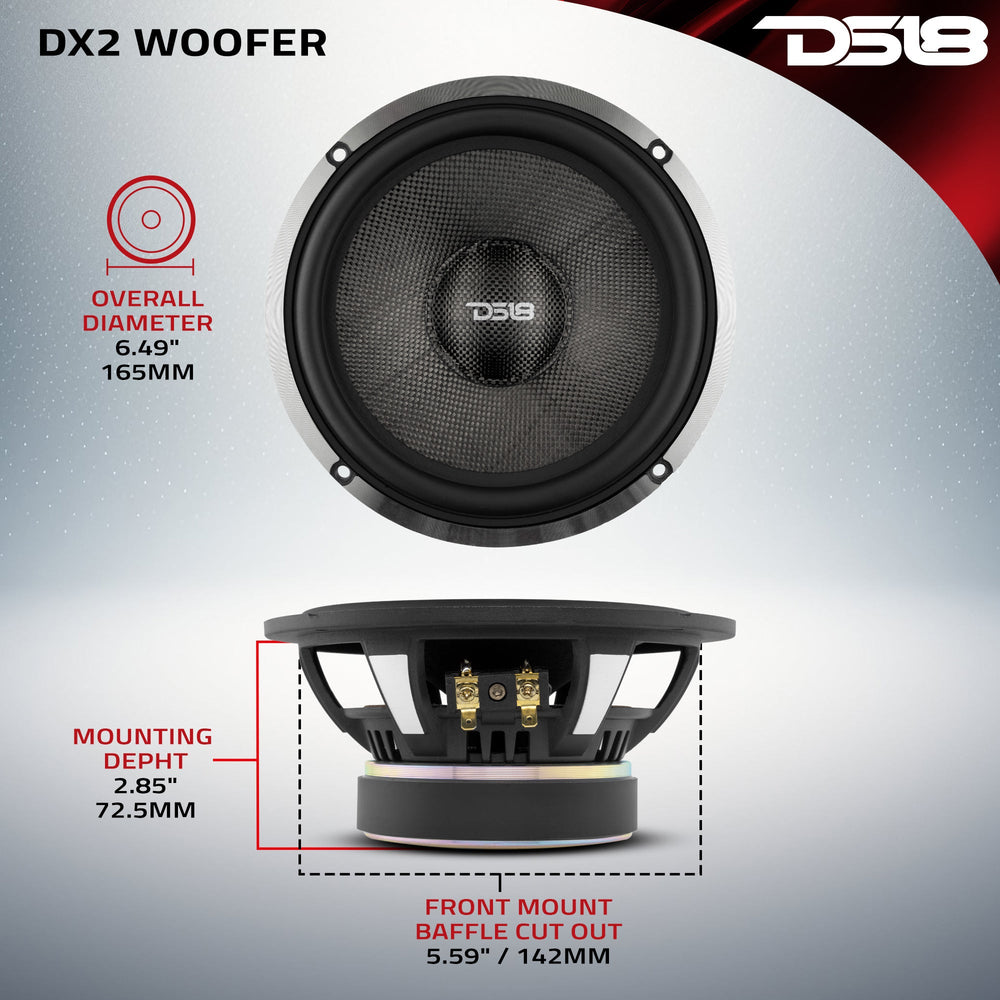

    Measurements
    Overall Diameter 6.49"/165 mm
    Front Mount Baffle Cutout 5.59"/142 mm
    Mounting Depth 2.85"/72.5 mm
    Overall Depth 3.05"/77.5mm
    Motor Diameter 3.9"/100mm

    TWEETER

    Nominal Diameter 1.18"
    Nominal Impedance 4 ohms
    Peak Power Handling 60 Watts
    Program Power Handling 30 Watts
    AES Power Handling 15 Watts
    Sensitivity (1w/1m) 90dB
    Frequency Response 800Hz - 20Khz
    Recommended HI Pass Crossover 3.8 KHz
    MOTOR
    Voice Coil Diameter 0.98"
    Voice Coil Former Material ASV
    Winding Material CCAW
    Diaphragm Material Silk
    Magnet Material Neodymium
    Magnet Weight 14 oz
    Body Material ABS
    MEASUREMENT
    Overall Diameter 2" / 51mm
    Overall Depth 1.1"/28.1 mm
    Front Mount Baffle Cutout 1.85" x 47 mm
    Mounting Depth 0.7"/ 18 mm

    CROSSOVER

    Passive Crossover Ways 2 Ways
    Frequency Crossover 3.2 KHz
    Power Handling 300 Watts
    Cut Off Slope 12dB /Oct
    Tweeter Attenuation 4dB
    FEATURES
    Capacitor Type Metac Film
    Coil Type Inductor
    Terminals Type Screw Terminal
    Housing Material ABS
    Adjustments Tw Att by Terminal
    Extra Features Spk Phase Switch
    MEASUREMENT
    Overall Length 4.3"/110 mm
    Overall Depth 4.3"/110 mm
    Overall Height 1.37"/35 mm
