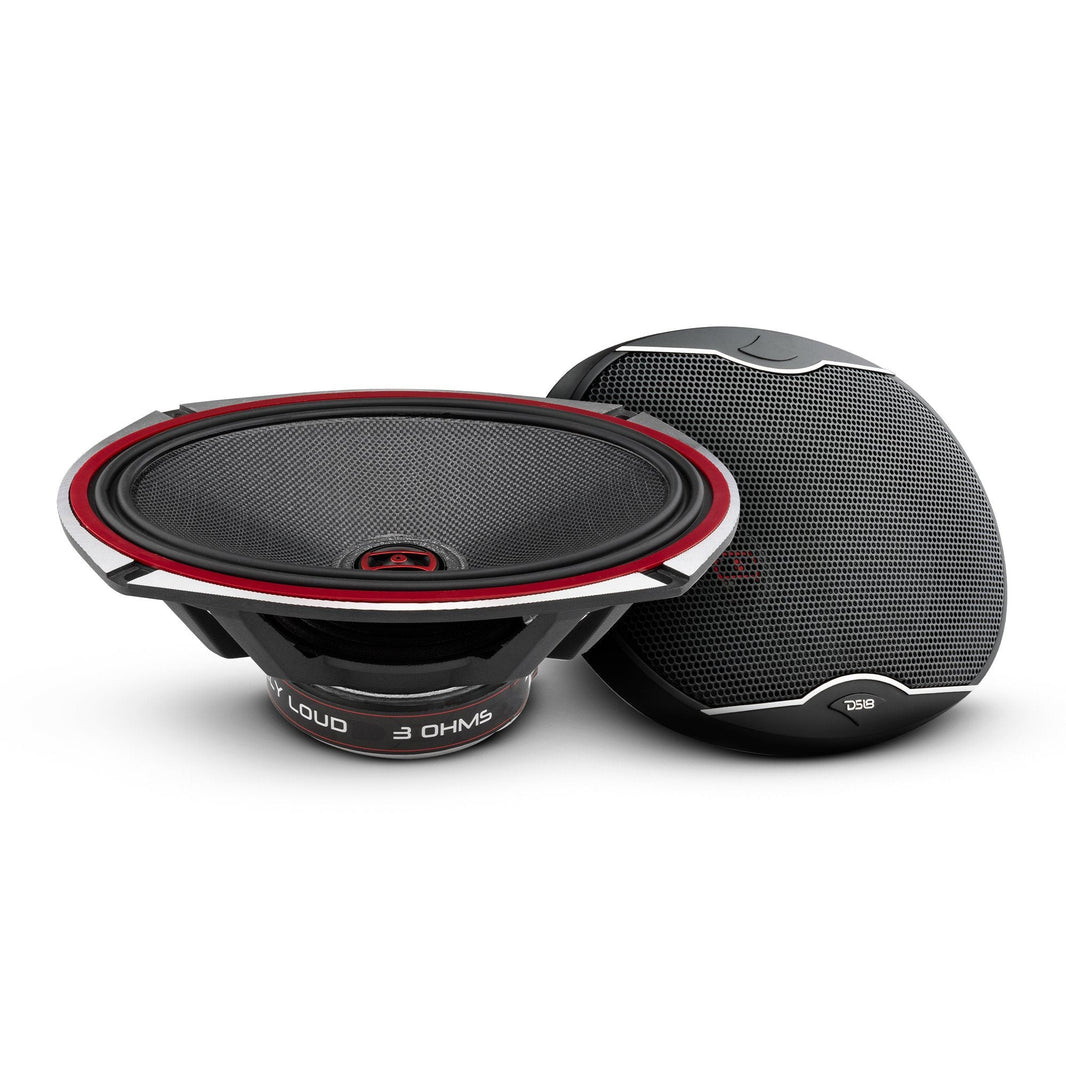

EXL 6x9" 2-Way Coaxial Speaker with Fiber Glass Cone | 160W RMS 3-Ohm
Regular price
$239.95
In stock
Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Description
Reviews
Description
- Description
- Additional info
- Reviews
- Unique coaxial design with concave recessed tweeter.
- 3 ohms voice coil to help maximize power from amps.
- Glass fiber cone for a great look and high durability while keeping a high sensitivity.
DS18 EXL-SQ6.9 Glass Fiber 6x9" 2-Way Coaxial Car Speaker 560 Watts 3-Ohm
|
When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, advanced PEI dome tweeter, NEO magnets, 1" BASV voice coils, 3 Ohms impedance strontium-magnets and aluminum basket. Highlights |
Technical Details
| Model: | EXL-SQ6.9 |
| Type: | Coaxial |
| Size: | 6x9" |
| RMS Power: | 160W |
| MAX Power: | 560W |
| Frequency Response: | 55Hz - 22KHz |
| Impedance: | 3 ohms |
| Sensitivity: | 90dB |
| Materials | |
| Surround: | Rubber Edge |
| Cone: | Black Glass Fiber |
| Magnet: | Strontium |
| Voice Coil Wire: | BASV |
| Measurements | |
| Voice Coil Size: | 1.3" / 33 mm |
| Woofer Magnet: | Stronium |
| Magnet Weight: | 20 oz |
| Tweeter Voice Coil: | .08" / 20.3 mm |
| Tweeter: | 1.14" / 29 mm |
| Tweeter Magnet: | Neodymium |
| Mounting Cutout: | 5.9"x8.6" / 150x220 mm |
| Mounting Depth: | 3.22" / 82 mm |
| Grills: | Yes |
