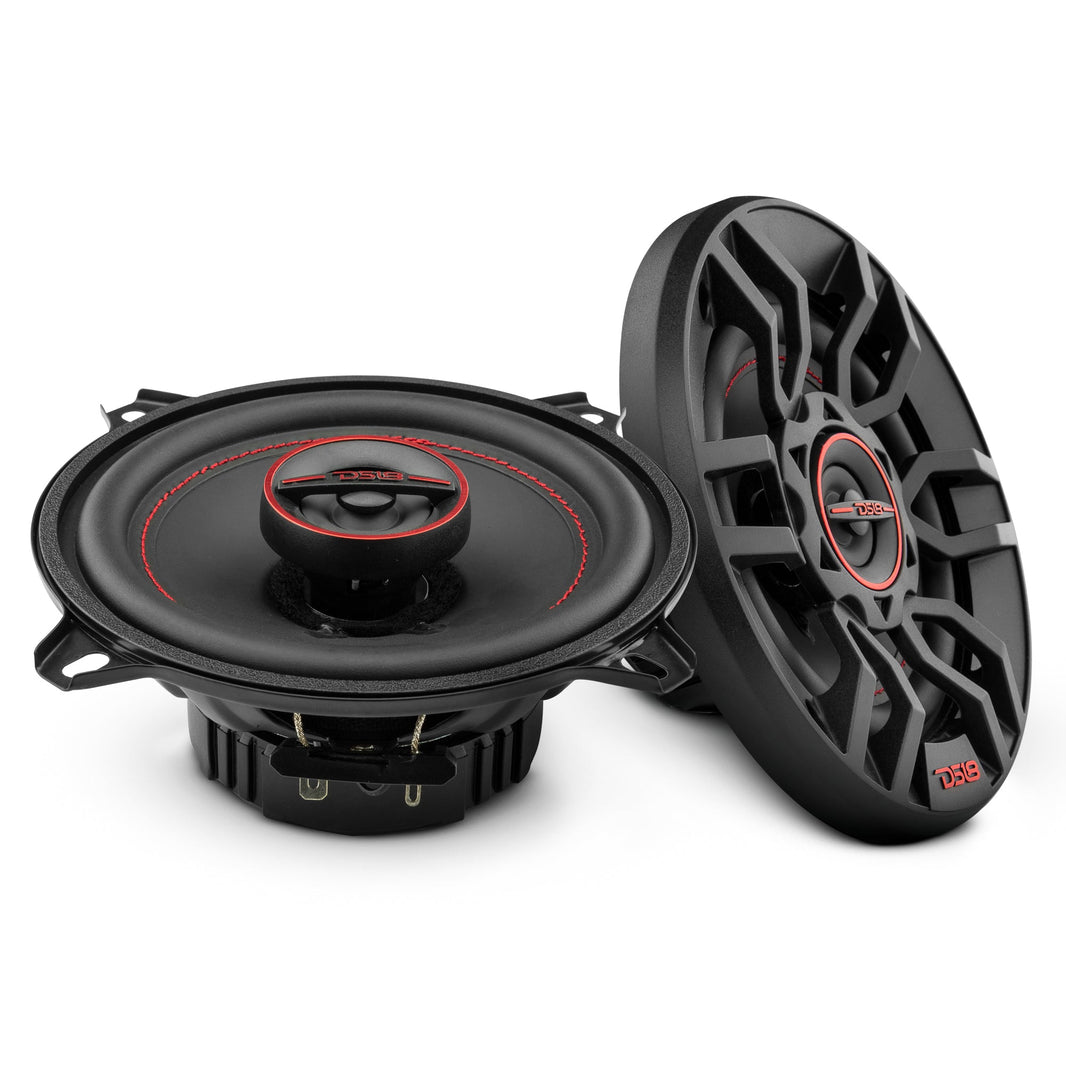

GEN-X 5.25" 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

GEN-X 5.25" 2-Way Coaxial Speakers 45 Watts Rms 4-Ohm

Regular price $50.95
Vendor:DS18
Type:Car Audio : Speaker
SKU:G5.25Xi
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 G5.25Xi GEN-X 5.25" 2-Way Coaxial Speakers 135 Watts Max
    4-Ohm

    The GEN-X Coaxial Series is back!

    The power, clarity and range everyone who likes it LOUD loves about the GEN-X series returns in an extremely durable steel basket protected by a (PC-ABS) Grill for a speaker that will outlast any vehicle its installed in.

    The G5.25Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

    The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 50Hz. The 2-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.

    These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W.

    Order the G5.25Xi for your system to expand your soundstage today!

    Highlights

    • 2-Way Design implemented for full range quality on every listen
    • Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio

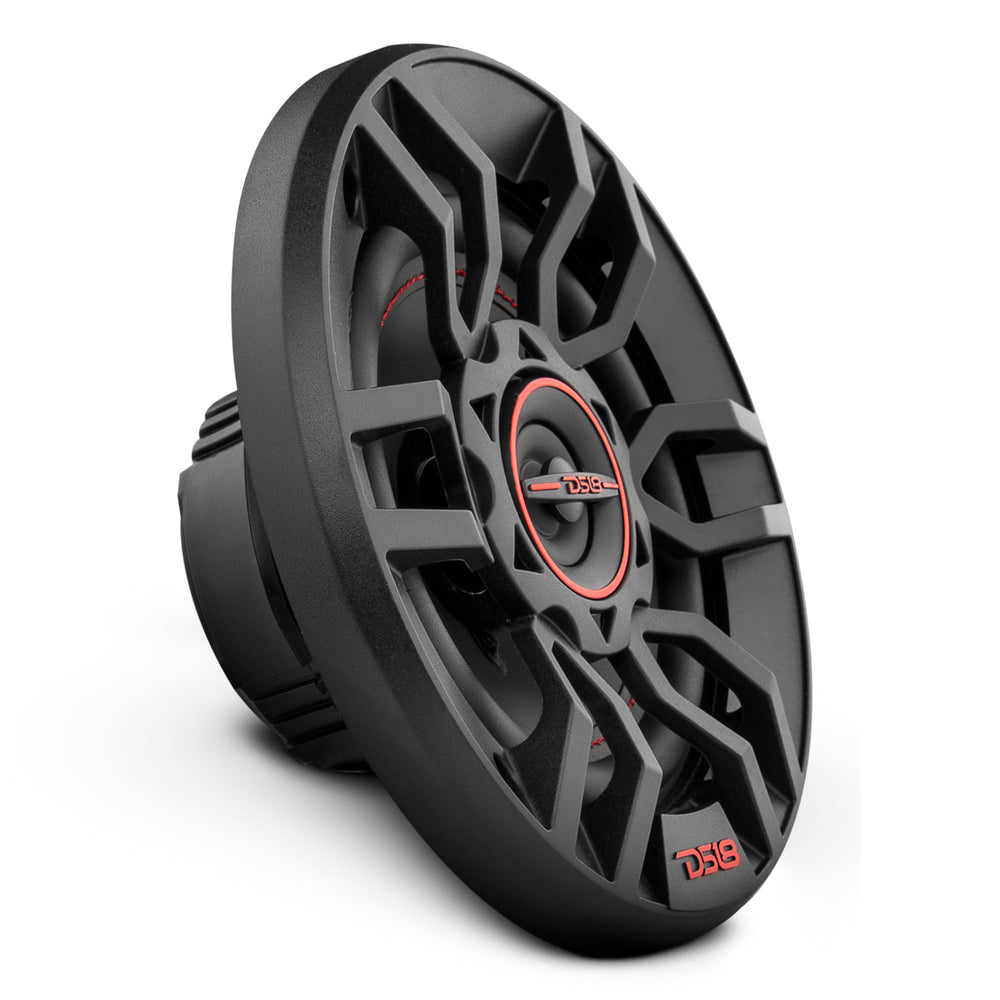

    • Included Grills to protect your speakers as well as great looks to blend in to any vehicle

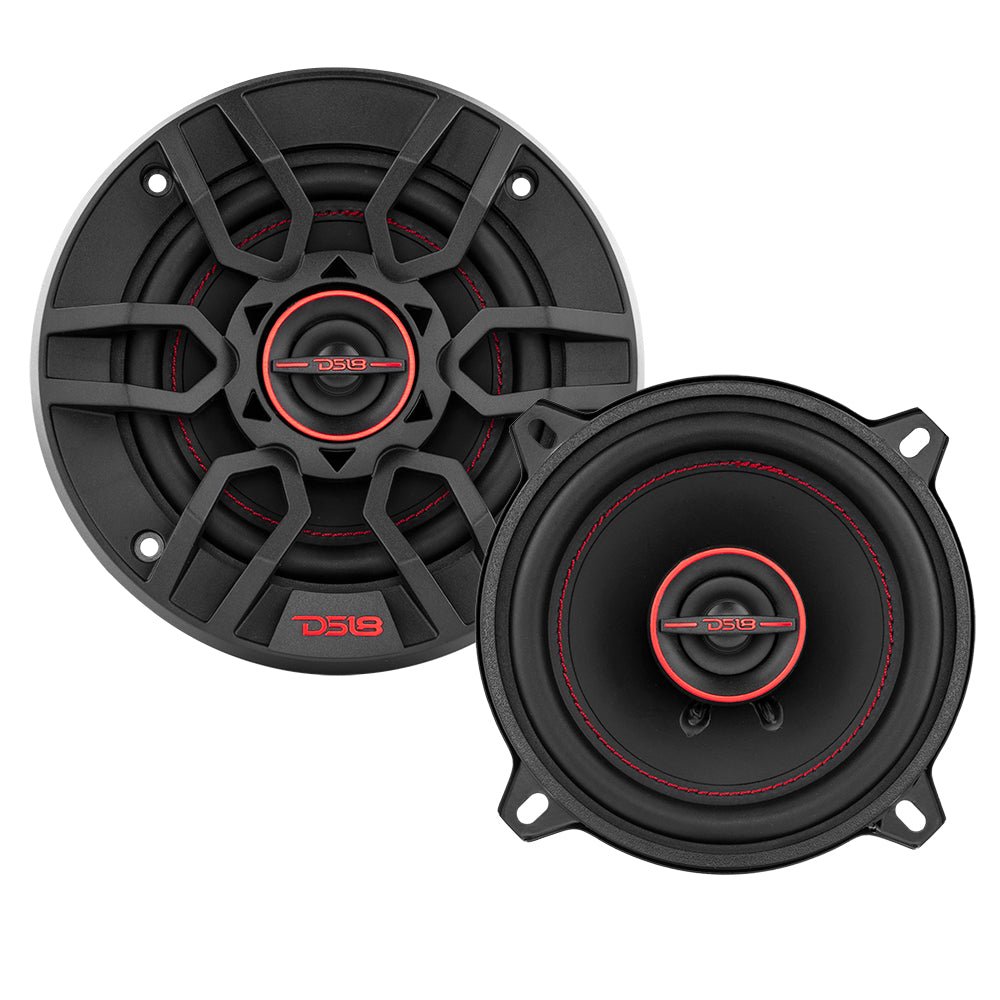

    • 2 Speakers Included

    Great For

    • Home studios
    • Bookshelf
    • Satellite
    • Surround Sound Speaker
    • Hi-Fi installation
    • Car audio
    • DIY Projects

    Technical DetailsΒ
    Β  Β  Β  Β  Β  Β Β

    Download G5.25XI Product Manual

    GENERAL SPECIFICATIONS Β
    Nominal DiameterΒ  5.25" / 133mm
    Nominal ImpedanceΒ  4 Ohms
    RMS Power HandlingΒ  45W
    MAX Power HandlingΒ  135W
    Sensitivity (1w/1m)Β  84dB
    Frequency Response 50Hz-20KHz
    Recommended HI Pass Crossover 80Hz
    Number of ways 2
    Pair or Single Pair
    Grill Included Yes
    WOOFER SPECIFICATIONS Β
    Voice Coil Diameter 1" / 25.5mm
    Voice Coil Former MaterialΒ  ASV
    Winding MaterialΒ  EISV
    Cone Material Paper
    Surround Material Rubber
    Basket MaterialΒ  Steel
    Basket Color/Finish Black Matte
    Magnet Material Barium Ferrite
    Magnet Weight 6.3Oz / 180g
    TWEETER SPECIFICATIONS Β
    Nominal Diameter 1" / 25.5mm
    Voice Coil Diameter 0.5" / 13.25mm
    Voice Coil Former MaterialΒ  ASV
    Winding MaterialΒ  EISVM
    Diaphragm Material Mylar
    Magnet Material Neodymium
    Magnet Weight 1.8g

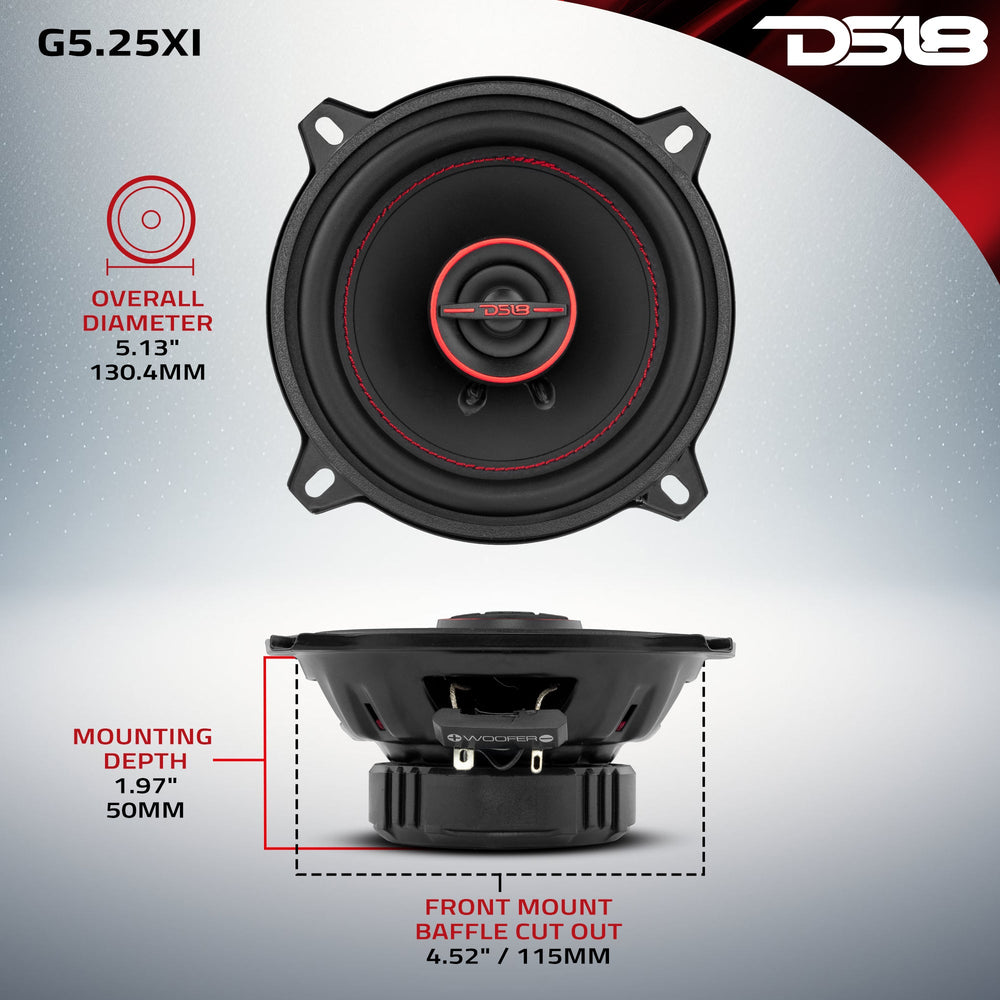

    SPEAKERS MEASUREMENT Β
    Overall Diameter 5.13" / 130.4mm
    Overall DepthΒ  2.47" / 62.8mm
    Overall Diameter (With Grill) 6.38" / 162mm
    Overall Depth (With Grill) 2.75" / 69.8mm
    Front Mount Baffle Cutout 4.52" / 115mm
    Mounting Depth 1.97" / 50mm
    Motor Diameter 3" / 76mm
