GEN-X 6x9" 3-Way Coaxial Speakers | 60W RMS 4-Ohm

GEN-X 6x9" 3-Way Coaxial Speakers | 60W RMS 4-Ohm

Regular price $76.95
Vendor:DS18
Type:Car Audio : Speaker
SKU:G6.9Xi
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 G6.9Xi GEN-X 6x9" 3-Way Coaxial Speakers 180 Watts
    4-Ohm

    The GEN-X Coaxial Series is back!

    The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in.

    The G6.9Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

    The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz. The 3-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.

    These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.

    Order the G6.9Xi for your system to expand your soundstage today!

    Highlights

    • 3-Way Design implemented through use of two tweeters per speaker for full range quality on every listen
    • Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio
    • 2 Speakers included

    Great For

    • Home studios
    • Bookshelf
    • Satellite
    • Surround Sound Speaker
    • Hi-Fi installation
    • Car audio
    • DIY Projects

    Technical DetailsΒ
    Β  Β  Β  Β  Β  Β  Β Download G6.9XI Product Manual
    GENERAL SPECIFICATIONS Β
    Nominal DiameterΒ  6X9" / 152x228mm
    Nominal ImpedanceΒ  4 Ohms
    RMS Power HandlingΒ  60W
    MAX Power HandlingΒ  180W
    Sensitivity (1w/1m)Β  86dB
    Frequency Response 35Hz-20KHz
    Recommended HI Pass Crossover 50Hz
    Number of ways 3
    Pair or Single Pair

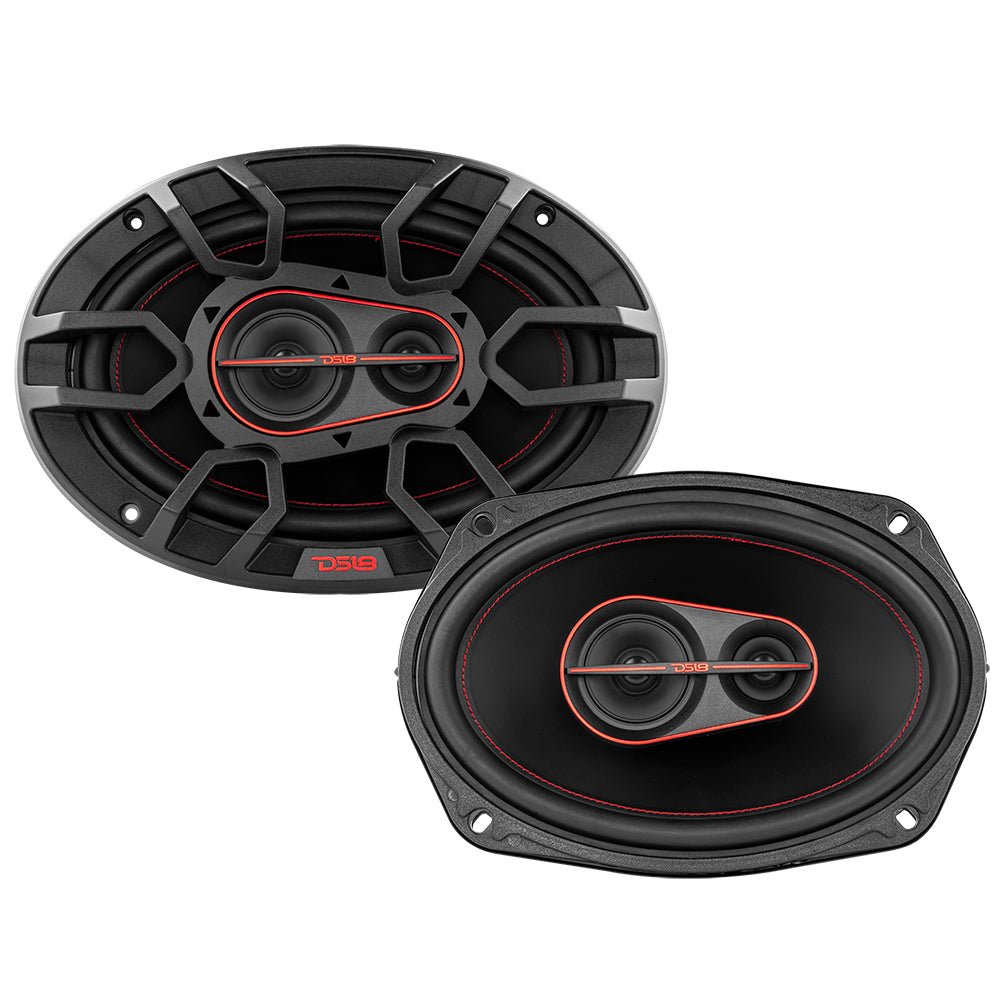

    Grill Included Yes
    WOOFER SPECIFICATIONS Β
    Voice Coil Diameter 1" / 25.5mm
    Voice Coil Former MaterialΒ  ASV
    Winding MaterialΒ  EISV
    Cone Material Paper
    Surround Material Rubber
    Basket MaterialΒ  Steel
    Basket Color/Finish Black Matte
    Magnet Material Barium Ferrite
    Magnet Weight 15.7Oz / 445g
    TWEETER SPECIFICATIONS Β
    Nominal Diameter Tw1: 2.3" / 59mmΒ Β Β Β Β Β  Tw2: 1.1" / 29mm
    Voice Coil Diameter Tw1: 0.6" / 17mmΒ Β Β Β Β Β  Tw2: Peizo
    Voice Coil Former MaterialΒ  Tw1: PESVΒ Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β  Tw2: N/A
    Winding MaterialΒ  Tw1: EISVMΒ Β Β Β Β Β Β Β Β Β Β Β Β Β  Tw2: N/A
    Diaphragm Material Tw1: MylarΒ Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β  Tw2: Mylar
    Magnet Material Tw1: Barium FerriteΒ Β Β  Tw2: N/A
    Magnet Weight Tw1: 34gΒ Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β  Tw2: N/A
    SPEAKERS MEASUREMENT Β

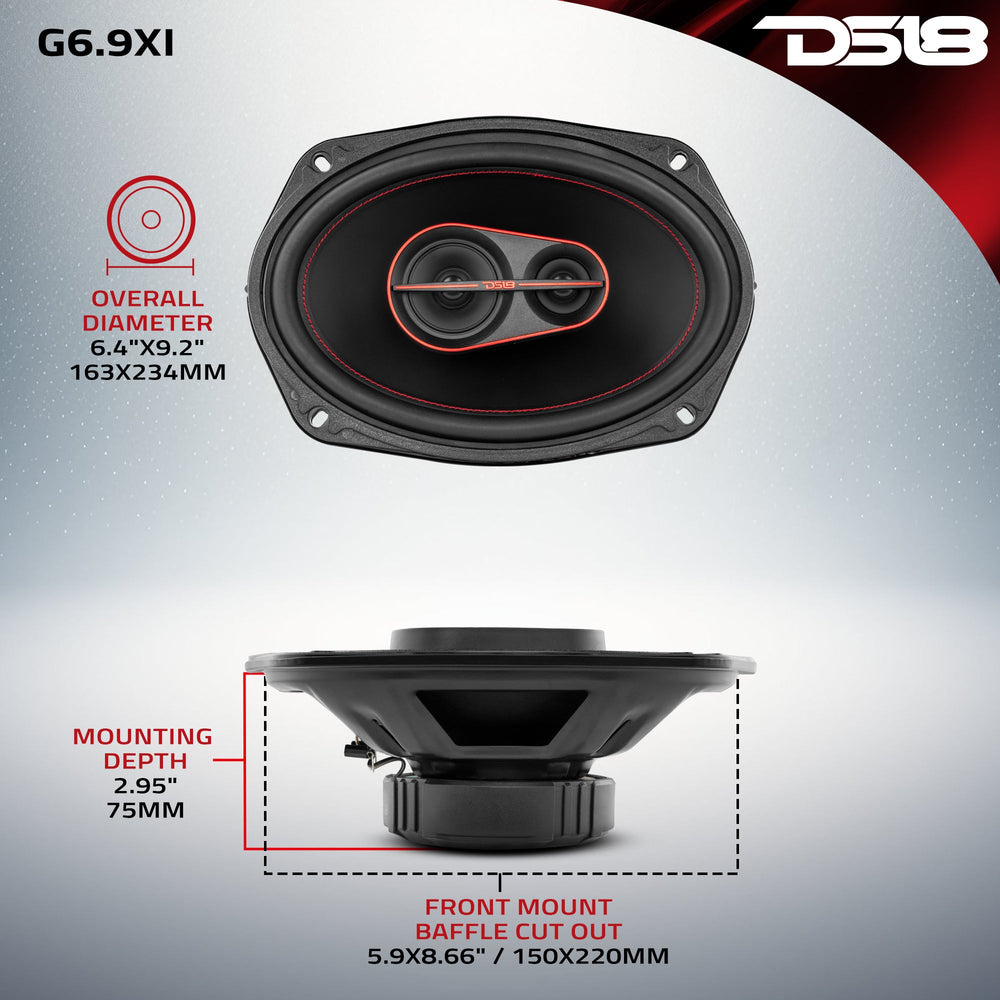

    Overall Diameter 6.4"x9.2" / 163x234mm
    Overall DepthΒ  3.85" / 97.8mm
    Overall Diameter (With Grill) 7.24"x10.4" / 184x264mm
    Overall Depth (With Grill) 4.15" / 105.5mm
    Front Mount Baffle Cutout 5.9x8.66" / 150x220mm
    Mounting Depth 2.95" / 75mm
    Motor Diameter 4.17" / 106mm
    Tweeter ProtrusionΒ  0.9" / 22.8mm
