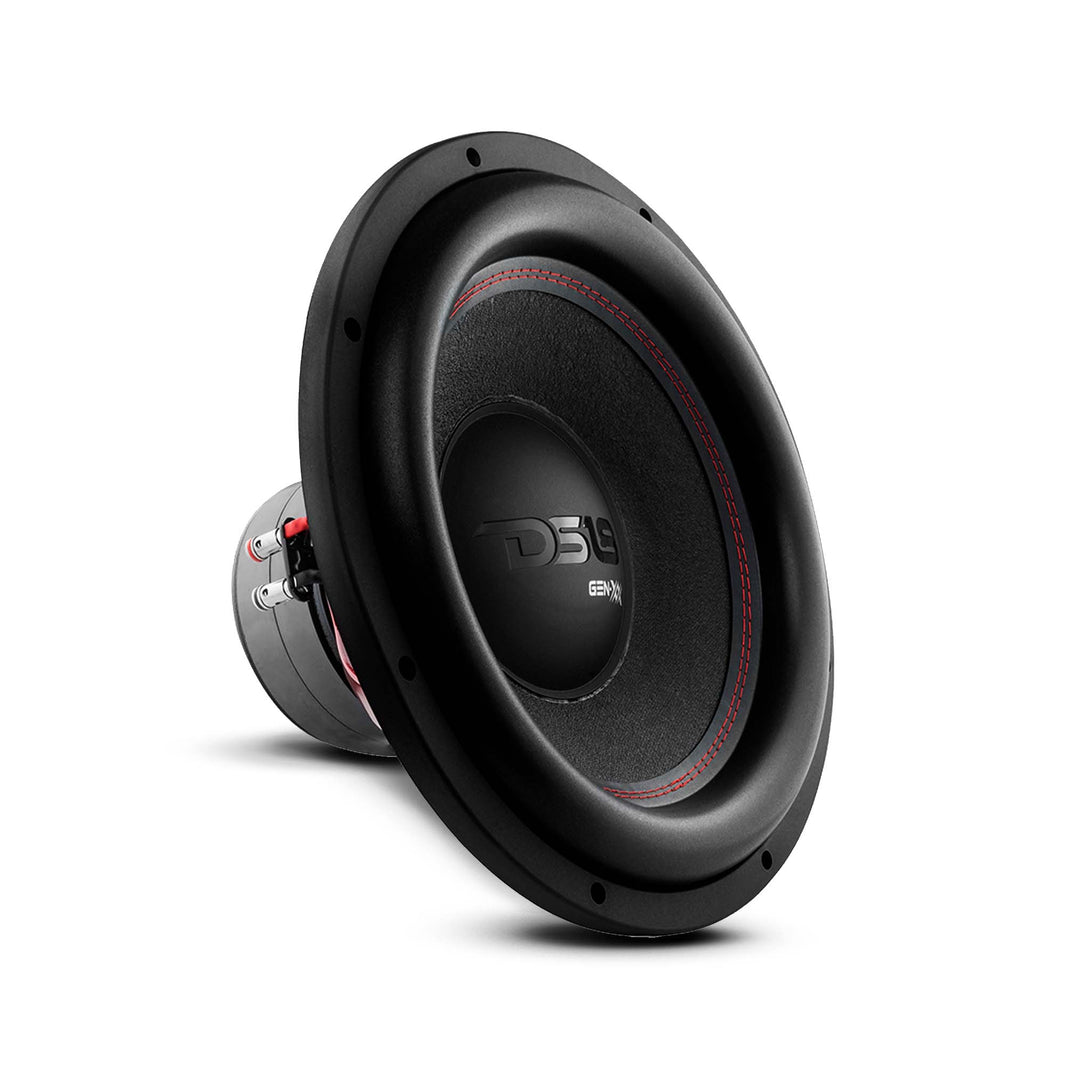

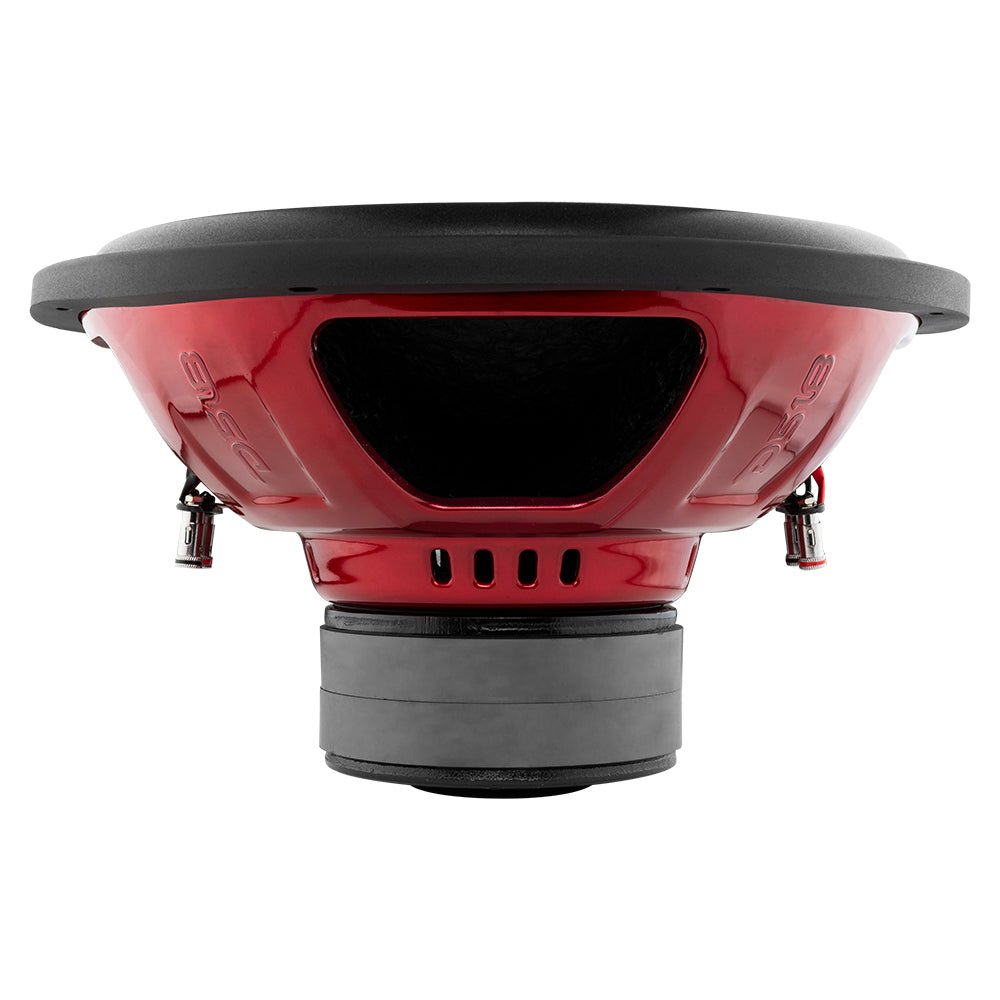

GEN-XX 15" High Excursion Subwoofer Double Stacked Magnets 600 Watts Rms DVC  4-Ohm

GEN-XX 15" High Excursion Subwoofer Double Stacked Magnets 600 Watts Rms DVC 4-Ohm

Regular price $209.95
Vendor:DS18
Type:Car Audio : Subwoofer
SKU:GEN-XX15.4DHE
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 GEN-XX15.4DHE 15" High Excursion Car Subwoofer 1200 Watts  4-Ohm DVC Double Magnet

    High excursion is now the mainstream and usually this feature is very expensive and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user.
    The GEN-XX15.4DHE is the answer to that issue.
    This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
    Also, with a power rating of 600w RMS and 1200w Max this sub does not require large amounts of power to come alive and beat up the block.

    Highlights

    • High Excursion surround for a very high amount of xmax.
    • Great power handling of 600w RMS and 1200w max.
    • Long three voice coil and extended magnet to accommodate the xmax increase.
    • FS of 30 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.

    Technical Details
    SPECIFICATIONS
    Nominal Diameter 15"
    Nominal Impedance 4 + 4 Ohms
    RMS Power Handling 600 Watts
    MAX Power Handling 1200 Watts
    Sensitivity (1w/1m) 87.4 dB
    Frequency Response 20Hz - 1KHz
    Recommended Lo Pass Crossover 80Hz
    MOTOR
    Voice Coil Diameter 2"
    VC Former Material Black Aluminum
    Winding Material SV
    Cone Material Paper
    Dust Cap Material PPI
    Surround Material Foam
    Basket Material Steel
    Basket Color and Finish Glossy Red
    Magnet Material Ferrite
    Magnet Weight 136 oz
    Displacement Volume 3.26L
    THIELE & SMALL PARAMETERS
    Equivalent Volume Vas 105.083 L
    Excursion (one way) Xmax 25mm
    Free Air Resonance Fs 27 Hz
    Mechanical Factor Qms 3.658
    Electrical Factor Qes 0.583
    Total Factor Qts 0.503
    Mechanical Mass Mms 309.67g
    Mechanical Compliance Cms 0.112mm/N
    BL Factor BL 24.045N/A
    Voice Coil Inductance Le 0.6741mH
    Cone Area Sd 814.332cm2
    DC Resistance Re 3.2+3.2 ohms
    Efficiency Bandwidth Product EBP 46.3
    MEASUREMENTS
    Overall Diameter 10.28" / 261 mm
    Overall Depth 7.21" / 183 mm
    Front Mount Baffle Cutout 9.14" / 232 mm
    Mounting Depth 6.15" / 156mm
    Motor Diameter 6.15" / 156mm




    Box Info
