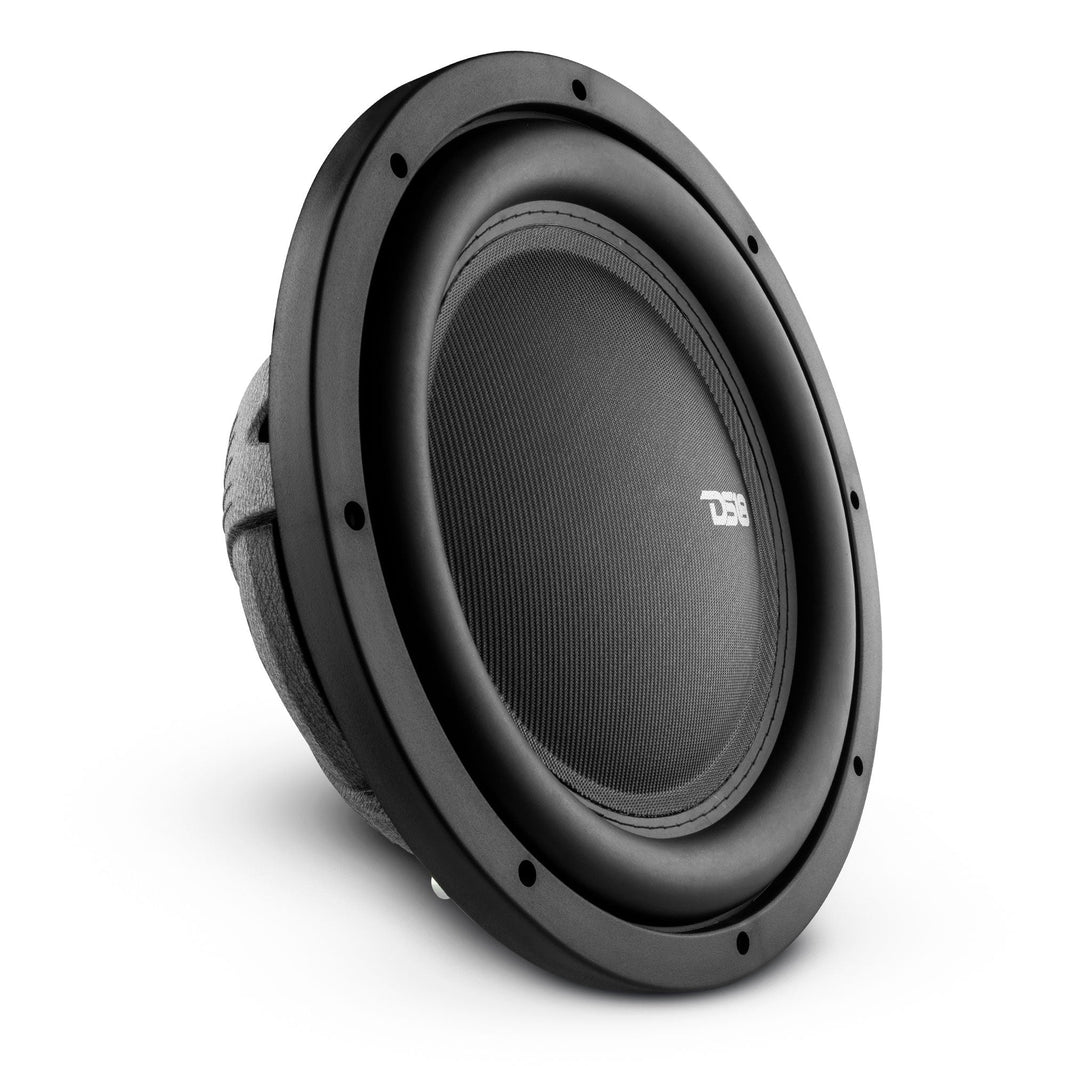

IXS Shallow-Mount 12" Fiber Glass Subwoofer 800 Watts Rms DVC 2-Ohm

IXS Shallow-Mount 12" Fiber Glass Subwoofer 800 Watts Rms DVC 2-Ohm

Regular price $263.95
Vendor:DS18
Type:Car Audio : Subwoofer
SKU:IXS12.2D
Out of stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 IXS12.2D 12" Car Subwoofer 1600 Watts 2-Ohm DVC Shallow Mount

    DS18’s IXS Line of Shallow Mount Subwoofers are back with the IXS12.2D!

    Built from our best selling SW slim subwoofer line the experts at DS18 took the SW line and made it even beefier for more bass.

    This sub handles 800 W RMS and 1600 W MAX Power with a 84 dB sensitivity: high sensitivity for a shallow mount sub raising this model above and beyond the standard.

    These Dual Voice Coil Subs are perfect for the listener looking to add more thump to their system.

    Make the most of your space with the IXS12.2D!

    Highlights

    • IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.
    • Large surround with flexible spider packs will help the CCA voice coil maximum Xmax producing full and deep bass with a up to spec box.
    • Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.

    Great For

    • Car Audio

    Technical Details
                  Download IXS12.2D Product Manual
    SPECIFICATIONS
    Nominal Diameter  12” / 304.8mm
    Nominal Impedance  2+2 ohms
    RMS Power Handling  800W
    MAX Power Handling  1600W
    Sensitivity (1w/1m)  85 dB
    Frequency Response 20 - 600 Hz
    Recommended Lo Pass Crossover 80 Hz
    MOTOR
    Voice Coil Diameter 2.5" / 63.5mm
    Voice Coil Former Material  Aluminum
    Winding Material  Copper
    Cone Material Paper
    Dust Cap Material Fiberglass
    Surround Material Stitched rubber
    Basket Material  Aluminum
    Basket Color/Finish Corrugated Black
    Magnet Material Ferrite
    Magnet Weight 62 Oz
    Displacement Volume 0.93L / 0.033ft3

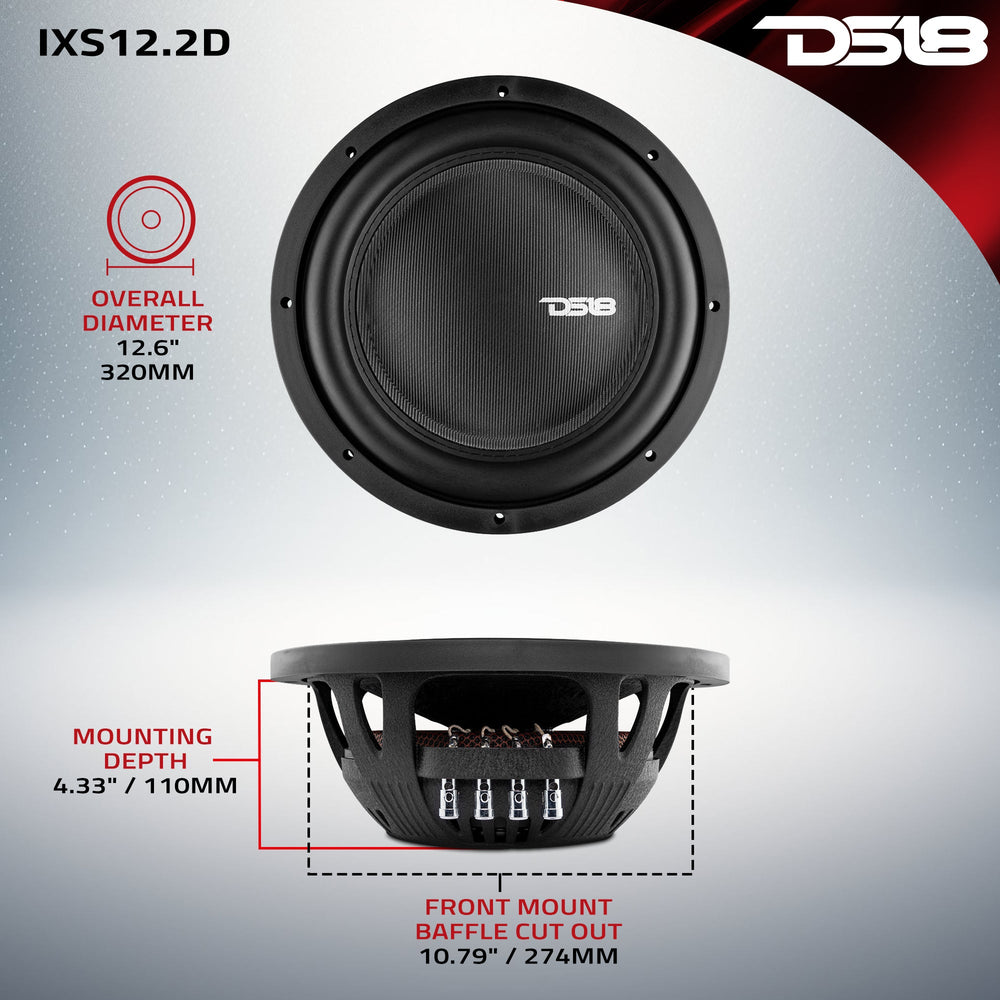

    MEASUREMENT
    Overall Diameter 12.6" / 320 mm
    Overall Depth 5" / 129 mm
    Front Mount Baffle Cutout 10.79" / 274 mm
    Mounting Depth 4.33" / 110 mm
    Motor Diameter 6.3" / 160 mm
