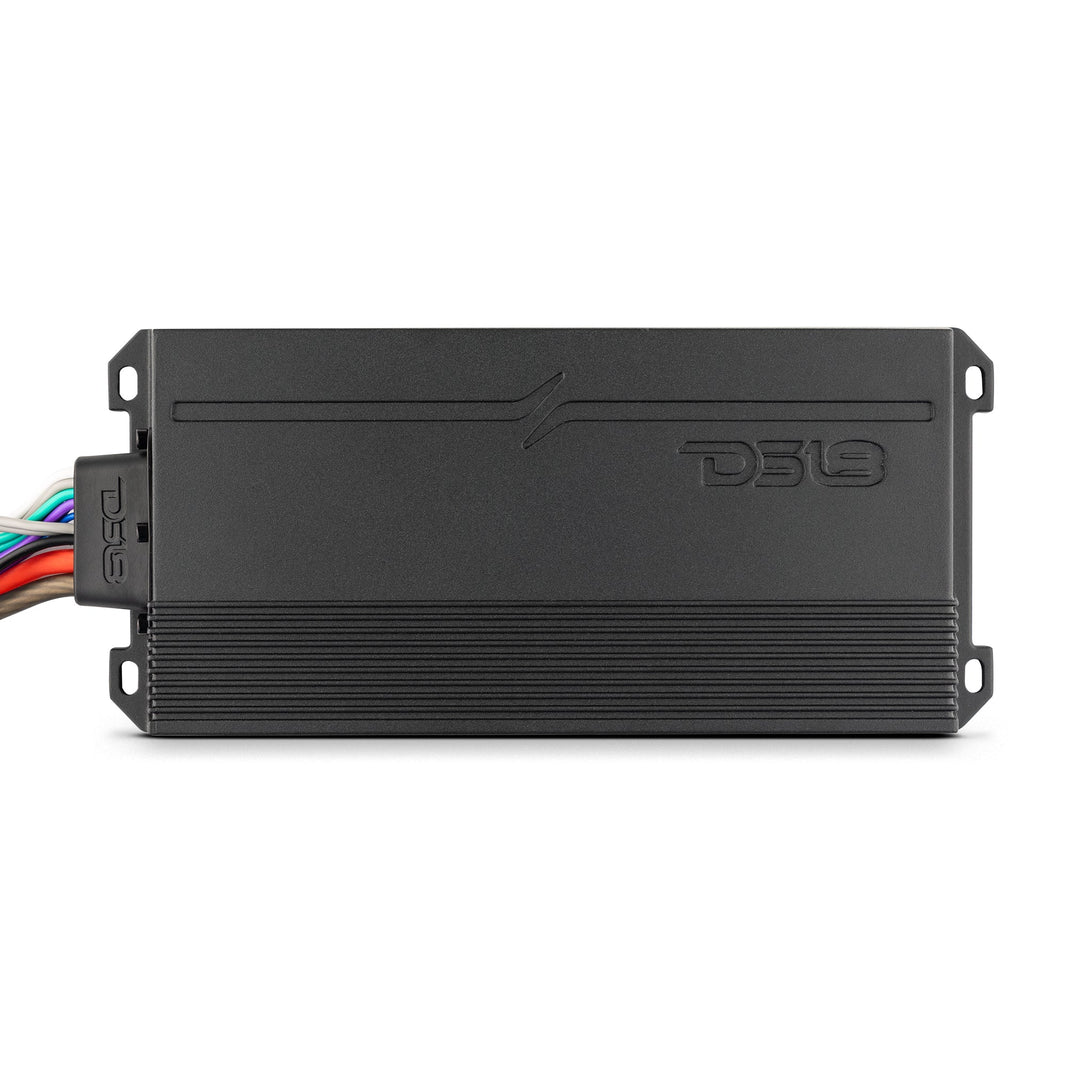

NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS

NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS

Regular price $700.00
Vendor:DS18
Type:Marine And Off Road : Amplifiers
SKU:NVY-IPX7.4
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 HYDRO NVY-IPX7.4 Full-Range Class D Marine 4-Channel Amplifier 120 x 4 @4 Ohm Watts Waterproof IP67




    The NVY series was manufactured to put power back into your hands whether you’re out on the great blue or maneuvering on the dirt path less traveled.

    Our latest amplifier added to this series has an IPX waterproof rating of IP77, giving this fortified beast of a machine the ability to be submerged in water as deep as 1 meter for up to 30 minutes. It also has a 2 CH/ 4 CH input selector giving you complete control over how much power gets designated to each of your speakers.

    Place this amplifier anywhere using our Direct Power harness design manufactured to give you creative control over where you get the wave making tunes on your marine vehicle.

    Order this amplifier while supplies last!

    Highlights

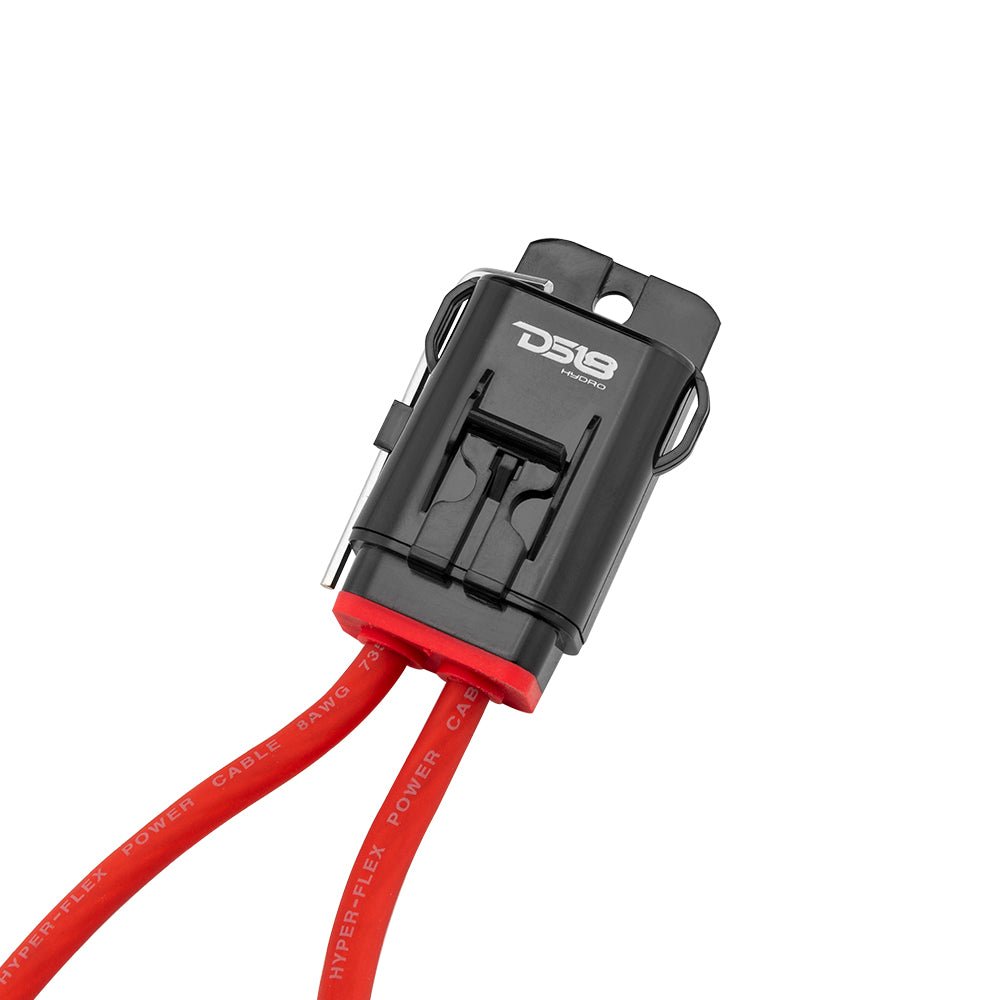

    • The included marine grade fuse and fuse holder that is connected inline with your main power wire, will help with ultimate protection against the elements.
    • Latest Digital amplifier design with SMC technology
    • Submergible IP67 Waterproof Rating
    • UV, Salt and Fog protection

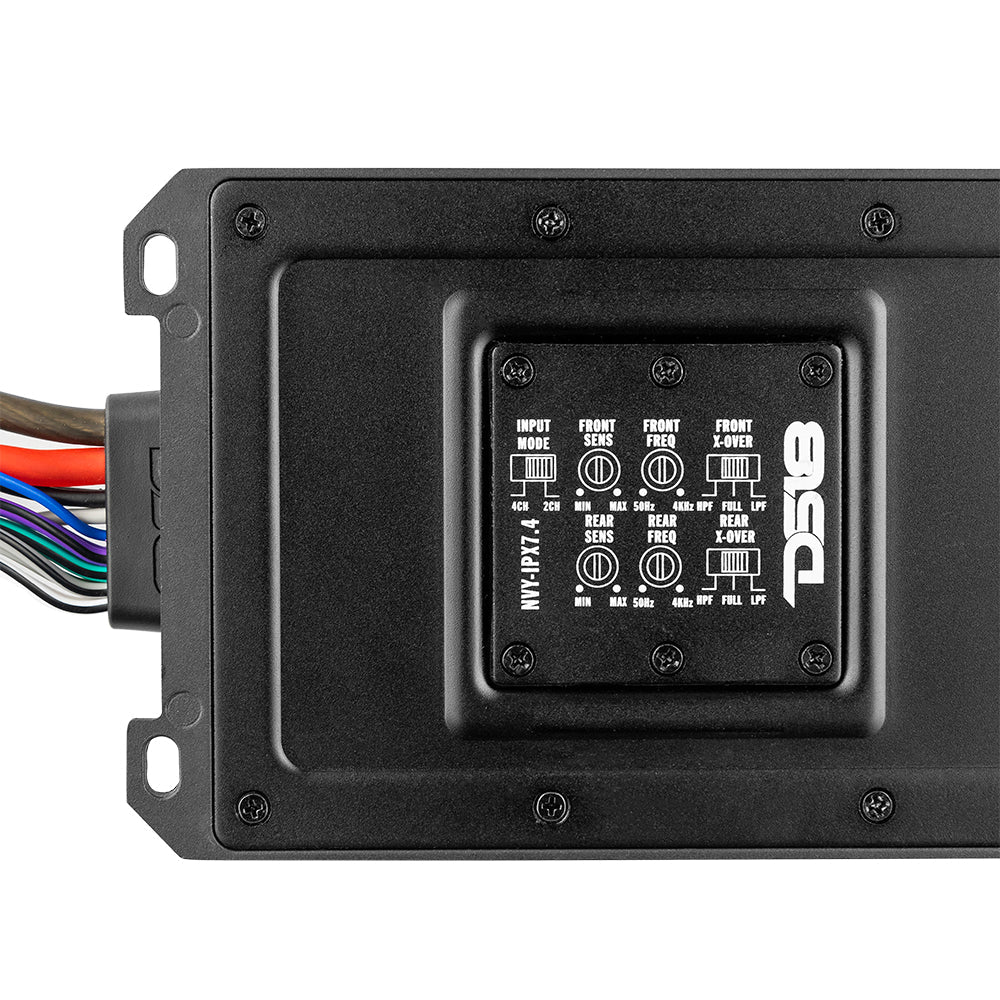

    • 2 CH / 4 CH Input Selector
    • Maximum output of 350W x 2 CH bridged at 4-Ohms, 200W x 4 CH at 2-Ohms, and 120W x 4 CH at 4-Ohms

    Great For:

      • Marine
      • Off road
      • DIY Projects

    Technical Details
                   NVY-IPX7.4 Product Manual

    Specifications
    POWER
    Total Watts (Peak)  1440 Watts
    RMS Power @ 4 ohm  4 x 120 Watts
    RMS Power @ 2 ohm 4 x 200 Watts
    RMS Power @ 4 ohm Bridge  2 x 350 Watts
    AUDIO
    Frequency Response 20Hz - 20KHz
    Signal to Noise Ratio 1W@4Ω  >90 dB
    Efficiency @ 4 ohm  94%
    Input Impedance >20KΩ
    Channel Separation  >-70 dB
    Total Harmonic Distortion (THD)  <0.1 %
    Low Level Input Range  270mV - 5.6V
    Selectable X-Over  HPF/FULL/LPF
    X-Over Filter Range 50Hz-4KHz
    FEATURES
    Amplifier Class  Digital (D)
    Amplifier Type Full Range Digital Marine Amplifier
    Number of Channels 4
    Minimum Impedance  2 OHM / Ch (4 OHM Bridge)
    LED Indicator Protection (Red) | Power (Blue)
    Power Input Size 8 Ga
    Fuse  2 x 40A
    Thermal Protection  Yes
    Over-Load Protection  Yes
    Short Circuit Output Protection  Yes
    Voltage Input Protection  Yes (9.5-16V)
    Body Color | Finish  Black Anodize
    2CH | 4CH Input Selector Yes
    Waterproof Rating  IP67
    UV / Salt Fog Protection  Yes
    Direct Power Harness Design  Yes
    Surface Mount Component Technology  Yes
    Marine Grade Fuse Holder  Yes
    MEASUREMENT
    Overall Length  10" / 253mm
    Overall Wide  4.5" / 116mm
    Overall Height  1.9" / 48.5mm
    Heatsink Length  8.5" / 216mm
    Gross Single Unit Weight  1.8Kg
