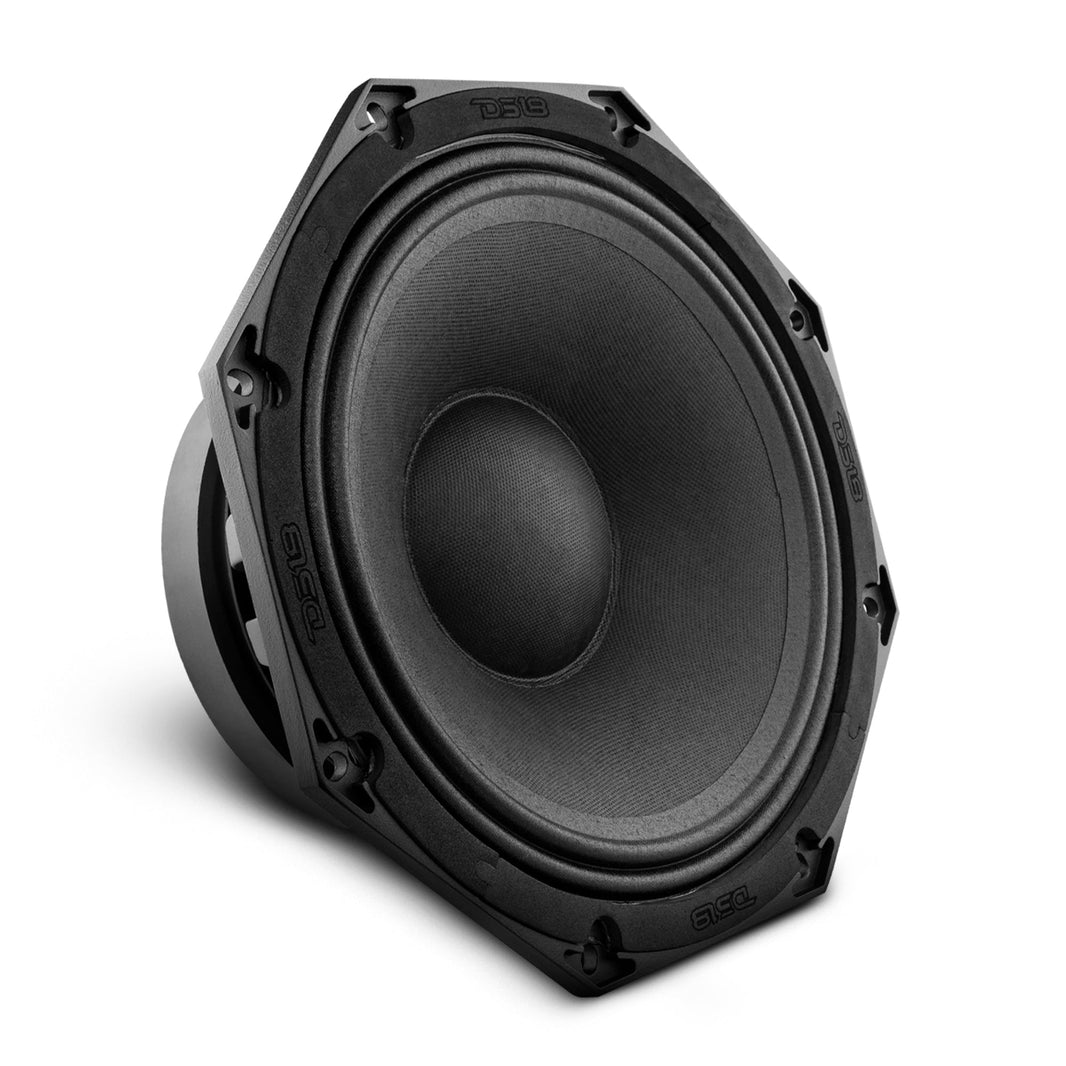

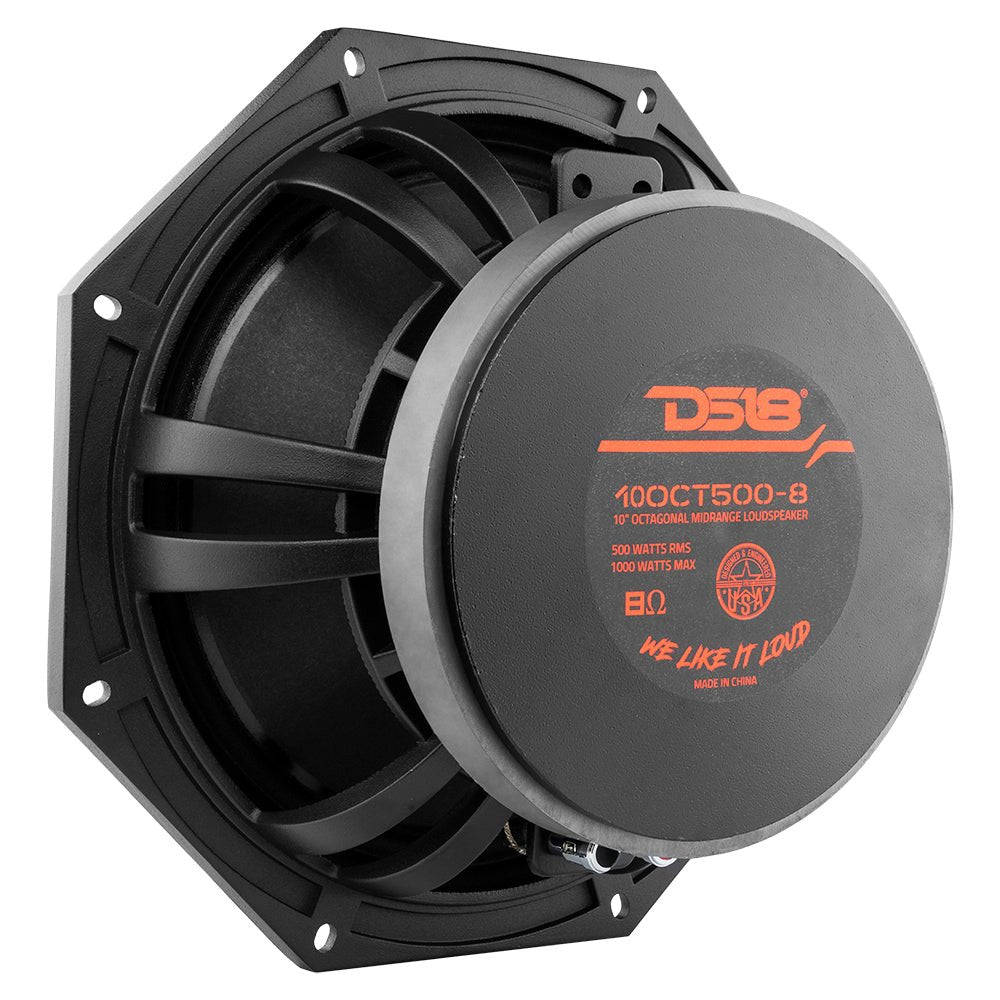

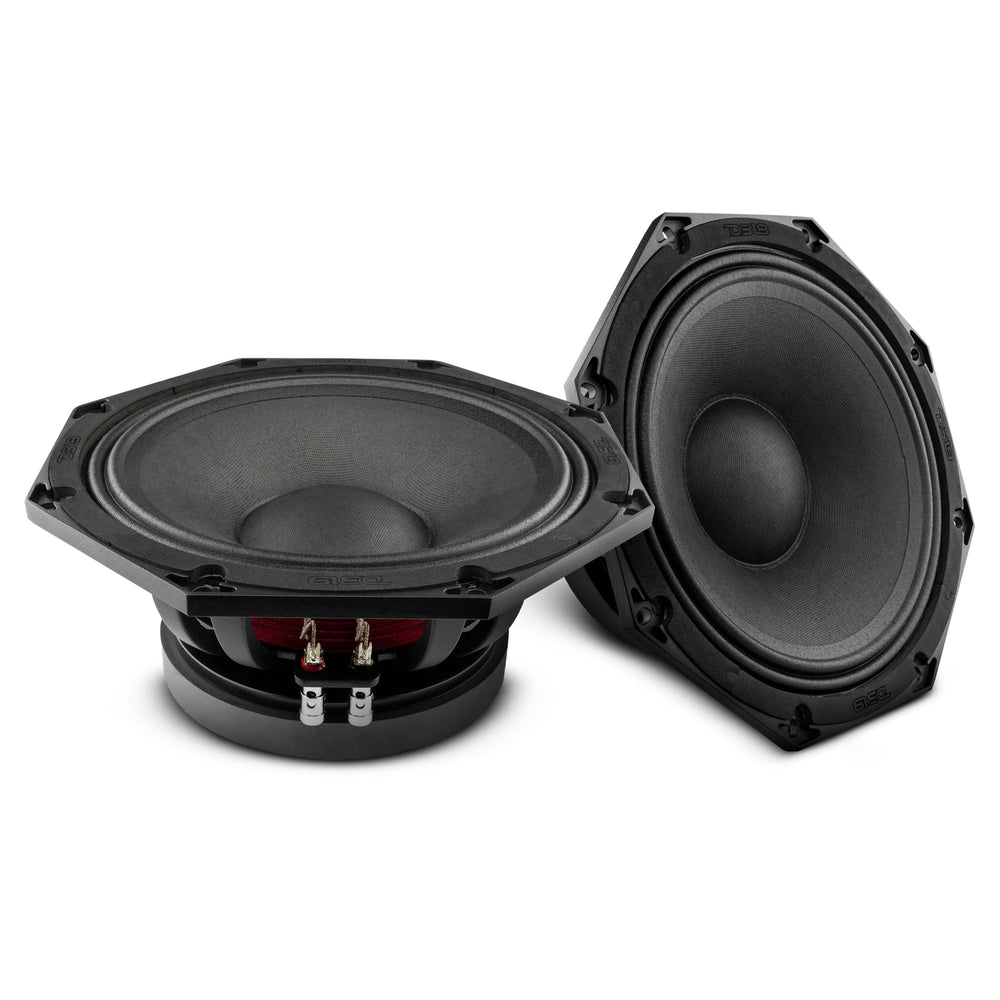

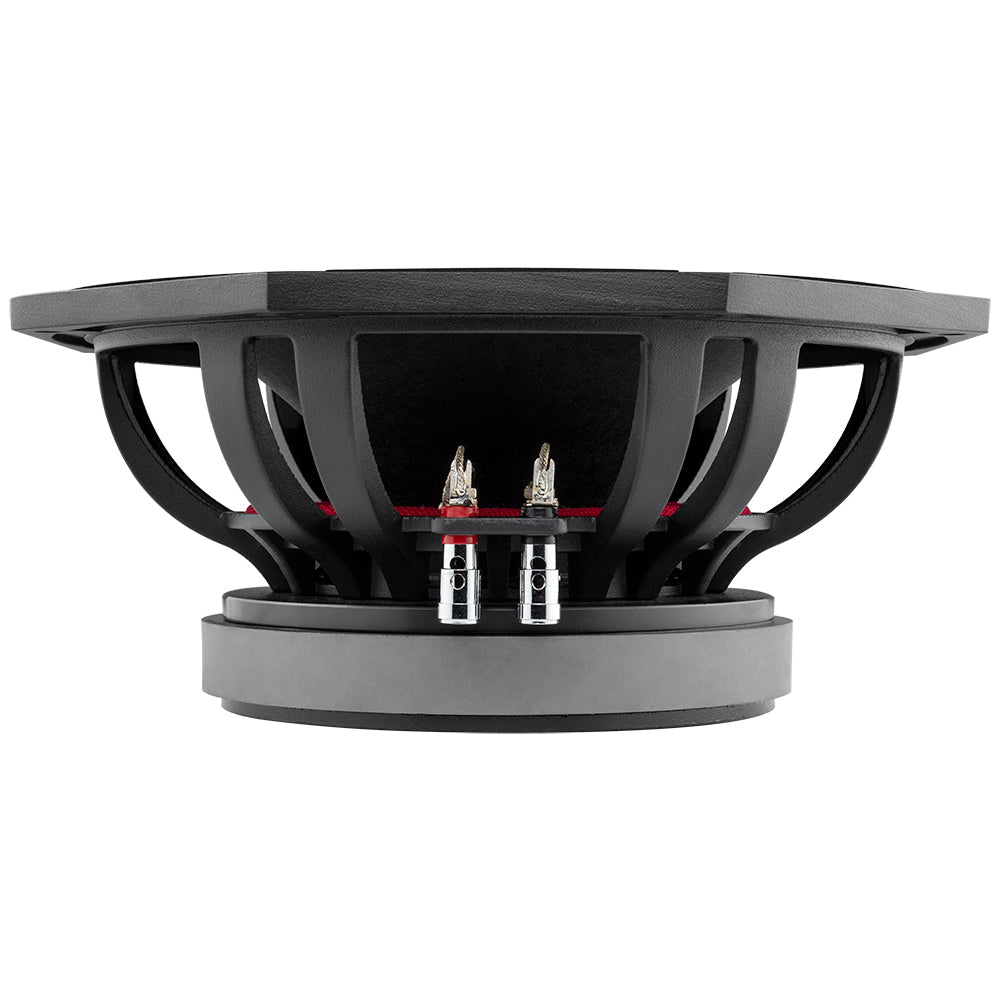

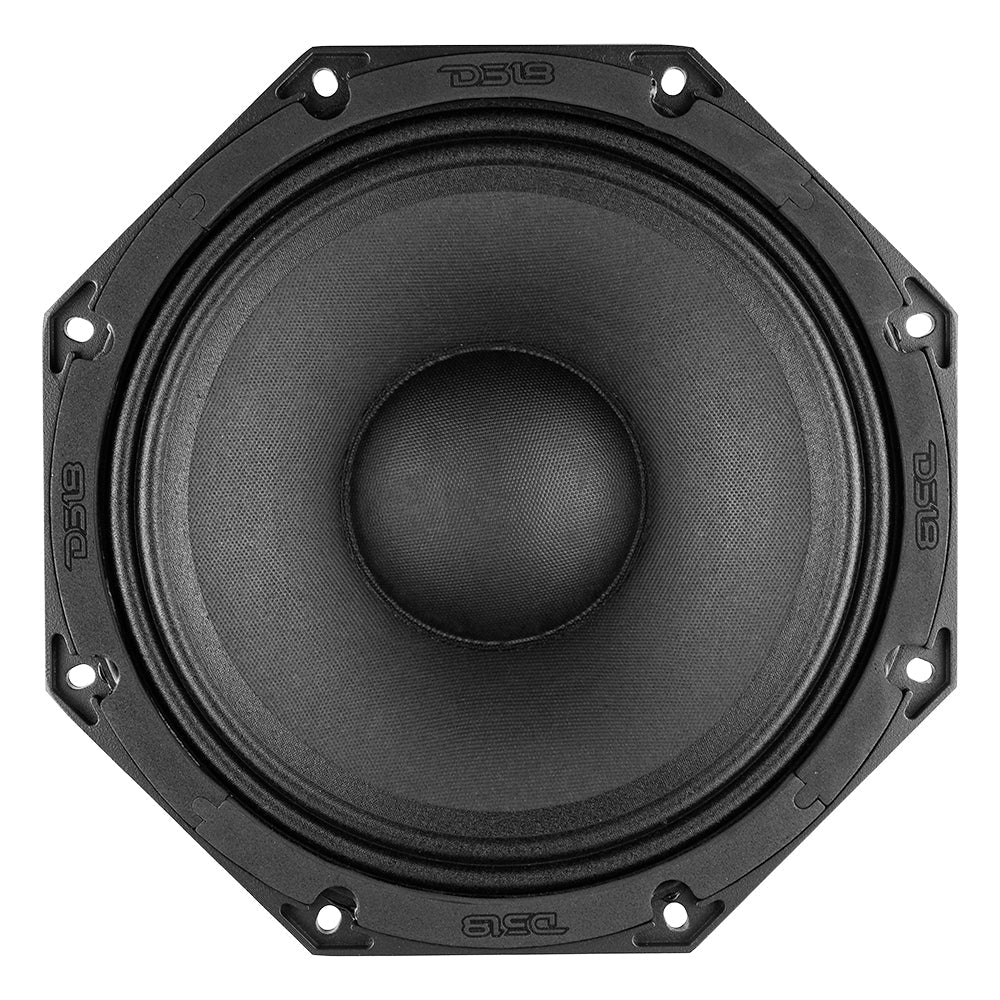

    DS18 10OCT500-8 PRO Octagon 10" Mid-Range Loudspeaker
    1000 Watts Max 8-Ohm

     Get your system in shape with DS18’s new 10OCT500-8!

     This 10” octagonal midrange loudspeaker offers better frequency response than your usual round speakers and can reproduce frequencies as low as 40Hz and as high as 8KHz!

     Create an incredibly tangible soundstage that increases the quality and feel of the speakers in your system and sound created by them!

     For our competitors, the octagonal speakers will give your show stopping system a cleaner look that can be easily organized for precise reproduction when you need it most.

     It’s high sensitivity, rated at 95 dB, allows it to handle powers of 500 W RMS and 1000 W MAX. These speakers get LOUD easily, just the way we like it!

     Install these 8 ohm speakers into your sound system correctly and enjoy intense volume that never fades!

     Highlights

    • Octagonal shape offers wider range of frequency response available to speakers of rounder shape
    • Easier organization of the equipment in your system
    • 500 RMS Power Handling
    • 1000 MAX Power Handling

    Technical Details



    SPECIFICATIONS
    Nominal Diameter  10" / 254mm
    Nominal Impedance  8 ohms
    RMS Power Handling  500W
    MAX Power Handling  1000W
    Sensitivity (1w/1m)  100dB
    Frequency Response 40Hz-8KHz
    Recommended HI Pass Crossover 80Hz
    Sold As Pair or Single Single
    Grill Included No
    MOTOR
    Voice Coil Diameter 2.6" / 66mm
    Voice Coil Former Material  TIL
    Winding Material  CCAW
    Cone Material Paper
    Dust Cap Material Paper
    Surround Material Cloth
    Basket Material  Aluminum
    Basket Color/Finish Black Sandblasted
    Magnet Material Ferrite
    Magnet Weight 62.3oz
    Displacement Volume 0.088L / 0.0031ft3

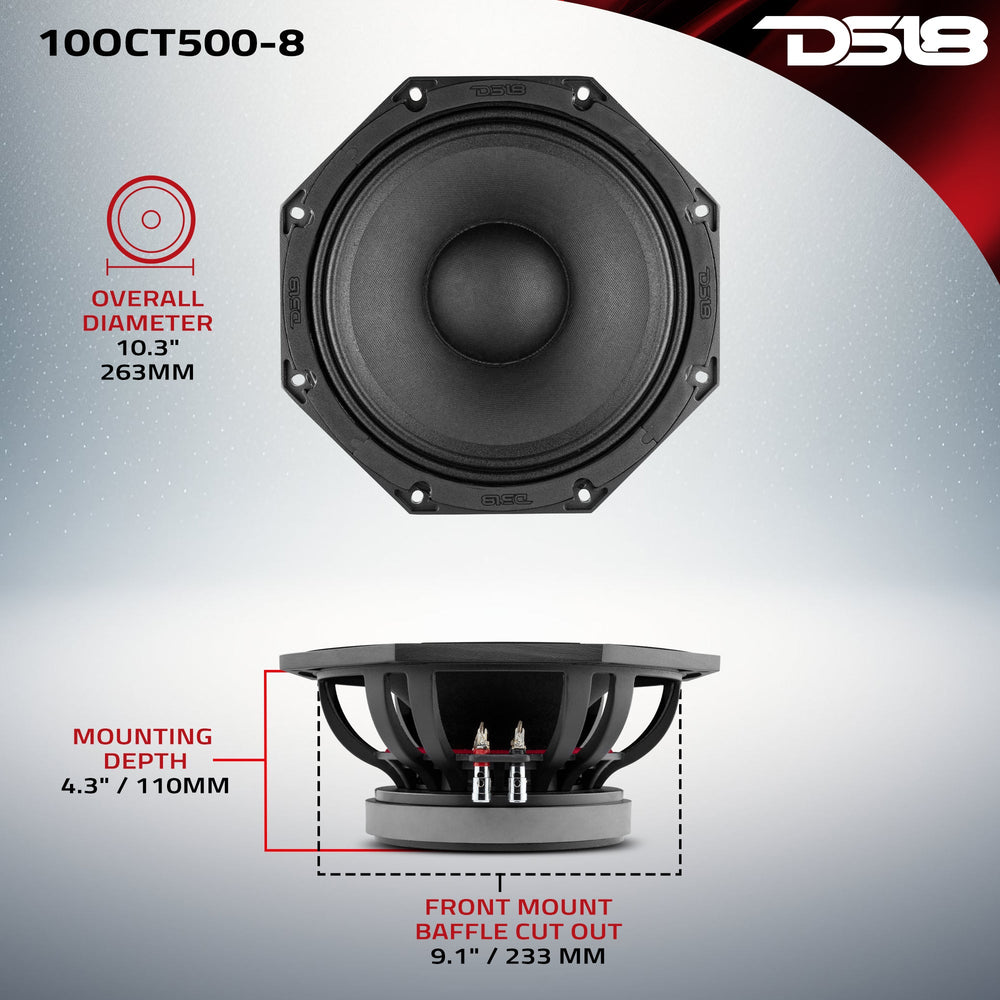

    MEASUREMENT
    Overall Diameter 10.3" / 263mm
    Overall Depth 4.8" / 124mm
    Front Mount Baffle Cutout 9.1" / 233mm
    Mounting Depth 4.3" / 110mm
    Motor Diameter 6.6" / 168mm
