Pre-Amp With Crossover For High Volt Amplifier
Regular price
$95.95
Out of stock
Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Description
Reviews
Description
- Description
- Additional info
- Reviews
- Perfect for Hi-Volts Amplifiers
- Hi-Volt RCA Input and output up to 9 volts
- Bass Boost adjustable on frequency and intensity
- LED Clip indicator for input and output
- Input Gain Adjustable
- Low Loss Tiffany RCA
- Remote output with delay to avoid noises
- Input Ground Selectable (Ground/200 ohm/Insulated)
- Pro Audio
- Car Audio

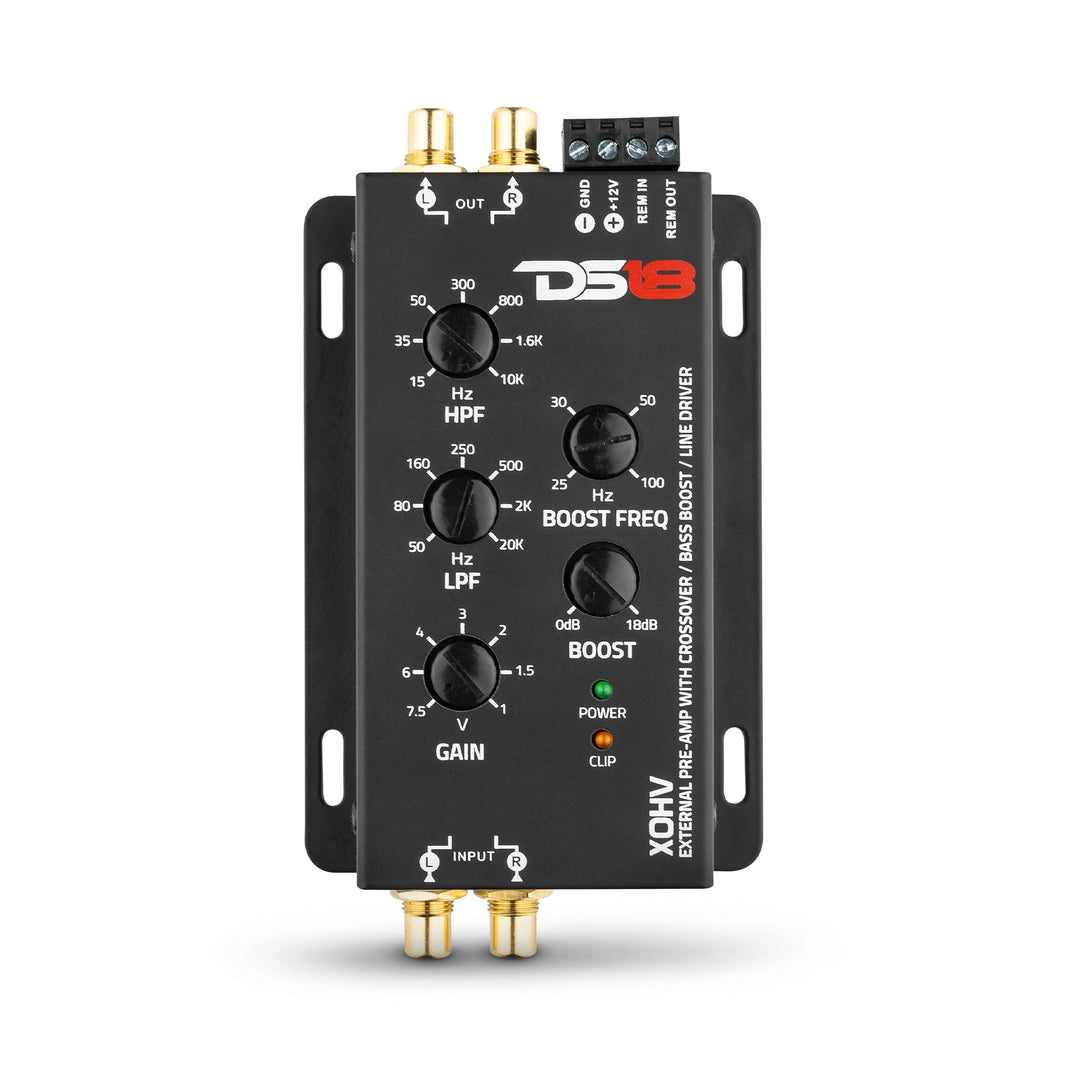

DS18 XOHV Pre-Amp With Crossover For High Volt Amplifier
Increase your systems signal to line-level with DS18’s XOHV!
This 2-channel Pre-Amplifier has a built-in Crossover and selectable bass boost frequency with high volt input and output! The XOHV is designed to work in line with H-V amplifiers that usually don’t have these features equipped.
This Pre-Amplifier’s 2-Channel capabilities allow you to connect 2 or more amplifiers for insane results!
Increase your signal strength today with the XOHV!
Highlights
Great For
![](https://cdn.shopify.com/s/files/1/0018/0142/0861/files/XOHV-A__04.jpg?v=1690898477")
Technical Details
| SPECIFICATIONS | |
| Audio | |
| Frequency Response | 15Hz - 20KHz |
| Signal to Noise Ratio | 100dB |
| Total Harmonic Distortion (THD) | 0.0002 |
| Stereo Signal Separation | 85dB |
| Low Level Input Range | 1.6 - 9 Volts |
| High Pass Filter Range | 15Hz - 10KHz |
| Low Pass Filter Range | 50Hz - 20KHz |
| Crossover Slope | 12dB/Oct |
| Bass Boost Range | 0~18dB |
| Bass Boost Frequency | 35~125Hz |
| RCA Pre-Output Voltage at 12.8V | 7 Volts |
| RCA Pre-Output Voltage at 14.4V | 9 Volts |
| Features | |
| Number of Channels | 2 (Left and Right) |
| Led Indicator | Power / Clip |
| Power Input Terminal Size | 14ga |
| Fuse Size | up to 1A (external) |
| Remote Output | Yes, (250mA) |
| Tiffany RCA | Yes, (Input and Output) |
| Input Ground Selector | Yes, (Ground/200ohm/Insolated) |
| Measurement | |
| Overall Length | 5.9" / 150mm |
| Overall Wide | 3.28" / 83.5mm |
| Overall Height | 1.1" / 28mm |
| Heatsink Length | 4.86" / 123.5mm |
| Heatsink Wide | 2.42" / 61.7mm |
| Gross Single Unit Weight | 9.4oz |
