    DS18 PRO-XLNEO10MB 10" Neodymium Mid-Bass Loudspeaker 1000 Watts RMS 8 Ohm

    Unleash amazing and crazy mid-bass with our new specialty mid-bass Neodymium speaker, the PRO-XLNEO10MB! This mid-bass speaker packs a very powerful punch and is backed with the awesome force of the Neodymium motor structure, which is much more efficient and has better power transition than traditional ferrite motors used in most speakers. These Neo speakers handle 1000w RMS and 2000 Peak while also retaining a 96.5db sensitivity which is rare and really drives these XL NEO speakers to the core. These are guaranteed to bring out all the mid bass you are missing from your pro audio system with great authority and precision.

    Highlights

    • Mid-bass Neodymium motor structure will deliver more precise precision while also painting great efficiency and power handling all while being lighter than traditional ferrite motor mid-bass speakers.
    • Highly durable 8 ohm, 4" voice coil handling 1000w RMS and 2000w Max power ensuring high volume wattage mid-bass loudness when paired with the correct amplifier.
    • High quality cone, dust cap, speaker terminals, and basket will ensure long life along with an amazing show quality looks.
    neodymium mid-bass loudspeaker 1000 wattsds18 neodymium mid-bass loudspeaker 1000 wattsds18 neodymium mid-bass loudspeaker 1000 wattsds18 neodymium mid-bass loudspeaker 1000 watts

    ds18 neodymium mid-bass loudspeaker 1000 watts

    Technical Details
                                              PRO-XLNEO10MB Product Manual
    SPECIFICATIONS
    Nominal Diameter 10” / 254mm
    Nominal Impedance 8 Ohms
    RMS Power Handling 1000W
    MAX Power Handling 2000W
    Sensitivity (1w/1m) 96.5 dB
    Frequency Response 50Hz - 7KHz
    Recommended HI Pass Crossover 100Hz
    Pair or Single Single
    MOTOR
    Voice Coil Diameter 4” / 99.8mm
    VC Former Material Glass Fiber
    Winding Material CCAW
    Cone Material Paper
    Dustcap Material Paper
    Surround Material Cloth
    Basket Material Aluminum
    Basket Color Sandblasted Black
    Magnet Material Neodymium
    Magnet Weight 18.5 Oz
    Displacement Volume 1.83L / 0.064ft3
    THIELE & SMALL PARAMETERS
    Equivalent Volume 20.53L / 0.72ft3
    Excursion (one way) 13.8 mm
    Free Air Resonance 64Hz
    Mechanical Factor 3.03
    Electrical Factor 0.255
    Total Factor 0.235
    Mechanical Mass 78.573g
    Mechanical Compliance 0.125mm/N
    BL Factor 20.072
    Voice Coil Inductance 32.64mH
    Cone Area 339.795CM²
    DC Resistance 5.2 Ohm
    Mechanical Mass w/o Air 65.971g

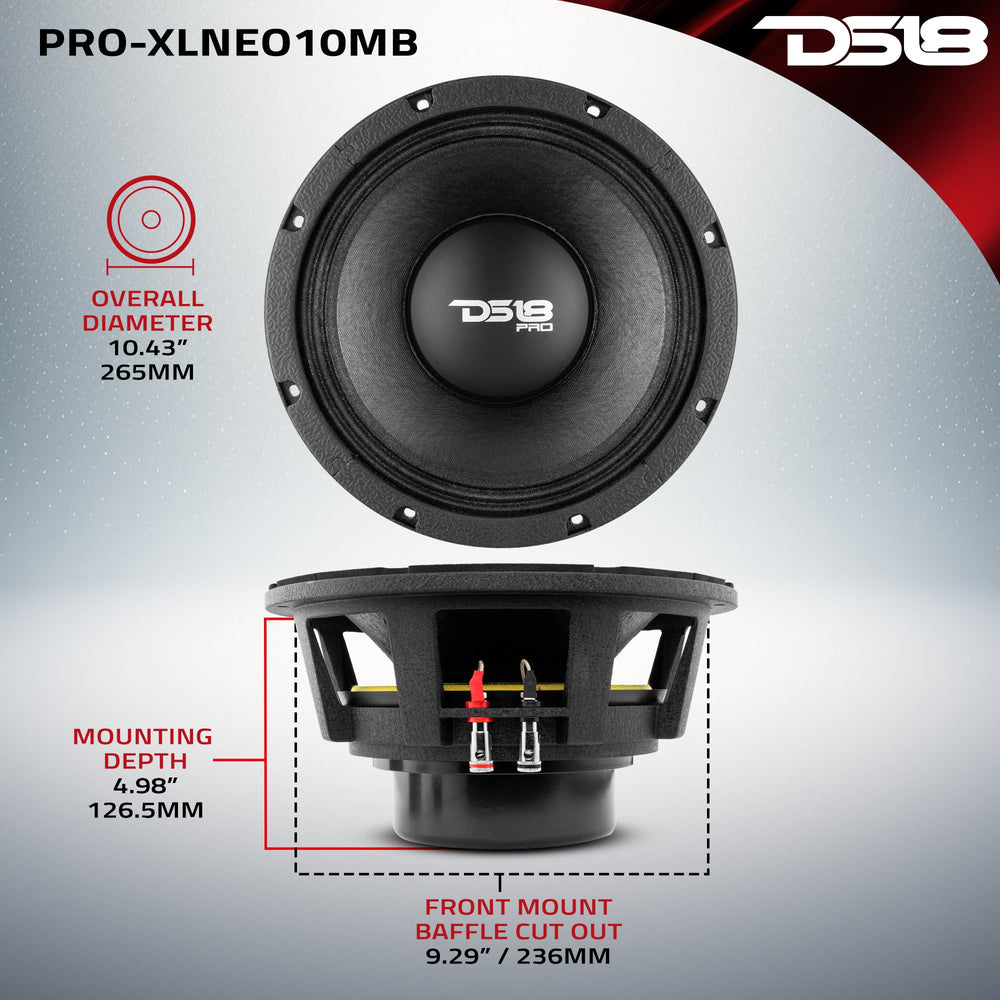

    MEASUREMENTS
    Overall Diameter 10.43”/265mm
    Overall Depth 5.45” / 138.5mm
    Front Mount Baffle Cutout 9.29”/236mm
    Mounting Depth 4.98”/126.5mm
    Motor Diameter 5.86”/149mm
