PRO 12" Neodymium Mid-Bass Loudspeaker 1000 Watts Rms 8-Ohm

PRO 12" Neodymium Mid-Bass Loudspeaker 1000 Watts Rms 8-Ohm

Regular price $359.95
Vendor:DS18
Type:Car Audio : Loudspeakers
SKU:PRO-XLNEO12MB
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 PRO-XLNEO12MB 12" Neodymium Mid-Bass Loudspeaker 1000 Watts RMS 8 Ohm

    Our newest addition just came raging into our massive pro audio line, the PRO-XLNEO12MB! This monster mid-bass speaker is backed by the full power of neodymium technology, which helps this mammoth mid-bass speaker handle more power, handle that power more efficiently, operate cooler, and are overall lighter than traditional ferrite motors. This mid-bass is great for those wanting to bring frequencies of 50+Hz with authority and full volume to accompany all your other frequencies for an amazing sound quality and full audio range. This neo mid-bass speaker comes with a gigantic 4 inch voice coil that handles 1000w RMS and 2000w max power so you can be sure that your mid-bass will turn all heads in a crowd!

    Highlights

    • 12 inch mid-bass speaker that provides great cone area so you can achieve that thumping mid-bass with the correct amp to power them.
    • Huge 4 inch voice coil which handles a staggering 1000w RMS and 2000w Peak power to really power through the music.
    • Neodymium design allows the speaker to handle more wattage more efficiently, while also being lighter and running cooler than traditional ferrite motor structures.

    ds18 neodymium mid-bass loudspeaker 1000 watts

    ds18 neodymium mid-bass loudspeaker 1000 watts

    ds18 neodymium mid-bass loudspeaker 1000 watts

    ds18 neodymium mid-bass loudspeaker 1000 watts

    ds18 neodymium mid-bass loudspeaker 1000 watts

    Technical Details
    RMS Power Handling@8 OHMS 1000W
    MAX Power Handling@8 OHMS 2000W
    Sensitivity (1w/1m) 98.2 dB
    Frequency Response 45Hz - 7KHz
    Recommended HI Pass Crossover 80Hz
    Pair or Single Single
    MOTOR
    Voice Coil Diameter 4” / 99.8mm
    VC Former Material Glass Fiber
    Winding Material CCAW
    Cone Material Paper
    Dustcap Material Paper
    Surround Materia Cloth
    Basket Material Aluminum
    Basket Color Sandblasted Black
    Magnet Material Neodymium
    Magnet Weight 18.5 Oz
    Displacement Volume 2.32L / 0.082ft3
    THIELE & SMALL PARAMETERS
    Equivalent Volume Vas: 22.76L / 0.8ft3
    Excursion (one way) Xmax: 13.8 mm
    Free Air Resonance Fs: 72Hz
    Mechanical Factor Qms: 1.61
    Electrical Factor Qes: 0.359
    Total Factor Qts: 0.294
    Mechanical Mass Mms: 83.362g
    Mechanical Compliance Cms: 0.059mm/N
    BL Factor Bl: 23.553
    Voice Coil Inductance Le: 32.64mH
    Cone Area Sd: 522.79CM²
    DC Resistance Re: 5.2 Ohm
    Mechanical Mass w/o Air Mmd: 69.855g

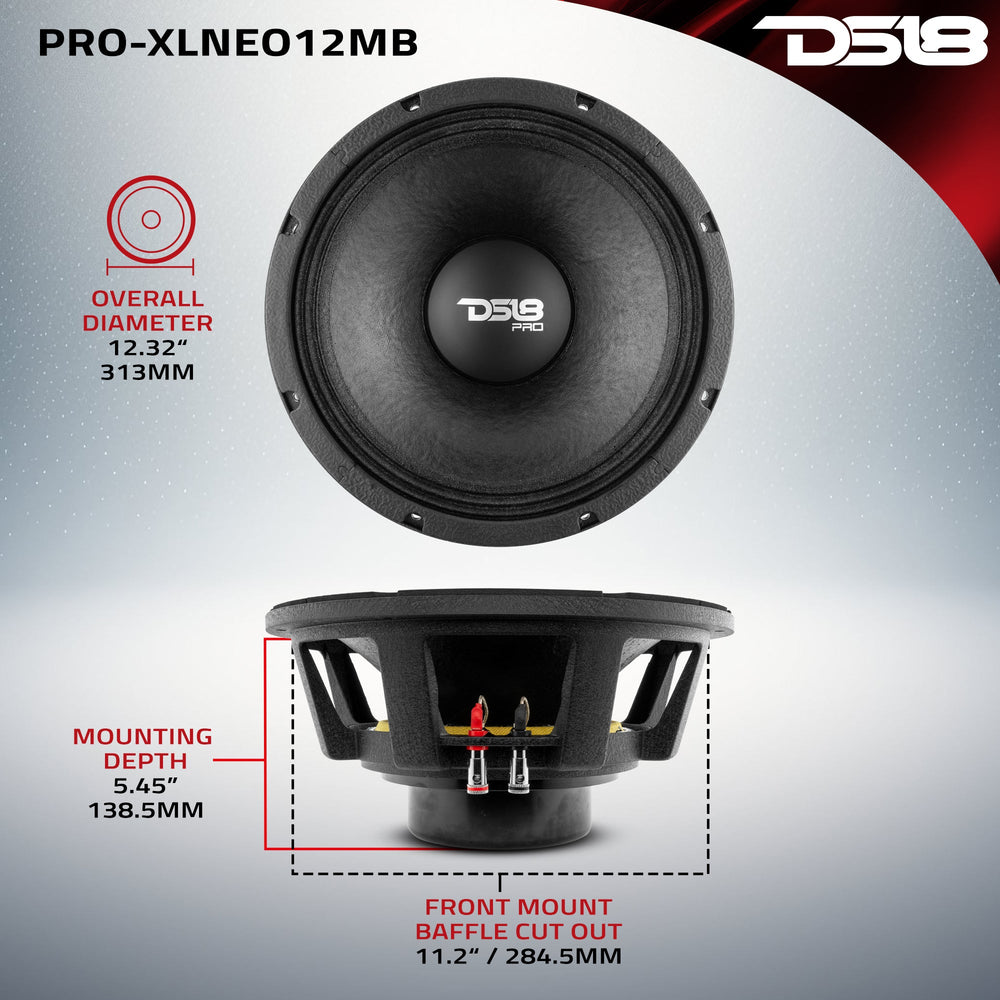

    MEASUREMENTS
    Overall Diameter 12.32“ / 313mm
    Overall Depth 5.92” / 150.5mm
    Front Mount Baffle Cutout 11.2“ / 284.5mm
    Mounting Depth 5.45” / 138.5mm
    Motor Diameter 5.86”/149mm
