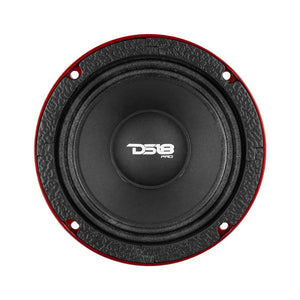

PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 8-Ohm

PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 8-Ohm

Regular price $191.95
Vendor:DS18
Type:Car Audio : Loudspeakers
SKU:PRO-NEO6.8R
Out of stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

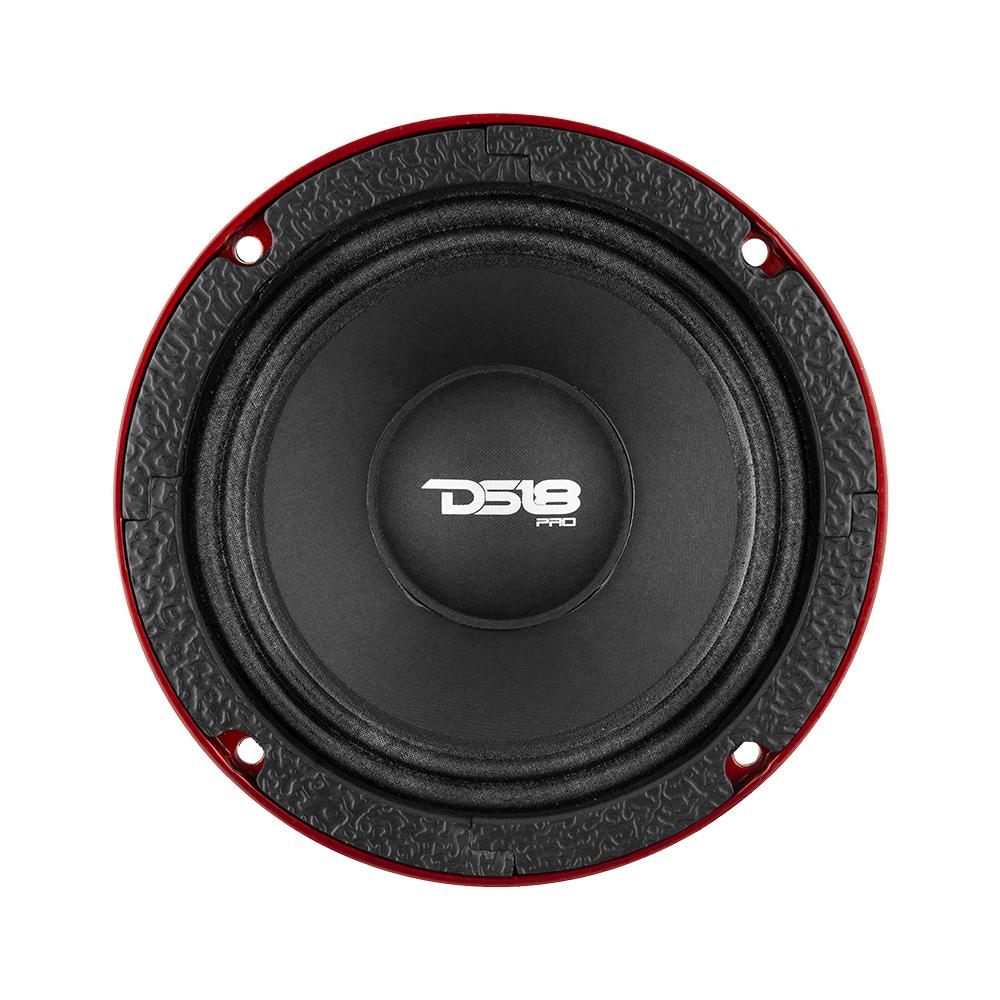

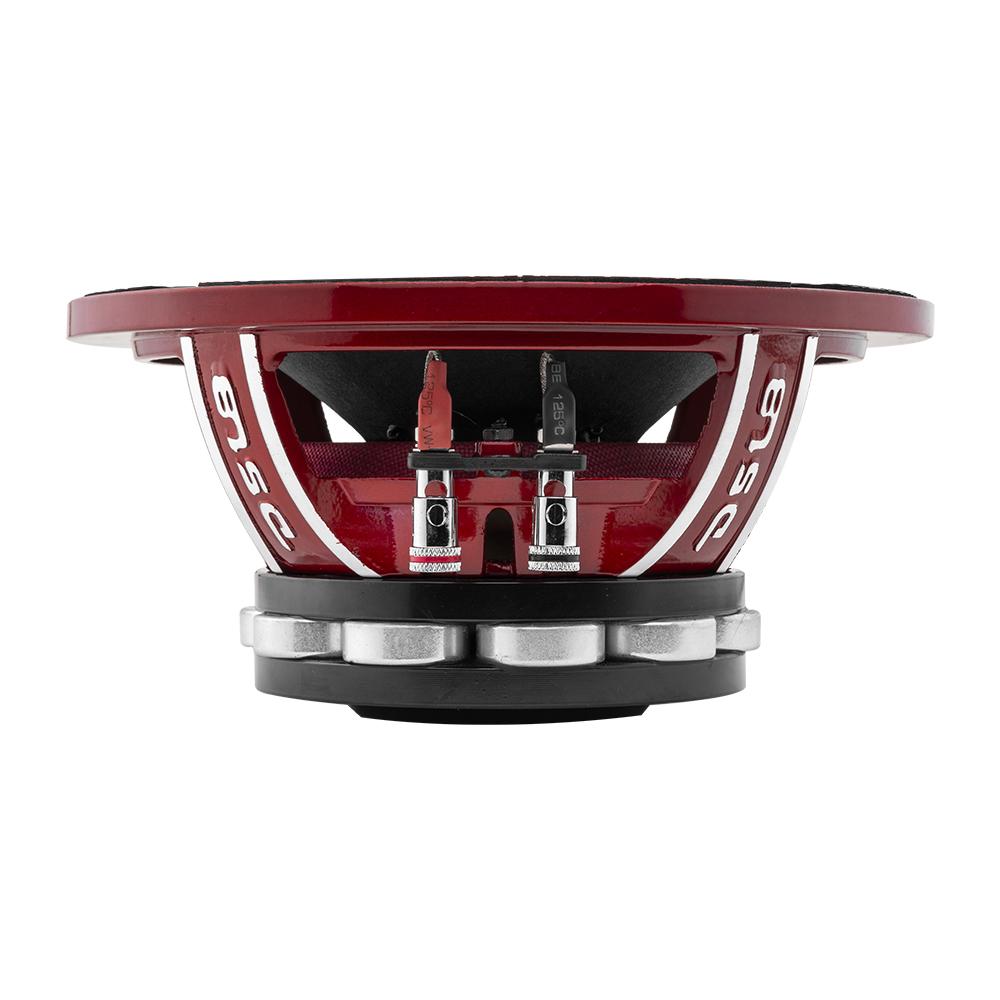

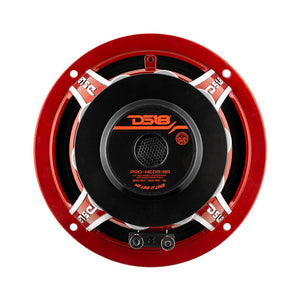

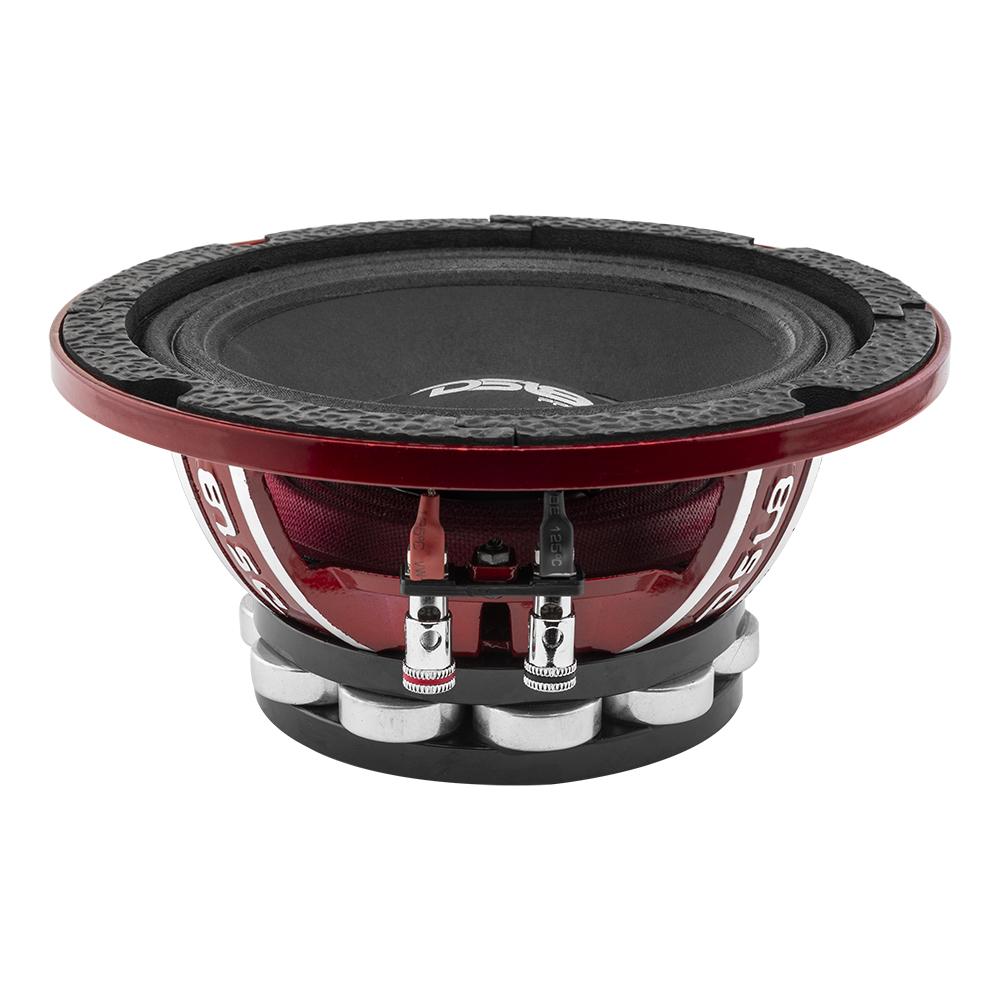

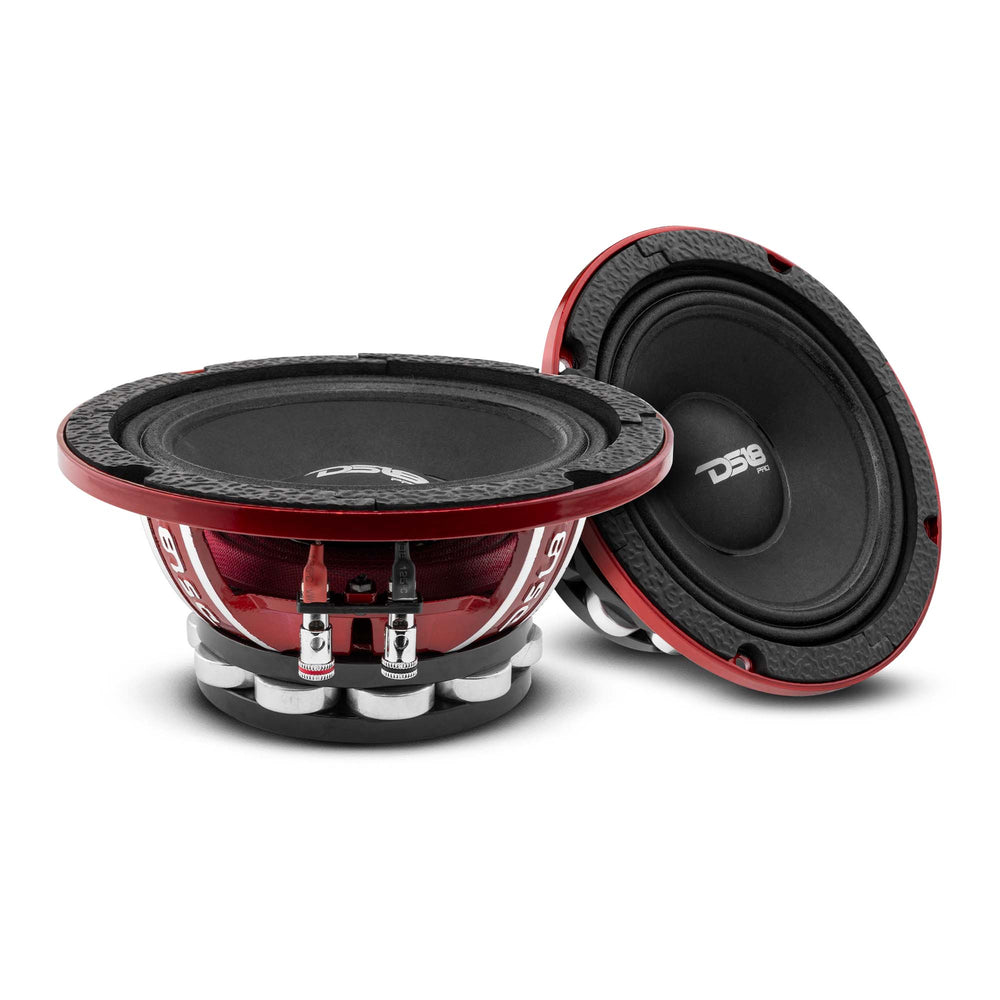

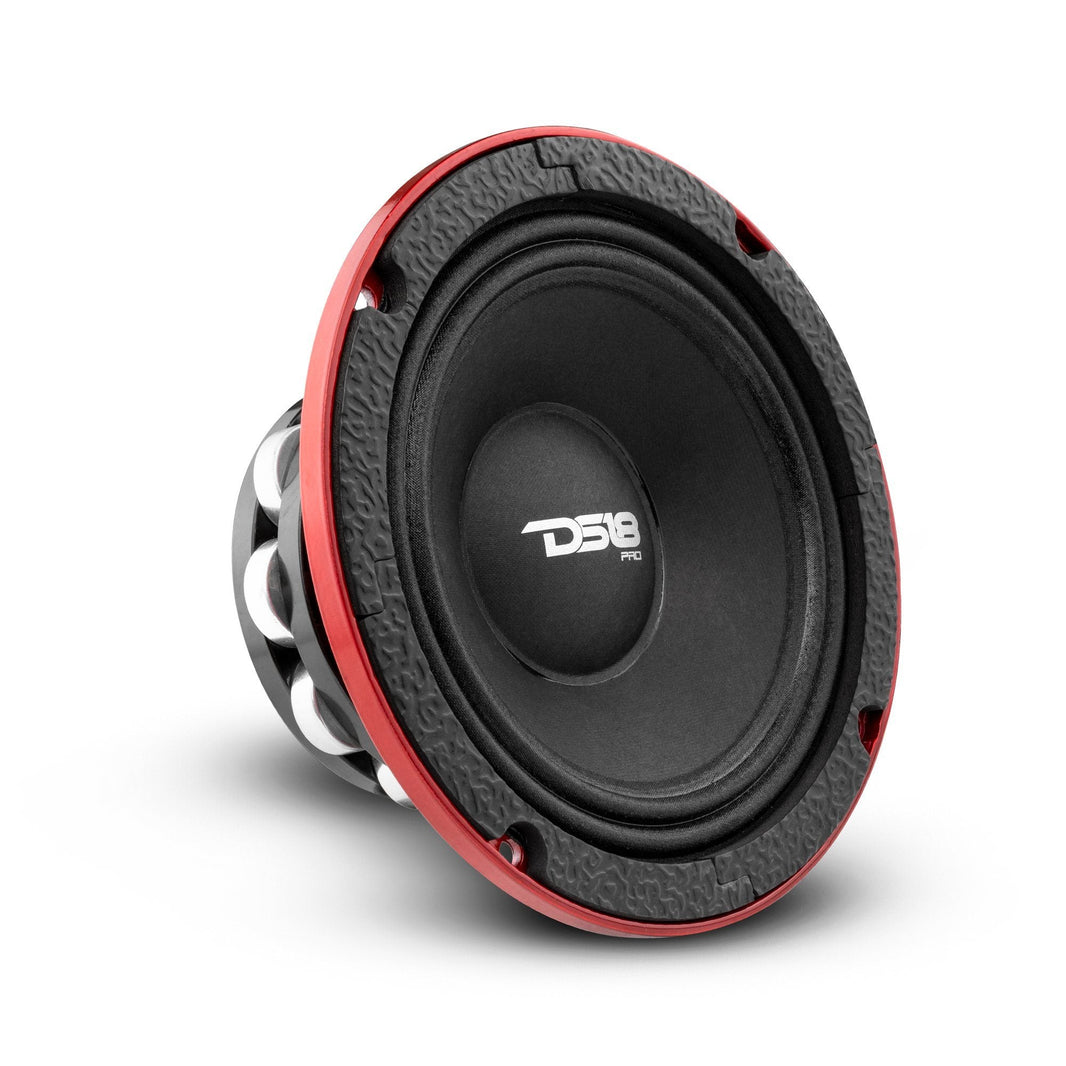

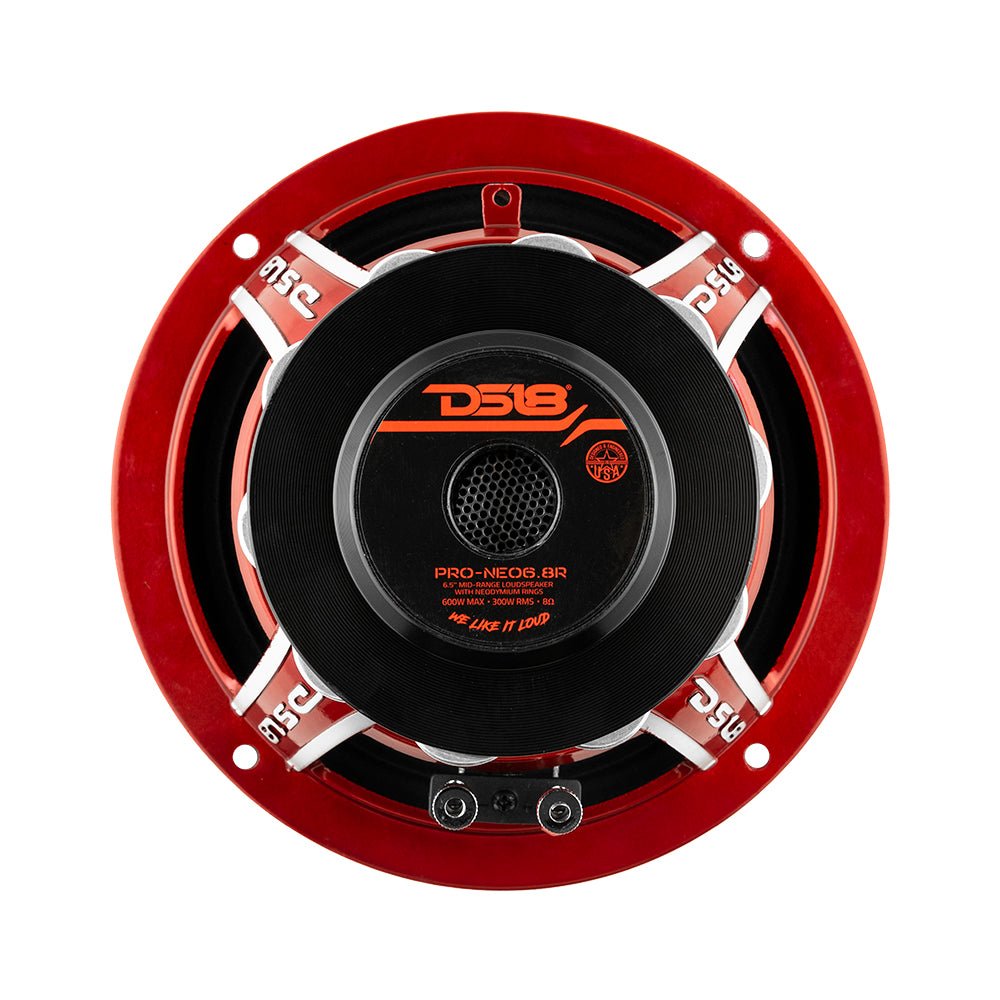

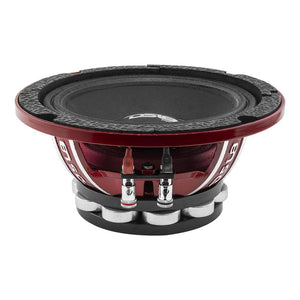

    DS18 PRO-NEO6.8R 6.5" Neodymium Mid-Range Loudspeaker 600 Watts 8-Ohm

    Versatility is paramount in large and small audio systems alike. Many DS18 fans have been wanting an 8 ohms version of our very popular NEO-R series of 6.5s. We have obliged the overwhelming requests by releasing our PRO-NEO6.8R. This Neodymium driven midrange speaker will be the loudest 6.5 we have while also handling the most power. The great thing about NEO motor structures is that you get better performance, higher wattage handing, better efficiency, and much lighter in weight than a traditional speaker with a ferrite motor structure.

    This is an 8 ohms speaker that handles 300w RMS and 600w MAX power with a dB sensitivity rating of 96dB. This neo also has an amazing cone design to help this screaming midrange all the way from 90Hz to 10,000Hz with extreme clarity and loudness.

    Highlights

    • Neodymium motor structure that handles more power, lighter, and more efficient than ferrite motors.
    • High RMS rating of 300w RMS and 600w MAX @8 ohms so you can have a very high powered 6.5 to blow away the competition.
    • High decibel rating so it does not take max power to get the fullest sound.
    • High powered aluminum voice coil backed by an intense neodymium rings magnet for more volume at the highest efficiency on the market.
    • Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals.
    • Solid cone design that slays the midrange but is best accompanied by a pro audio super tweeter

    neodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 watts

    Technical Details
                                                             PRO-NEO6.8R Product Manual

    SPECIFICATIONS
    Nominal Diameter 6.5” / 165mm
    Nominal Impedance 8 Ohms
    RMS Power Handling 300W
    MAX Power Handling 600W
    Sensitivity (1w/1m) 96 dB
    Frequency Response 90Hz-10KHz
    Recommended Hi Pass Crossover 160 Hz
    Pair or Single Single
    MOTOR
    Voice Coil Diameter 2"/50.8mm
    VC Former Material Kapton
    Winding Material CCAW
    Cone Material Paper
    Dust Cap Material Paper
    Surround Material Cloth
    Basket Material Aluminum
    Basket Color/Finish Glossy Red
    Magnet Material Neodymium Rings
    Magnet Weight 11.4 Oz
    Displacement Volume 0.045 L
    THIELE & SMALL PARAMETERS
    Equivalent Volume 6.498 Ltr
    Excursion (one way) 3.6mm
    Free Air Resonance 83 Hz
    Mechanical Factor 4.4
    Electrical Factor 0.229
    Total Factor 0.218
    Mechanical Mass 13.248
    Mechanical Compliance 276.373 u/M/N
    BL Factor 13.466
    Cone Area 145cm²
    DC Resistance 6.0 ohm
    Mechanical Mass w/o air 12.638 g
    MEASUREMENTS
    Overall Diameter 6.88” / 174.8mm
    Overall Depth 3.29” / 83.7mm
    Front Mount Baffle Cutout 5.91” / 150.3mm
    Mounting Depth 3.29” / 83.7mm
    Motor Diameter 4.13” / 105mm
