PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 8-Ohm

PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 8-Ohm

Regular price $79.95
Vendor:DS18
Type:Car Audio : Loudspeakers, Motorcycle : Loudspeakers
SKU:PRO-HY6MSL
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

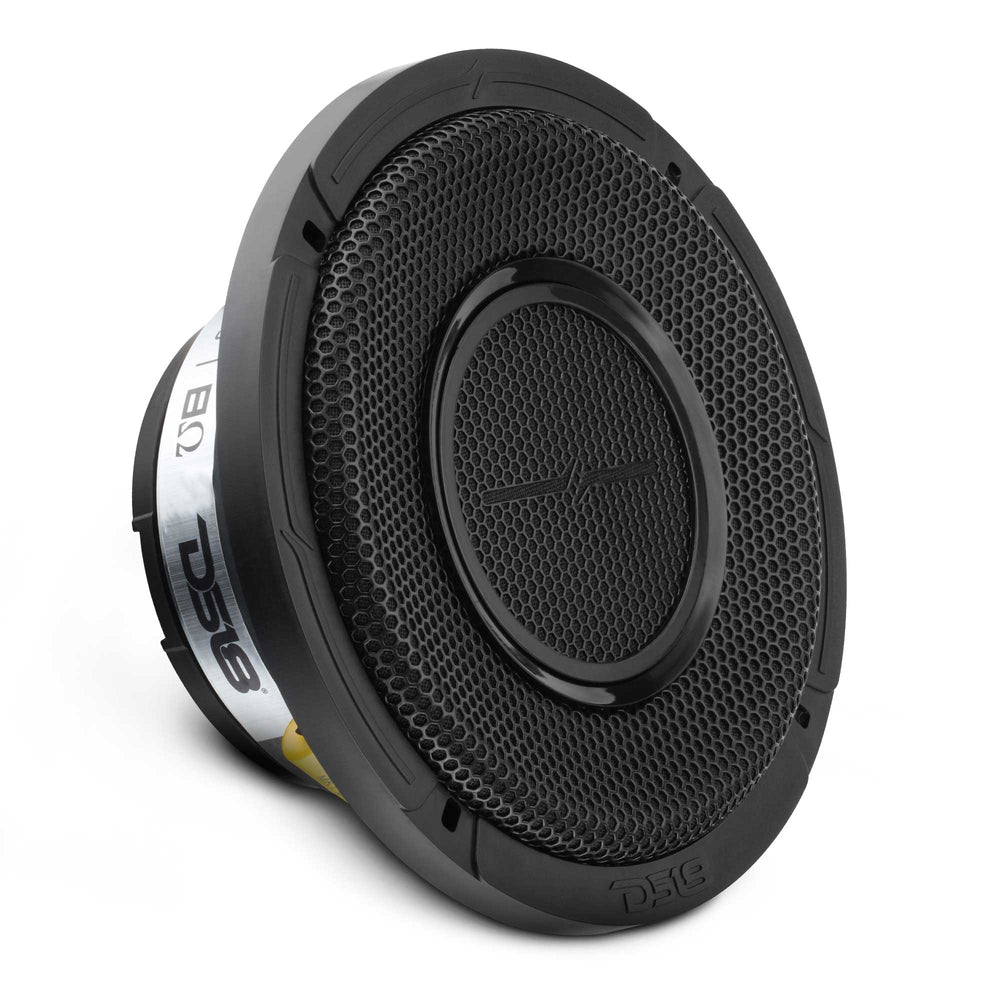

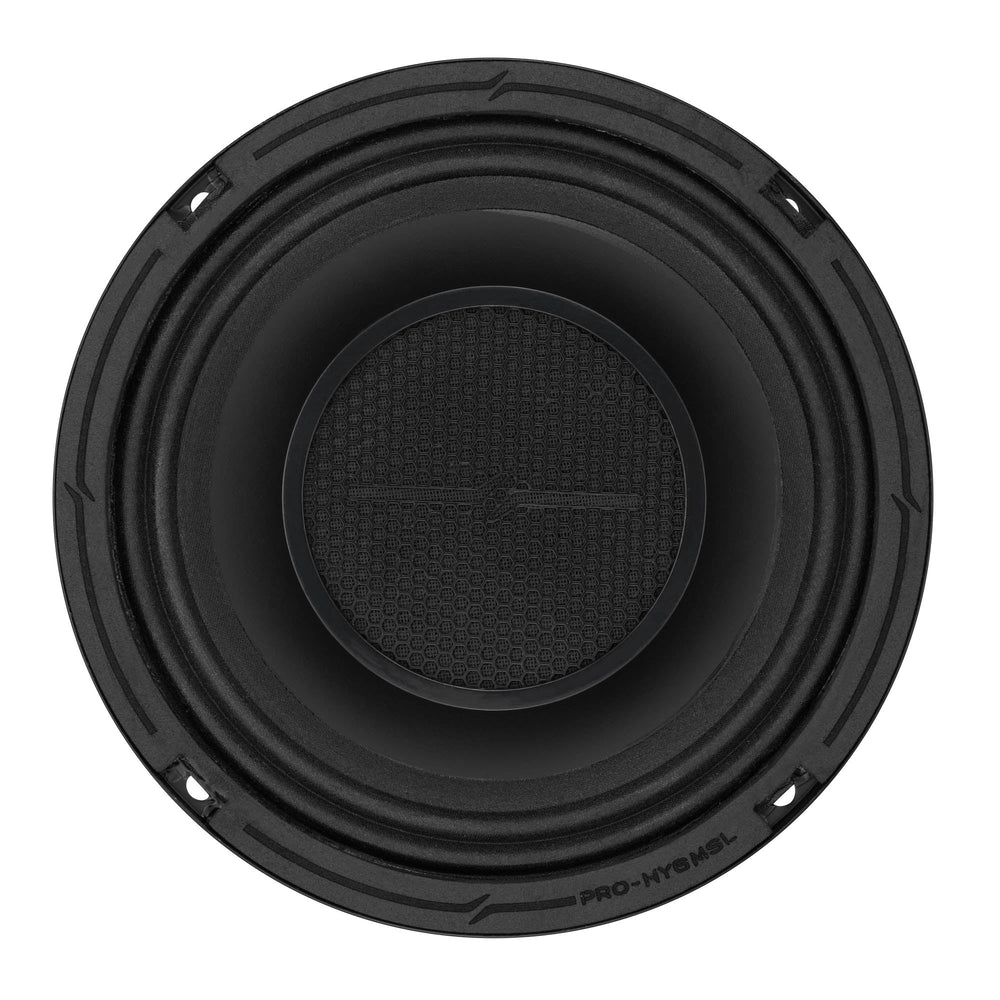

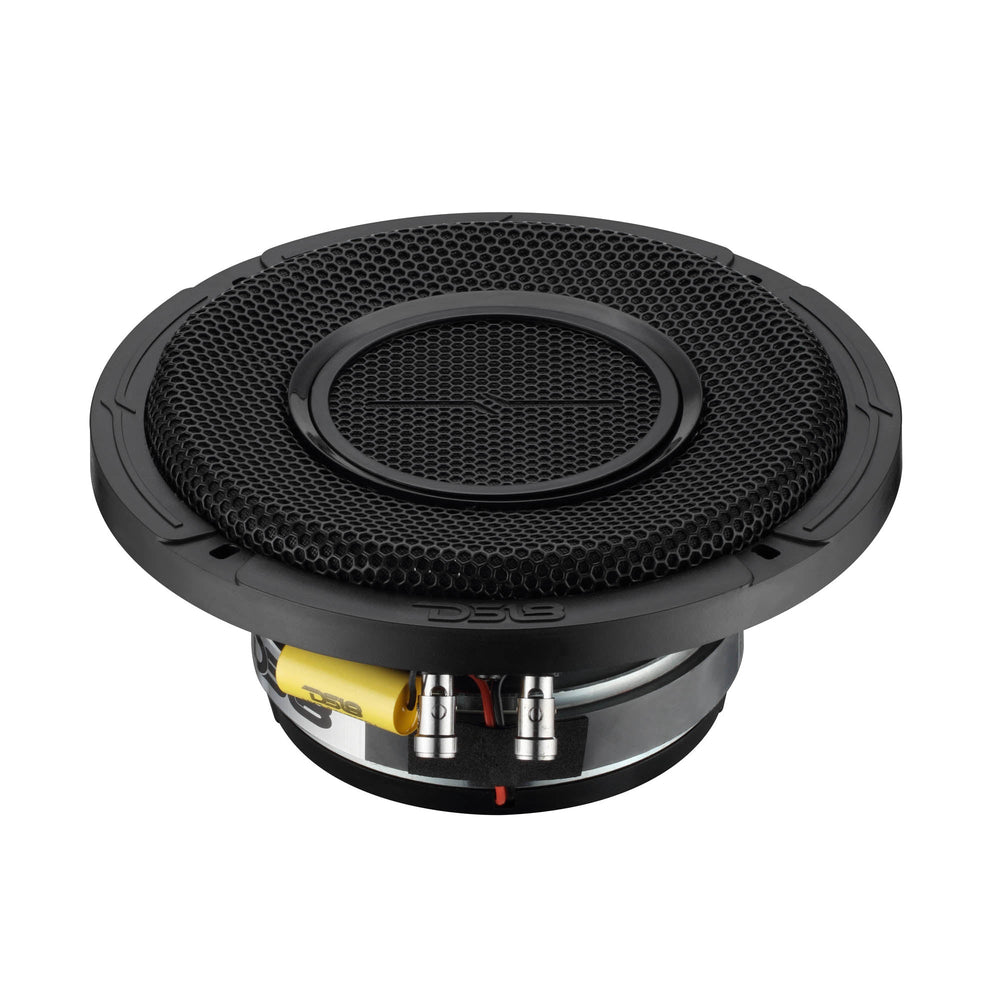

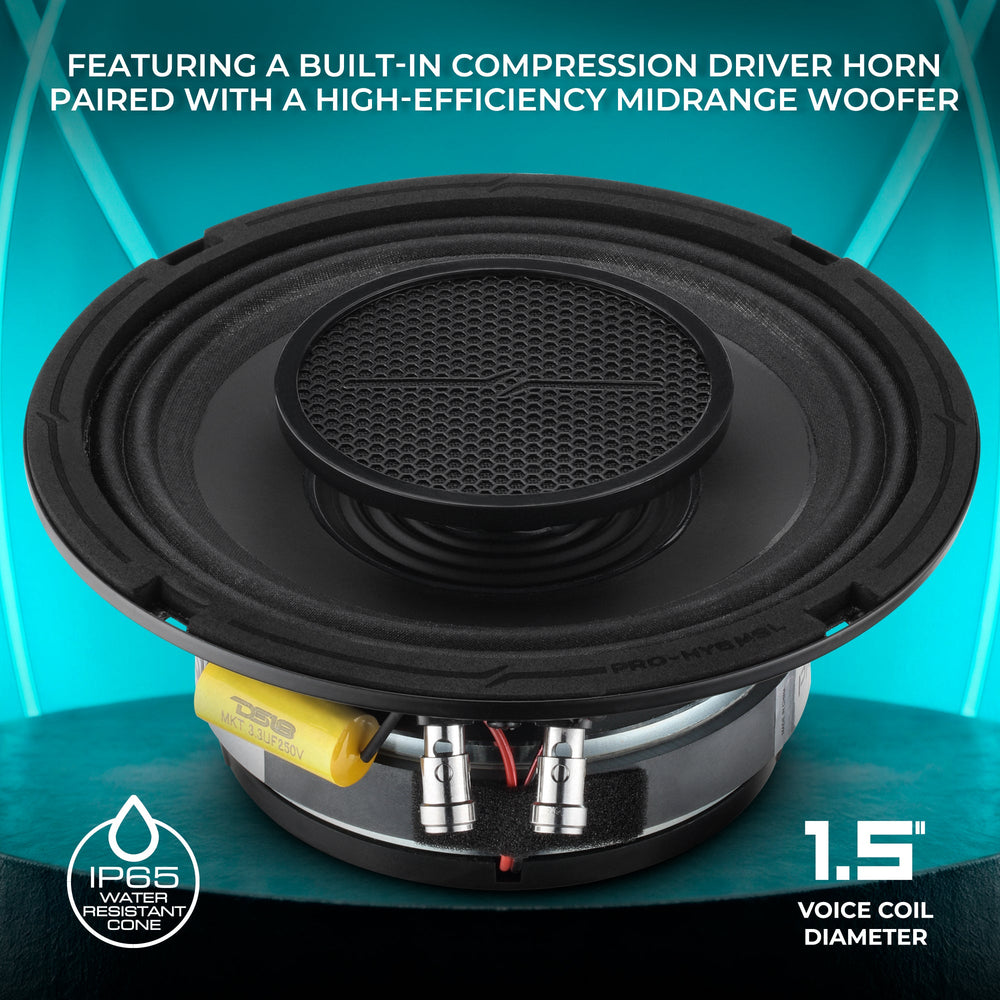

    DS18 PRO-HY6MSL PRO 6.5" Shallow Hybrid Mid-Range Ferrite Loudspeaker with Built-in Neodymium Driver 300 Watts 8-Ohm - Grill Included

    Your search for the best high-powered audio speakers comes to an end with the DS18 Hybrid Speakers!

    These compact Speakers combine the best of both worlds! We have emphasized and carefully combined both our Pro-Audio midrange and a high intensity driver all in a slim package for an endless amount of applications that need Pro-Audio sound in tight spaces where traditional drivers wouldn't fit.

    This high-quality, durable, and innovative design perfectly blends a high-volume Speaker with a high wattage driver. These Speakers are the ultimate choice for extreme loudness with amazing clarity at high volumes.

    Be sure no other brand can match up to this powerful and durable 6.5" Pro-Audio Speaker and Driver Hybrid. If you are looking for a high-powered Audio Speaker for your car or any other application, this completely customized Speaker will give you the output you need to get the job done.

    Highlights:

    • With 150 watts RMS Power Handling and 300 watts MAX Power Handling, and a frequency response of 120Hz-20Khz, this is the best Car Audio Loudspeaker you can find that is compact yet getting amazing and rich musical response.
    • With an Overall size of 6.92 inches in width and 2.77 inches of mounting depth, this is that you can use in a huge amount of applications with ease.
    • Made of titanium, neodymium, ferrite, and featuring a glossy red basket color, this revolutionary Hybrid Loudspeaker is going to last you years!

    Key Features

    • 6.5" Inch Hybrid Pro-Audio Driver / Speaker Hybrid
    • RMS Power Handling: 150W
    • MAX Power Handling: 300W
    • Frequency Response: 120Hz-20KHz
    • Voice Coil Diameter: 1.5"
    • Voice Coil Material: KSV
    • Impedance: 8-Ohms
    • Sensitivity: 93dB
    • Magnet Weight: 17.5 Oz
    • Magnet Material: Ferrite
    • Mounting Depth: 2.77"
    • Recommended High Pass: 140Hz


    Great For:

    • Car Audio
    • Pro Audio
    • Home Audio
    • Satellite Speakers
    • Bookshelf Speakers
    • Hi-Fi Installation
    • DIY Projects

    Technical Details
                                                                                                                            PRO-HY6MSL Product Manual
    SPECIFICATIONS

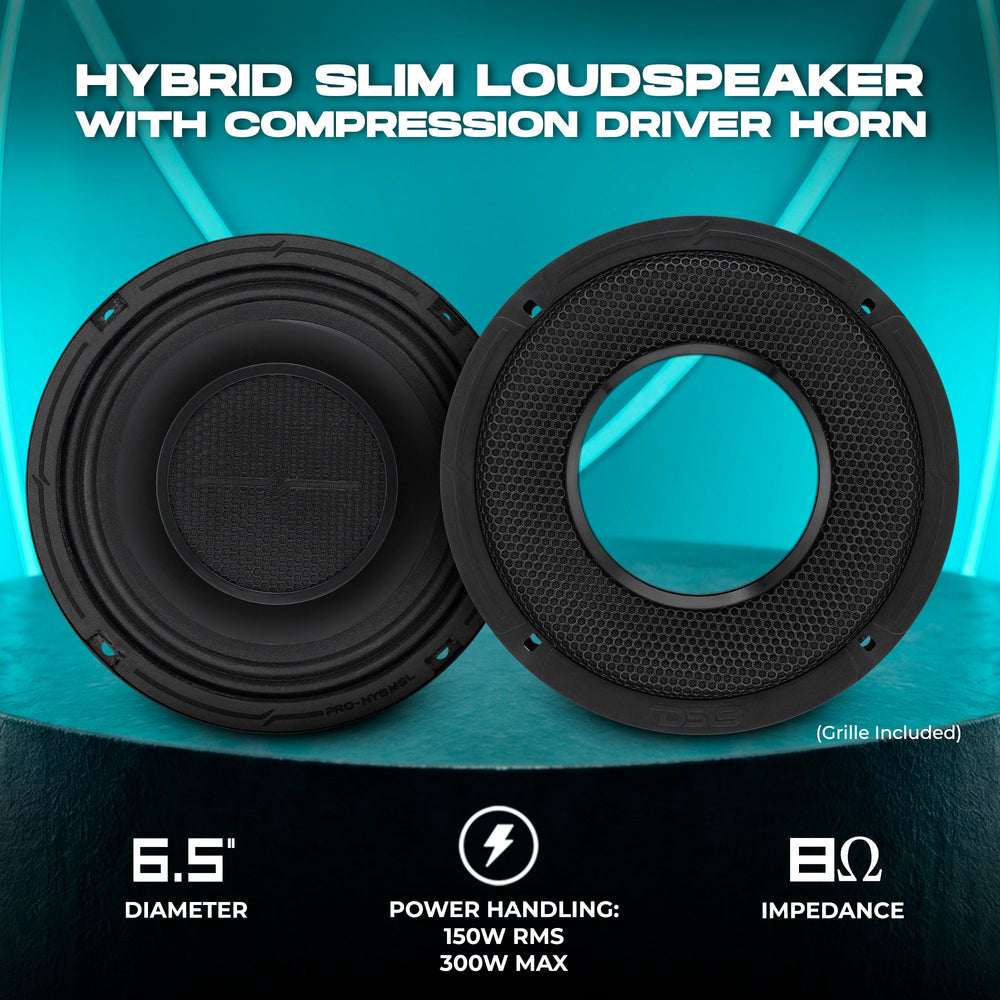

    Nominal Diameter  6.5" / 165.1mm
    Nominal Impedance  8 ohms
    RMS Power Handling  150W
    MAX Power Handling  300W
    Sensitivity (1w/1m)  93dB
    Frequency Response 120Hz-20KHz
    Recommended HI Pass Crossover 140Hz
    Number of ways 2 ways
    Pair or Single Single

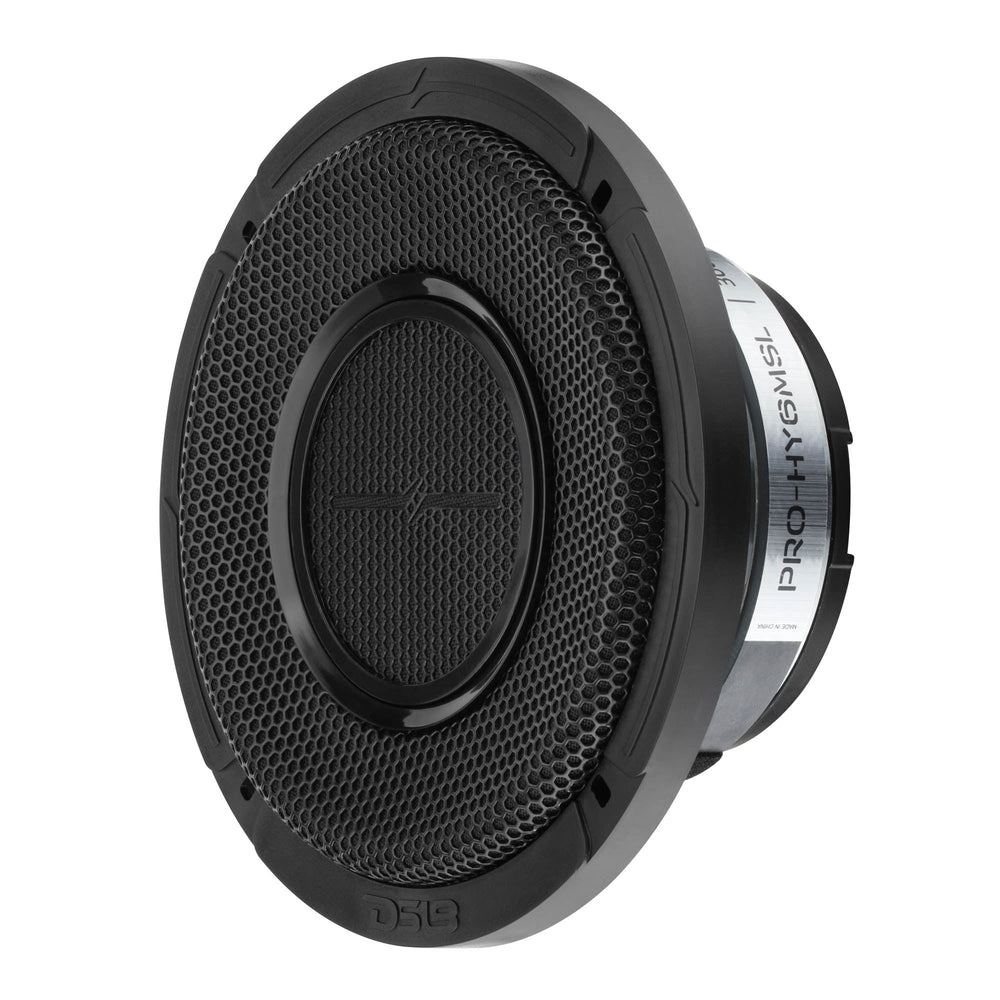

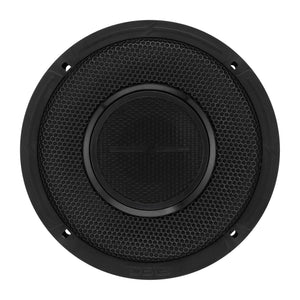

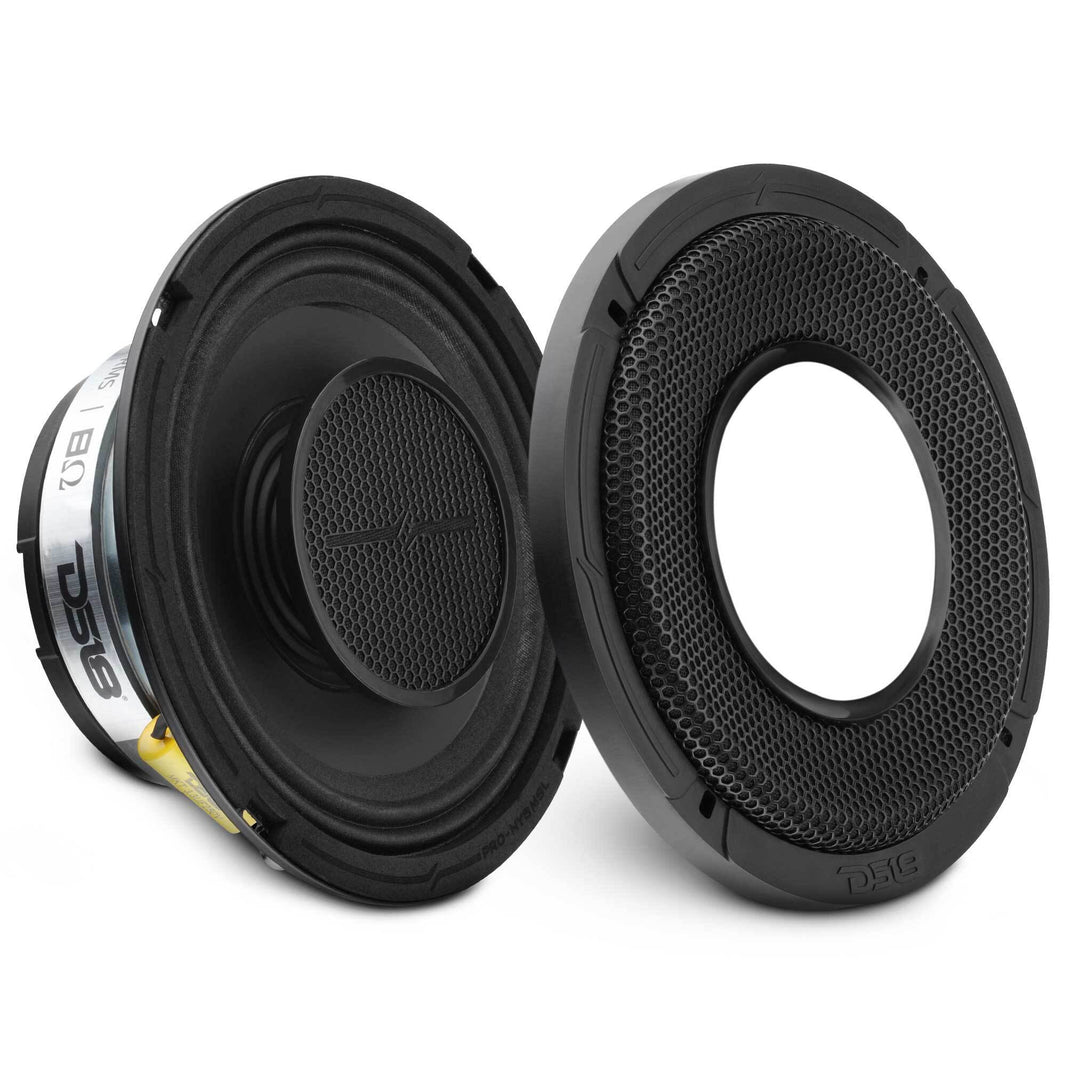

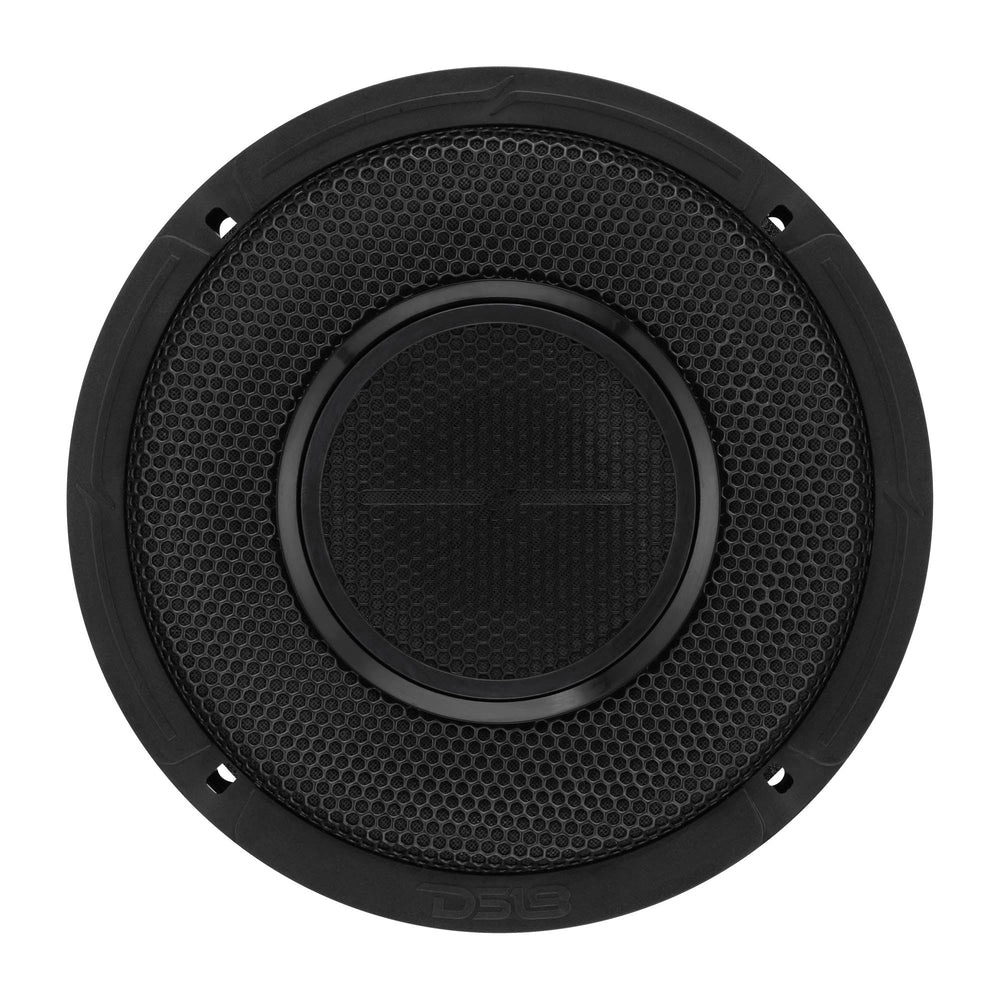

    Grill Included Yes
    WOOFER SPECIFICATIONS
    Voice Coil Diameter 1.5" / 38.6mm
    Voice Coil Former Material  KSV
    Winding Material  CCAW
    Cone Material Paper
    Surround Material Cloth
    Basket Material  Steel
    Basket Color/Finish Glossy Red
    Magnet Material Ferrite
    Magnet Weight 17.5 Oz

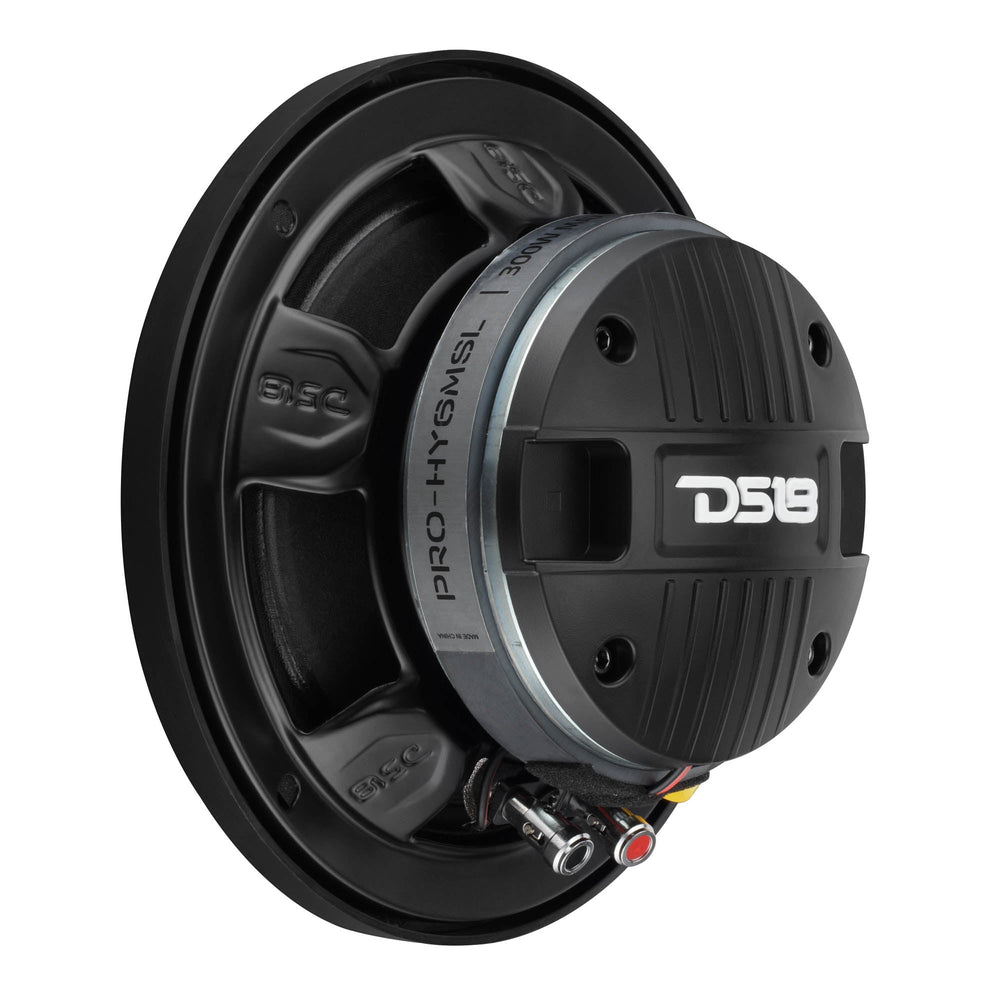

    DRIVER SPECIFICATIONS
    Voice Coil Diameter 1" / 25.4mm
    Voice Coil Former Material  Kapton
    Winding Material  CCAW
    Diaphragm Material Titanium
    Magnet Material Neodymium
    Horn Diameter 3" / 76.2mm

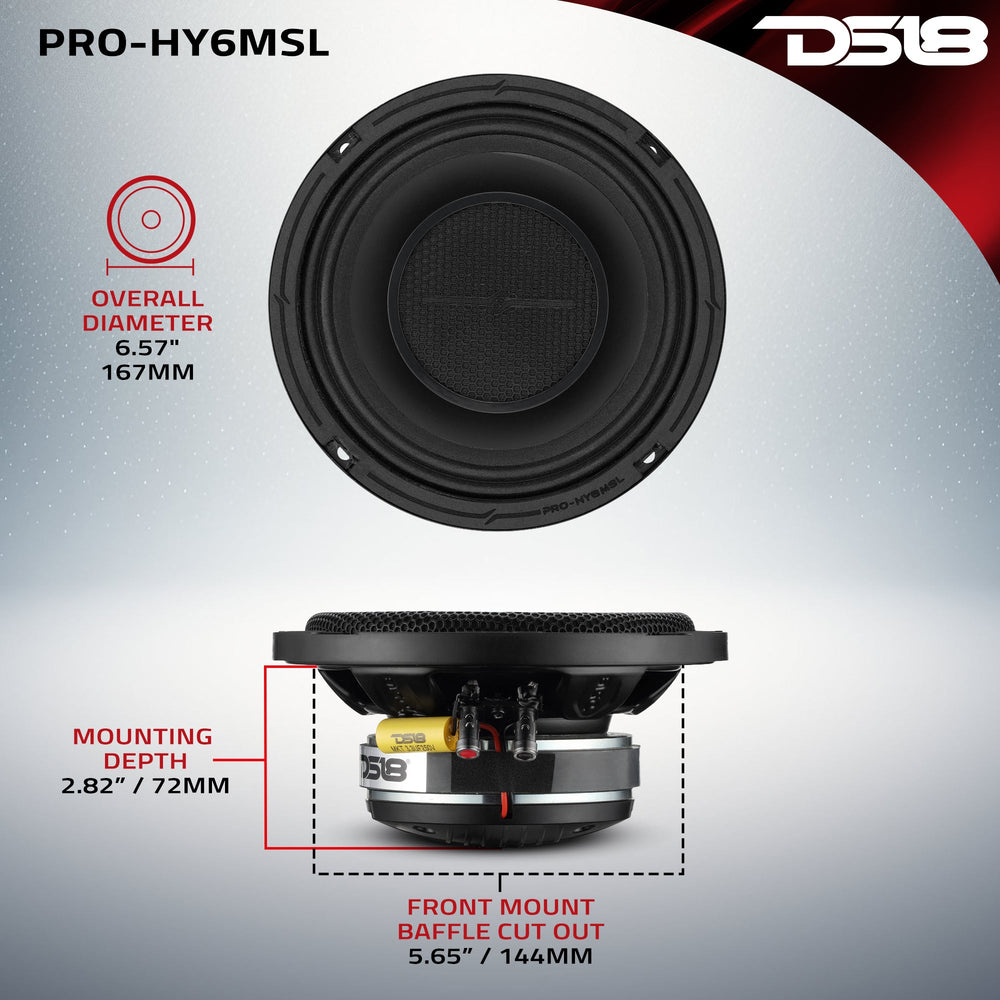

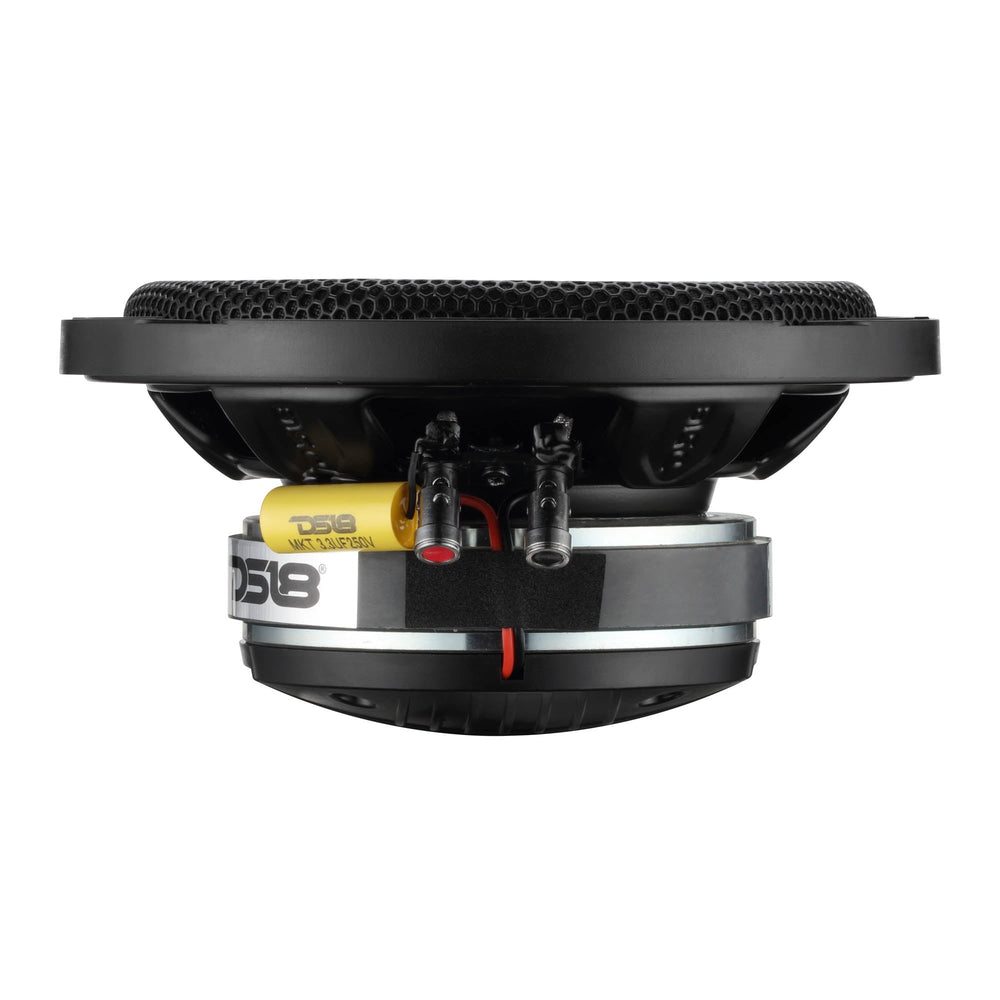

    SPEAKER MEASUREMENT
    Overall Diameter 6.92" / 176mm
    Overall Depth 3.52" / 89.5mm
    Front Mount Baffle Cutout 5.6" / 142mm

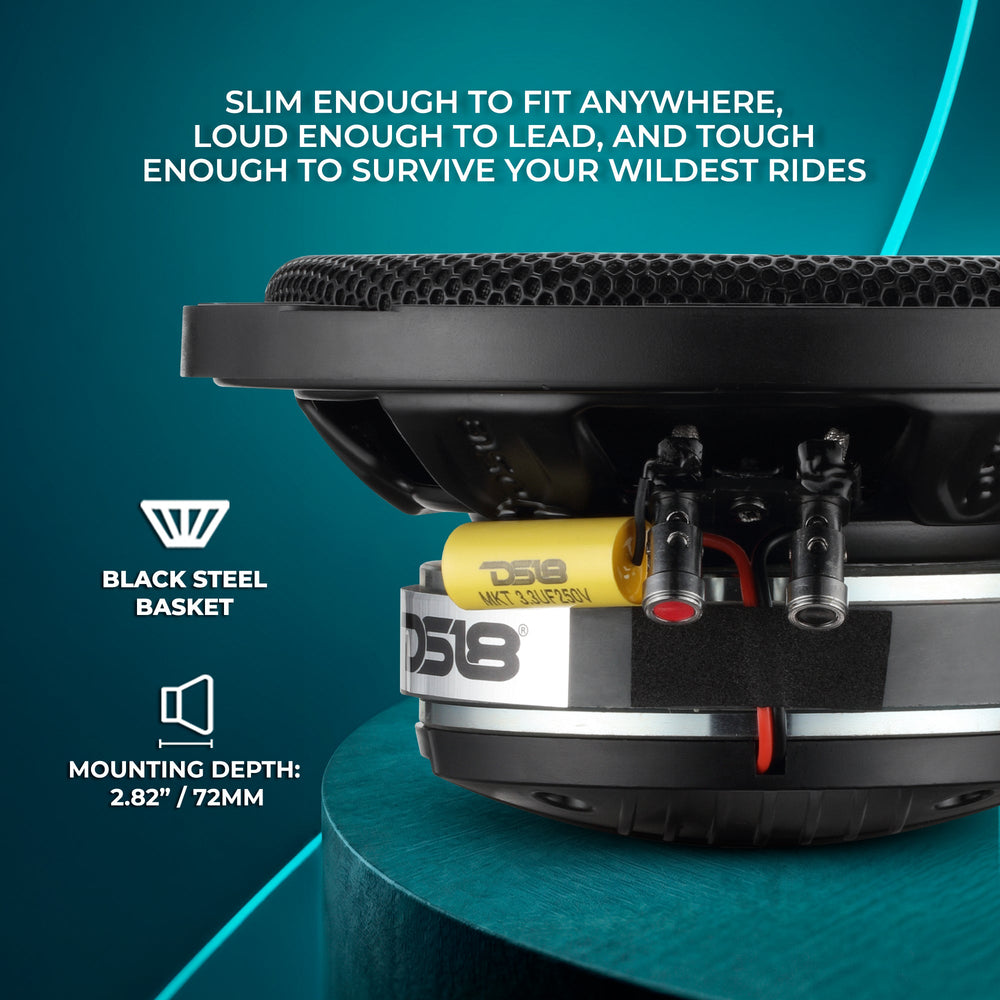

    Mounting Depth 2.77" / 70.5mm
    Motor Diameter 4.33" / 110mm
