    DS18 PRO-NS6.4 6.5" Shallow Neodymium Mid-Range Loudspeaker 300 Watts 4-Ohm

    DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers. This 6.5 inch neodymium 1.5" voice coil Mid-Range speaker takes 150w RMS and 300w peak power, so you know they will get loud easily. The 94dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.

    Highlights

    • Neodymium Slim design so now you can get all that neodymium power and volume in a slim frame.
    • High efficiency 1.5 inch voice coil that handles 150w RMS and 300w peak power for extreme loudness and frequency precision.
    • Shallow mounting depth of only 1.96 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume.

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    Technical Details
                                                     PRO-NS6.4 Product Manual

    Nominal Diameter 6.5" / 167mm
    Nominal Impedance 4 Ohms
    RMS Power Handling 150W
    MAX Power Handling 300W
    Sensitivity (1w/1m) 94 dB
    Frequency Response 100Hz - 12KHz
    Recommended Hi Pass Crossover 180Hz
    Pair or Single Single
    MOTOR 1.5”/38.6 mm
    Voice Coil Diameter KSV
    Voice Coil Former Material Copper
    Winding Material Paper
    Cone Material Paper
    Dust Cap Material Cloth
    Surround Materia Steel
    Basket Material Glossy Red
    Basket Color Neodymium
    Magnet Material 1.79 Oz
    Magnet Weight
    THIELE & SMALL PARAMETERS
    Equivalent Volume 4.8L / 0.169ft3
    Excursion (one way) 2 mm
    Free Air Resonance 137 Hz
    Mechanical Factor 4.906
    Electrical Factor 1.072
    Total Factor 0.88
    Mechanical Mass 7.356g
    Mechanical Compliance 183.287m cm/N
    BL Factor 4.2
    Voice Coil Inductance 2.695mH
    Cone Area 132.732 Cm3
    DC Resistance 3.2 ohms
    Mechanical Mass w/o air/ 6.477 g

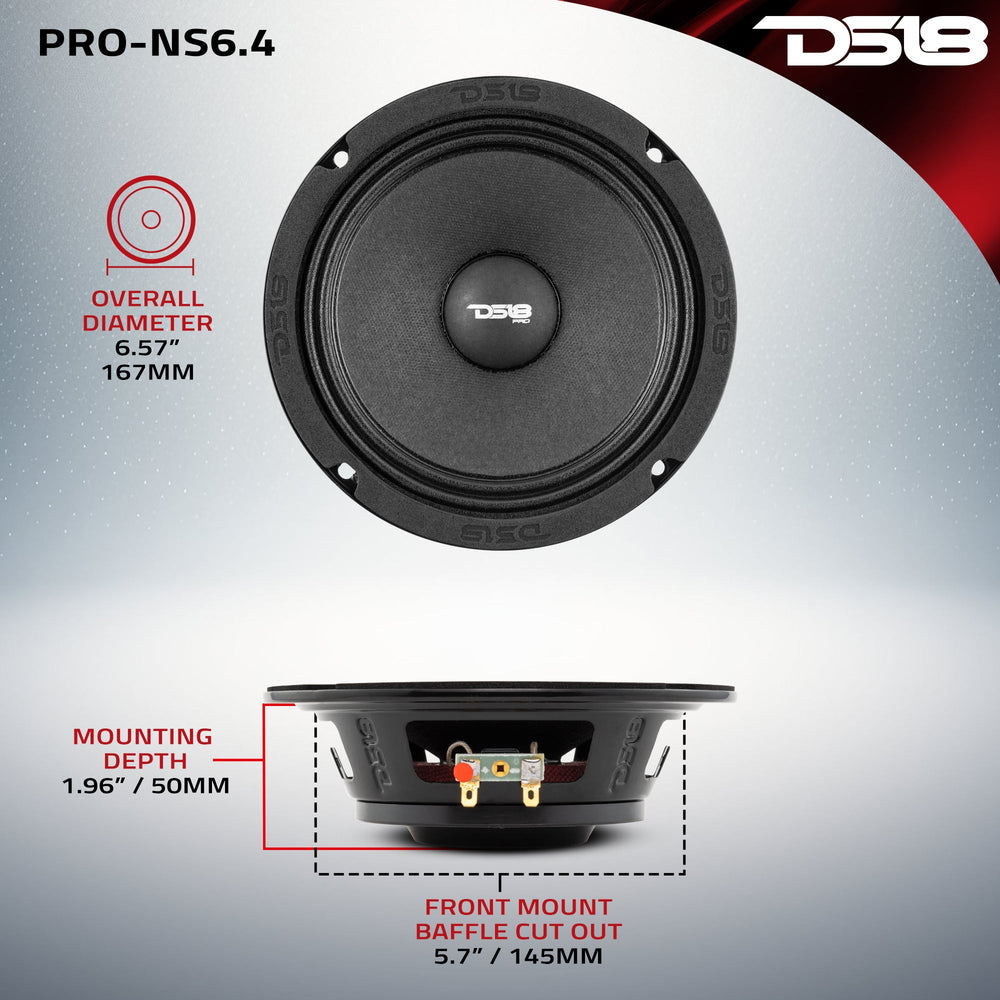

    MEASUREMENTS
    Overall Diameter 6.57” / 167mm
    Overall Depth 2.2” / 56mm
    Front Mount Baffle Cutout 5.7” / 145mm
    Mounting Depth 1.96” / 50mm
    Motor Diameter 4” / 103mm
