    DS18 PRO-NS8.4 8" Shallow Neodymium Mid-Range Loudspeaker 400 Watts 4-Ohm

    DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers. This 8" neodymium 2" voice coil Midrange speaker takes 200w RMS and 400w Peak power, so you know they will get loud easily. The 96dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.

    Highlights

    • Neodymium Slim design so now you can get all that neodymium power and volume in a slim frame.
    • High efficiency 4 ohms 2 inch voice coil that handles 200w RMS and 400w Peak power for extreme loudness and frequency precision.
    • Shallow mounting depth of only 2.48 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume.

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    Technical Details
                                                        PRO-NS8.4 Product Manual

    Nominal Diameter 8"/208mm
    Nominal Impedance 4 Ohms
    RMS Power Handling 200W
    MAX Power Handling 400W
    Sensitivity (1w/1m) 96 dB
    Frequency Response 97Hz - 12KHz
    Recommended Hi Pass Crossover 160Hz
    Pair or Single Single
    MOTOR
    Voice Coil Diameter 2"/50.8mm
    Voice Coil Former Material KSV
    Winding Material Copper
    Cone Material Paper
    Dust Cap Material Paper
    Surround Materia Cloth
    Basket Material Steel
    Basket Color Glossy Red
    Magnet Material Neodymium
    Magnet Weight 3.32oz
    THIELE & SMALL PARAMETERS
    Equivalent Volume 4.8L / 0.17ft3
    Excursion (one way) 2 mm
    Free Air Resonance 117Hz
    Mechanical Factor 4.643
    Electrical Factor 1.147
    Total Factor 0.92
    Mechanical Mass 12.294g
    Mechanical Compliance 157m cm/N
    BL Factor 4.8
    Voice Coil Inductance 2.532mH
    Cone Area 213.825 cm3
    DC Resistance 3.2 ohm
    Mechanical Mass w/o air/ 12.294g

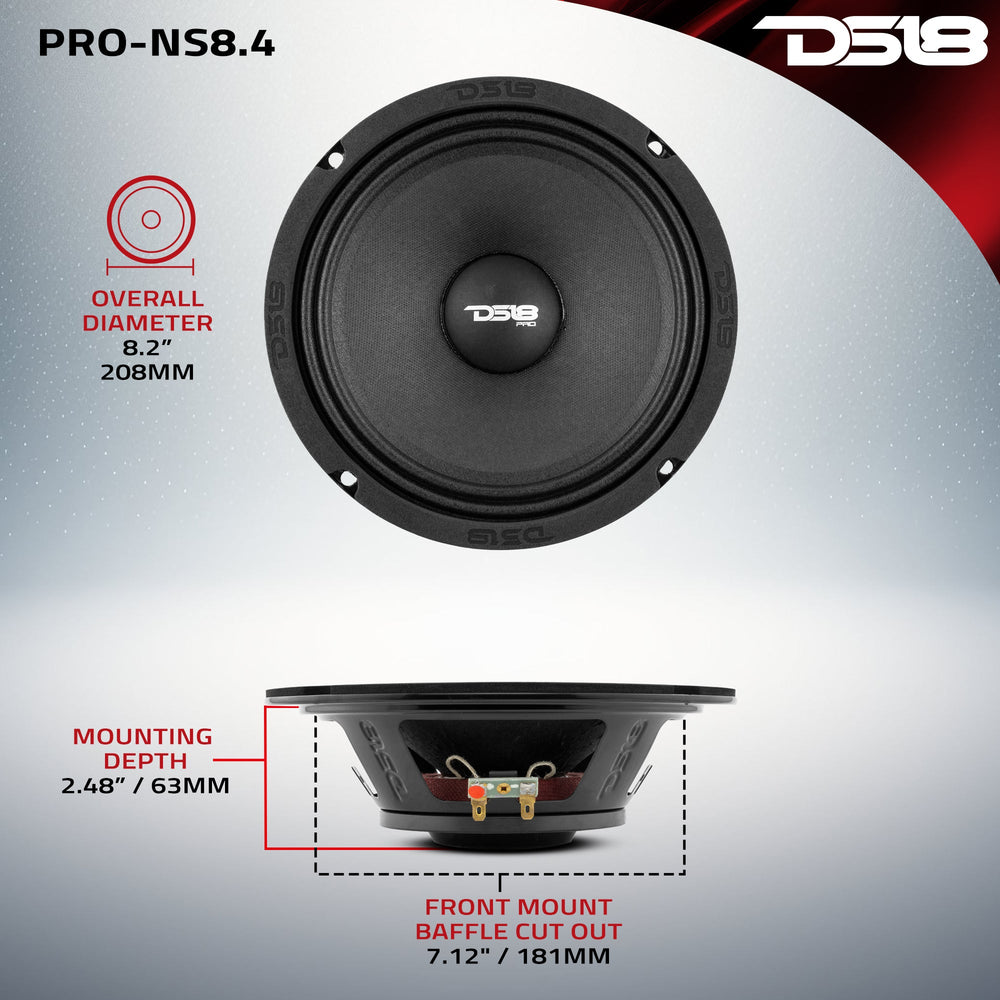

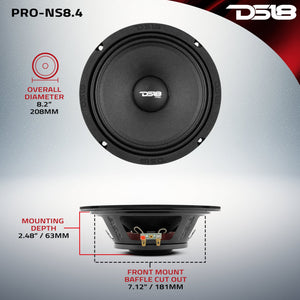

    MEASUREMENTS
    Overall Diameter 8.2"/208mm
    Overall Depth 2.67"/68mm
    Front Mount Baffle Cutout 7.12"/181mm
    Mounting Depth 2.48"/63mm
    Motor Diameter 4.33"/.110mm
