PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 8-Ohm

PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 8-Ohm

Regular price $95.95
Vendor:DS18
Type:Car Audio : Loudspeakers
SKU:PRO-NS8
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

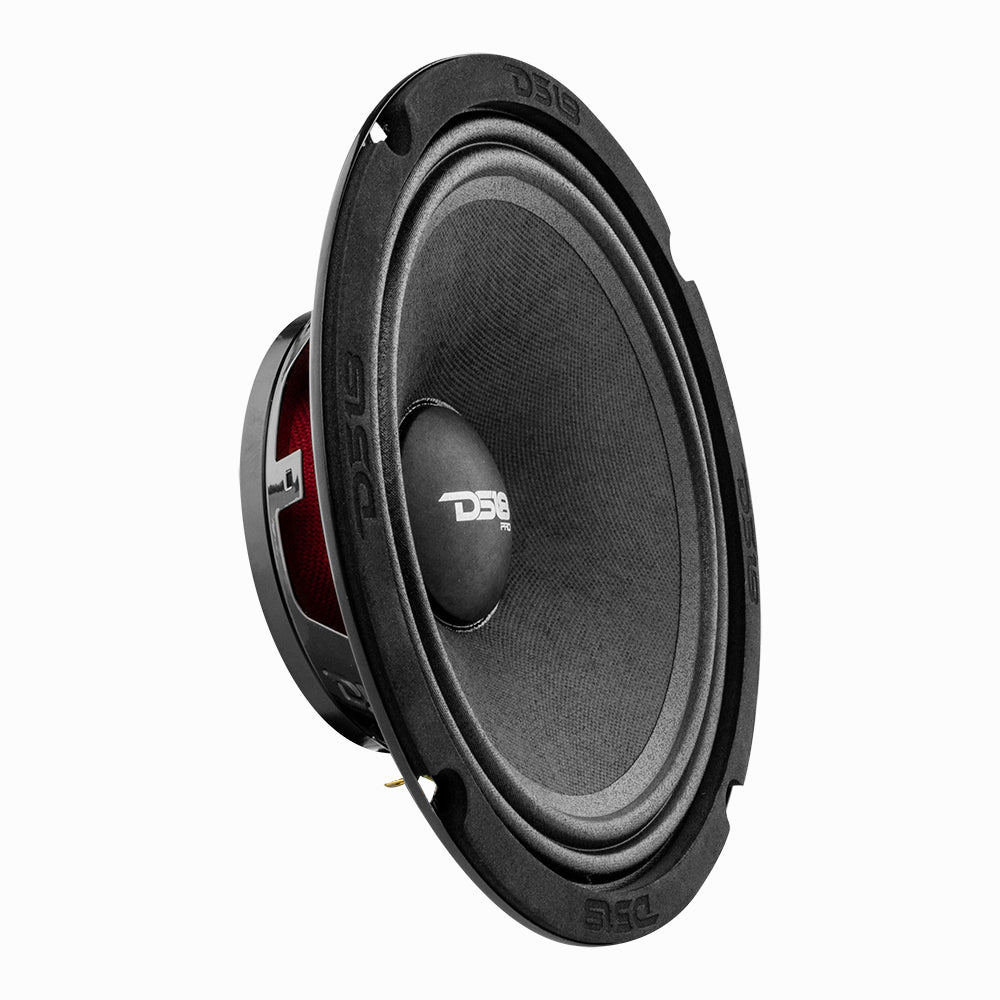

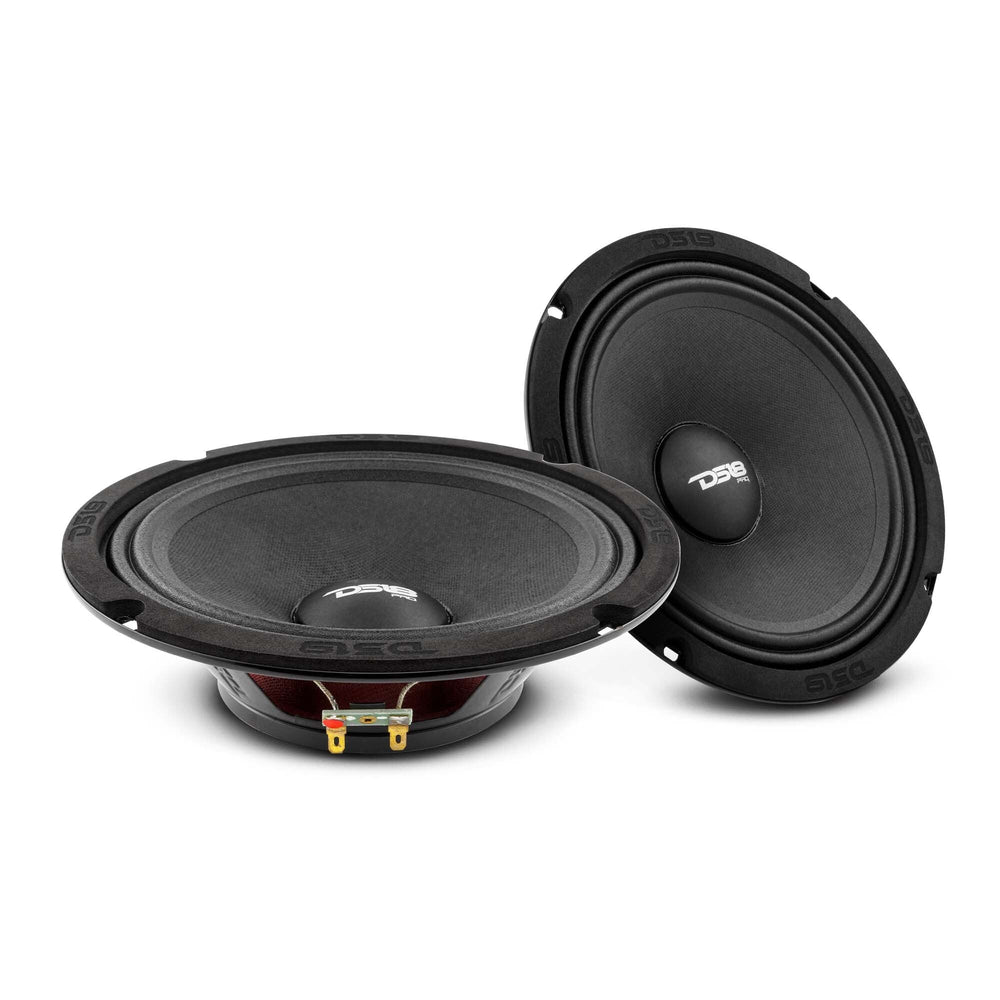

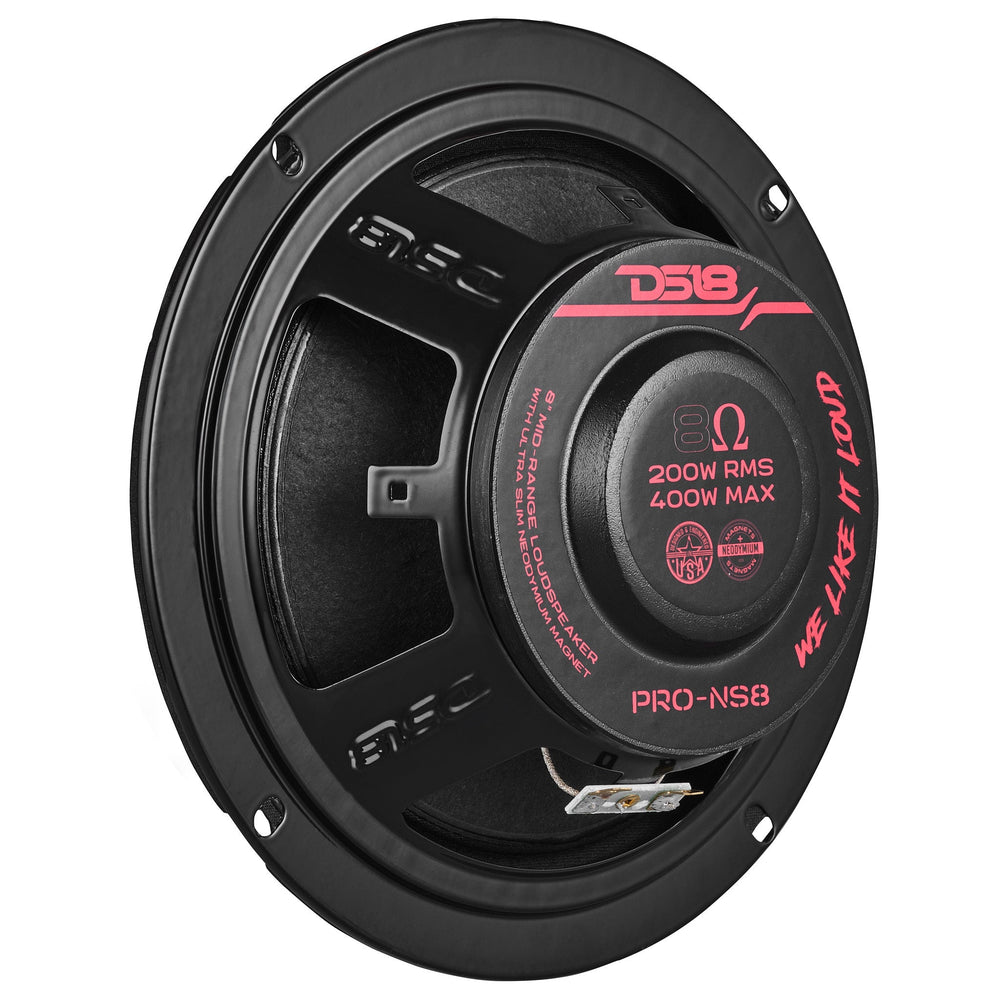

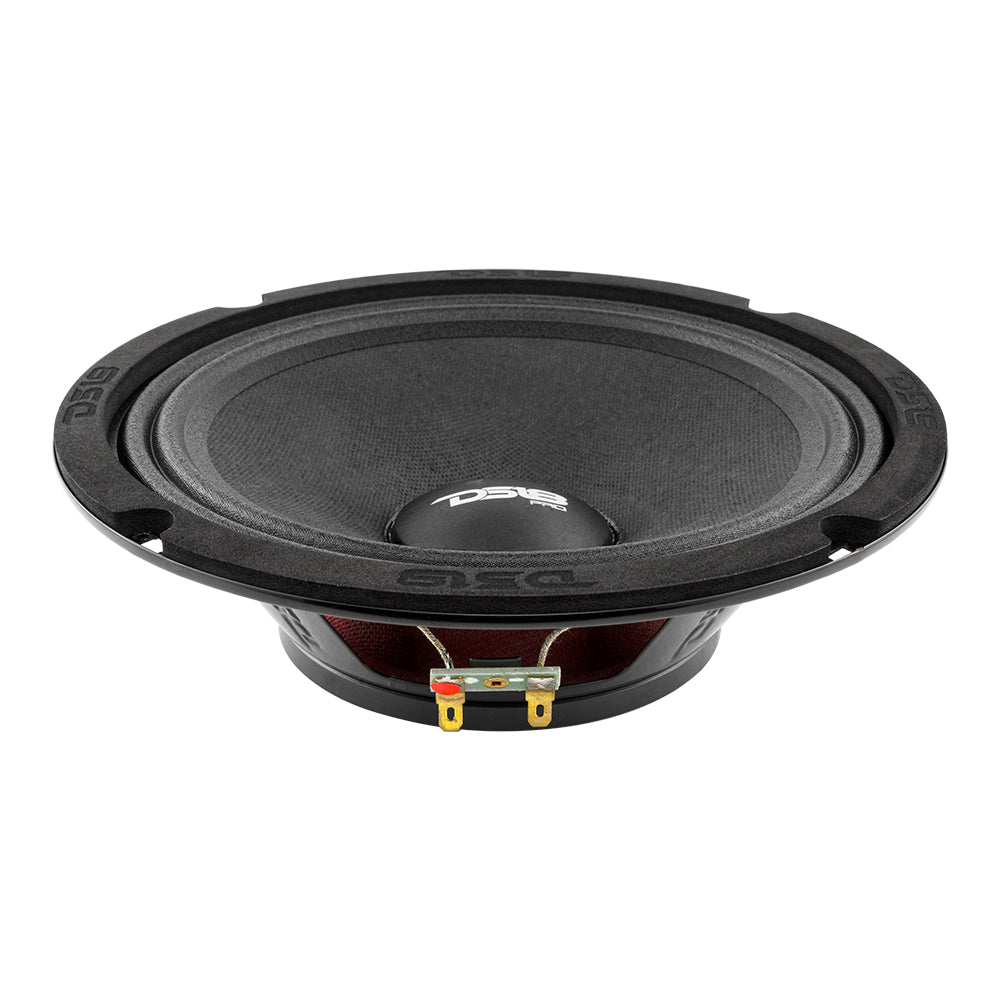

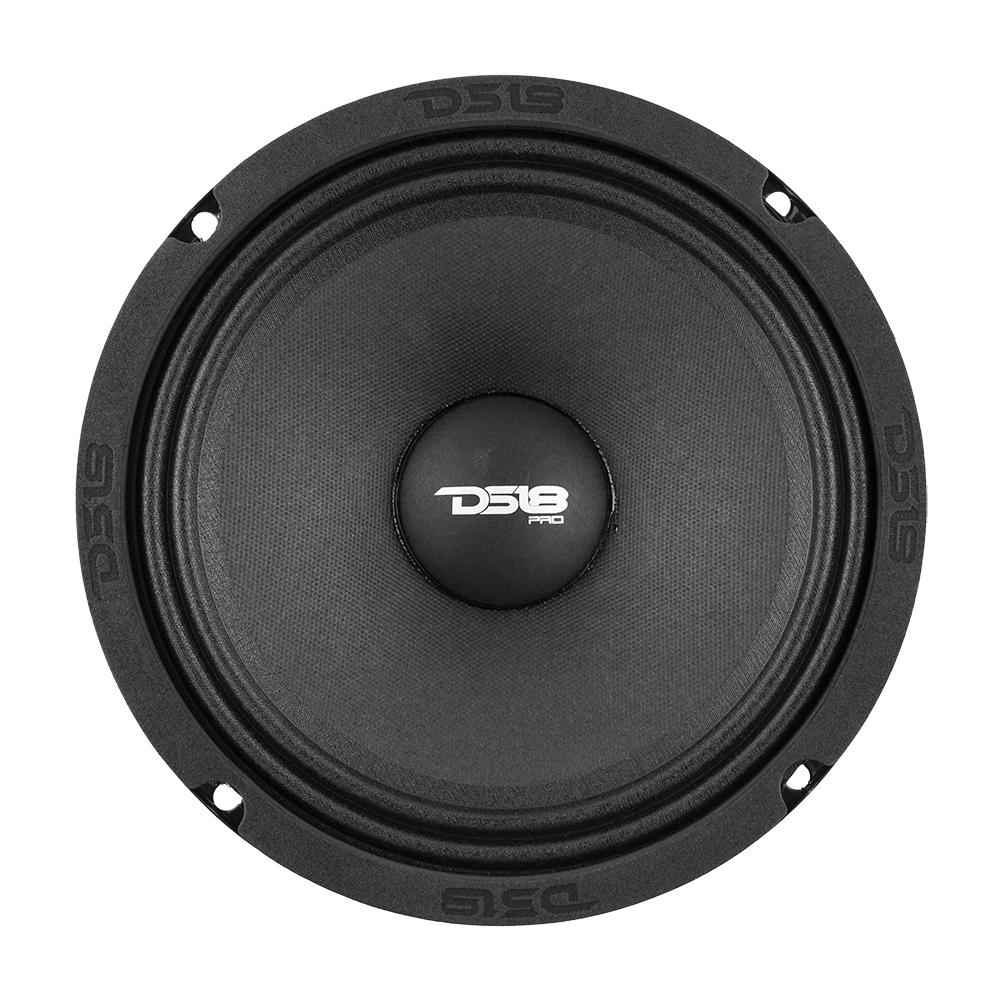

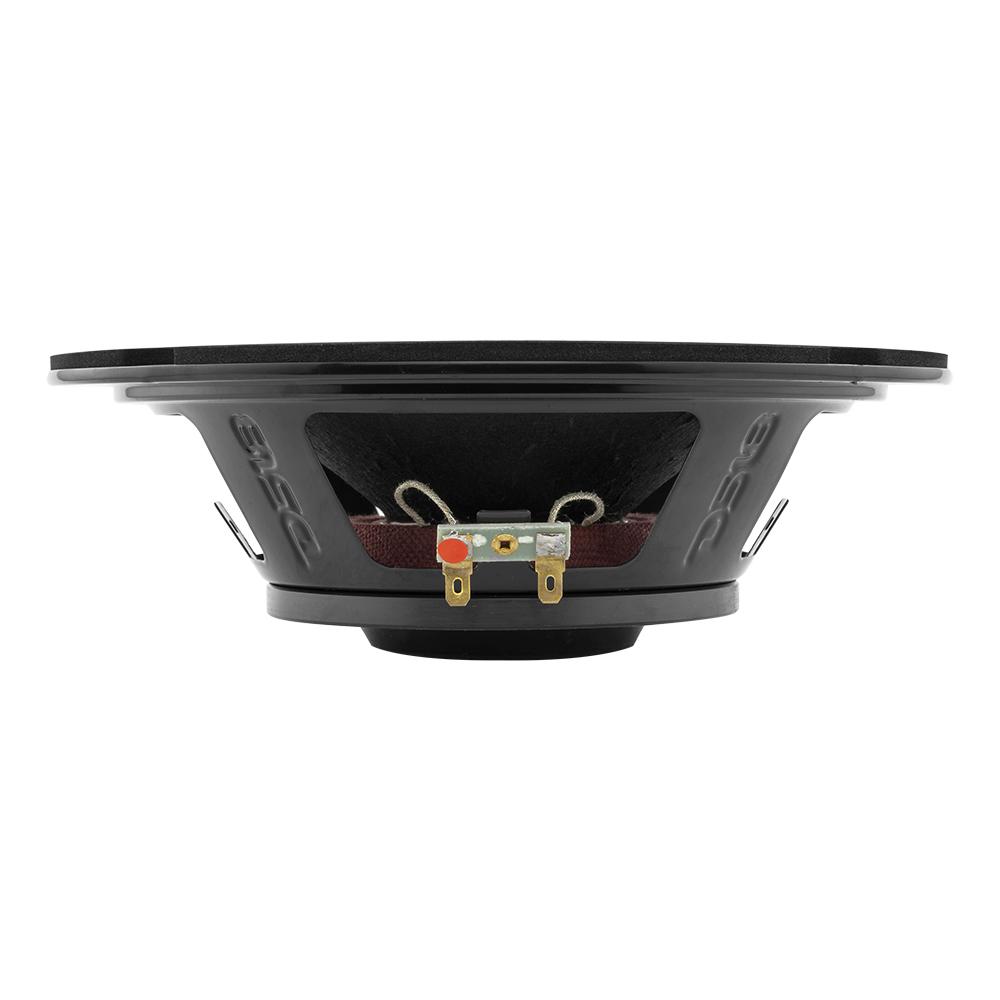

    DS18 PRO-NS8 8" Shallow Neodymium Mid-Range Loudspeaker 400 Watts 8-Ohm

    DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers.

    This 8" inch neodymium 2" voice coil Midrange speaker takes 200w RMS and 400w Peak power, so you know they will get loud easily. The 96dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.

    Highlights
    • Neodymium Slim design so now you can get all that neodymium power and volume in a slim frame.
    • High efficiency 8 ohm 2 inch voice coil that handles 200w RMS and 400w peak power for extreme loudness and frequency precision.
    • Shallow mounting depth of only 2.48 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume.

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    shallow neodymium mid-range loudspeaker

    Technical Details
                                                          PRO-NS8 Product Manual

    Nominal Diameter 8"/208mm
    Nominal Impedance 8 Ohms
    RMS Power Handling 200W
    MAX Power Handling 400W
    Sensitivity (1w/1m) 96 dB
    Frequency Response 97Hz - 12KHz
    Recommended Hi Pass Crossover 160Hz
    Pair or Single Single
    Voice Coil Diameter 2"/50.8mm
    Voice Coil Former Material KSV
    Winding Material Copper
    Cone Material Paper
    Dust Cap Material paper
    Surround Materia Cloth
    Basket Material Steel
    Basket Color Glossy Red
    Magnet Material Neodymium
    Magnet Weight 3.32oz
    THIELE & SMALL PARAMETERS
    Equivalent Volume 5.48l / 0.193ft3
    Excursion (one way) 2 mm
    Free Air Resonance 120Hz
    Mechanical Factor 3.781
    Electrical Factor 0.952
    Total Factor 0.761
    Mechanical Mass 13.242g
    Mechanical Compliance 162m cm/N
    BL Factor 6.029
    Voice Coil Inductance 7.011mH
    Cone Area 213.825 Cm3
    DC Resistance 6.5 ohms
    Mechanical Mass w/o air/ 13.07g

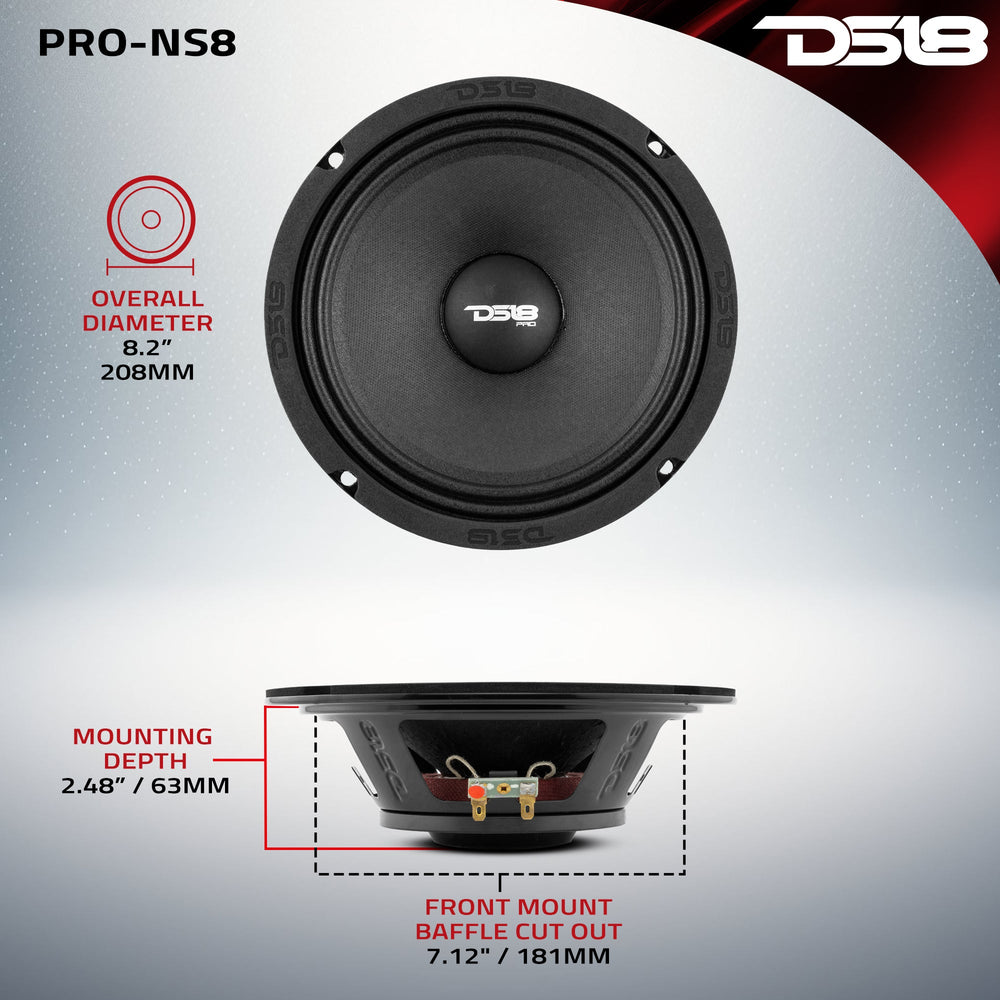

    MEASUREMENTS
    Overall Diameter 8.2"
    Overall Depth 2.67"
    Front Mount Baffle Cutout 7.12"
    Mounting Depth 2.48"
    Motor Diameter 4.33"
