PRO-ZXI 10" Mid-Bass Loudspeaker With Neodymium/Ferrite Magnets 500 Watts Rms 8-Ohm
Sale price
$179.95
In stock
Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Description
Reviews
Description
- Description
- Additional info
- Reviews
- 10" solid cone black on black Mid Bass Speaker.
- Pro-Audio Mid Bass
- Max Power Handling: 1000 watts
- RMS Power Handling: 500 watts
- Frequency Response: 50Hz - 5.5KHz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: USA Glass Fiber
- Impedance: 8-Ohm
- Sensitivity: 98dB
- Magnet Weight: 68 Oz
- Magnet Material: Ferrite
- Mounting Depth: 4.1"
- Recommended High Pass: 78Hz
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
DS18 PRO-ZXI10MBASS 10" Mid-Bass Loudspeaker 1000 Watts 8-Ohm
The ZXI series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the car audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.
The PRO-ZX10MBASS has a beautiful black basket face with strong black on black solid cone.
This 8-Ohms Mid Bass 10" handles an enormous 500 watts RMS and 1000 watts MAX power ensuring screaming loud Mid BassΒ frequencies acute and clear.
Highlights
Great for:
![]()
![]()
Technical DetailsΒ
Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β PRO- ZXI10MBASS Product Manual
| SPECIFICATIONS |
| Nominal DiameterΒ | 10" / 254mm |
| Nominal ImpedanceΒ | 8 ohms |
| RMS Power HandlingΒ | 500W |
| MAX Power HandlingΒ | 1000W |
| Sensitivity (1w/1m)Β | 98 dB |
| Frequency Response | 50Hz - 5.5KHz |
| Recommended HI Pass Crossover | 78 Hz |
| Pair or single | Single |
| MOTOR | Β |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former MaterialΒ | USA Glass fiber |
| Winding MaterialΒ | JAPAN SV |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket MaterialΒ | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 68 Oz |
| Displacement Volume | 1.24L / 0.043ft3 |
| MEASUREMENT | Β |

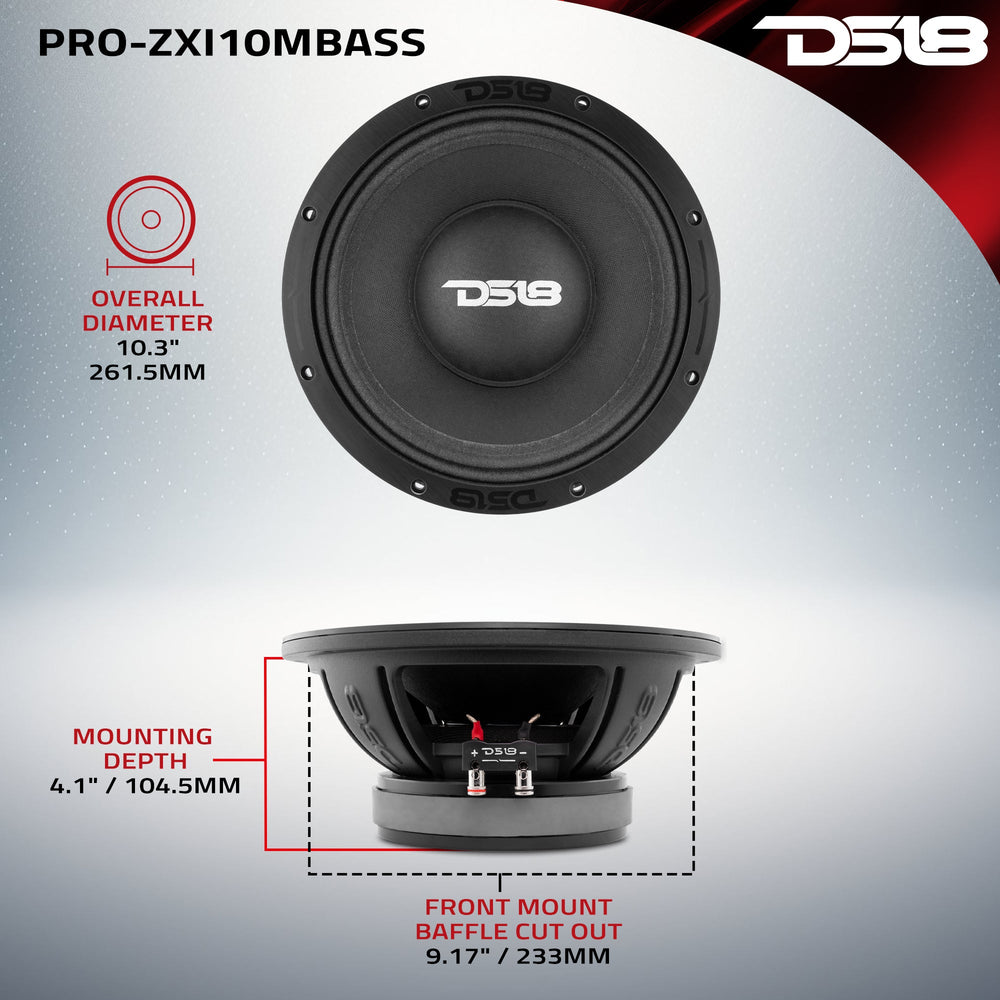

| Overall Diameter | 10.3" / 261.5mm |
| Overall Depth | 4.54" / 115.5mm |
| Front Mount Baffle Cutout | 9.17" / 233mm |
| Mounting Depth | 4.1" / 104.5mm |
| Motor Diameter | 6.3" / 160mm |
