    DS18 PSW12.2D 12" Water Resistant Shallow Subwoofer 1200 Watts 2 Ohm DVC

    There’s always space for bass with the PSW12.2D!

    The PSW12.2D mounts in depths as small as 3.9” and can be utilized in both ported and sealed boxes for great bass in a tight area. The high-quality push terminals on the PSW series subwoofers also make connection to your speaker wire and amp extremely easy.

    This sub handles 600 W RMS and 1200 W MAX Power with a 85 dB sensitivity: high sensitivity for a shallow mount sub allowing this light subwoofer to reproduce heavy clear bass!

    The PPI Molding on the cone used by the PSW12.2D is also water resistant, making this speaker perfect for your bike, off-road or marine vehicle. The steel basket gives this speaker even stronger resistance against shock and vibration.

    This sub comes in 2 Ohms Dual Voice Coil configuration so if wired appropriately it’s insane power will bring all your music to life!

    Highlights

    • DS18's PSW shallow subwoofer series are known for producing great bass without sacrificing much space.
    • Rubber surround design fortifies this subwoofer and helps it push out cleaner and clearer bass
    • Shallow mount size allows this sub to fit in compact places and requires less box space than other subs.
    • High 9.5mm Xmax which produces full and deep bass with the correct box spec.

    Great For

    • Car Audio
    • Bike Audio
    • Marine Audio
    • Off-Road Audio
    • Powersports Audio

    Technical Details
    SPECIFICATIONS
    Nominal Diameter  12” / 304.8 mm
    Nominal Impedance  2+2 Ohms
    RMS Power Handling  600 W
    MAX Power Handling  1200 W
    Sensitivity (1w/1m)  85 dB
    Frequency Response 20 - 600 Hz
    Recommended Lo Pass Crossover 80 Hz
    MOTOR
    Voice Coil Diameter 3" / 76.2 mm
    Voice Coil Former Material  Aluminum
    Winding Material  Copper
    Cone Material Water Resistant PPI
    Surround Material Rubber
    Basket Material  Steel
    Basket Color/Finish Matt Black
    Magnet Material Ferrite
    Magnet Weight 68 Oz
    Displacement Volume 0.95L / 0.033ft3
    RECOMMENDED ENCLOSURES
    Sealed Internal Volume 28L / 1ft3
    Sealed Box Output Response 40 Hz

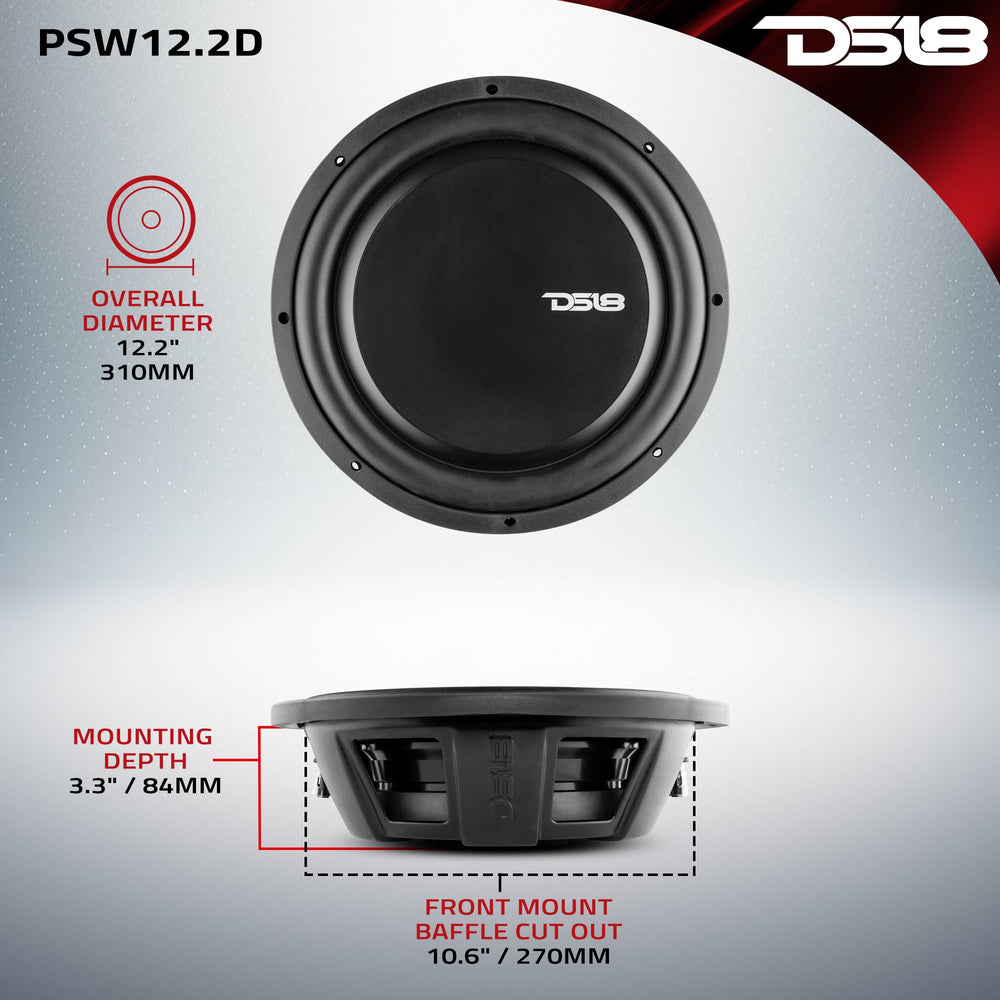

    MEASUREMENT
    Overall Diameter 12.2" / 310 mm
    Overall Depth 3.9" / 100 mm
    Front Mount Baffle Cutout 10.6" / 270 mm
    Mounting Depth 3.3" / 84 mm
    Motor Diameter 8" / 203 mm
