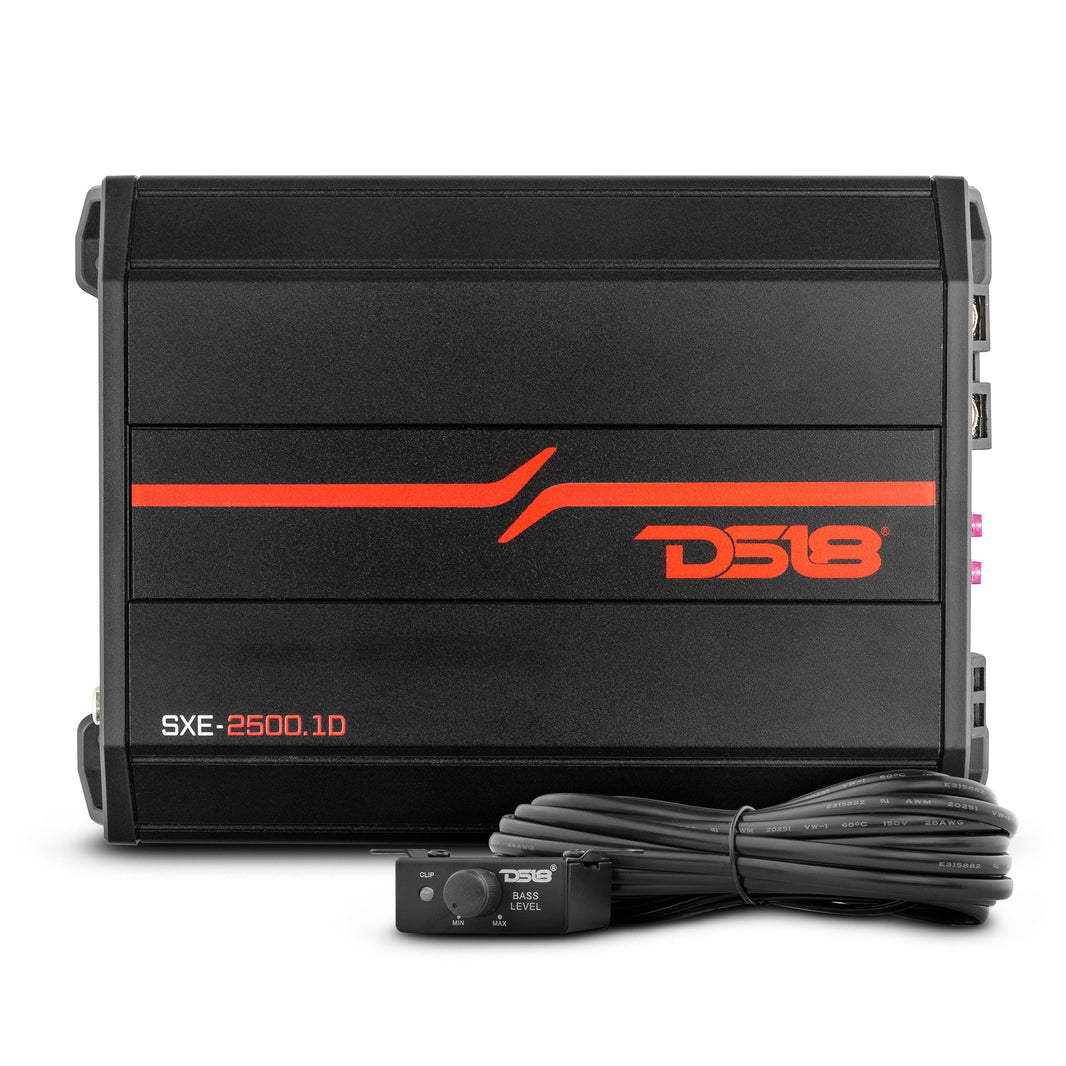

SXE Class D 1-Channel Amplifier 1 x 800 Watts RMS @ 1-Ohm 2500 Watts

SXE Class D 1-Channel Amplifier 1 x 800 Watts RMS @ 1-Ohm 2500 Watts

Sale price $239.95
Vendor:DS18
Type:Car Audio : Amplifier
SKU:SXE-2500.1D/BK
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

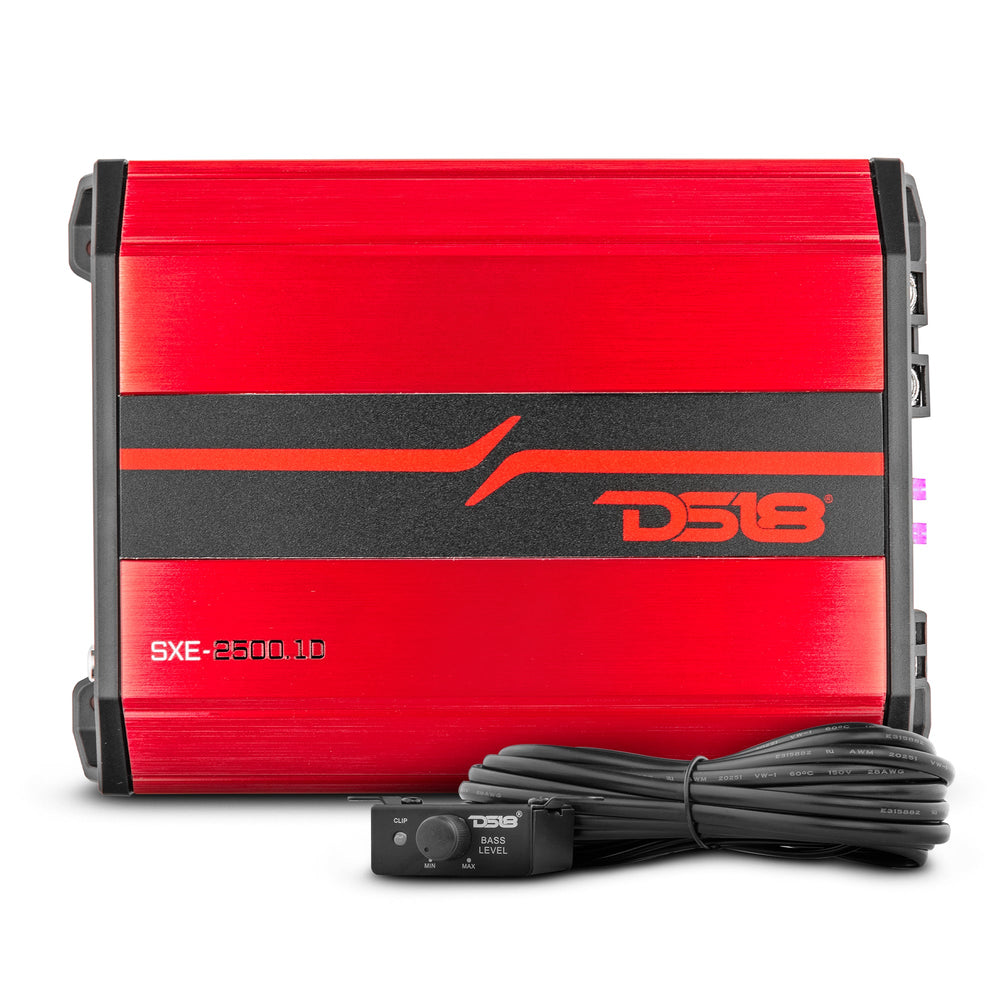

    DS18 SXE-2500.1D Class D 1-Channel Monoblock Car Amplifier
    800 x 1 RMS @1 OHM 2500 Watts

    DS18’s SXE Amplifier Series was designed for users looking to increase the quality of music reproduced by their vehicle.

    The SXE series of amplifier gives users the ability to tailor the audio reproduced by their vehicle to their personal listening preferences through the use of it’s fully variable crossover, adjustable gain input sensitivity, bass knob, and multi-channel amplifier design.

    As a Class D amplifier, the SXE series uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.

    The SXE-2500.1D has a power output of 800W at 1-ohm, 600W at 2-ohms, 300W at 4-ohms: perfect power settings to supercharge any custom build.

    Highlights

    • Compact size for easy installation anywhere
    • Remote Level Control IncludedΒ

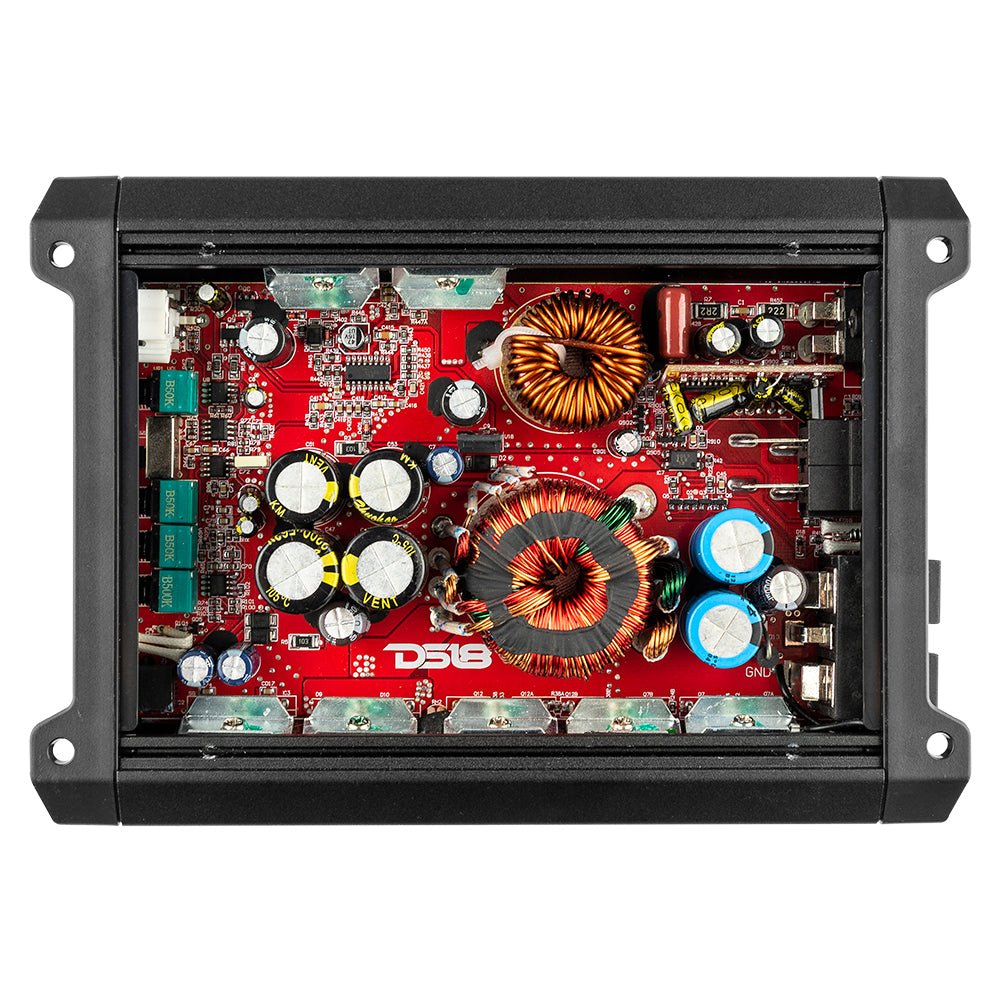

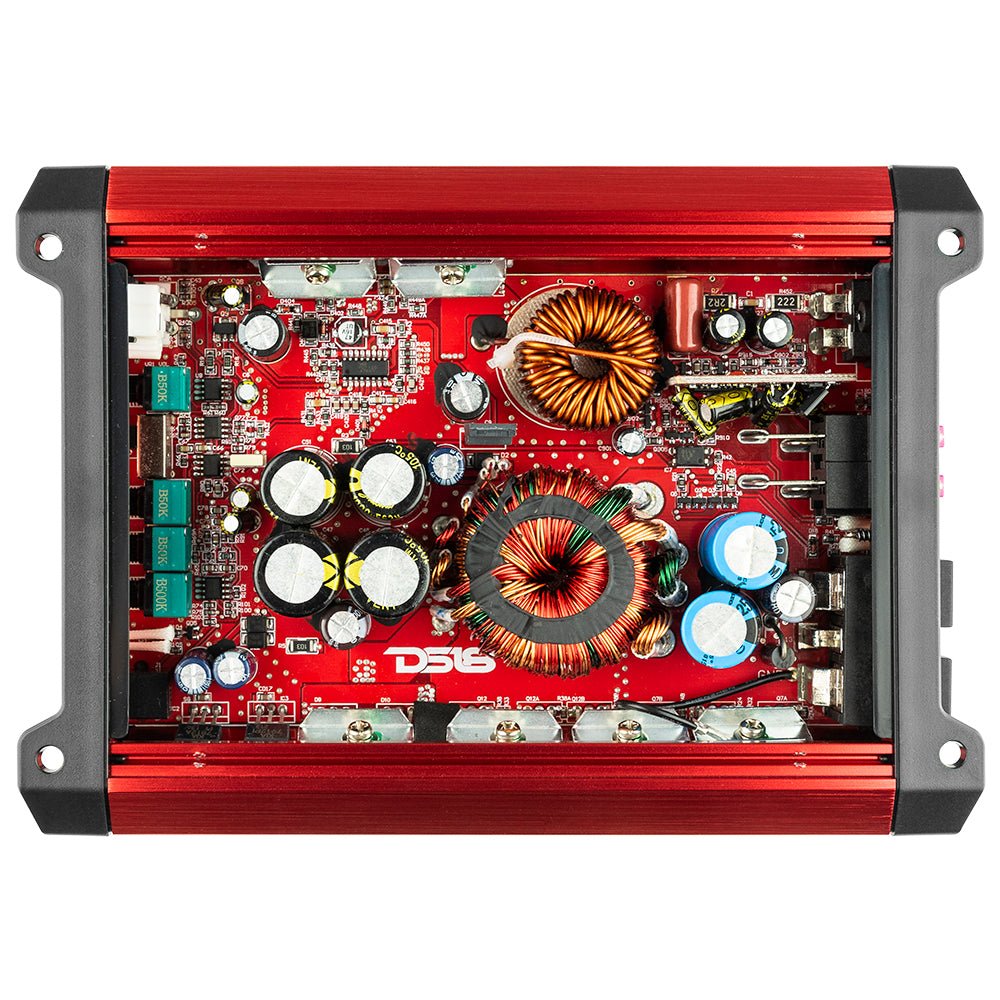

    • Stable Two or Four Layer Traced PCB Design
    • Audio Precision Quality Control Verification
    • Full Adjustable HP/LP @ 12dB/oct Crossover
    • Various Forms of Electronic Protection

    Β Great For

    • Car Audio
    • Pro Audio

    Technical DetailsΒ
    Β  Β  Β  Β  Β  Β  Β Download SXE-2500.1 Product Manual
    SPECIFICATIONS
    POWER Β
    Total Watts (Peak) 2500W
    RMS Power @ 4 ohms 300W
    RMS Power @ 2 ohms 600W
    RMS Power @ 1 ohm 800W
    RMS Power @ 4 ohms Bridge N/A
    AUDIO Β
    Frequency Response 10Hz-250Hz
    Signal to Noise Ratio 90dB
    Efficiency @ 4 ohms 0.8
    Damping Factor 140
    Input Impedance 20kΩ
    Channel Separation N/A
    Total Harmonic Distortion (THD) 0,05%
    Low Level Input Range 200mV-5V
    High Level Input No
    Selectable X-Over Fixed LPF
    X-Over Filter Range 50-250Hz
    Bass Boost Range 0-18dB
    Bass Boost Frequency 45Hz
    Infrasonic Filter 10-55Hz
    Phase Selector 0-180Β°
    FEATURES Β
    Amplifier Class Digital (D)
    Amplifier Type Monoblock Subwoofer
    Number of Channels 1
    Minimum Impedance 1 Ohm
    Led Indicator Power/Protect/Clip

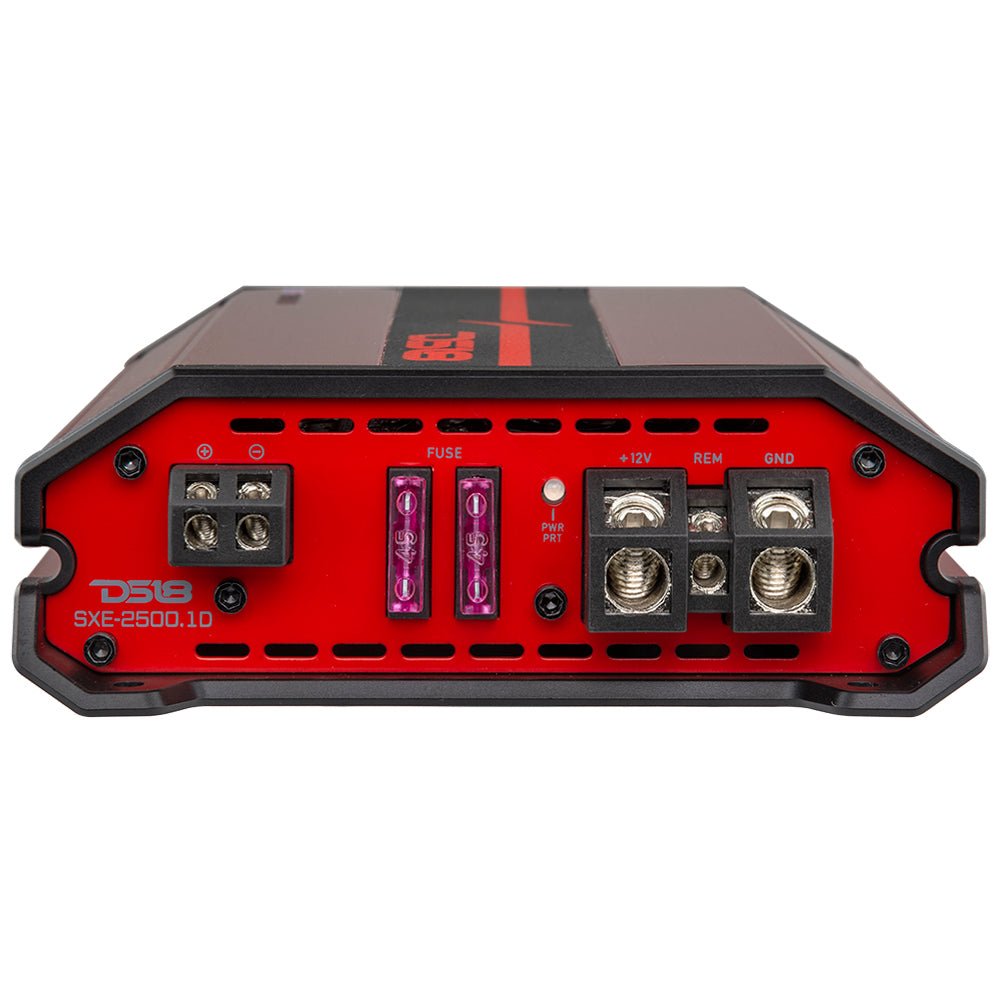

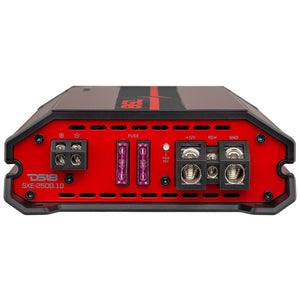

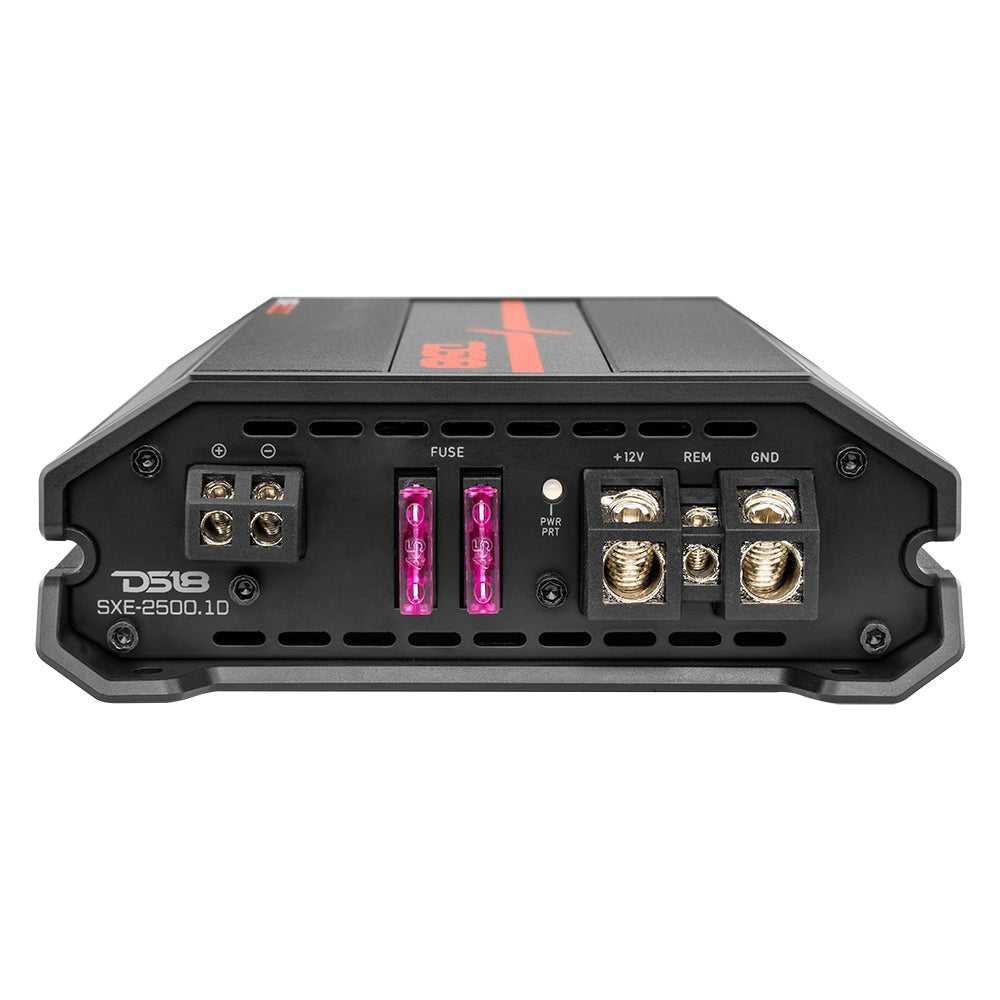

    Power Input Terminal Size 4Ga
    Fuse Size 2 x 40A (80A)
    Remote Level Control Yes
    Cooling Fan No
    VoltmeterΒ  No
    Thermal Protection Yes 80Β°C
    Over-Load Protection Yes
    DC Output Protection Yes
    Short Circuit Output Protection Yes
    Voltage Input Protection Yes (16.5v)
    Clipping ProtectionΒ  Yes
    Body Color / Finish Red / Black Brushed Aluminum
    MEASUREMENT Β
    Overall Length 8" / 205mm
    Overall Wide 5.5" / 140mm
    Overall Height 1.8" / 48mm
    Heatsink LengthΒ  6.6" / 168mm
    Gross Single Unit Weight 1.5KG
