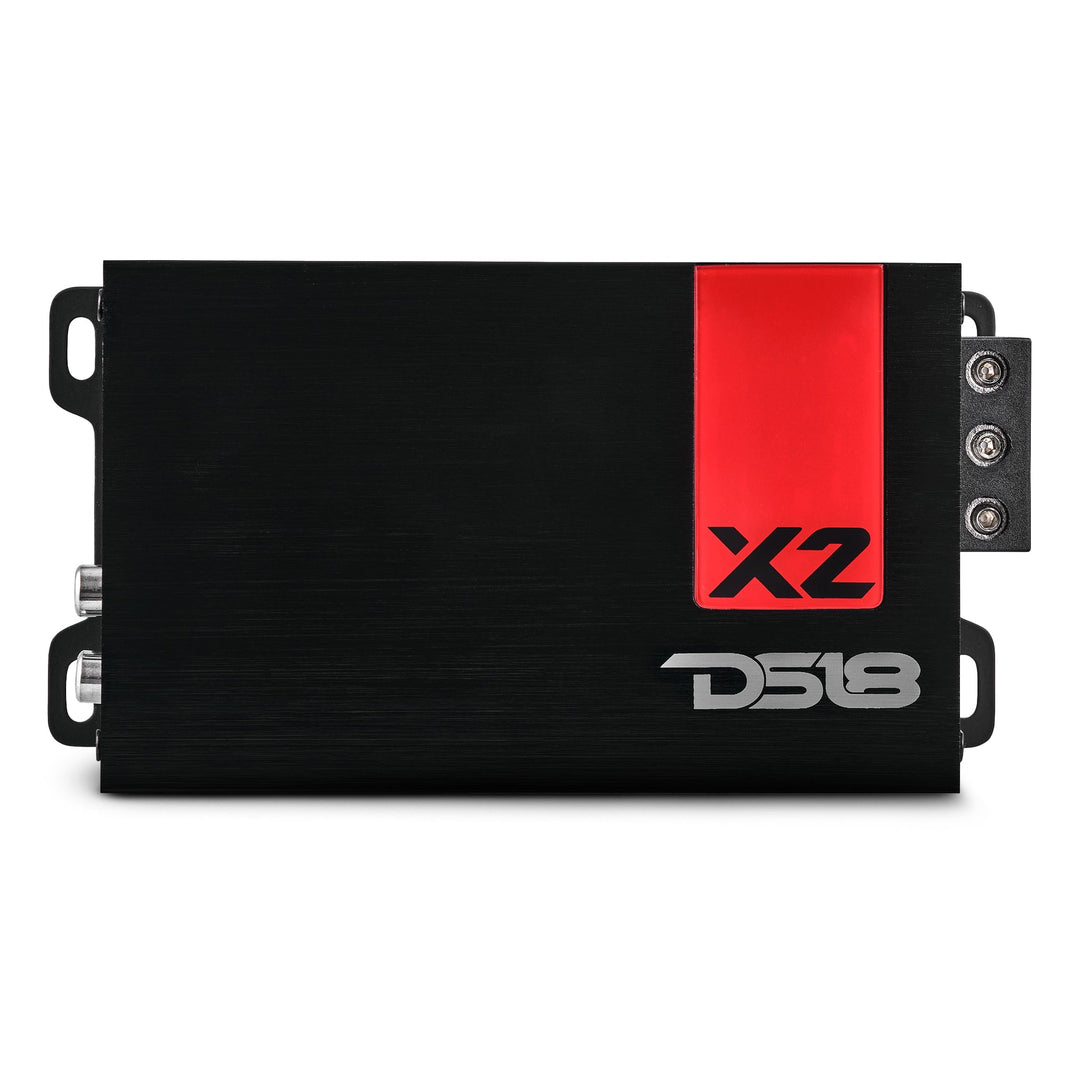

X 2-Channel Ultra Compact Class D Amplifier 2 x 140 Watts Rms @ 4-ohm
Regular price
$215.95
In stock
Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Description
Reviews
Description
- Description
- Additional info
- Reviews
- Huge power for such a small size giving it high versatility in applications in which it can be used.
- Fits in most tight spaces and a high power per size ratio.
- 2 and 4 ohms stable pumping out 140 watts RMS at 4 ohms per channel or 230 watts RMS at 2 ohms per channel.
- Easily adjustable filters making tuning for mids or tweeters easy.
- Motorcycle Audio
- Pro Audio
- Car Audio
- Marine Audio
- Powersports Audio
- Jeep Audio
DS18 X2 Ultra Compact Full Range Class D 2-Channel Car Amplifier 1140 Watts
Amazing power and an amazing small footprint is what the DS18 X2 amp is all about. This tiny amp packs a powerful punch all while fitting in the palm of your hand! It is a perfect selection for audiophiles cramming audio in tight spaces. For example, you can fit multiple X series amps in most motorcycle fairings powering an entire system all while safely tucked away.
Small enough to fit in your hand but powerful enough to power four high powered speakers, this little powerhouse pumps out 140 watts RMS x 2CH at 4 ohms and 230 watts RMS x 2CH at 2 ohms which is enough to get super loud sound with great clarity.
Highlights
Great For
Technical Details
| CLASS | CLASS-D |
| AMPLIFIER TYPE | MICRO STEREO FULL RANGE AMP |
| CHANNELS | 2 |
| TOTALWATTS (PEAK) | 1140W |
| RMS POWER @ 4 OHMS | 140W x 2CH |
| RMS POWER @ 2 OHMS | 230W x 2CH |
| RMS POWER @ 1 OHMS | - |
| RMS POWER @ 4 OHMS BRIDGE | 380W x 1CH |
| FREQUECY RESPONSE | 20Hz - 20KHz |
| SIGNAL/NOISE RATIO | >90 dB |
| EFFICIENCY @ 4 OHMS | >80% |
| DAMPING FACTOR | >201 |
| THD % | <0.2% |
| LOW LEVEL INPUT RANGE | 0.2-5V |
| SELECTABLE X-OVER | LPF/FLAT/HPF |
| X-OVER FILTER RANGE | 40Hz - 400Hz |
| BASS BOOST RANGE | - |
| BASS BOOST FREQUENCY | - |
| INFRASONIC FILTER | - |
| PHASE SELECTOR | - |
| MINIMUM IMPENDANCE | 2 OHMS |
| LED INDICATOR | POWER/PROTECTION |
| POWER INPUT SIZE | 12GA |
| FUSE RATING | 40A |
| REMOTE LEVEL CONTROL | - |
| THERMAL PROTECTION | YES |
| OVER-LOAD PROTECTION | YES |
| DC OUTPUT PROTECTION | YES |
| SHORT CIRCUIT OUTPUT PROTECTIONVOLTAGE INPUT PROTECTION | YES |
| VOLTAGE INPUT PROTECTION | YES |
| DIMENSIONS LxWxH (INCHES) | 5.54 x 3.24 x 1.37" |
| HEATSINK LENGTH | 4.75" |
| COMPACT SIZE TO EASY INSTALLATION FOR ANY APLICATIONS | YES |
| STABLE/RELIABLE FOUR LAYERS TRACES PCB DESIGN | YES |
| SURFACE MOUNT COMPONENT TECHNOLOGY | YES |
| AUDIO PRECISION QUALITY CONTROL VERIFICATION | YES |
| CONFIGURATION 2CH/4CH INPUT SELECTOR | NO |
