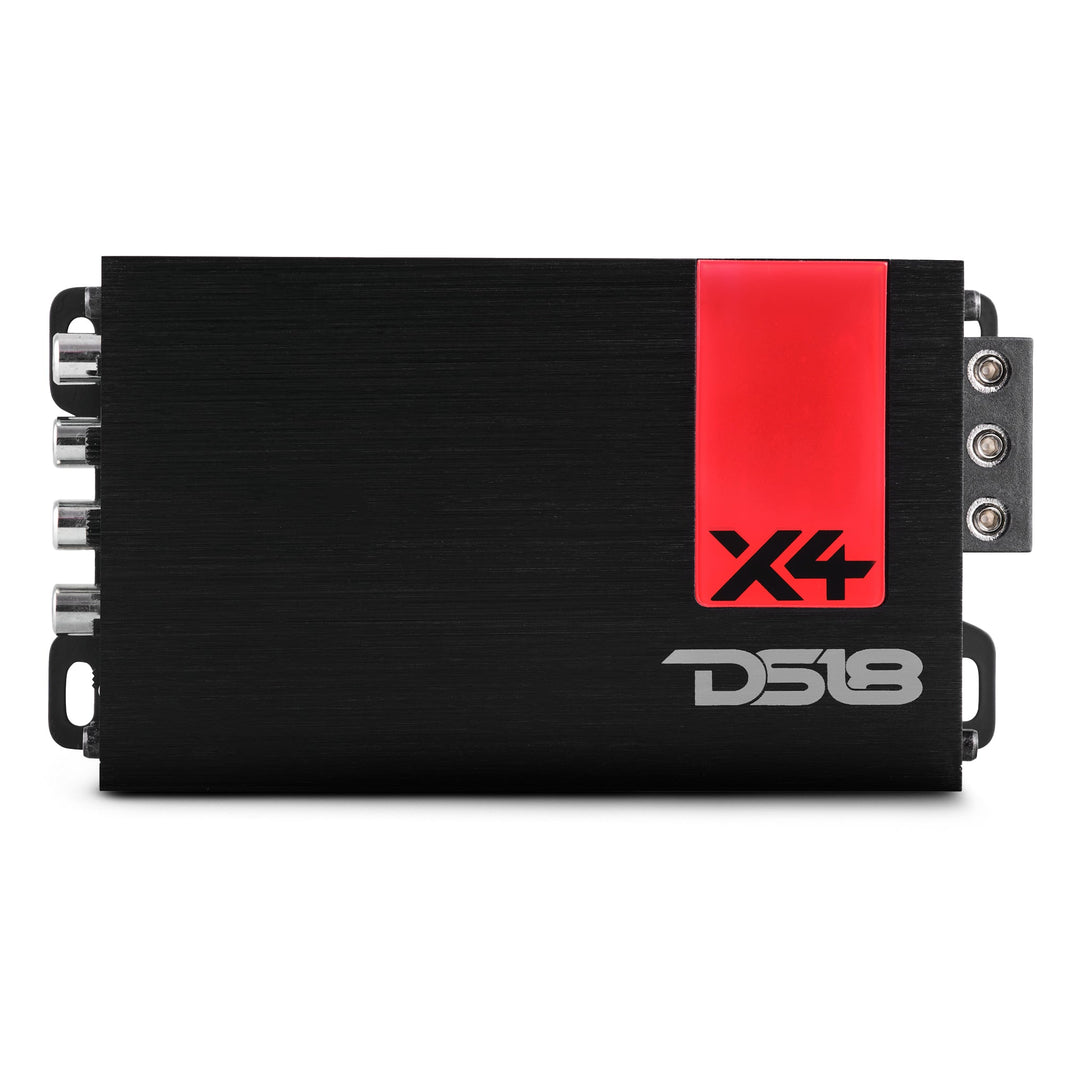

X 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm

X 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm

Regular price $215.95
Vendor:DS18
Type:Car Audio : Amplifier
SKU:X4
In stock

Sale Ends September 21st
Minimum Purchase of $349.00
*Applies to Mechman & XS Power Products ONLY
Quantity
Payment Options
Description Reviews

    DS18 X4 Ultra Compact Full Range Class D 4-Channel Car Amplifier 1320 Watts Max

    Micro amps are a great power solution for an audio enthusiast that doesn't have a lot of room to spare for big bulky amps. In this case, you want to maximize your size to power ratio so you can get as much power you can with as little space as possible. DS18 now has the our newest micro amp, the X4. The X4 is about as large as a cell phone and packs a whopping punch. This tiny amp pushes out 70w x 4 @ 4 ohms, 140w x 4 @ 2 ohms, and 220w x 2 @ 4 ohms bridged. Now you need to sacrifice very little space for multiple power options that can power most mids, highs, and tweeters.

    Highlights

    • Small and compact amp putting out amazing power for its size.
    • Perfect for vehicles with very little to no room to mount large amplifiers.
    • Perfect for motorcycles looking to put an amp or two in their Ferring.

    Great For

        • Motorcycle Audio
        • Pro Audio
        • Car Audio
        • Marine Audio
        • Powersports Audio
        • Jeep Audio

    Technical Details

    Model

    X4

    Rms Power @ 2 Ohms

    140w x 4 CH

    Rms Power @ 4 Ohms

    70w x 4 CH

    Rms Power @ 4 Ohms Bridge

    220w x 2 CH

    Frequency Response

    20Hz - 20KHz

    Signal/Noise Ratio

    >90db

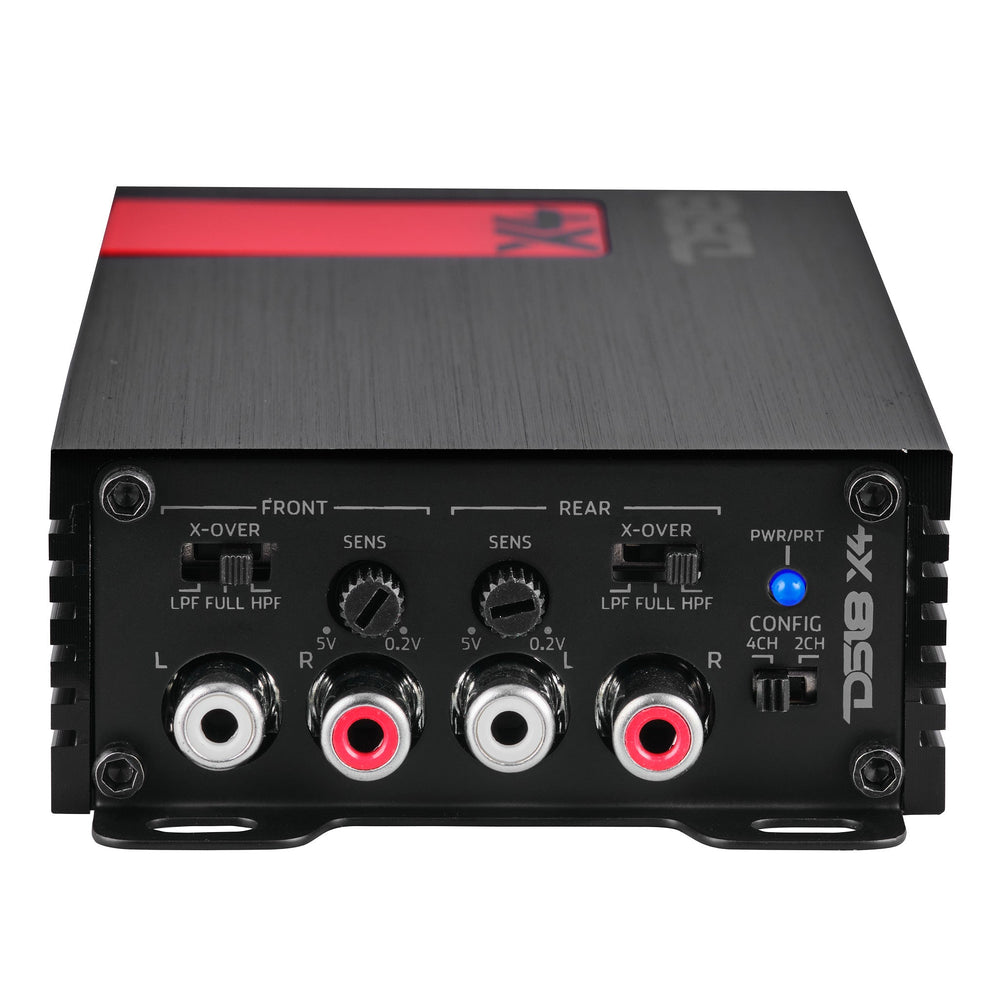

    Selectable X-Over

    Lpf/Flat/Hpf

    Fixed Lpf Frequency

    80Hz

    Low Lever Input Range

    0.2-5v

    Input Configuration

    2CH / 4CH

    LEDs Indicate Working Status

    Power/Protection

    Dimensions

    140.8 L X 82.4 W X 34 H (Mm)
