- 12 Volt LTO Battery
- Equivalent AGM Amp Hours: 60
- Cranking Amps: 750
- Max Amps: 1,000
- Wattage: 2,500
- Amp Hours: 20
- Four Inputs
- Two Side Terminals can be used either/or in conjunction with each other
- M6 Terminal Hardware Included
- 8 lbs.

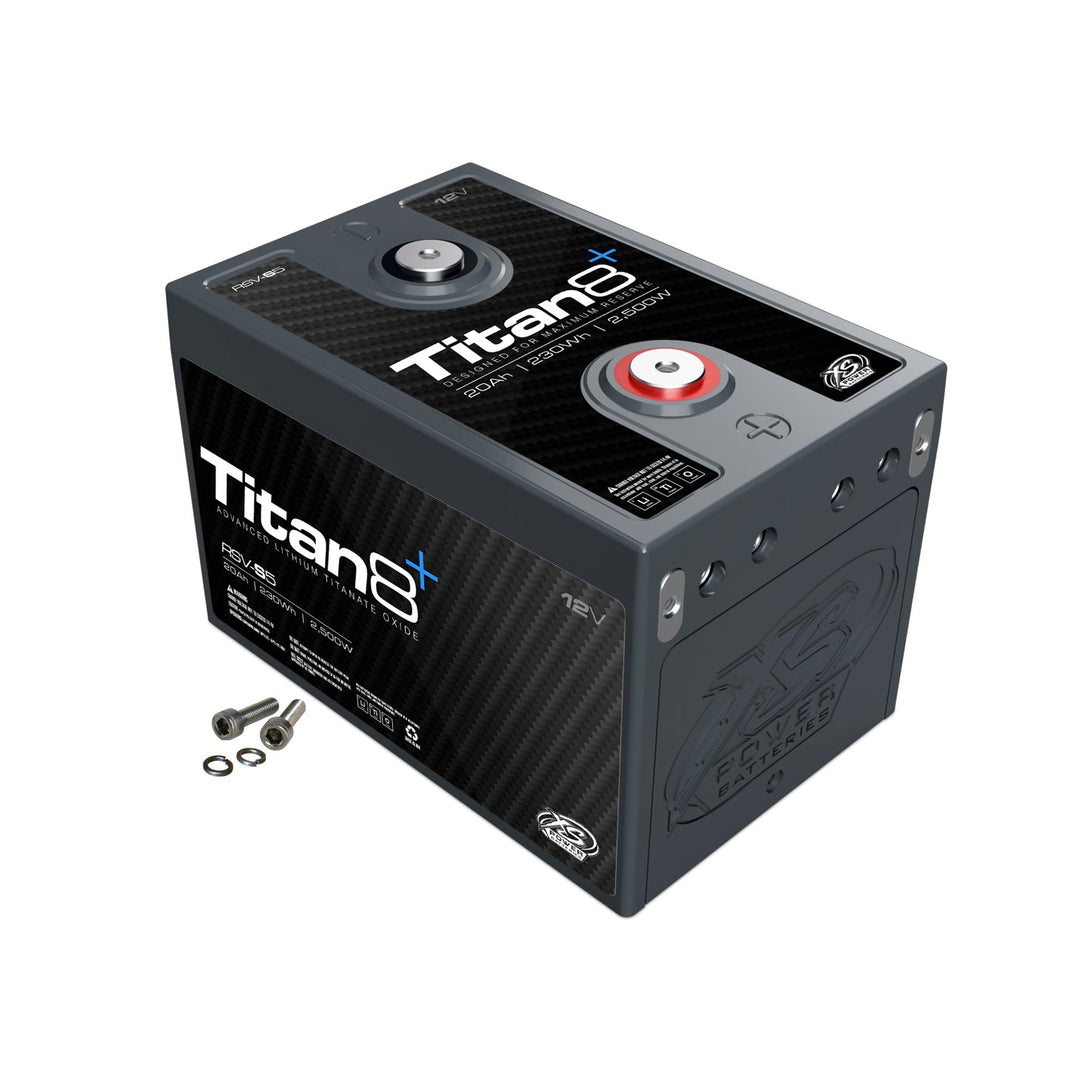

XS Power Titan8 lithium batteries are designed for unbeatable cranking power. This Lithium Titanate Oxide (LTO) Series uses a high-power lithium cell that is designed for high-burst output (5,000 watts for five seconds) and higher reserve capacity. The built-in 2/0 AWG bussing allows up to four positive and four negative hidden direct connections to each module without the need for any externally exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of batteries of nearly any size imaginable.
XS Power Titan8 lithium batteries are also offered in BCI direct fit models that are fully insulated with temperature monitoring built in and are suitable for use in the factory under-hood position.
See specifications below.
DESCRIPTION
Lithium Titanate Battery Reserve Module
Weight Lbs. – 8lbs
Weight Kgs. – 3.63kgs
Length – 7.4 in
Height – 5 in
Width – 4.85 in
Voltage – 12V
Wattage – 2,500
MAX Amps – 1,000
Energy Wh – 230
CA – 500A
CA Pb Eq* – 750A
Ah – 20
Ah Pb Eq* – 60
M6 Terminal Hardware Included
*CA Pb Eq is the equivalent cranking amp output when compared to AGM
*Ah Pb Eq is the equivalent amp-hour when compared directly to AGM
