DS18 ZR2000.1D Class D 1-Channel Monoblock Amplifier 2000 Watts RMS-1 Ohm

The ZR Series amps are sure to power all your subwoofers with great sound acuity and massive bass frequency responses.

They have been designed to efficiently pump out hard hitting bass and put your subwoofers at their maximum potential. Easily tuned, The ZR2000.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference.

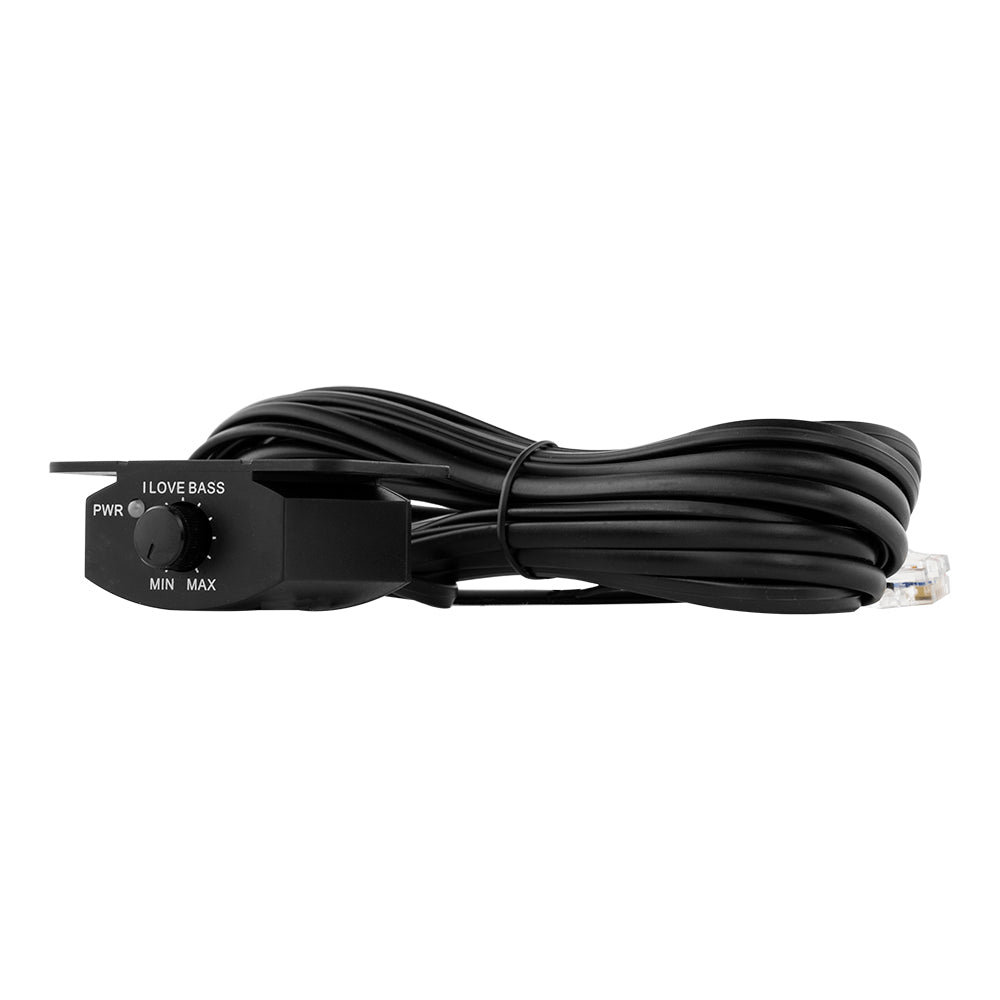

The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. The ZR2000.1D is made to deliver 2000 watts RMS @ 1-Ohm, 1300 watts RMS @ 2-Ohms, and 800 watts RMS @ 4 ohms giving you the perfect power for your bass.

Key Features

• Digital Class D Subwoofer Monoblock

• MAX Wattage: 6000w Peak @ 1-Ohm
• RMS Wattage: 2000 Watts RMS @ 1-Ohm, 1300 Watts RMS @ 2-Ohms, 800 Watts RMS @ 4-Ohms
• Frequency Response: 10-220 Hz
• Signal to Noise Ratio: >95Db
• Efficiency at 4-Ohms: 85%
• Total Harmonic Distortion: 0.01%
• Input Range: .02-6v
• Selectable X-Over: LPF fixed
• Bass Boost: 0-12Db
• Phase: 0-180
• LED Indicator: Clipping, Power, Protect

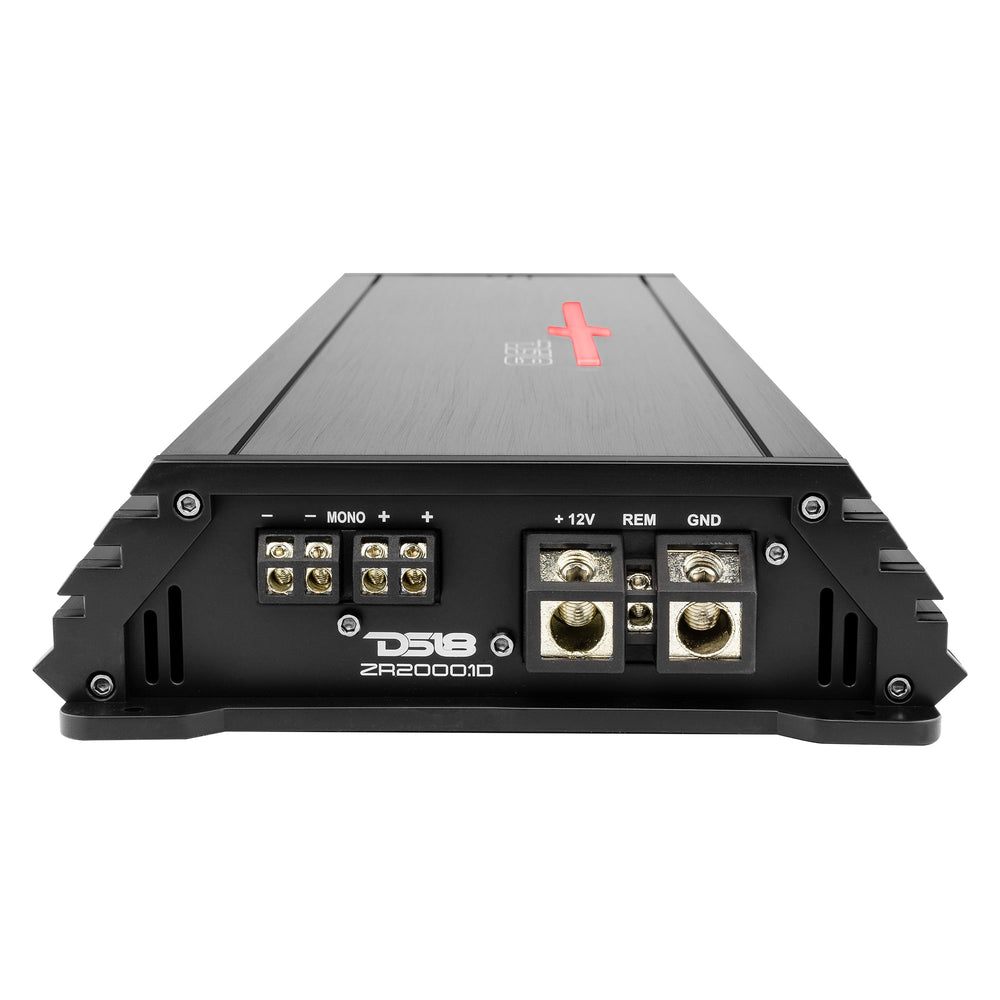

• Power and Ground Terminal: 0 Ga

• Minimum Impedance: 1 Ohm

Good For:

• Car Audio
• Pro Audio
• Motorcycles
• Home Studio
• Hi-Fi Installation
• Off-Road
• DIY Projects

Technical Details

                                        ZR2000.1D Product Manual
