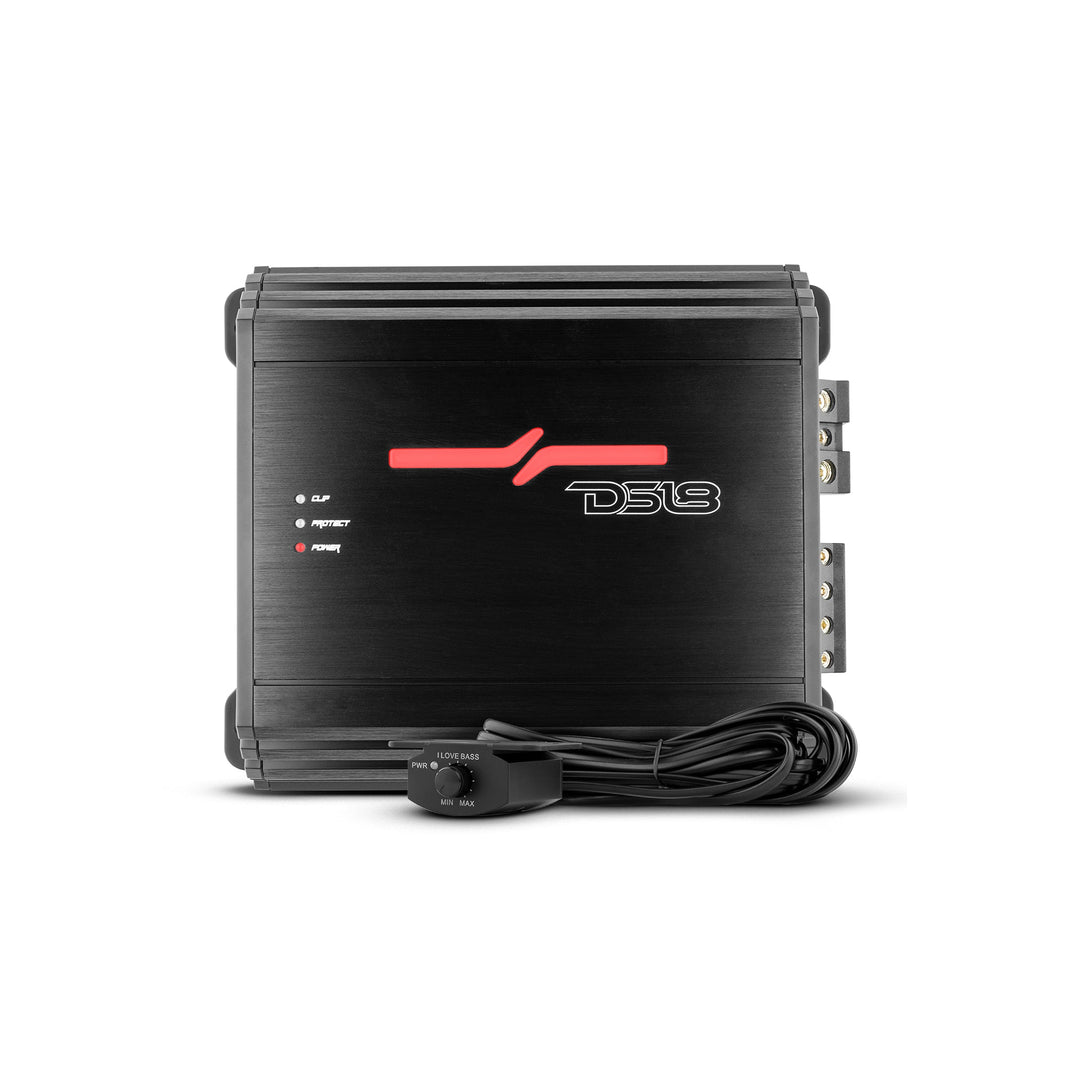

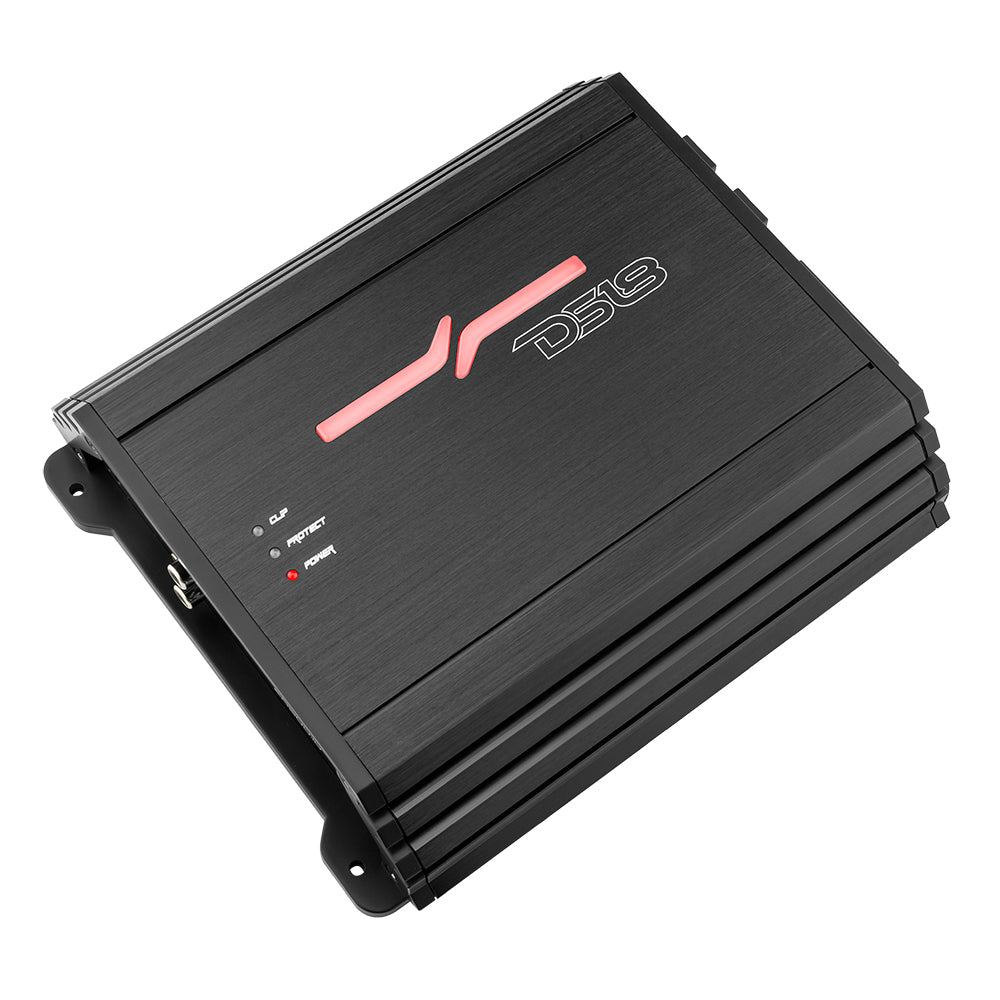

DS18 ZR500.1D ZR Class D 1-Channel Monoblock Amplifier
500 Watts RMS @ 1 Ohm

DS18’s ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.

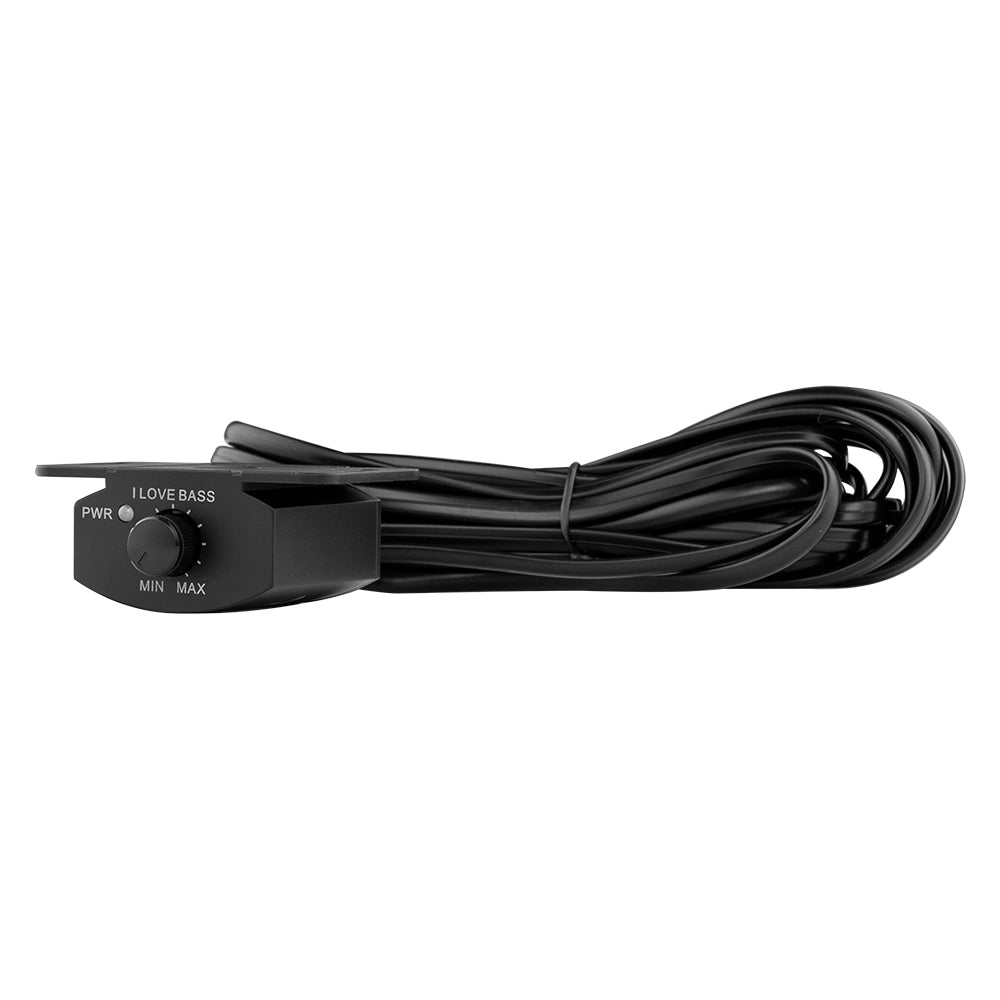

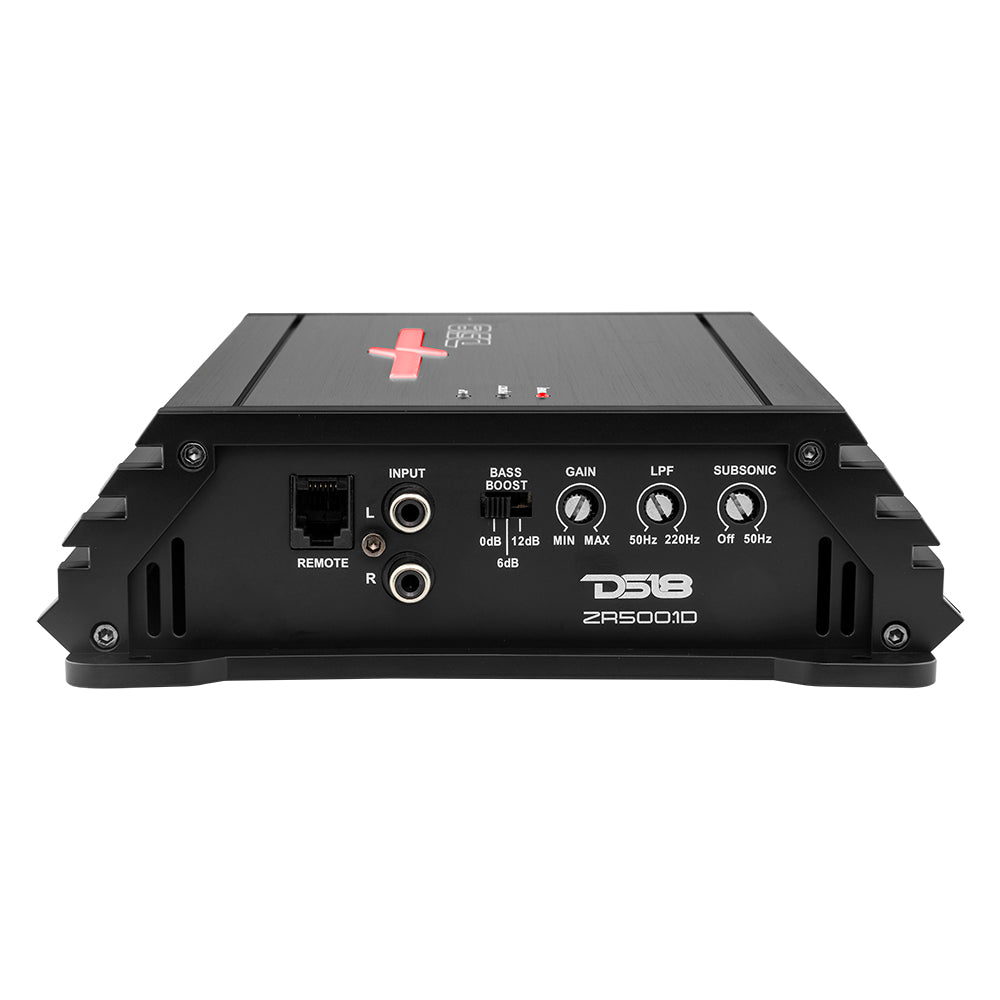

The ZR series was designed to pump up the bass and help your speakers reach their maximum potential as a part of your sound system. The ZR500.1D offers a surplus of tuning options: such as Lowpass, and Subsonic frequency adjusters, as well as Gain Knob  and Bass Boost Switch Selector to help tune any song to your frequency.

The ZR500.1D is made to deliver 500W RMS @ 1-Ohm, 300W RMS @ 2-Ohms, and 200W RMS @ 4-Ohms giving you the perfect power settings for your speakers.

Key Features

• Class D Monoblock Amplifier
• MAX Wattage: 1500 Watts Peak
• RMS Wattage: 500W RMS @ 1-Ohm, 300W RMS @ 2-Ohms, and 200W RMS @ 4-Ohms
• Frequency Response: 10 – 220Hz
• Signal to Noise Ratio: >95dB
• Efficiency at 4-Ohms: 85%
• Total Harmonic Distortion: 0.01%
• Input Range: 0.2v - 6v
• Selectable X-Over: LPF Fixed
• LED Indicator: Clipping, Power, Protect

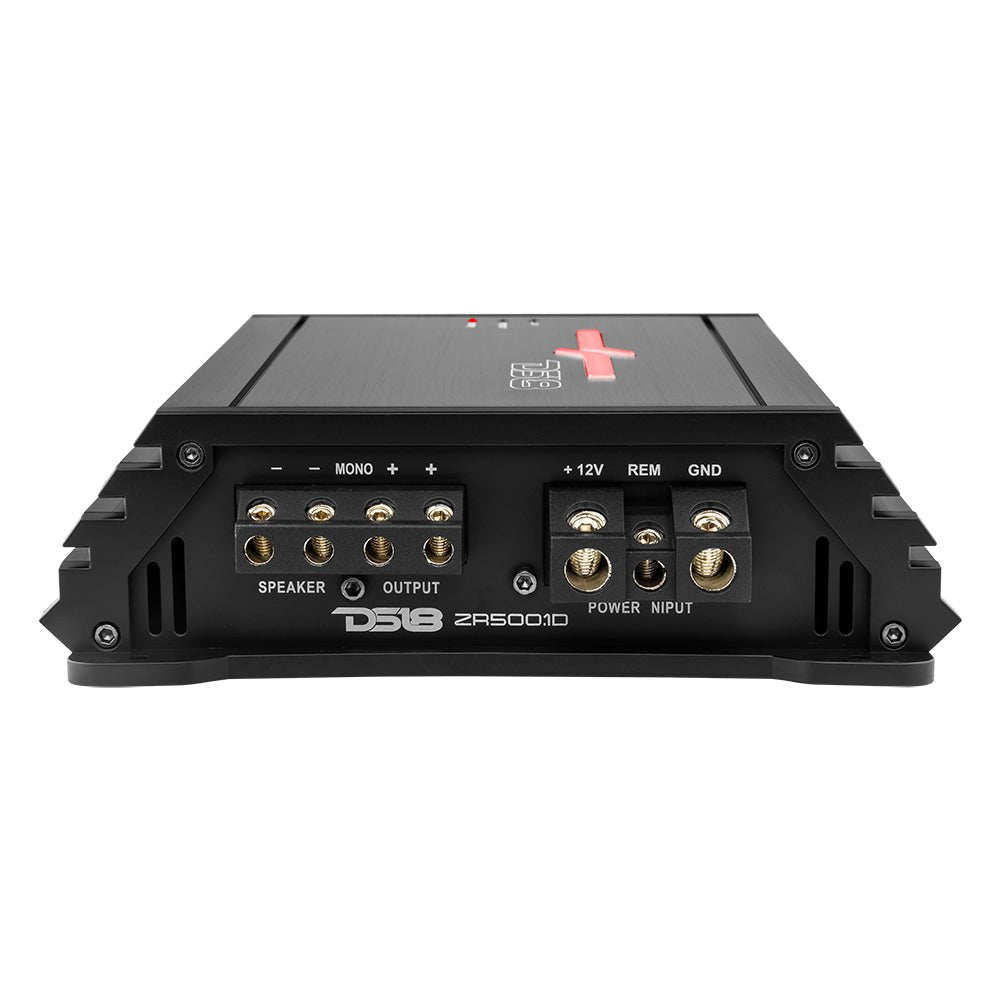

• Power and Ground Terminal: 4 Ga
• Minimum Impedance: 1-Ohm

Great for

• Car Audio
• Pro Audio
• Off Road
• Motorcycles
• Stunt Walls
• DIY Projects

Technical Details

             ZR500.1D Product Manual
