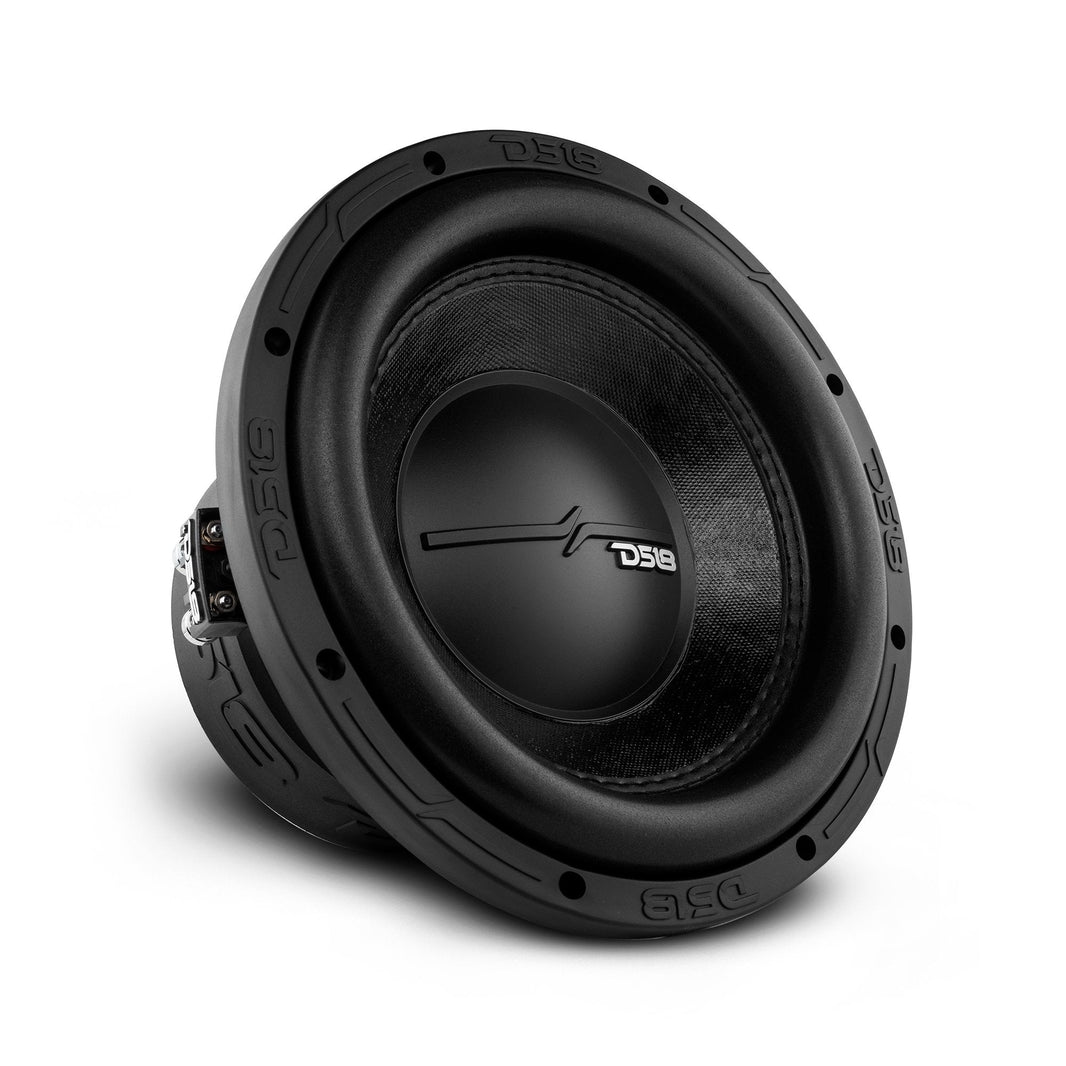

DS18 ZR10.4D 10" Car Subwoofer with 1400 Watts 4-Ohm DVC

The ZR subline is an amazing entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.

This 10 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 700w RMS and 1400w Max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout and outside the vehicle.

Highlights

• Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
• Great power handling of 700w RMS and 1400w Max through a high strength 2.5 inch aluminum voice coil.

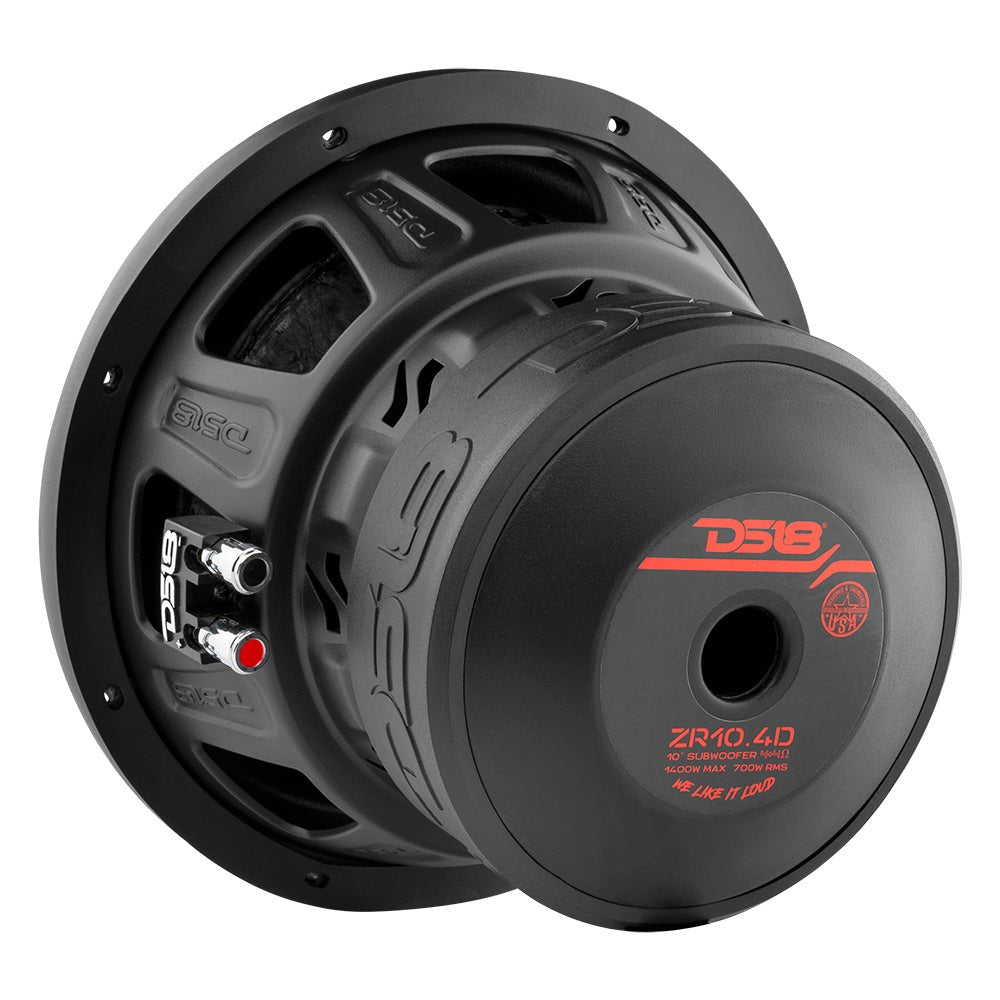

• Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high quality push terminal connectors.
• Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile.













  Technical Details

                              ZR10.4D Product Manual



  SPECIFICATIONS
  Nominal Diameter	10"
  Nominal Impedance	4 + 4 Ohms
  RMS Power Handling	700W
  MAX Power Handling	1400W
  Sensitivity (1w/1m)	81 dB
  Frequency Response	27Hz - 200Hz
  Recommended Lo Pass Crossover	100 Hz
  MOTOR
  Voice Coil Diameter	2.5" / 61.6mm
  VC Former Material	Aluminum
  Winding Material	Copper
  Cone Material	Non Pressed Paper
  Dust Cap Material	PPI
  Surround Material	Foam
  Basket Material	Steel
  Basket Color/Finish	Matte Black
  Magnet Material	Ferrite
  Magnet Weight	100 oz
  Displacement Volume	0.05 ft3
  THIELE & SMALL PARAMETERS
  Equivalent Volume	8.18 L
  Excursion (one way)	25mm
  Free Air Resonance	37Hz
  Mechanical Factor	4.86
  Electrical Factor	0.93
  Total Factor	0.78
  Moving Mass	216.3g
  Compliance	52.8µ m/N
  BL Factor	10.7
  Voice Coil Inductance	823.5m mH
  Cone Area	333.29 Cm2
  DC Resistance	3.4 + 3.4 ohm
  Efficiency Bandwidth Product	39.78

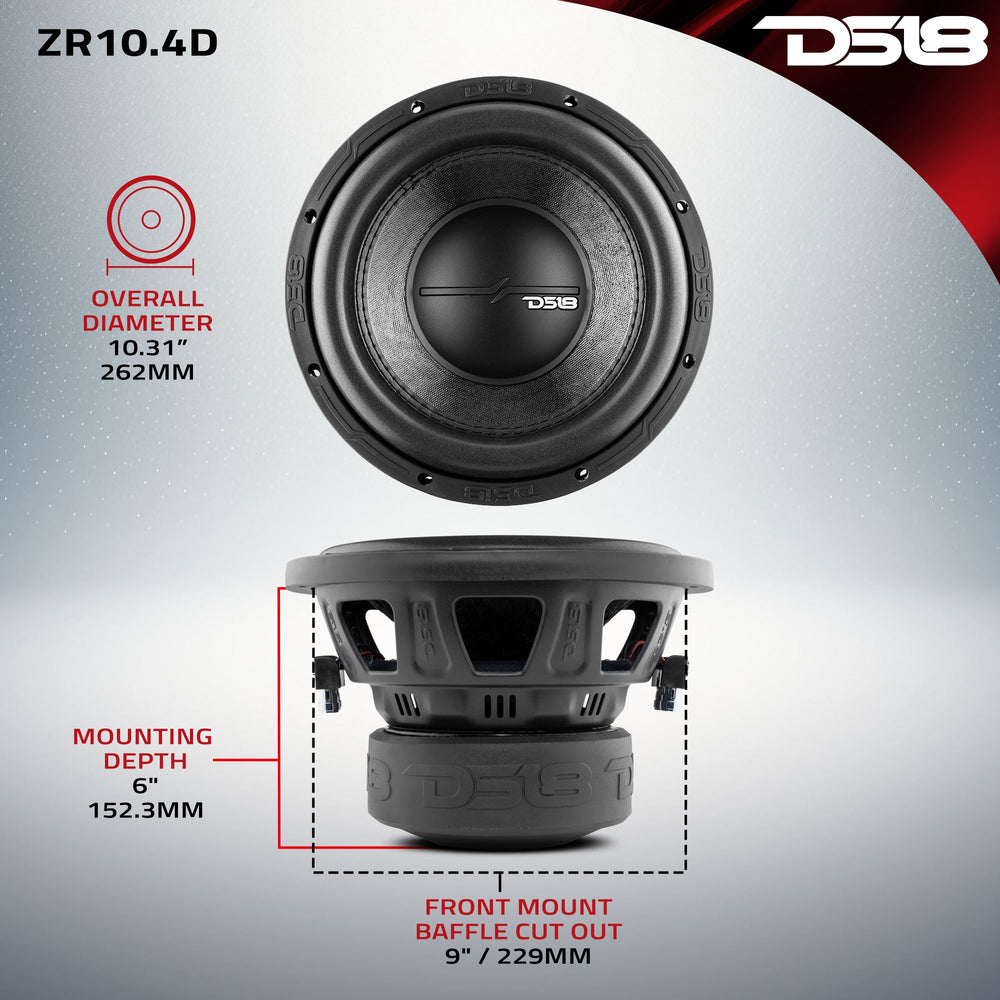

  MEASUREMENTS
  Overall Diameter	10.31” / 262mm
  Overall Depth	6.92" / 176mm
  Front Mount Baffle Cutout	9" / 229mm
  Mounting Depth	6" / 152.3mm
  Motor Diameter	6.1" / 155mm
