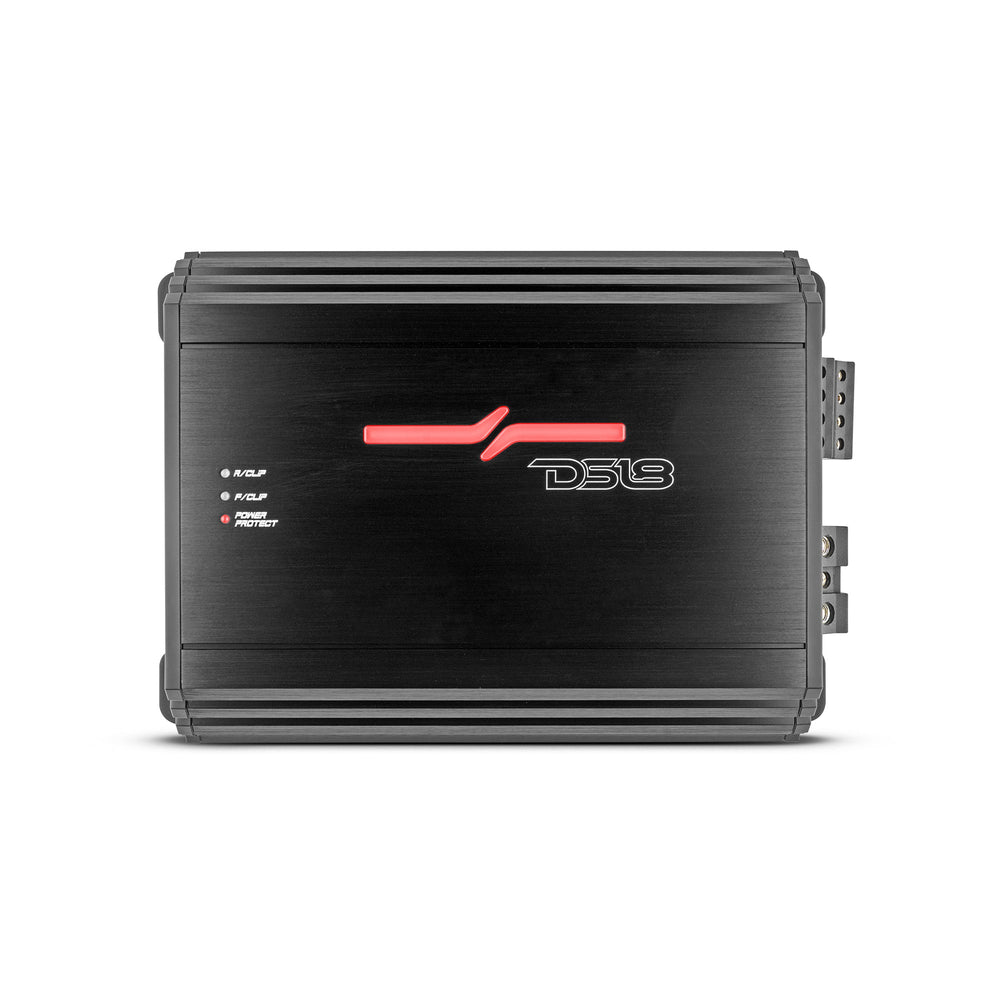

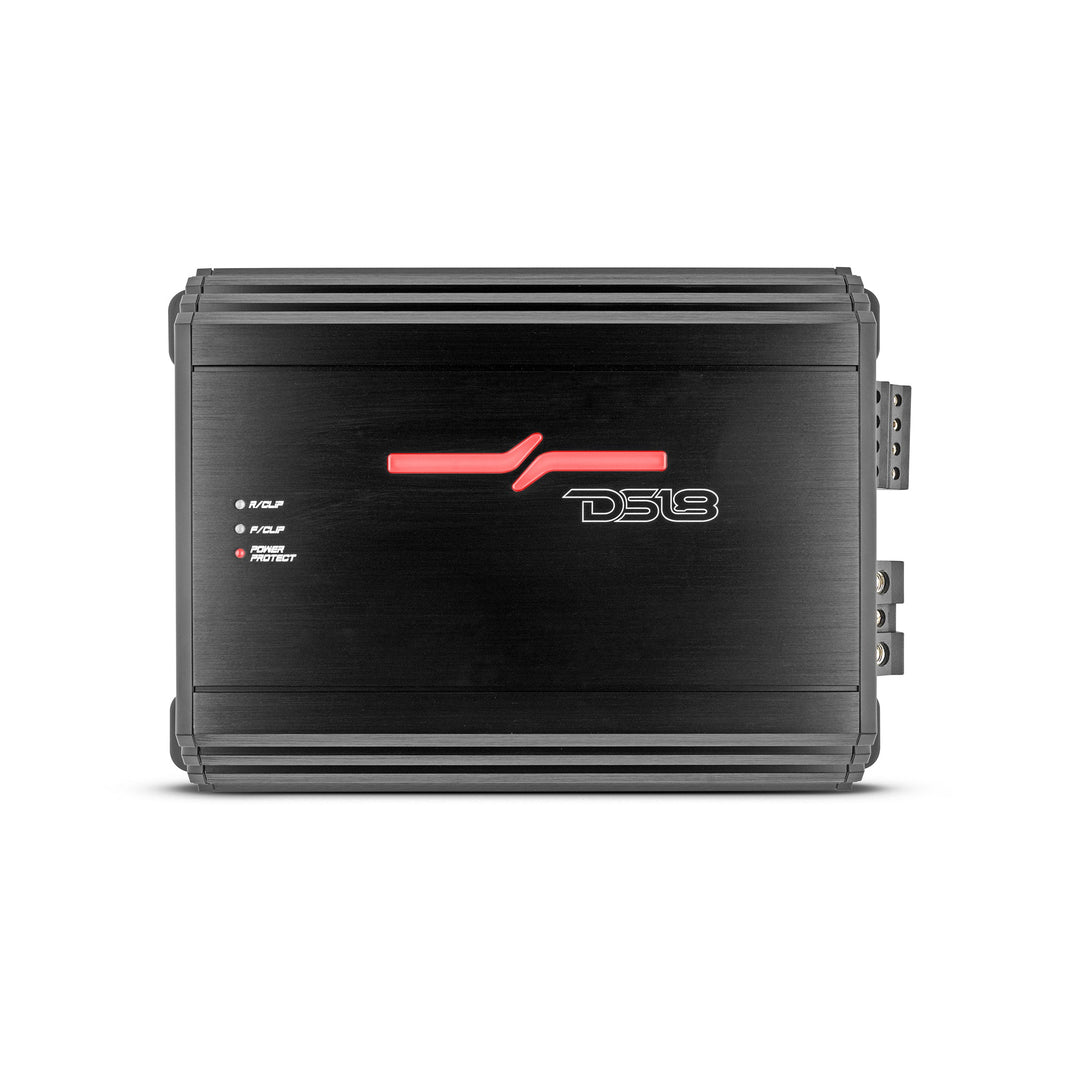

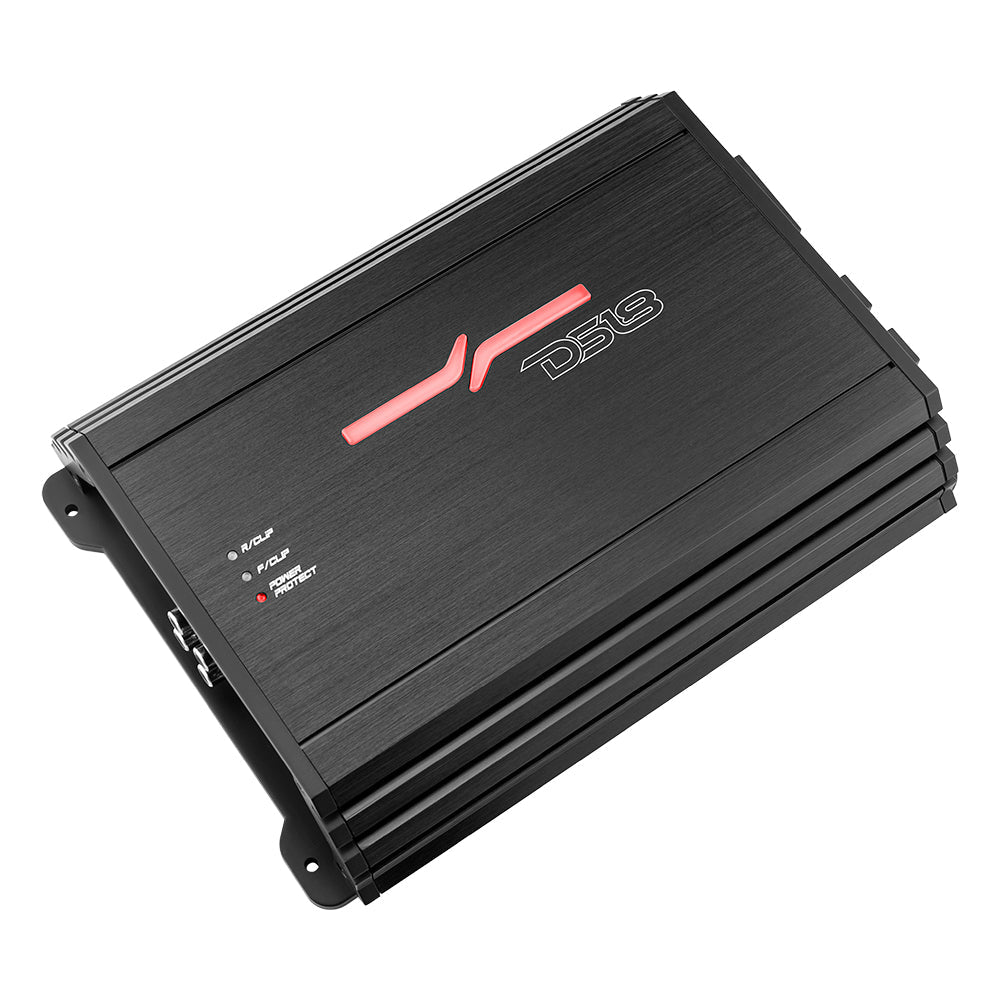

DS18 ZR600.4D ZR Class D 4-Channel Full Range Car Amplifier 150 x 4 @4 ohm Watts RMS

 DS18’s ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.

The ZR series was designed to pump up the bass and help your speakers reach their maximum potential as a part of your sound system. The ZR600.4D offers a surplus of tuning options: Low pass, High pass, and Full Frequency Selector Switches, as well as Gain Knob to help tune any song to your frequency.

The ZR600.4D is made to deliver 2 x 400W RMS @ 4-Ohms Bridge, 4 x 240W RMS @ 2-Ohms, and 4 x 150W RMS @ 4-Ohms giving you the perfect power for your bass.

Key Features

• Class D Stereo Full Range Amp
• MAX Wattage: 2400 Watts Peak
• RMS Wattage: 2 x 400W RMS @ 4-Ohms Bridge, 4 x 240W RMS @ 2-Ohms, 4 x 150W RMS @ 4-Ohms
• Frequency Response: 20Hz – 20KHz
• Signal to Noise Ratio: >90dB
• Efficiency at 4-Ohms: 90%
• Total Harmonic Distortion: 1%
• Input Range: 0.2v - 6v

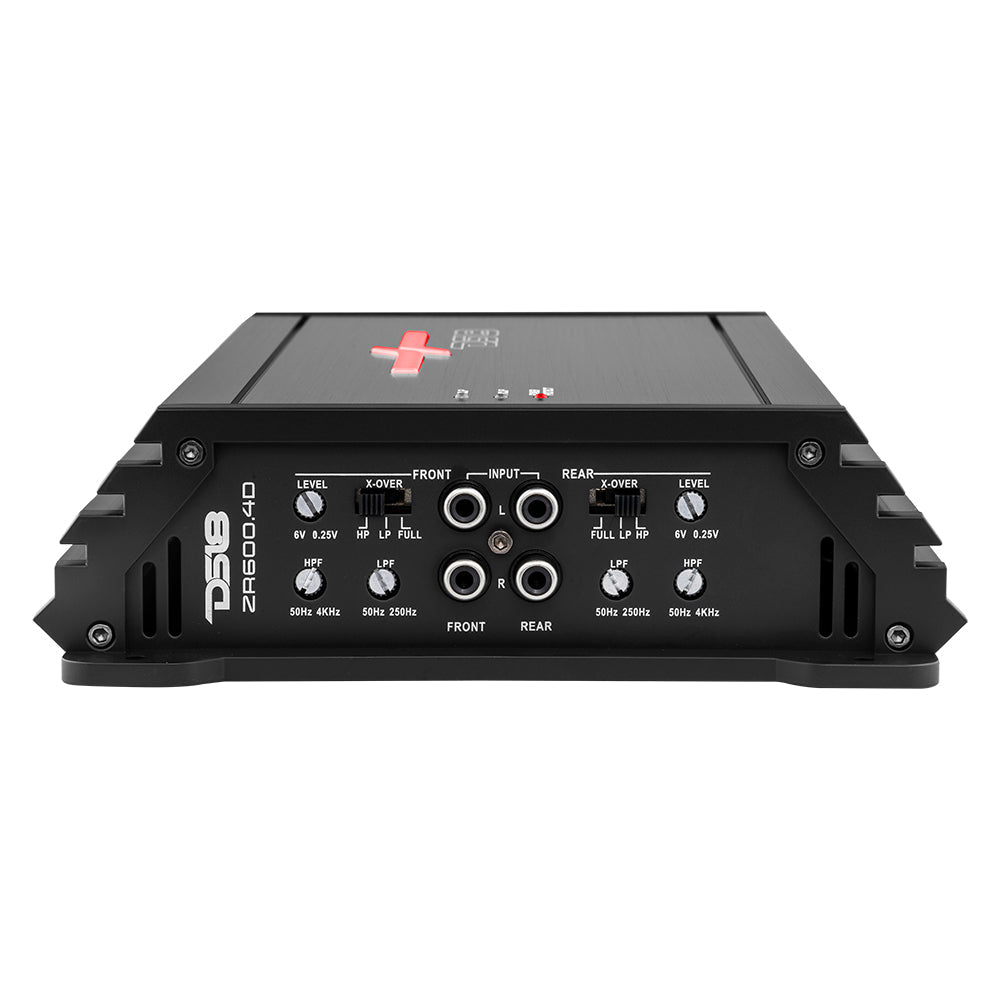

• Selectable X-Over: FULL/LPF/HPF
• LED Indicator: Clipping, Power, Protect

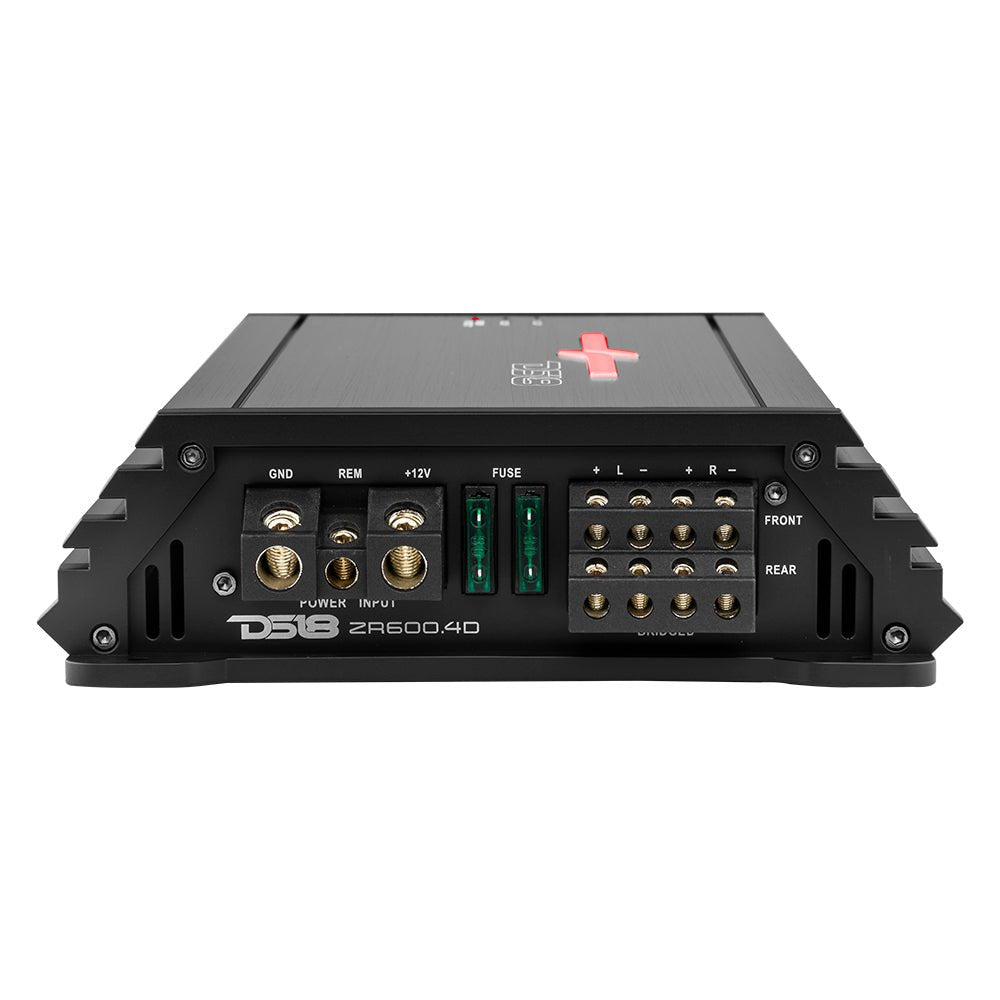

• Power and Ground Terminal: 4 Ga
• Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridge)

Great for

• Car Audio
• Pro Audio
• Off Road
• Motorcycles
• Stunt Walls
• DIY Projects

Technical Details

             ZR600.4D Product Manual
