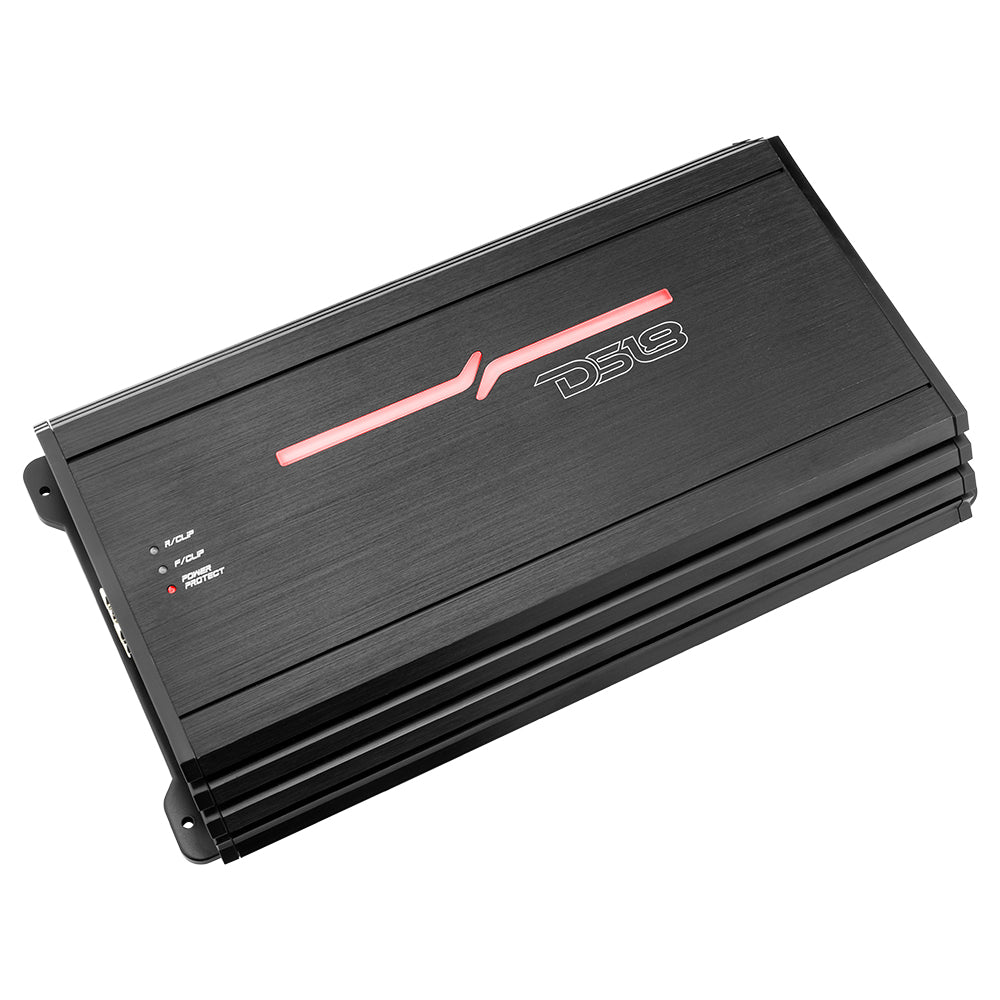

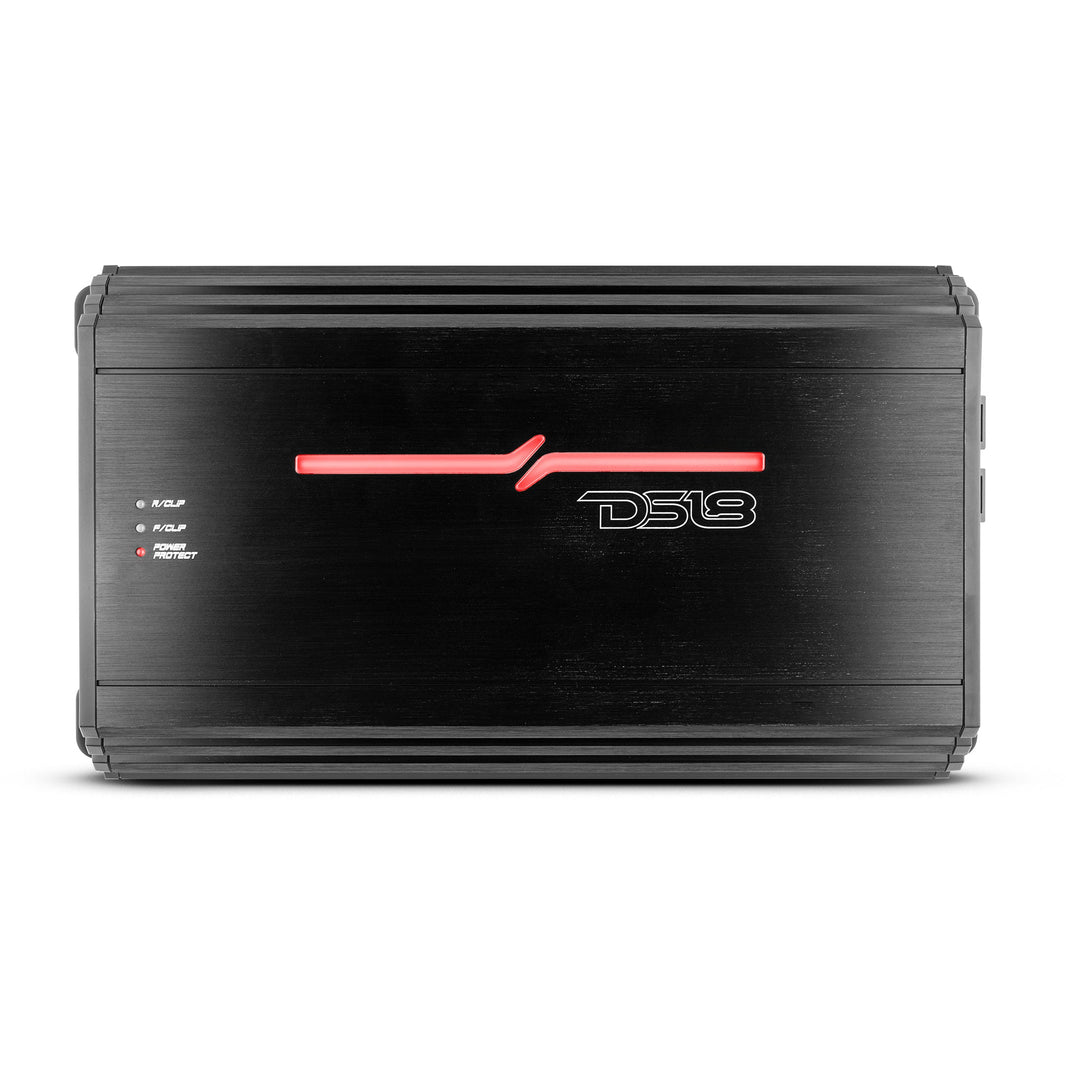

DS18 ZR1600.4D ZR Class D 4-Channel Stereo Full Range Car Audio Amplifier 4 x 400 @4 Ohms Watts RMS

DS18’s ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.

The ZR series was designed to pump up the volume and help your speakers reach their maximum potential as a part of your sound system. These amps offer a surplus of tuning options: the ZR1600.4D comes with Lowpass, and Highpass filters to help tune any song to your frequency.

The ZR1600.4D is made to deliver 2 x 1200 watts RMS @ 4-Ohms Bridge, 4 x 680 watts RMS @ 2-Ohms, and 4 x 400 watts RMS @ 4-Ohms giving you the perfect power for your bass.

Key Features

• Digital Class D Full Range Amp
• MAX Wattage: 7200w Peak
• RMS Wattage: 2 x 1200 Watts RMS @ 4-Ohms Bridge, 4 x 680 Watts RMS @ 2-Ohms, 4 x 400 Watts RMS @ 4-Ohms
• Frequency Response: 20Hz – 20KHz
• Signal to Noise Ratio: >90dB
• Efficiency at 4-Ohms: 82%
• Total Harmonic Distortion: 1%
• Input Range: 0.2v - 6v

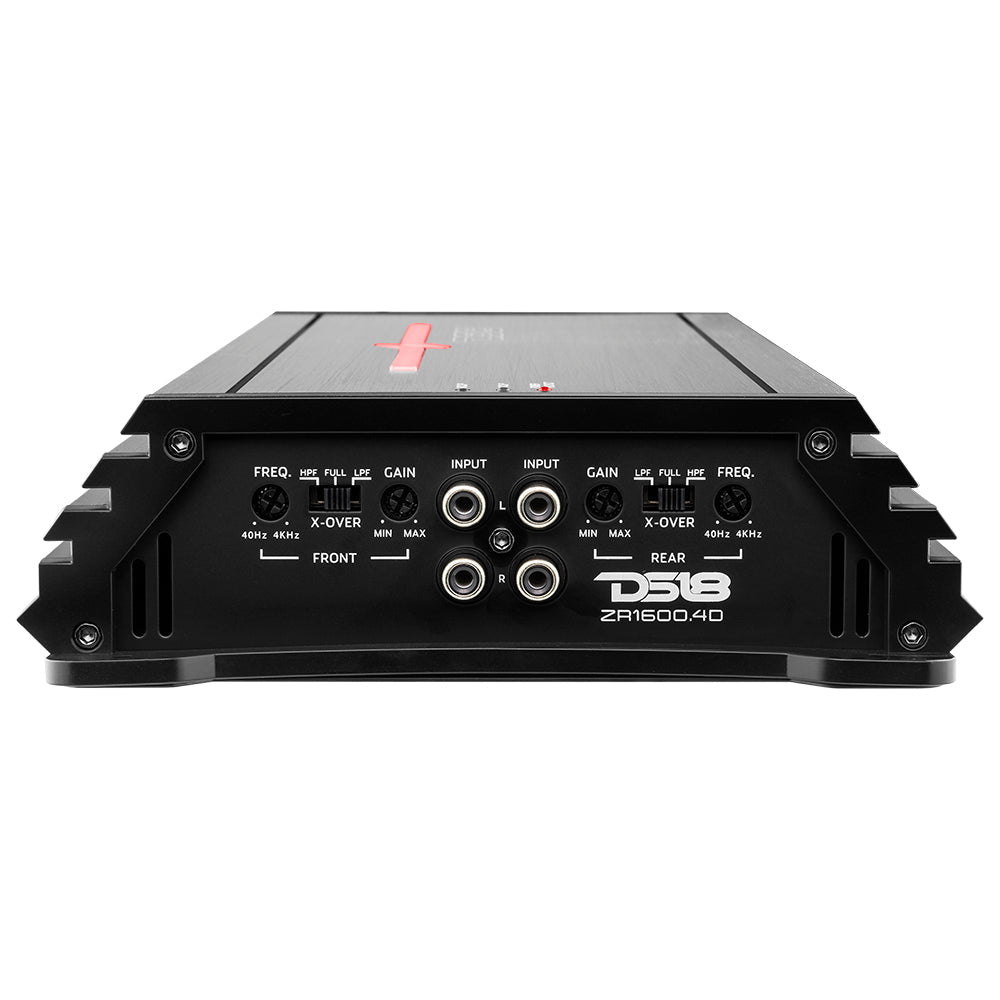

• Selectable X-Over: FULL/LPF/HPF
• LED Indicator: Clipping, Power, Protect

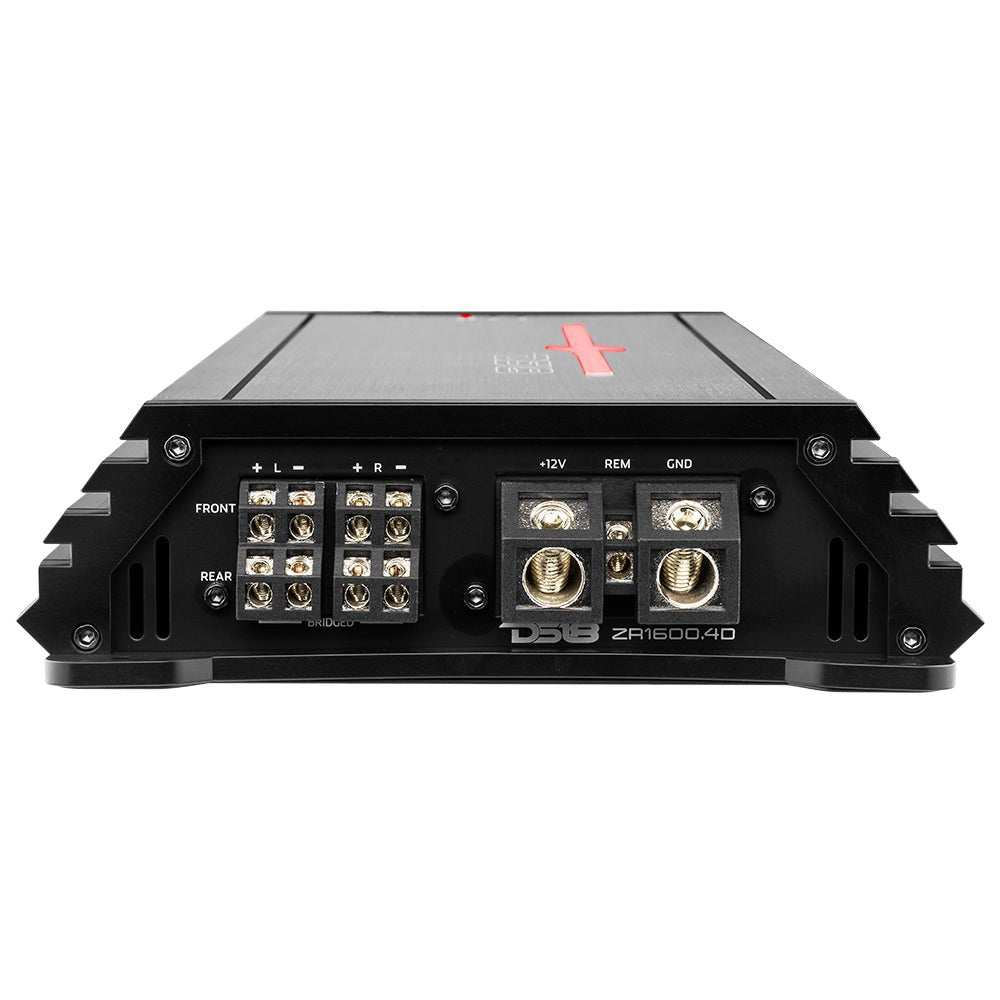

• Power and Ground Terminal: 0 Ga
• Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridge)

 Great for:

• Car Audio
• Pro Audio
• Off Road
• Motorcycles
• Stunt Walls
• DIY Projects

Technical Details

                 ZR1600.4D Product Manual
