DS18  ZXI10.4D 10” High Excursion Car Subwoofer – 1600 Watts 4-Ohm DVC, Quad Stacked Magnets

More Power, More Bass!

Designed to provide thumping power that shakes everyone’s mirrors, the ZXI10.4D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 2.5-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency, while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 900Hz down to 20Hz with incredible clarity and accuracy!

Order the DS18 ZXI10.4D today to turn up the bass with thunderous power!

Powerful Bass!

The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZXI10.4D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 86 dB. This sub is also conservatively rated at 800W RMS Power Handling and 1600W MAX Power Handling, making it capable of handling anything you throw at it!

 Highlights

• Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets.
• High Excursion Surround to help produce maximum a 28.5mm (one-way) XMAX without damage to the cone and surround.
• Conservatively rated at 800W RMS Power Handling and 1600W MAX Power Handling so you can get the high-powered thunderous bass you crave.
• 2.5-inch voice coil to absorb and produce the highest heat to power ratio all while pumping out thumping head turning bass.
• Low FS of 29HZ so the sub can play ultra-low frequencies all while still retaining the versatility of a traditional subwoofer.
• Ultra-low frequency response of 20HZ-900HZ to ensure great lows and you will be able to have hard hitting bass that plays with authority.

Great for:

• Car Audio
• Pro Audio
• Home Studio
• Hi-Fi Installation
• Surround Sound
• DIY Projects

Technical Details

ZR10.4D Product Manual

Nominal Diameter	10" / 254mm
Nominal Impedance	4 + 4 ohms
RMS Power Handling	800w
MAX Power Handling	1600w
Sensitivity (1w/1m)	86dB
Frequency Response	20Hz-900Hz
Recommended Lo Pass Crossover	90Hz
MOTOR
Voice Coil Diameter	2.5" / 63.5mm
Voice Coil Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Non-Pressed Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Aluminum
Basket Color/Finish	Sandblasted Black
Magnet Material	Ferrite
Magnet Weight	196 Oz (4 x 49 oz)
Displacement Volume	2.23L / 0.078ft3
MEASUREMENT

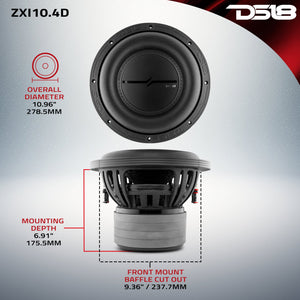

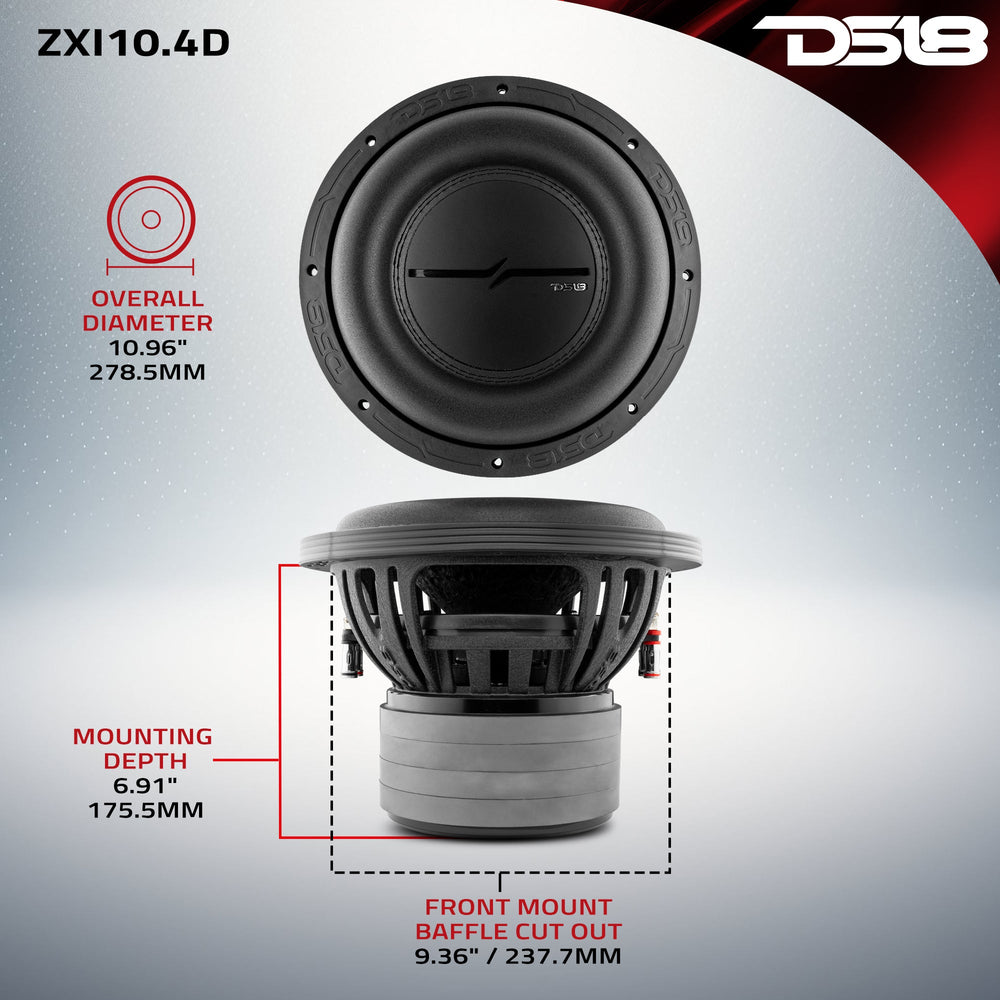

Overall Diameter	10.96" / 278.5mm
Overall Depth	8.34" / 212mm
Front Mount Baffle Cutout	9.36" / 237.7mm
Mounting Depth	6.91" / 175.5mm
Motor Diameter	6.69" / 170mm

 .
