    DS18 ZXI15.4D High Excursion 15" Car Subwoofer
    2000 Watts 4-Ohm DVC, Quad Stacked Magnets

    More Power, More Bass!

    Designed to provide thumping power that shakes everyone’s mirrors, the ZXI15.4D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 3-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency, while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 900Hz down to 15Hz with incredible clarity and accuracy!

    Order the DS18 ZXI15.4D today to turn up the bass with thunderous power!

    Powerful Bass!

    The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZXI15.4D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 89 dB. This sub is also conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling, making it capable of handling anything you throw at it!

    Product Highlights

    • Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets.
    • High Excursion Surround to help produce maximum a 30.5mm (one-way) XMAX without damage to the cone and surround.
    • Conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling so you can get the high-powered thunderous bass you crave.
    • 3-inch voice coil to absorb and produce the highest heat to power ratio all while pumping out thumping head turning bass.
    • Low FS of 28Hz so the sub can play ultra-low frequencies all while still retaining the versatility of a traditional subwoofer.
    • Ultra-low frequency response of 15Hz-900Hz to ensure great lows and you will be able to have hard hitting bass that plays with authority.

        Technical Details
        Nominal Diameter  15" / 381mm
        Nominal Impedance  4 + 4 ohms
        RMS Power Handling  1000w
        MAX Power Handling  2000w
        Sensitivity (1w/1m)  89dB
        Frequency Response 15Hz-900Hz
        Recommended Lo Pass Crossover 90Hz
        MOTOR
        Voice Coil Diameter 3" / 76.2mm
        Voice Coil Former Material  Black Aluminum
        Winding Material  CCAW
        Cone Material Non-Pressed Paper
        Dust Cap Material PPI
        Surround Material Foam
        Basket Material  Aluminum
        Basket Color/Finish Sandblasted Black
        Magnet Material Ferrite
        Magnet Weight 232 Oz (4 x 58 oz)
        Displacement Volume 5.82L / 0.2 ft3
        MEASUREMENT

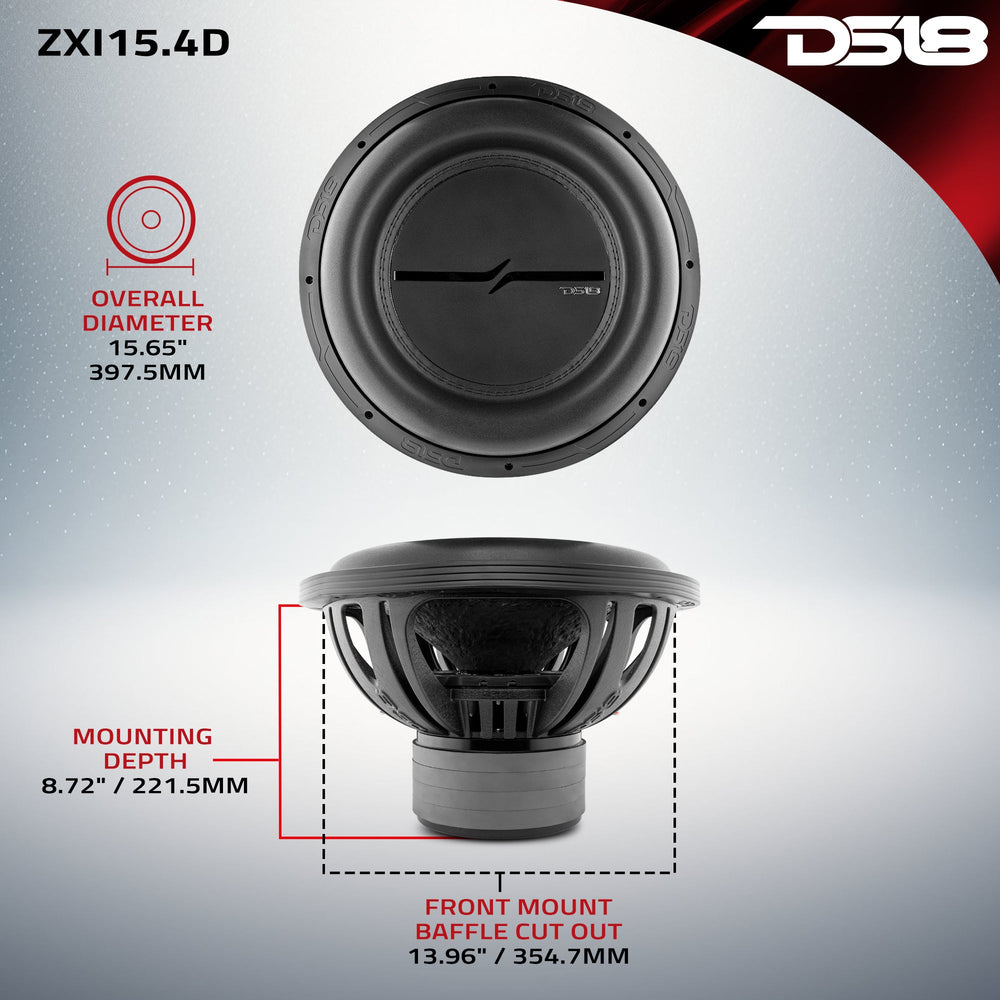

        Overall Diameter 15.65" / 397.5mm
        Overall Depth 10.51" / 267mm
        Front Mount Baffle Cutout 13.96" / 354.7mm
        Mounting Depth 8.72" / 221.5mm
        Motor Diameter 7.48" / 190mm
